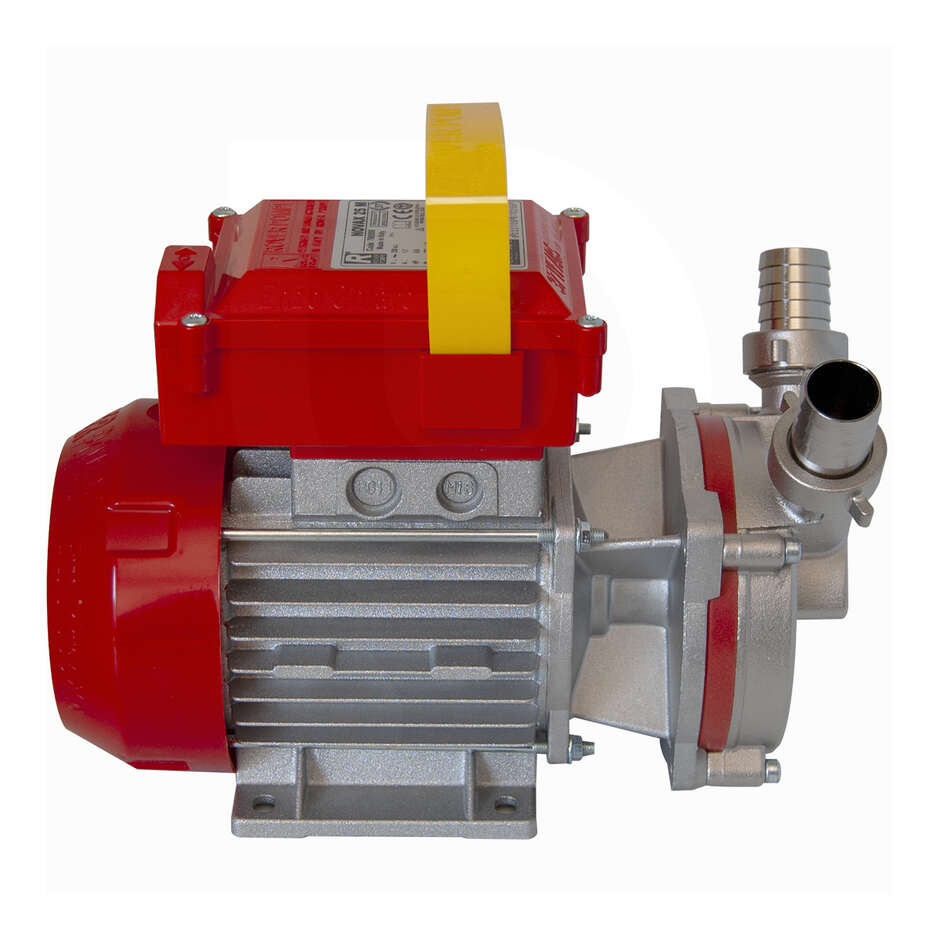

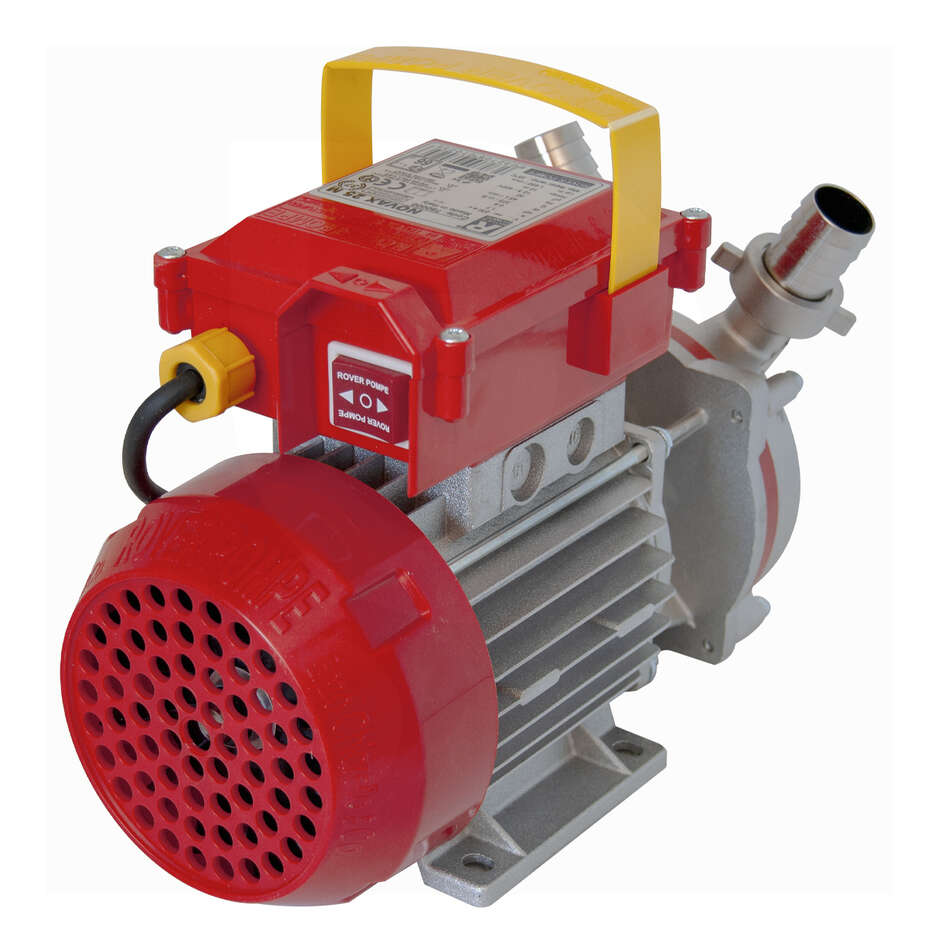

Electric pump Novax 25 M

Electric pump Novax 25 M

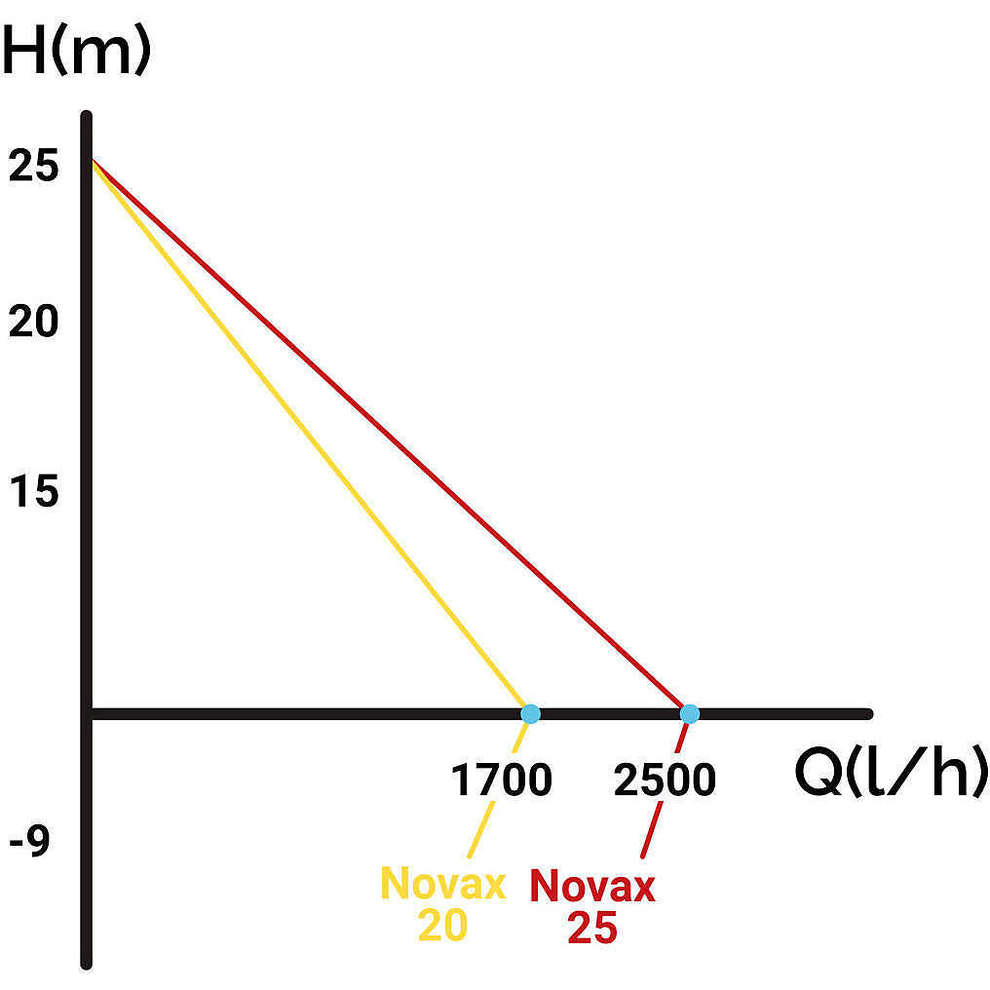

The Novax 25 electric pump is an instrument for the transfer of food liquids of different types, with a bisense and selfaspirating operation. Thanks to the 0.6 Hp motor, capable of reaching 1450 rpm, the Novax 25 electric pump boasts a flow rate of 45 litres per minute. The good power of the electric motor also makes it possible to transfer the fluid up to a height of 12 metres.

It is a star-shaped impeller model designed mainly for the transport of food-grade liquids such as wine, oil and beer, with a temperature not exceeding 35°C. It can be used in agriculture, oenology, gardening and boating. The Novax electric pump of 25 works very well with neutral and clean products, with a percentage of particles in suspension of less than 0.5%. If necessary, a special narrow mesh filter can be installed at the end of the suction pipe.

Technical characteristics:

• Power supply: 220V
• Power: 0.6 Hp
• Rpm: 1450 rpm
• Flow rate: 2400 Lt/h
• Height: 12 m
• Maximum temperature: 35°C
• Hose holder: Ø25 mm
• Dimensions: mm 250x120x190h
• Weight: 6 kg
• Appliance complies with CE safety standards

To be used with:

• Hose Oil Ø25 (1 m)
• Hose Wine Red Ø25 (1 m)
