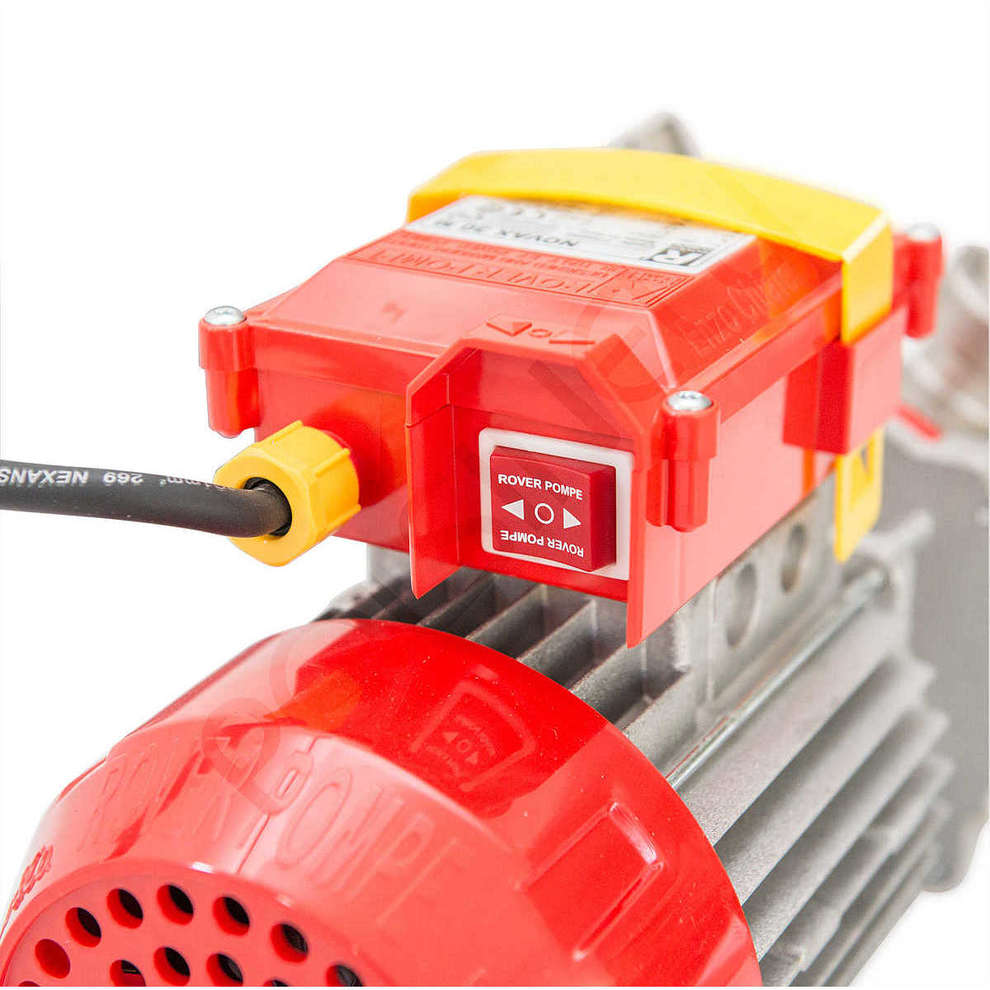

Electric pump Novax 20 M

Electric pump Novax 20 M

Composed of a 0. 5 Hp motor and star-shaped impeller, the Novax 20 electric pump is an excellent solution for the fast and precise transfer of different types of food liquids, such as oil, beer, wine and wort, up to 35°C. The engine reaches 2850 rpm, for a flow rate ranging from 5 to 28 liters per minute. The Novax 20 electric pump has a two-way operation, so the impeller is capable of suctioning the liquid in both directions. Thanks to the maximum transfer height of 27 meters, and the ability to continuously pump even liquids with air and gas, the Novax electric pump of 20 is often used in agriculture and wine, gardening and boating. It is recommended to always transfer neutral and clean liquids, or solid particles in suspension not exceeding 0. 2-0. 5%. The hose rack measures Ø20 mm.

Characteristics:

• Power supply: 220V
• Power: 0,5 Hp
• Rpm: 2850
• Minimum/maximum flow rate: 5-28 Lt/min
• Minimum/maximum height: 1-25 m
• Maximum temperature: 35°C
• Hose holder: Ø20 mm

To be used with:

• Hose Cristallo Ø19 (5 m)
• Hose Oil Ø20 (1 m)
• Hose Spid Ø19 (1 m)
• Hose Steel Ø18 (1 m)
