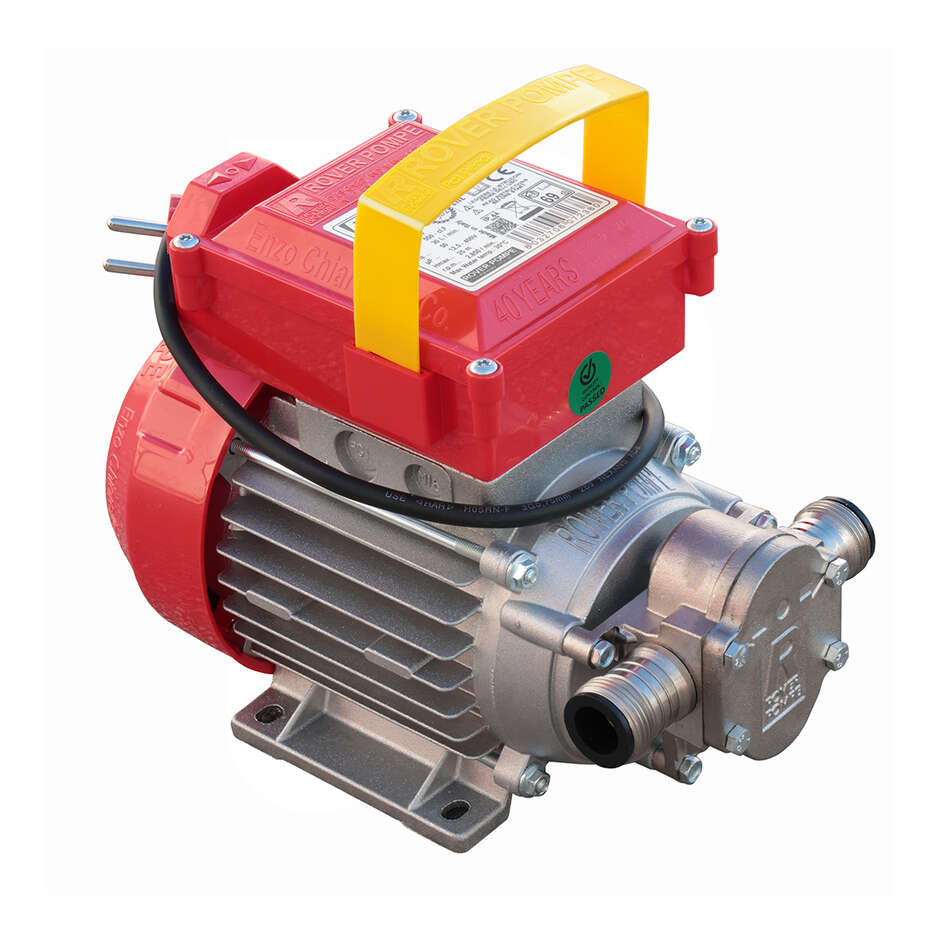

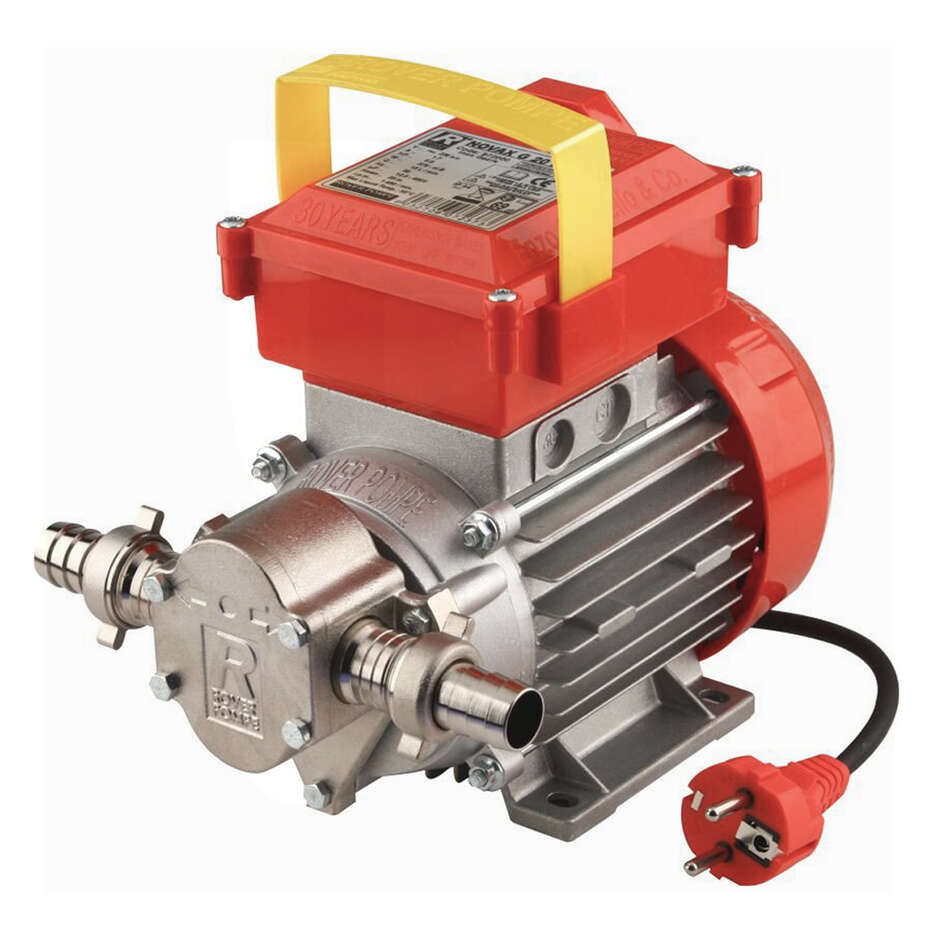

NOVAX G20 HP 0.8 gear electric pump for Oil
Description
NOVAX G20 HP 0.8 gear electric pump for Olive Oil
The NOVAX G 20 HP 0.8 gear electric pump for Olive Oil is a self-priming liquid ring pump with a star-shaped impeller. It is equipped with a high-efficiency motor operating in continuous duty and with two directions of rotation as standard. Thanks to its special hydraulic geometry, the NOVAX G 20 HP 0.8 gear pump for oil also works in the presence of air bubbles in the suction liquid. Suction capacity is achieved by filling the pump casing via one of the two hose connectors.
With its 2850 rpm and a capacity of 1750 L/h, this pump is suitable for transferring all types of clean, common liquids that are not chemically aggressive or abrasive. The main liquids that can be transferred are: water, wine, milk, vinegar, low-viscosity oily solutions, fluid neutral detergents, diesel. For continuous operation with free delivery, the viscosity of the liquid must not exceed 4 cps, and for intermittent operation with free delivery, it must not exceed 20 cps.
Maintenance of the NOVAX G 20 HP 0.8 gear pump for oil requires only a few simple operations. After each use, clean water should be poured in to rinse the internal parts and a slightly damp sponge should be used to clean the outside, then wiped dry with a cloth. The motor is maintenance-free.
Features:
- 220V power supply
- Power 0.8 Hp
- RPM 2850
- Flow rate litres/hour 1750
- Hose holder ∅ 20
- Weight Kg 7
- Maximum height: 24 m
- Dimensions: mm 230x120x190
- Trolley (optional)
