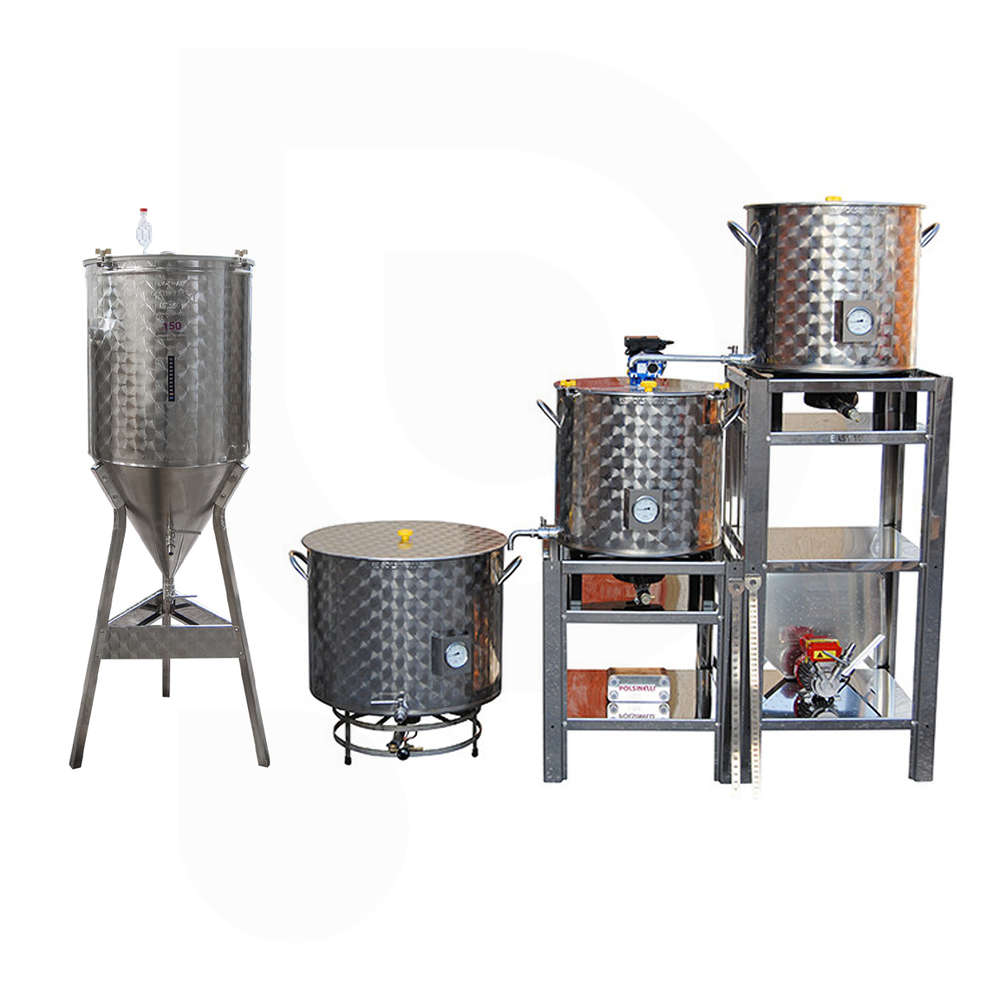

EASY 100 Conical beer system with conical trunk fermenter 60°

Easy 100 drop-in stainless steel system for craft beer production with 60° conical trunk fermenter.

The Easy 100 Conical with 60° truncated cone fermenter by Polsinelli is the complete gravity fed plant that allows you to brew beer directly at home. Simple, economical and functional, the Easy 100 beer system with 60° truncated cone fermenter guarantees you everything you need to start your homebrewing activity with ease.

The kit is composed of a series of containers arranged on a multi-level structure that facilitate the different stages of production. Positioned at the highest level, the sparge pot is dedicated to the water for washing the grains, while the pot at the intermediate level of the system is motorized and equipped with a Halo filter for the grains and is dedicated to mashing. Lower down is the pot for boiling the wort that will then be poured into the special fermenter conical trunk 60 °.

The system is complete with Hot Beer Press 20" tube (suitable for food liquids at temperatures between -20 and 100°C), a Novax 20 electric pump with a transfer valve and a brazed 40-plate heat exchanger to cool the wort. The most important accessories for homebrewing are also present, such as stainless steel brewers and fly sparge, as well as support structures for the mash and sparge pots.

The system consists of:

• 100 litre motorised mash pot (220 V power supply)
• 100 litre sparge pot
• 150 litre boiling pot
• Halo filter ⌀526
• Stainless steel sparge fly
• 2 cast-iron gas burners (5.5 kW)
• 1 radial stainless steel cooker (11 kW) with safety
• Heat exchanger with 40 brazed plates and hose connection
• 5 metres of Hot Beer Press 20 hose (-30/+100 °C)

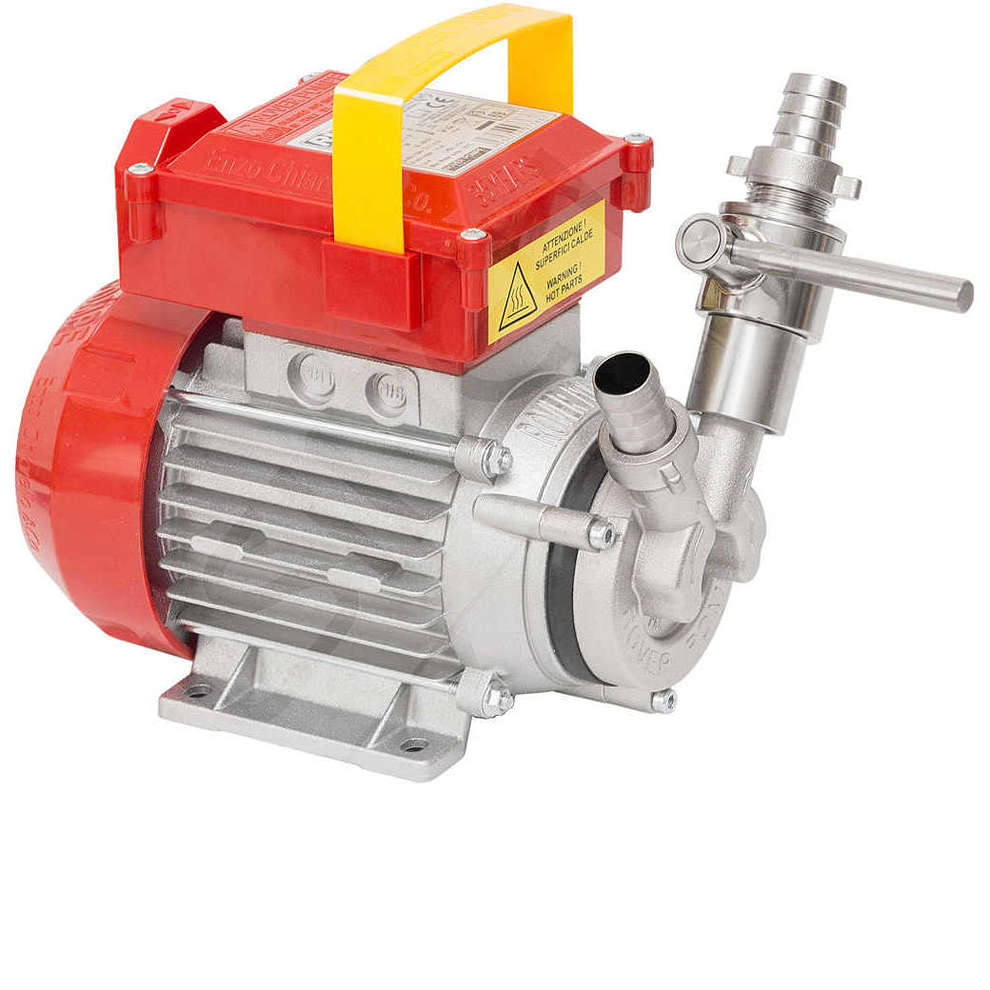

• Novax 20 BEER LOW electric pump for beer (electric pump for high temperature liquids) with stainless steel valve
• Stainless steel 130 brewing meter (for measuring litres of wort in the mash tun)
• Stainless steel brewing tester 190 (for measuring litres of wort in the boiling pot)

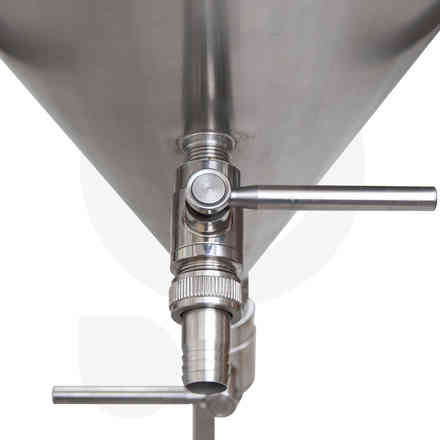

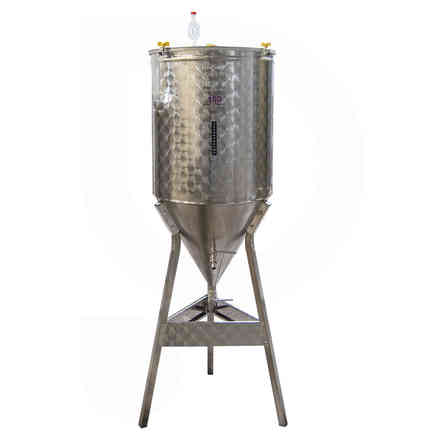

• Stainless steel fermenter 60° truncated cone 150 litres (with thick lid)
• Stainless steel support structure
• Stainless steel extensions for fly sparge and stainless steel elbow with hose connector for mash pot
• Stainless steel handles for fermenter (on request)

Characteristics:

• Added a stainless steel valve to regulate flow on the electric pump,
• Replaced the valves on the pots, from raw AISI 304 stainless steel to mirror-polished AISI 304 stainless steel,
• Replaced the thermometer probe holder from brass to AISI 304 stainless steel,
• New Fly Sparge, octagonal model with circular holes,
• Changed the hooks of the mash pot, much more performing.
• The motorized mash pot is equipped with a thick reinforced stainless steel lid with an inspection door into which the malt is poured. The agitator unit, consisting of the motor, gear motors and blades, is attached to the same lid.

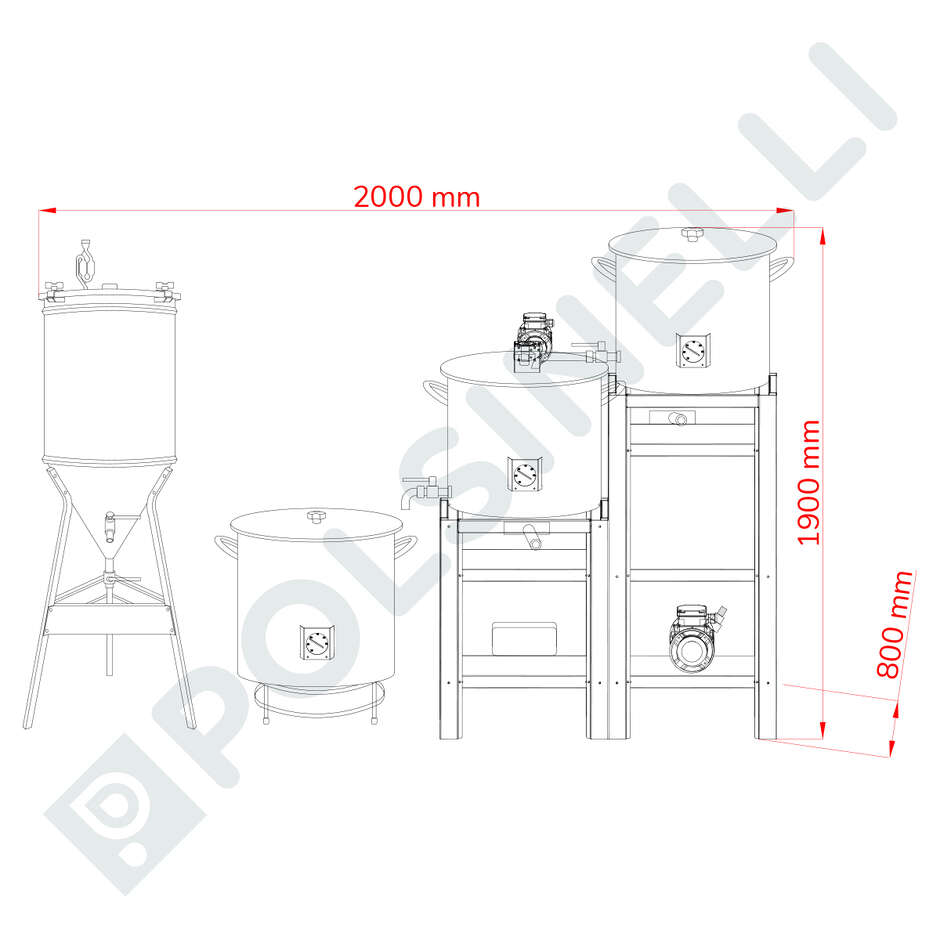

Overall dimensions: 200 x 80 x 190 (h) cm.

On request it is possible to have connections for methane gas, please specify in the order notes.Expected delivery time: 15/30 days
