Beer brewing system Junior 200 Extra

Category: Beer machinery
Product code: ABP0085
Ready to order product
Shipping within 45 days from the receipt of payment.
We are sorry, for this order you will receive a quotation for shipping costs
Qty € 6,660.00 € 6,930.00
You are saving: € 270.00
Add to cart
Description

ALL GRAIN BEER BREWING SYSTEM "JUNIOR 200 EXTRA"



Description

Stainless steel "Junior 200 Extra" ideal to brew your own beer

Stainless steel system ideal for micro-breweries. It allows you to produce 220 liters of craft beer in just one brew!

The system is entirely made of thick stainless steel AISI 304 for food.

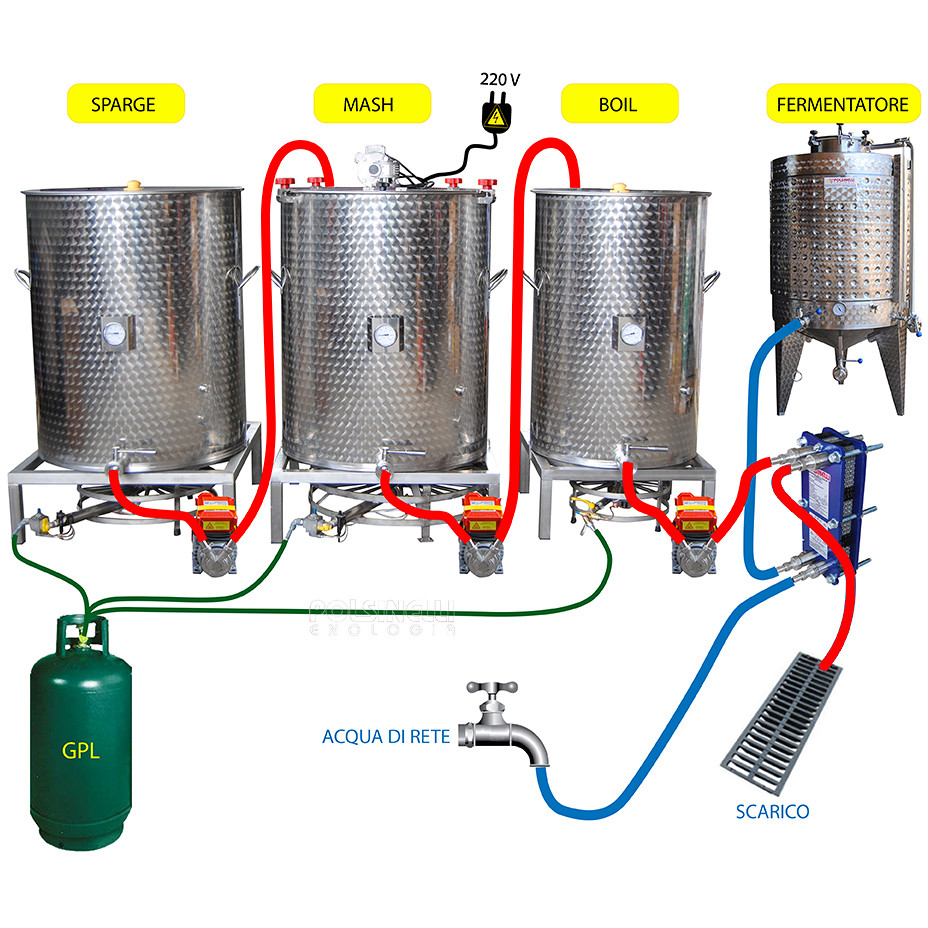

It includes three pots:  one for the sparge water, one for mashing and another one for boiling.



COMPOSITION

1 200-LITRE MOTORIZED MASH POT WITH GRAIN FILTER

  • internal finish: mirror polished; outer finish: flower-patterned embossed
  • diameter: 640 mm – height 680 mm;
  • rounded and welded bottom for easy cleaning
  • stainless steel grain filter type Halo
  • fly sparge
  • stainless steel sphere for fly sparge
  • DIN 25  fitting with stainless steel ball valve + stainless steel hose barb with nut 3/4” x 20
  • welded stainless steel socket pipe 1/2” + stainless steel cockpit for probe + analogue thermometer + stainless steel protective device
  • welded stainless steel  socket pipe 1/2” for a possibly additional cockpit for probe
  • welded stainless steel handles
  • agitator for mashing equipped with motor speed directly mounted on a reinforced thick lid stopped by 4 knobs and with an inspection flap



 1 300- LITRE BOILING POT

  • Internal finish: mirror polished; outer finish: flower-patterned embossed
  • diameter  720mm – high 800mm
  • rounded and welded bottom for easy cleaning
  • DIN 25  fitting with stainless steel ball valve + stainless steel hose barb with nut 3/4” x 20
  • welded stainless steel socket pipe 1/2” + stainless steel cockpit for probe + analogue thermometer + stainless steel protective device
  • welded stainless steel socket pipe 1/2” for a possibly additional cockpit for probe
  • welded stainless steel handles
  • stainless steel lid equipped with connection for smoke tube
  • whirlpool tangential connections with stainless steel ball valves DIN 25 fitting x PG30



1 200- LITRE SPARGE POT

  • internal finish: mirror polished; outer finish: flower-patterned embossed
  • diameter  640 mm – high 680 mm
  • rounded and welded bottom for easy cleaning
  • DIN 25 fitting with stainless steel ball valve + stainless steel hose barb with nut 3/4” x 20
  • welded stainless steel socket pipe 1/2” + stainless steel cockpit for probe + analogue thermometer + stainless steel protective device
  • welded stainless steel socket pipe 1/2” for a possibly additional cockpit for probe
  • welded stainless steel handles
  • stainless steel dust-cover lid



3 STAINLESS STEEL GAS BURNERS 26 kW (high power)

  • diameter  560 mm
  • gas fuel LPG (methane gas, on demand)
  • safety valve (it stops the gas flow in case of flame absence)
  • pilot flame (it serves in the different steps and for remote temperature monitoring)
  • piezoelectric  ignition  (for an easy ignition)



3 STAINLESS STEEL SUPPORTING STRUCTURES FOR 200/300-LITRE POTS

1 STAINLESS STEEL BIRROMETRO 200 (for sparge pot and mash pot)

1 HEAT EXCHANGER MAXI 43 WITH 30 STAINLESS STEEL PLATES  (they are removable and cleanable)

1 ELECTROPUMP EP MINI B for sparge and decantations, with flow adjustment potentiometer



1 ELECTROPUMP EP MIDEX 30B for whirlpool and decantations

 HOT BEER HOSE Ø 19 mt. 6

 PRIME WINE  HOSE Ø 30 MT. 2



OPEN INSPECTION FLAP AND  FASTENING HOOKS ON HIGH-THICK LID

STAINLESS STEEL BLADES  AND GRAIN FILTER INSIDE THE MASH POT

STAINLESS STEEL RADIAL BURNER WITH SAFETY VAVES

PIEZOELECTRIC IGNITION AND PILOT FLAME





Technical description

estimated delivery time: 30 days
