Beer brewing system Junior 300 Extra

Category: Beer machinery
Product code: ABP0087
Ready to order product
Shipping within 45 days from the receipt of payment.
free shipping
Qty € 9,210.00
Add to cart
Description

ALL GRAIN BEER BREWING SYSTEM "JUNIOR 300 EXTRA"



Description

Junior 300 Extra

Stainless steel system ideal for micro-breweries. It allows you to produce 250 liters of craft beer in just one brew!

The system is entirely made of thick stainless steel AISI 304 for food.

It includes three pots:  one for the sparge water, one for mashing and another one for boiling.



COMPOSITION



1 300-LITRE MOTORIZED MASH POT WITH GRAIN FILTER AND ROUND DOOR FOR EMPTYING GRAINS

  • internal finish: mirror polished; outer finish: flower-patterned embossed
  • diameter: 720 mm – height 800 mm;
  • rounded and welded bottom for easy cleaning
  • reinforced stainless steel grain filter
  • stainless steel round door for emptying grains, diameter 300 mm
  • stainless steel sphere for fly sparge
  • DIN 25 fitting with stainless steel ball valve + stainless steel hose barb with nut 3/4” x 20
  • welded stainless steel socket pipe 1/2” + stainless steel cockpit for probe + analogue thermometer + stainless steel protective device
  • welded stainless steel  socket pipe 1/2” for a possibly additional cockpit for probe
  • welded stainless steel handles
  • agitator for mashing equipped with motor speed directly mounted on a reinforced thick lid stopped by 4 knobs and with an inspection flap
  • adjustable total discharge with DIN 25 ball valve + hose barb 20 mm



1 300- LITRE BOILING POT

  • internal finish: mirror polished; outer finish: flower-patterned embossed
  • diameter 720mm – high 800mm
  • rounded and welded bottom for easy cleaning
  • DIN 25 fitting with stainless steel ball valve + stainless steel hose barb with nut 3/4” x 20
  • welded stainless steel socket pipe 1/2” + stainless steel cockpit for probe + analogue thermometer + stainless steel protective device
  • welded stainless steel socket pipe 1/2” for a possibly additional cockpit for probe
  • welded stainless steel handles
  • stainless steel lid equipped with connection for smoke tube
  • whirlpool tangential connections with stainless steel ball valves DIN 25 fitting x PG30
  • adjustable total discharge with DIN 25 ball valve + hose barb 20 mm



1 300- LITRE SPARGE POT

  • internal finish: mirror polished; outer finish: flower-patterned embossed
  • diameter 720mm – high 800mm
  • rounded and welded bottom for easy cleaning
  • DIN 25 fitting with stainless steel ball valve + stainless steel hose barb with nut 3/4” x 20
  • welded stainless steel socket pipe 1/2” + stainless steel cockpit for probe + analogue thermometer + stainless steel protective device
  • welded stainless steel socket pipe 1/2” for a possibly additional cockpit for probe
  • welded stainless steel handles
  • stainless steel dust-cover lid
  • adjustable total discharge with DIN 25 ball valve + hose barb 20 mm



3 STAINLESS STEEL GAS BURNERS 26 kW (high power)

  • diameter 560 mm
  • gas fuel LPG (methane gas, on demand)
  • safety valve (it stops the gas flow in case of flame absence)
  • pilot flame (it serves in the different steps and for remote temperature monitoring)
  • piezoelectric ignition  (for an easy ignition)



3 STAINLESS STEEL SUPPORTING STRUCTURES FOR 300-LITRE POTS

1 STAINLESS STEEL BIRROMETRO 300 (BEER LEVEL GAUGE)

1 HEAT EXCHANGER MAXI 43 WITH 20 STAINLESS STEEL PLATES  (they are removable and cleanable)

1 ELECTROPUMP EP MINI B for sparge and decantations, with flow adjustment potentiometer

1 ELECTROPUMP EP MINOR for whirlpool and decantations

HOT BEER HOSE Ø 19 mt.8

PRIME WINE  HOSE Ø 30 MT. 2



MOTOR WITH  SPEED GEARMOTOR, FASTENING HOOKS ON HIGH-THICK LID

STAINLESS STEEL BLADES  AND GRAIN FILTER INSIDE THE MASH POT

DOOR FOR EMPTYING GRAINS

TANGENTIAL CONNECTIONS FOR WHIRLPOOL INSIDE THE BOILING POT

STAINLESS STEEL SAFETY BALL VALVE

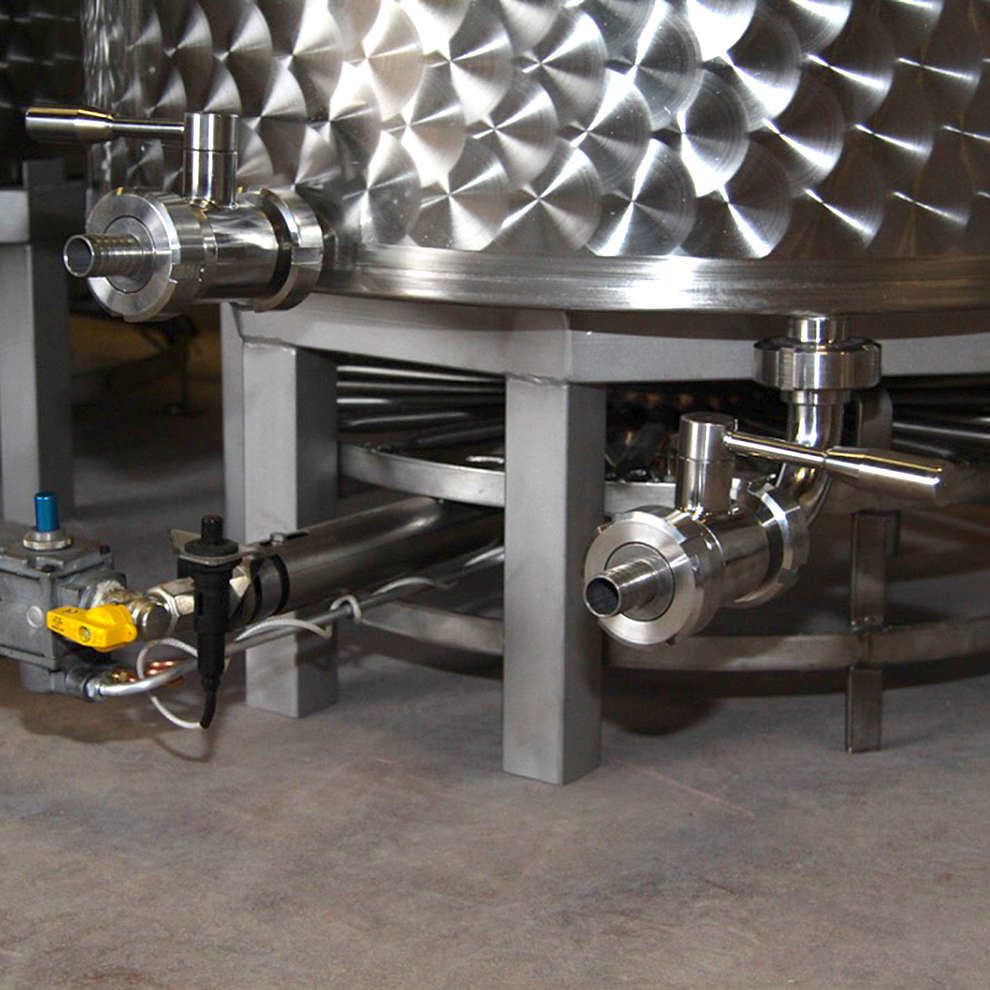

STAINLESS STEEL RADIAL BURNER WITH SAFETY VALVES

PIEZOELECTRIC IGNITION AND PILOT FLAME
