Beer brewing system Junior 500

Category: Beer machinery
Product code: ABP0088
Ready to order product
Shipping within 120 days from the receipt of payment.
We are sorry, for this order you will receive a quotation for shipping costs
Qty € 5,930.00
Add to cart
Description

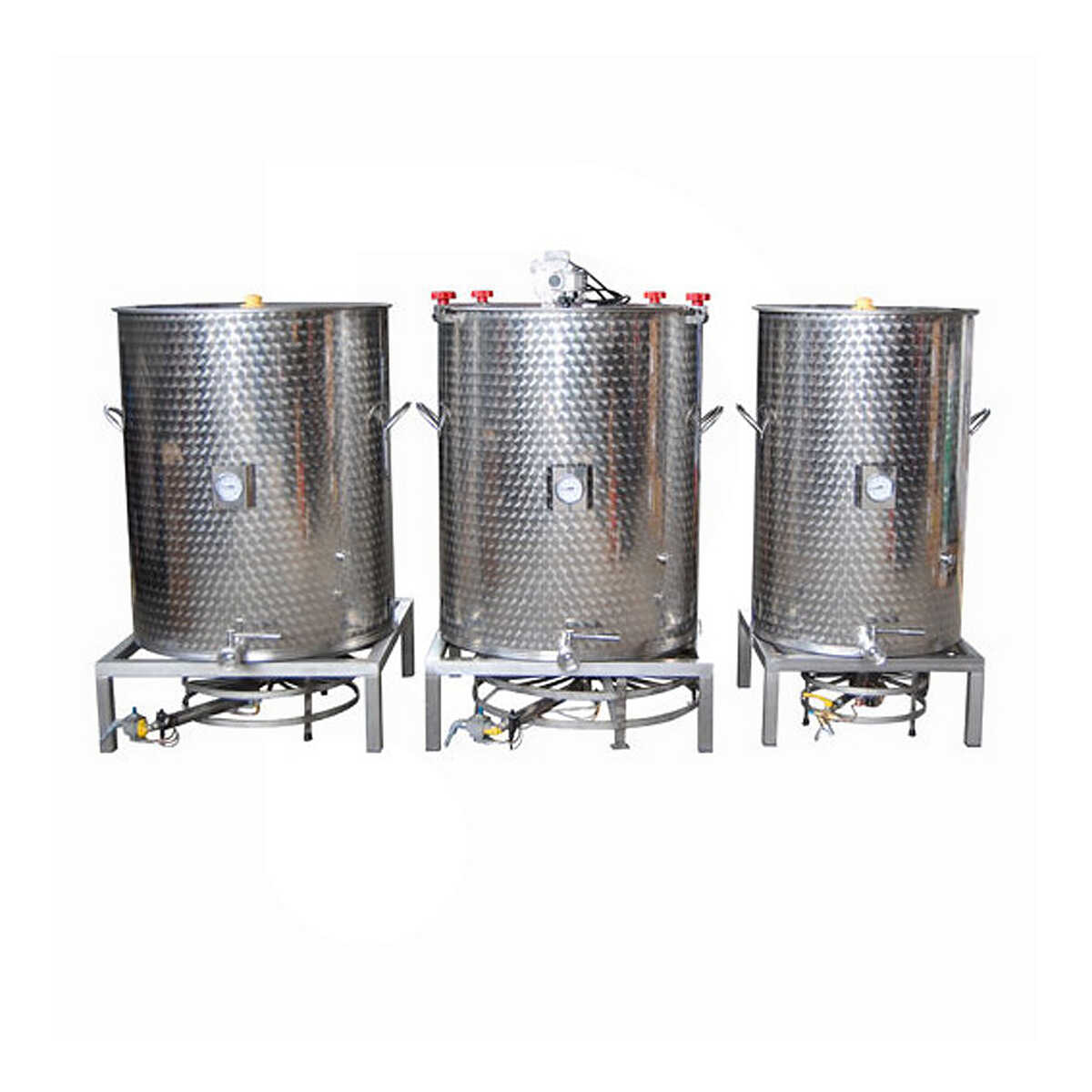

ALL GRAIN BEER BREWING SYSTEM "JUNIOR 500"



Description

Stainless steel system Junior 500 ideal to brew your own beer

Stainless steel system ideal for micro-breweries. It allows you to produce 450 liters of craft beer in just one brew!

The system is entirely made of thick stainless steel AISI 304 for food.

It includes three pots: one for the sparge water, one for mashing and another one for boiling.



COMPOSITION



1 500-LITRE MASH POT

  • internal finish: mirror polished; outer finish: flower-patterned embossed
  • diameter: 930 mm – height 800 mm;
  • rounded and welded bottom for easy cleaning
  • DIN 25  fitting with stainless steel ball valve + stainless steel hose barb with nut 3/4” x 20
  • welded stainless steel socket pipe 1/2” + stainless steel cockpit for probe + analogue thermometer + stainless steel protective device
  • welded stainless steel  socket pipe 1/2” for a possibly additional cockpit for probe
  • welded stainless steel handles
  • agitator for mashing equipped with motor speed 28 rpm directly mounted on a reinforced thick lid stopped by 4 knobs and with an inspection flap
  • sphere for fly sparge mounted on a reinforced thick lid with hose barb 20
  • adjustable total discharge with DIN 25 ball valve + hose barb 20 mm



  1 500- LITRE BOILING POT

  • internal finish: mirror polished; outer finish: flower-patterned embossed
  • diameter  930 mm – high 800 mm
  • rounded and welded bottom for easy cleaning
  • DIN 25  fitting with stainless steel ball valve + stainless steel hose barb with nut 3/4” x 20
  • welded stainless steel socket pipe 1/2” + stainless steel cockpit for probe + analogue thermometer + stainless steel protective device
  • welded stainless steel socket pipe 1/2” for a possibly additional cockpit for probe
  • welded stainless steel handles
  • stainless steel lid
  • adjustable total discharge with DIN 25 ball valve + hose barb 20 mm



1 300- LITRE SPARGE POT

  • internal finish: mirror polished; outer finish: flower-patterned embossed
  • diameter  720 mm – high 800 mm
  • rounded and welded bottom for easy cleaning
  • DIN 25 fitting with stainless steel ball valve + stainless steel hose barb with nut 3/4” x 20
  • welded stainless steel socket pipe 1/2” + stainless steel cockpit for probe + analogue thermometer + stainless steel protective device
  • welded stainless steel socket pipe 1/2” for a possibly additional cockpit for probe
  • welded stainless steel handles
  • stainless steel dust-cover lid
  • adjustable total discharge with DIN 25 ball valve + hose barb 20 mm



1 STAINLESS STEEL GRAIN FILTER FOR 500-LITRE POT



1 STAINLESS STEEL GAS BURNER 35 kW (high power)

  • diameter  740 mm
  • gas fuel LPG (methane gas, on demand)
  • safety valve (it stops the gas flow in case of flame absence)
  • pilot flame (it serves in the different steps and for remote temperature monitoring)
  • piezoelectric  ignition  (for an easy ignition)



 2 STAINLESS STEEL GAS BURNERS 26 kW (high power)

  • diameter  560 mm
  • gas fuel LPG (methane gas, on demand)
  • safety valve (it stops the gas flow in case of flame absence)
  • pilot flame (it serves in the different steps and for remote temperature monitoring)
  • piezoelectric  ignition  (for an easy ignition)



2 STAINLESS STEEL SUPPORTING STRUCTURES FOR 500-LITRE POTS



1 STAINLESS STEEL SUPPORTING STRUCTURE FOR 300-LITRE POT





OPEN INSPECTION FLAP AND FASTENING HOOKS ON HIGH-THICK LID

STAINLESS STEEL BLADES  AND GRAIN FILTER INSIDE THE MASH POT

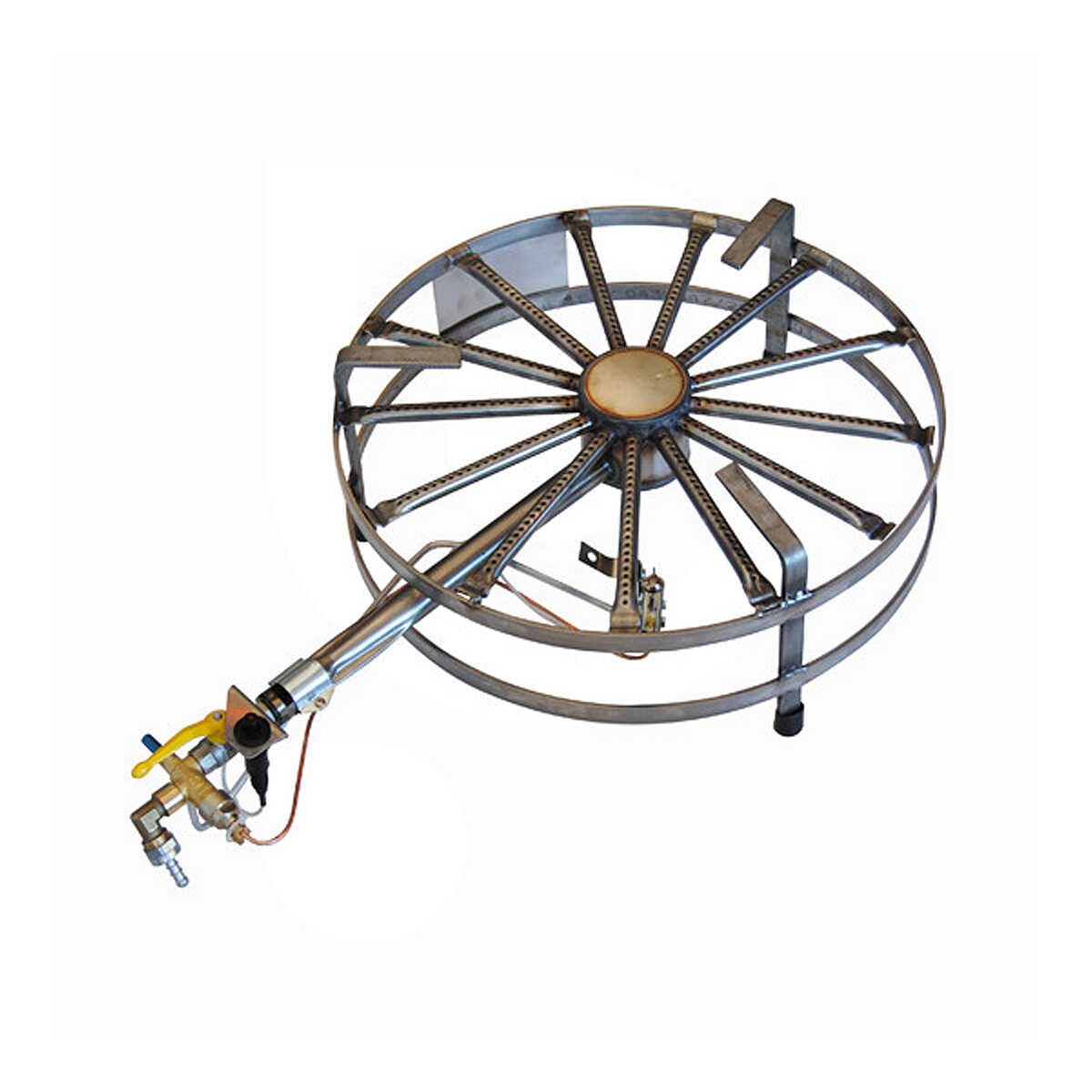

STAINLESS STEEL RADIAL BURNER WITH SAFETY VALVES,

PIEZOELECTRIC IGNITION AND PILOT FLAME



OPTIONAL: STAINLESS STEEL DOOR FOR EMPTYING GRAINS  (+ 500 EUROS  for rectangular door, +  250 EUROS for round door diameter 300 mm)12





Technical description

estimated delivery time: 60/90 days
