Heat exchanger Maxi 80 with 22 plates

Category: Heat exchanger
Product code: ABP0179
Product available
We are sorry, for this order you will receive a quotation for shipping costs
Qty € 1,030.00
Add to cart
Description

Heat exchanger Maxi 80 with 22 plates

Model Maxi 80 with plates in stainless steel Aisi 304 (18/10 for foodstuffs)

Complete with 4 reduced stainless steel sleeves F 1" ¼ to 3/4" M and 4 stainless steel hose connectors 20 mm with swivel 3/4" F (as per picture).

Professional series suitable for transferring the temperature of one fluid to another fluid.

The heat exchange takes place through individual stainless steel plates of the exchanger, without any mixing between the two fluids.

The plate pack is assembled with the help of special tie rods and the special herringbone design creates perfectly insulated channels, one for hot and one for cold. The fluids flow in the opposite direction and thanks to the corrugated surface of the plate it causes a high turbulence of the fluids flowing inside, improving the thermal exchange.

Complies with European Directive 97/23/EC (PED).

ADVANTAGES:

  • HIGH HEAT EXCHANGE COEFFICIENT
  • NO MIXING BETWEEN FLUIDS
  • FLEXIBILITY (possibility of increasing the internal plates)
  • DURABILITY over time thanks to the regeneration of the plates and/or replacement of the various components

TECHNICAL CHARACTERISTICS:

  • CONNECTION DIAMETER: 1"1/4
  • MAX. OPERATING PRESSURE: 10 BAR
  • PLATE SURFACE: 0,08 sqm
  • CONTENT PER CHANNEL: 0.25 litres
  • SINGLE PLATE WEIGHT: 0.5 kg

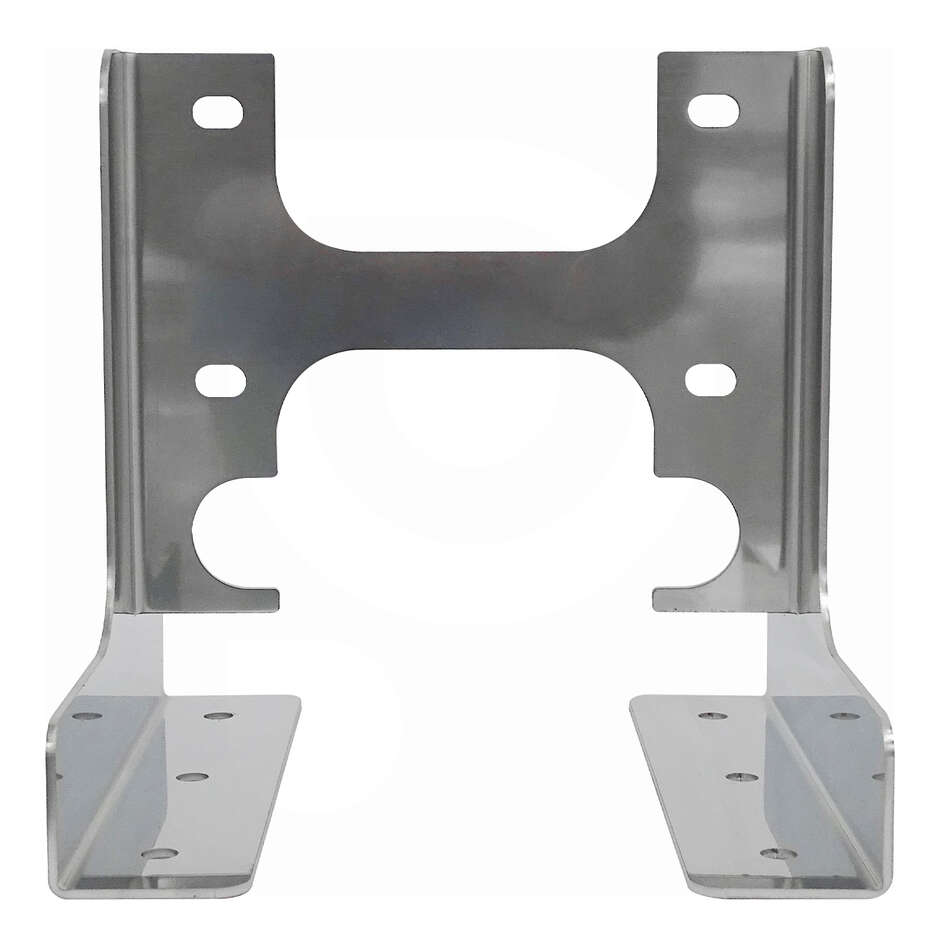

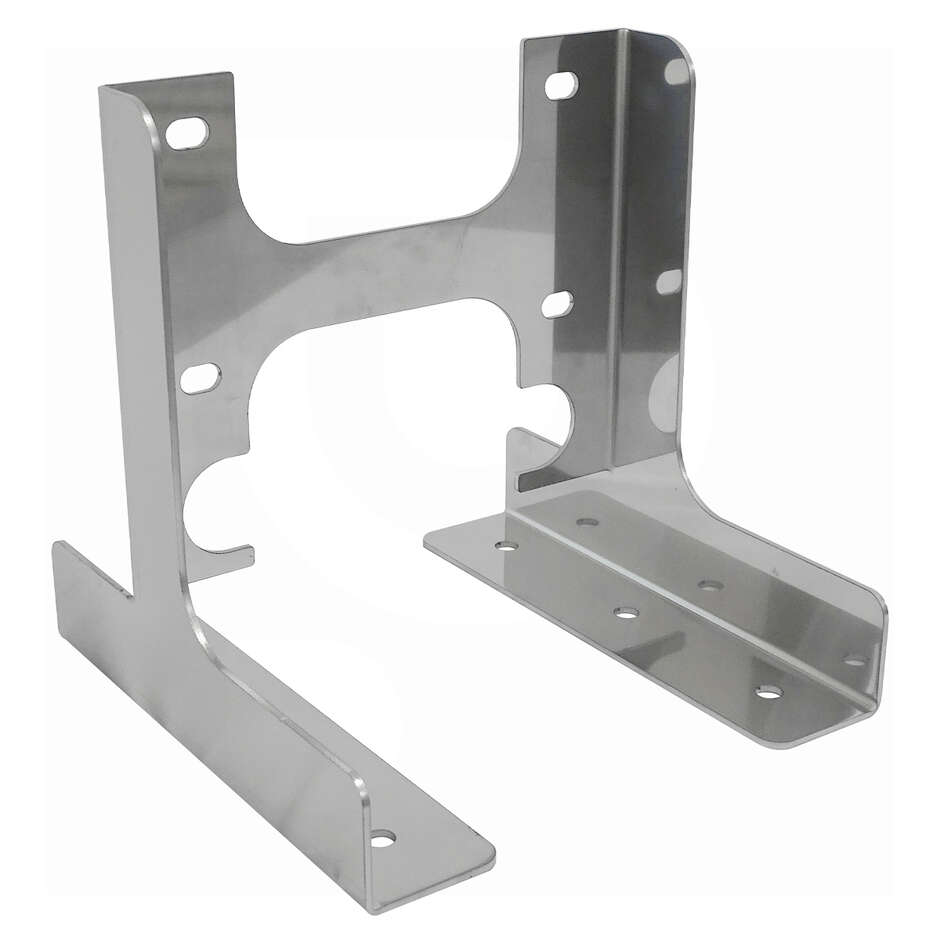

  • COMPLETE FRAME WEIGHT: 50 kg
  • NUMBER OF PLATES: 22

Available on order from 26 to 51 plates or from 52 to 61 plates
