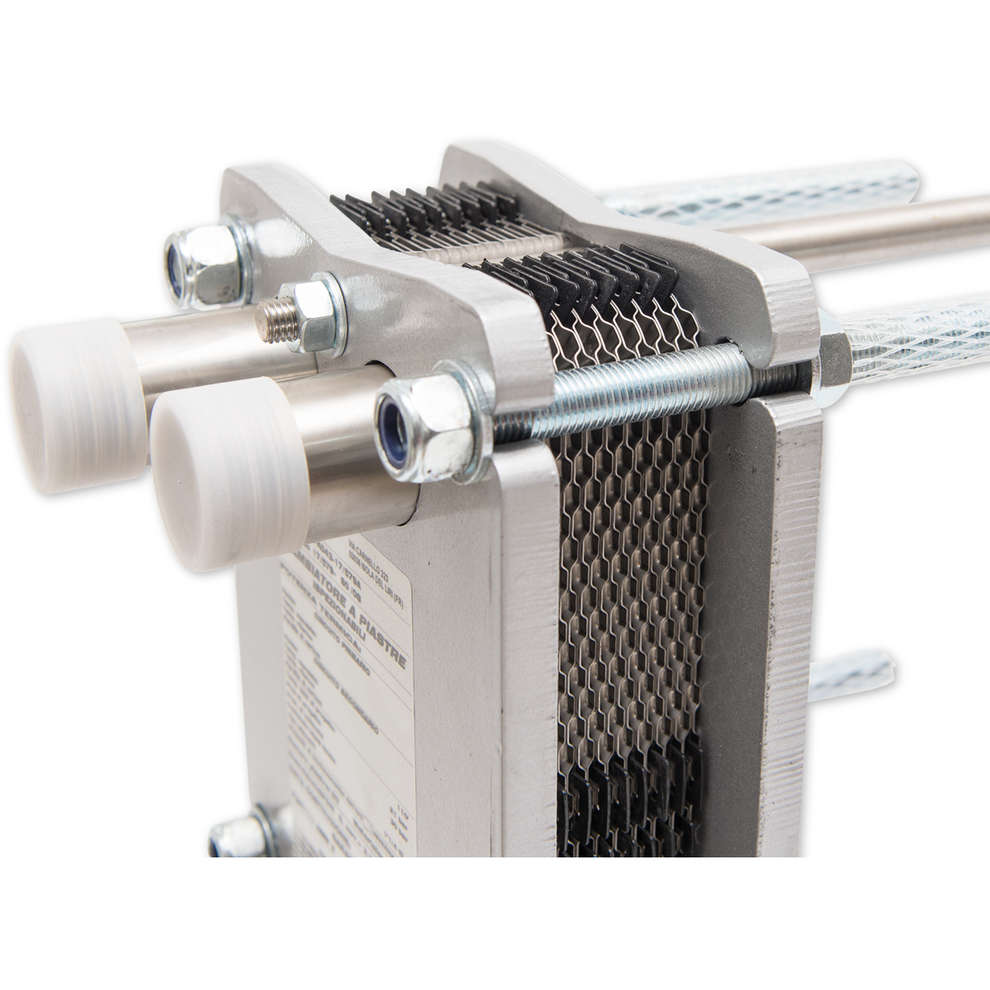

Maxi 43 Heat exchanger with 30 plates

Category: Heat exchanger
Product code: ABP0177
Ready to order product
Shipping within 20 days from the receipt of payment.
We are sorry, for this order you will receive a quotation for shipping costs
Qty € 720.00
Add to cart
Description

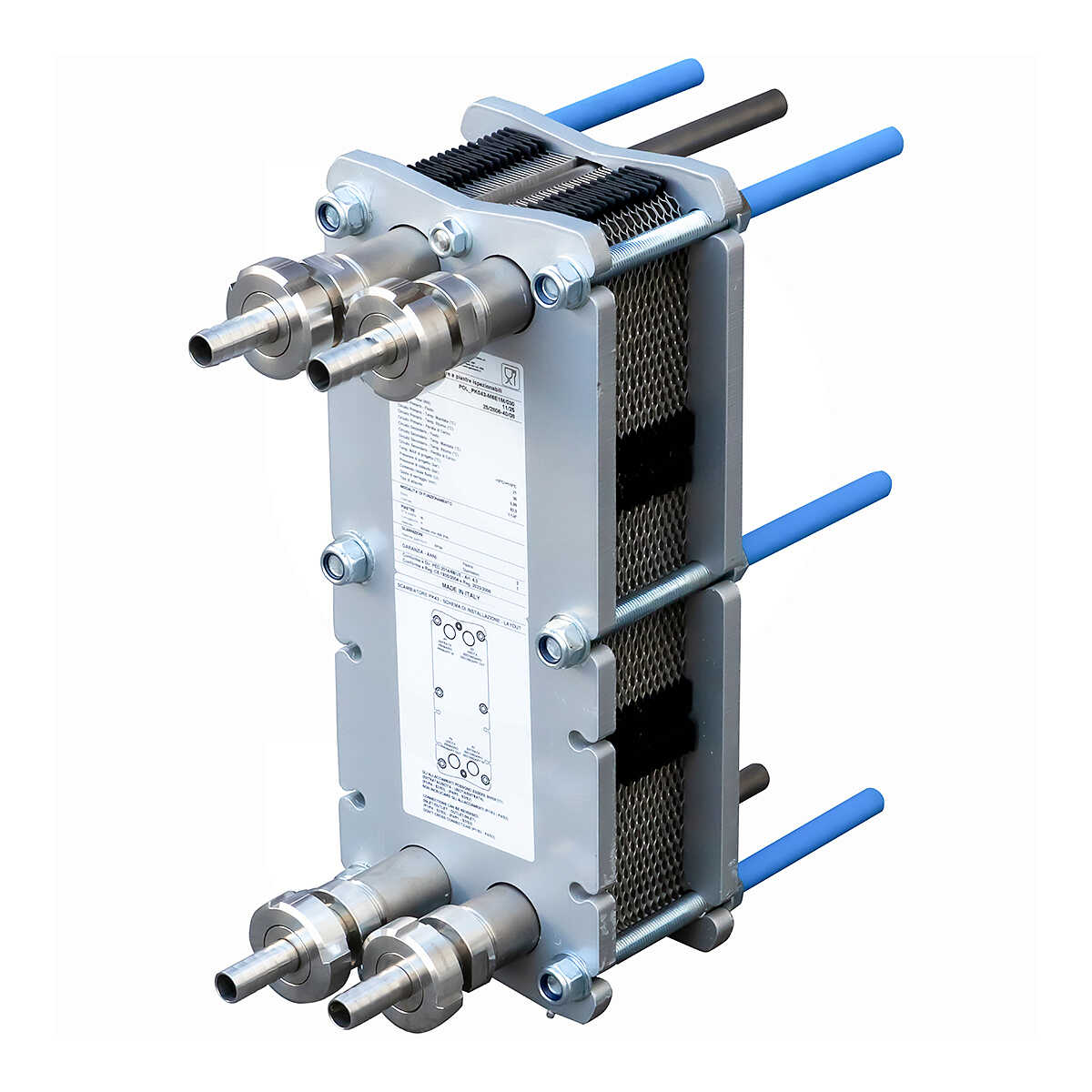

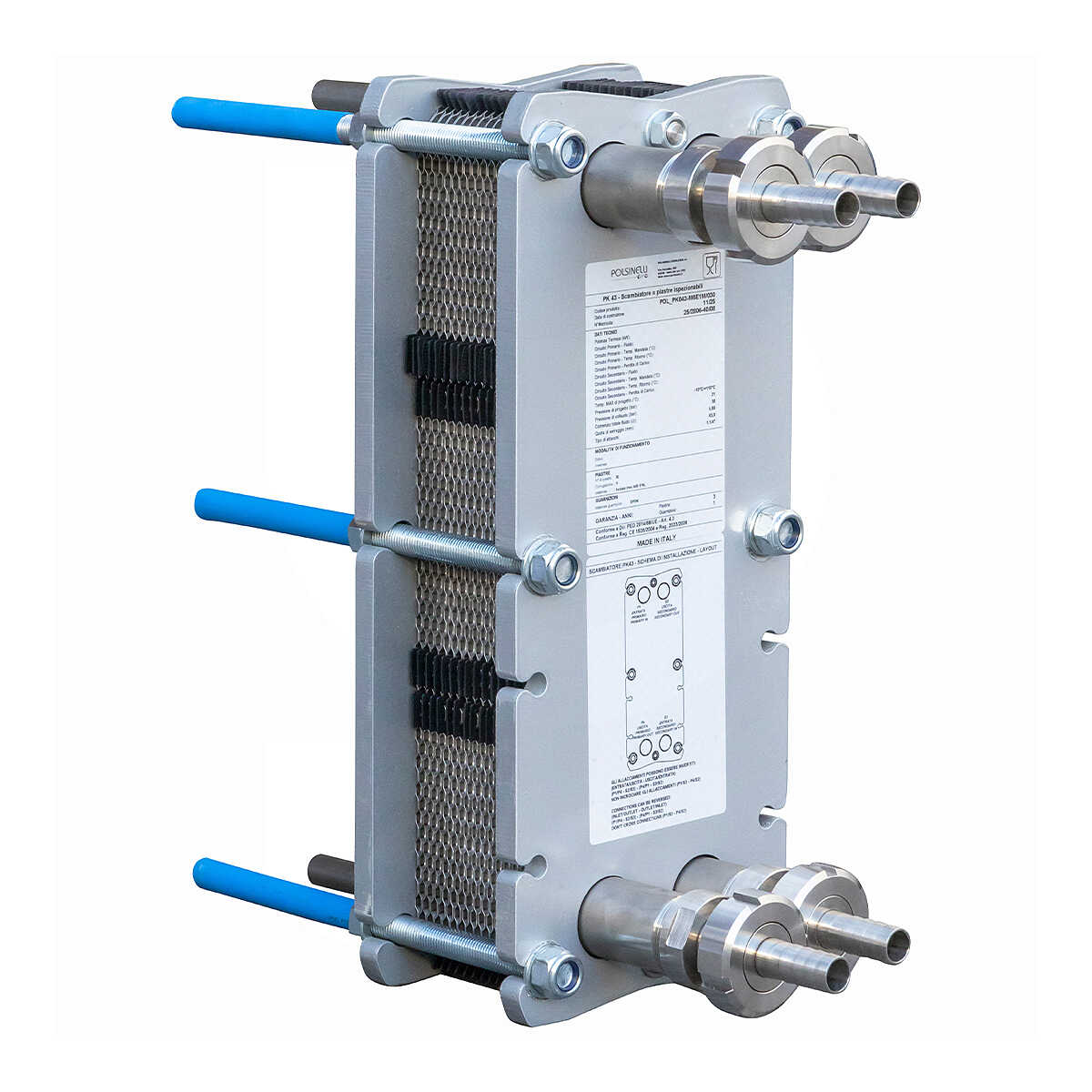

Maxi 43 30-plate heat exchanger

The Maxi 43 30-plate heat exchanger is designed to meet the needs of manufacturers looking for a high quality product that facilitates heat transfer from one fluid to another. Suitable for both professionals and enthusiasts, the Maxi 43 model heat exchanger also complies with European Directive 97/23/EC.

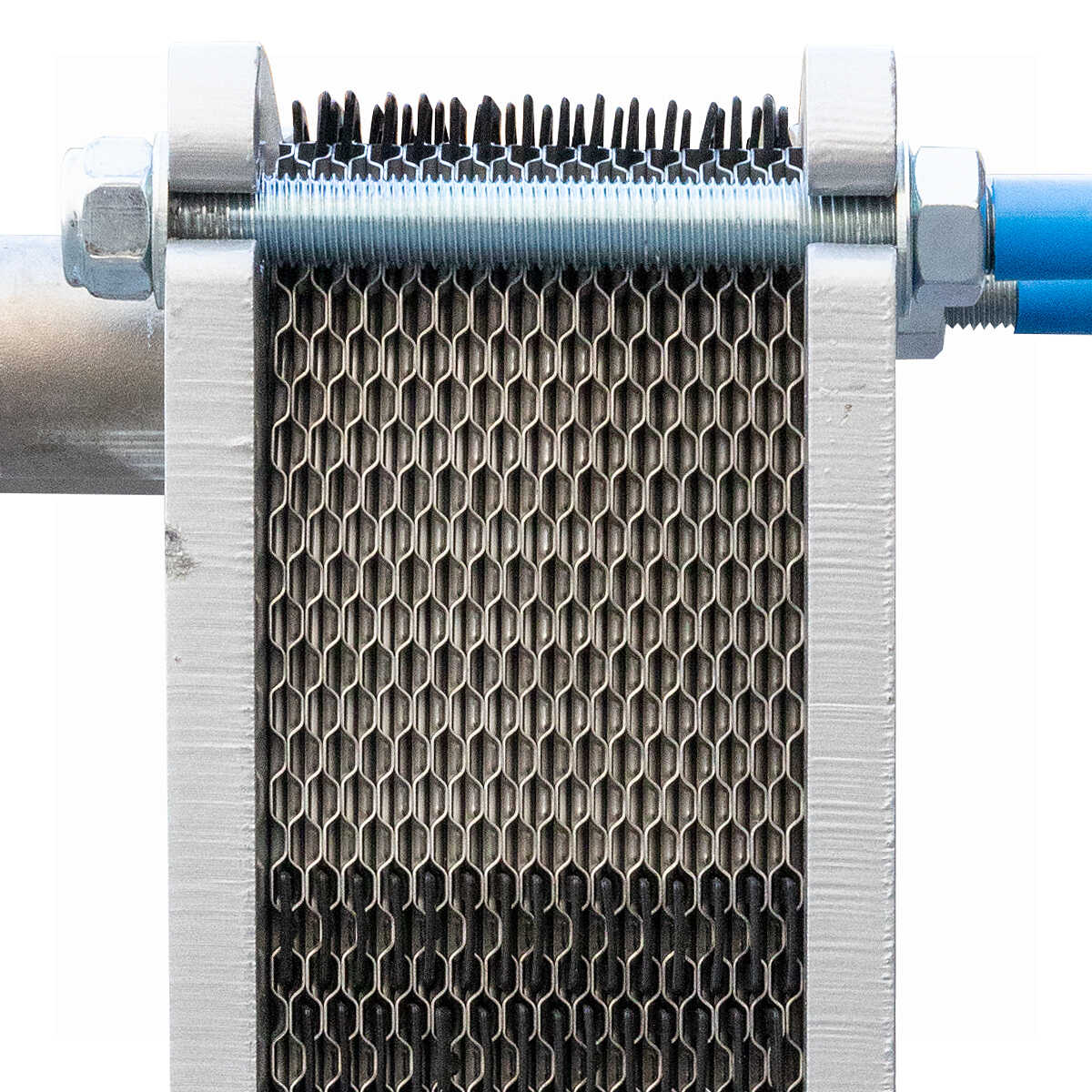

The Maxi 43 heat exchanger has 30 inspectionable plates for easy cleaning. The total weight of the frame is 23 kg, while the diameter of the connections is 1"¼. As standard, it is equipped with 4 stainless steel sleeves reduced F 1" ¼ to 3/4" M and 4 stainless steel 20 mm hose connectors with 3/4" F swivel: Heat exchange takes place through the stainless steel plates of the exchanger, without mixing the two fluids.

The maximum operating pressure that the Maxi 43 heat exchanger with 30 inspectionable plates can withstand is 10 bar, while the content per channel amounts to 0.2 litres. It is the ideal product for manufacturers who wish to invest in a robust product that is easy to sanitise.

Characteristics Heat exchanger with 30 inspectionable plates Maxi 43

  • 4 stainless steel sleeves reduced F 1" ¼ to 3/4" M
  • 4 stainless steel hose connectors 20 mm with swivel 3/4" F
  • Diameter of connections: 1"¼
  • Maximum operating pressure: 10 bar
  • Plate surface: 0,043m2
  • Content per channel: 0.2 litres
  • Total weight of frame: 23 kg
  • Number of plates: 30
  • Conforms to European Directive 97/23/EC
