Cooler CRIO 2000

Product code: IPP0303
Ready to order product
Shipping within 30 days from the receipt of payment.
We are sorry, for this order you will receive a quotation for shipping costs
Qty € 2,980.00
Add to cart
Description

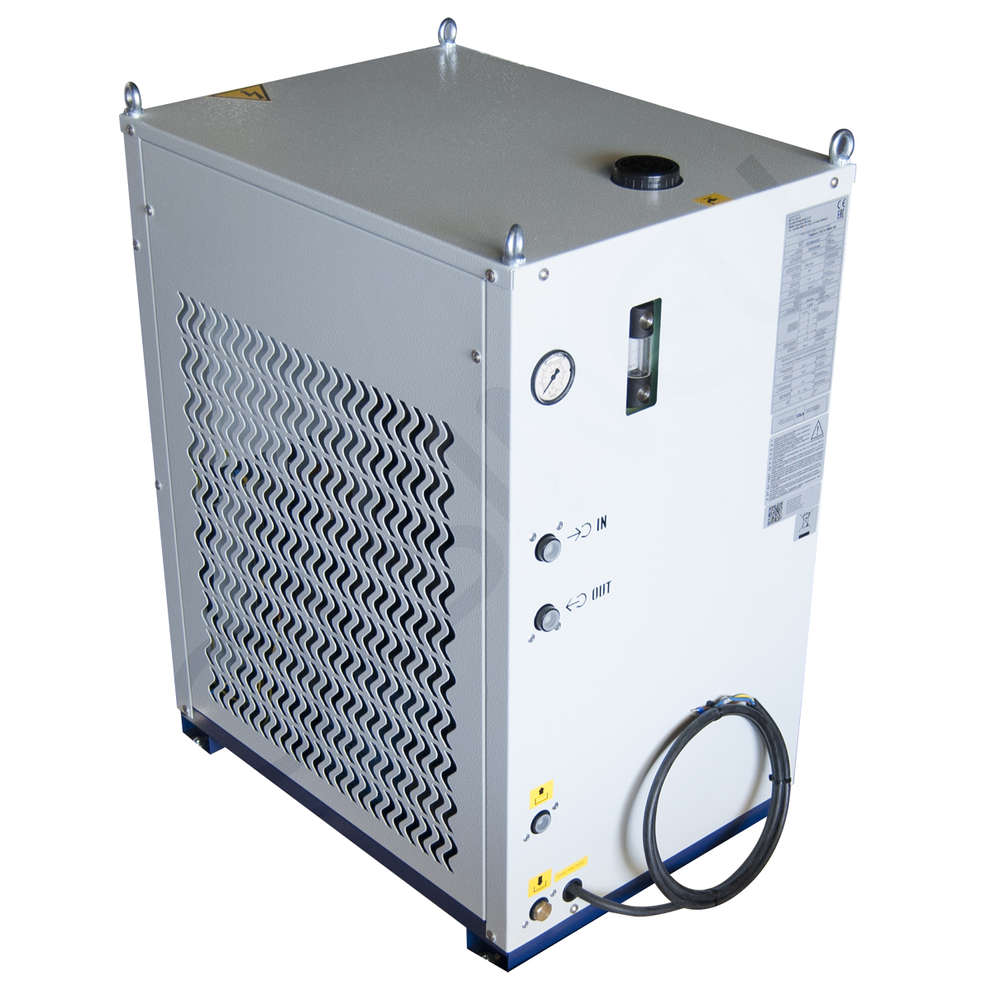

Cooler CRIO 2000

CRIO 2000 is a cooler for the cooling of food glycol to circulate in the circuits of fermenters, thanks to its high efficiency and cooling is ideal to complete production system of wine and beer. Through a series of valves and filters, it can be easily connected to a control panel and to fermenters, and, once in operation, is able to keep the liquid at the desired temperature throughout the processing. The CRIO 2000 cooler consists of several elements: a 0.55 kW compressor, electric pump for the liquid circulation.

Technical specifications:

  • Rated refrigerator yield (1): kW 2.33
  • Total absorbed power (1): kW 0.89
  • Optional P3 pump rated power (3 barg): kW 0.37
  • EER (1): kW 2.61
  • Rated refrigerator yield (2): kW 3.43
  • Total absorbed power (2): kW 0.77
  • EER (2): kW 4.47
  • SEPR (3): kW 5.15
  • Power: V/Ph/Hz 230th 10% / 1 - PE / 50
  • Noise (4) db(A) 47

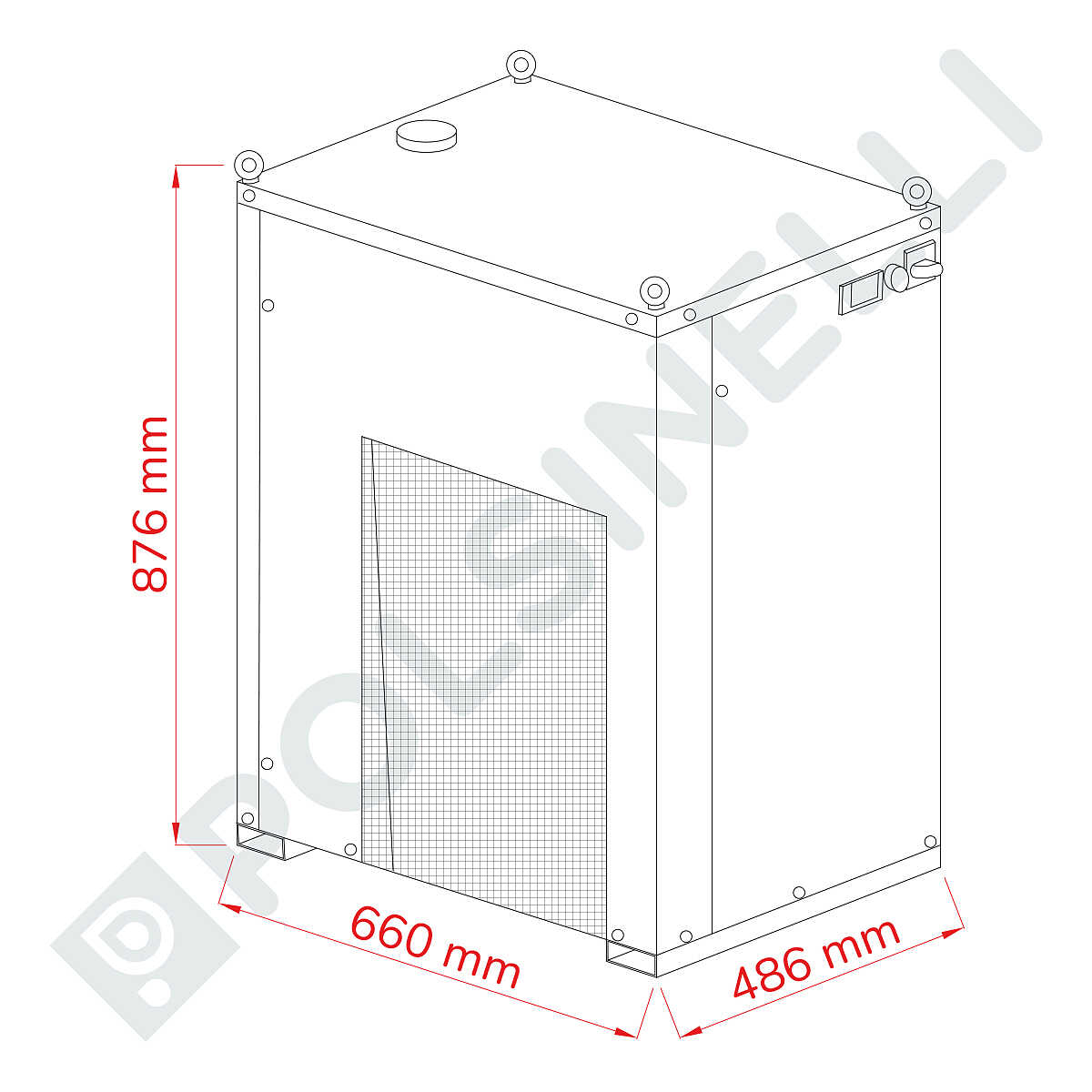

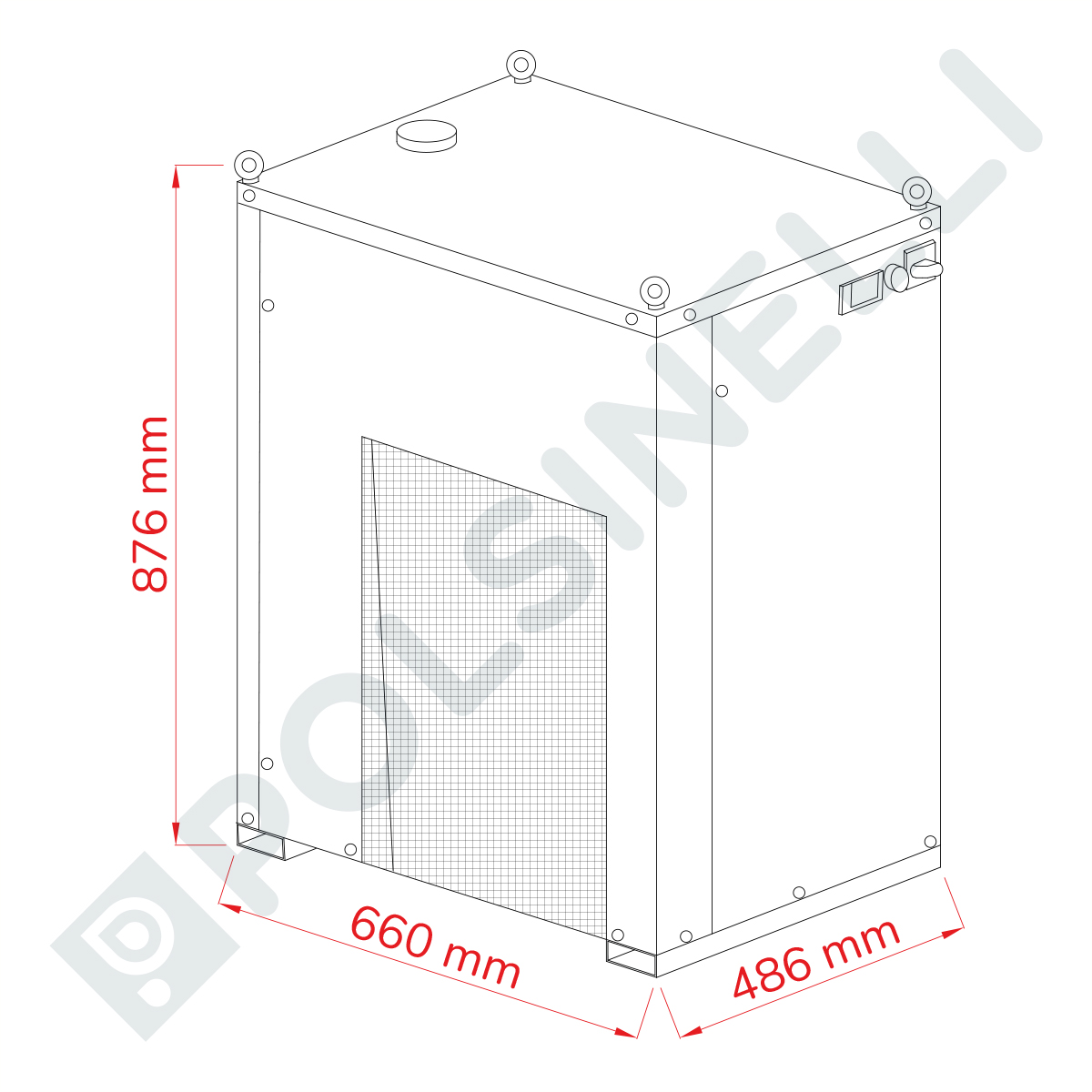

  • Size in mm: 486 x 660 x 623 h
  • Weight in operation without pump: kg 97
  • Weight in operation with optional P3 pump (3 barg): kg 97
  • Tank volume: 22 L
  • Evaporator water connections: Rp 1/2"

(1) Inlet/outlet temperature/exit water evaporator water 12/7 °C, external air temperature 35 °C, total compressor power and fan;

(2) Inlet/outlet temperature/outlet water evaporator 20/15 °C, external air temperature 25 °C, total absorbed power of compressor and fan;

(3) Date declared in accordance with European Regulation (EU) 2016/2281 on ecodesign requirements for cooling products and high temperature process chillers;

(4) Sound pressure level free at 10 m from the capacitor side unit and 1.6 m from the ground. The sound levels, weights and dimensions refer to base configuration units with P3 pump.

Date declared in UNI EN 14511:2018. The values indicated refer to base units without accessories/options having electric power supply source, without pump and in nominal operating conditions.

Productivity:

  • Fermentation control: 10 HL
  • Stabilisation: 20 HL

Warnings: the cooler must be placed within a metre from the wall so that does not compromise the vent air.
