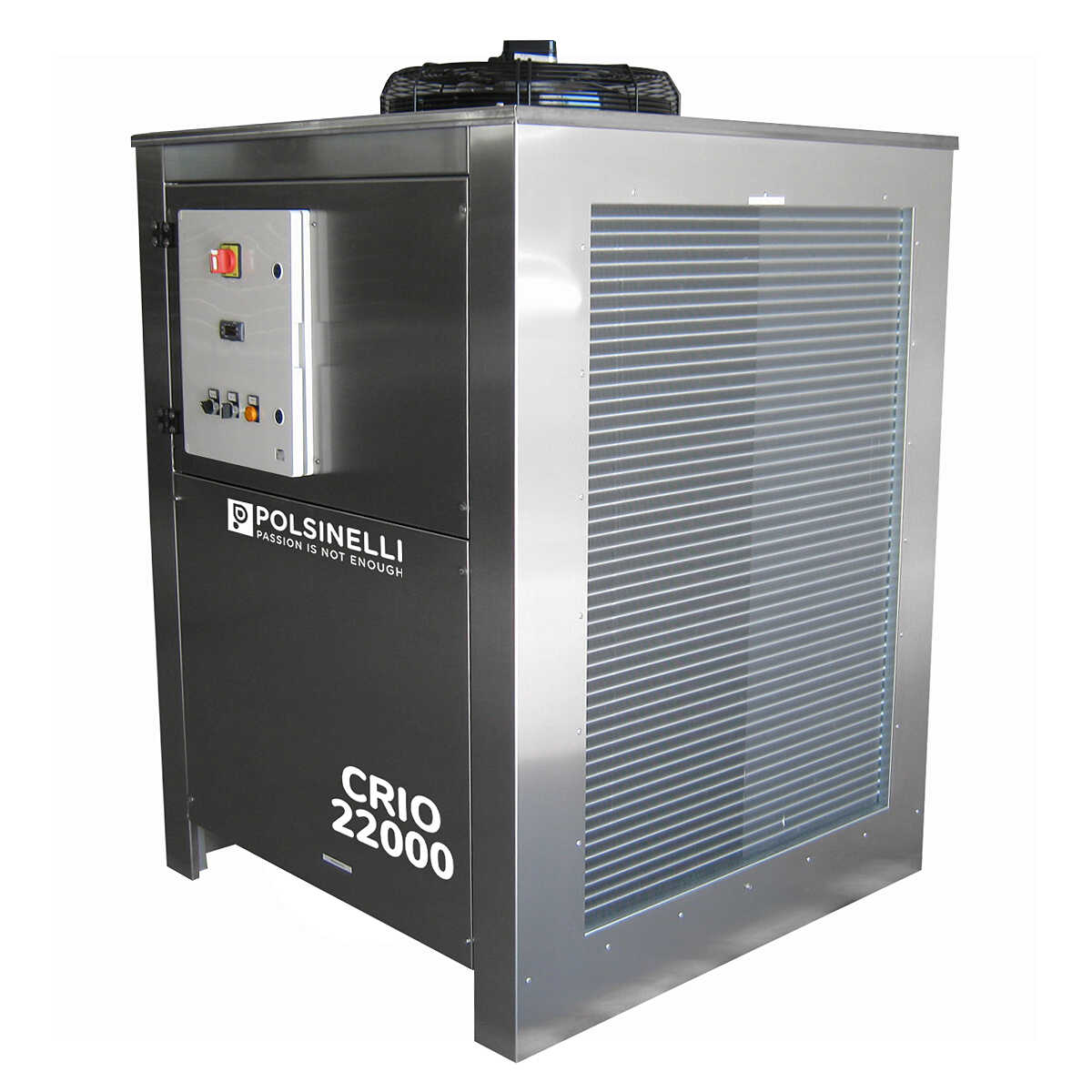

CRIO 22000 refrigerator

Cooler CRIO 22000

The CRIO 22000 is a highly efficient fermenter chiller with a high cooling capacity, ideal for completing wine and beer production facilities. Through a series of valves and filters, it can be easily connected to a control panel and to the fermenters, and, once in operation, is able to maintain the liquid at the desired temperature throughout the process. The CRIO 6000 chiller consists of several elements: a 11 kW compressor, 500 mm diameter fans and an electric pump to circulate the liquid. The instrument has a cooling capacity of 34.000 W with propylene glycol liquid at 5°C, and 22.500 W with glycol at a temperature of -8°C. The CRIO 22000 fermenter cooler measures 1200x1200x1750 mm, and weighs 400 kg (560 kg in operation). We recommend placing it at a distance of one metre from the wall so as not to compromise the ventilation of the fans.

Characteristics:

• CRIO 22000 made of stainless steel, R-448A refrigerant

Productivity in:

• must control 1600 Hl
• wine stabilization 165 hl

Conditions of use made refrigerated in watts:

• propylene glycol antifreeze
• power supply 400 V/3 + n + T / 50 Hz
• nominal absorbed current 35 A
• max nominal absorbed power 15,8 Kw
• noise level expressed in dB(A) at 1m. 70 dB

Cooling capacity:

• 34.000 W with glycol at +5°C
• 22.500 W with glycol at -8°C

Technical data of main components:

• 11 kW compressor
• finned packs 900 x 1260
• fan Ø 500 mm
• pump 0.55 kW + 0,55
• glycol in/out connections Ø 1''1/4 M
• internal glycol tank 160 Lt
• operating weight 560 kg
• pump flow rate 7000 l/h

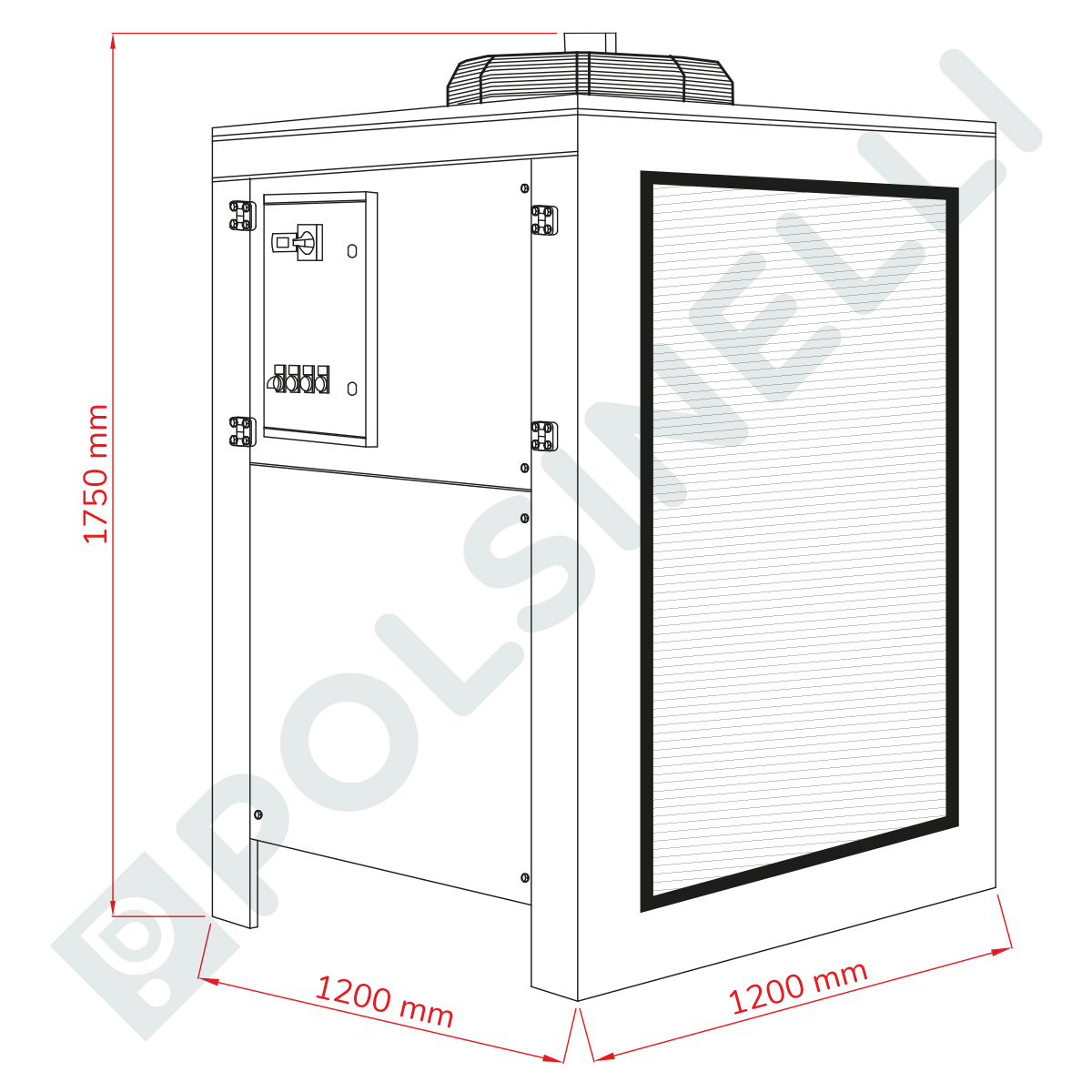

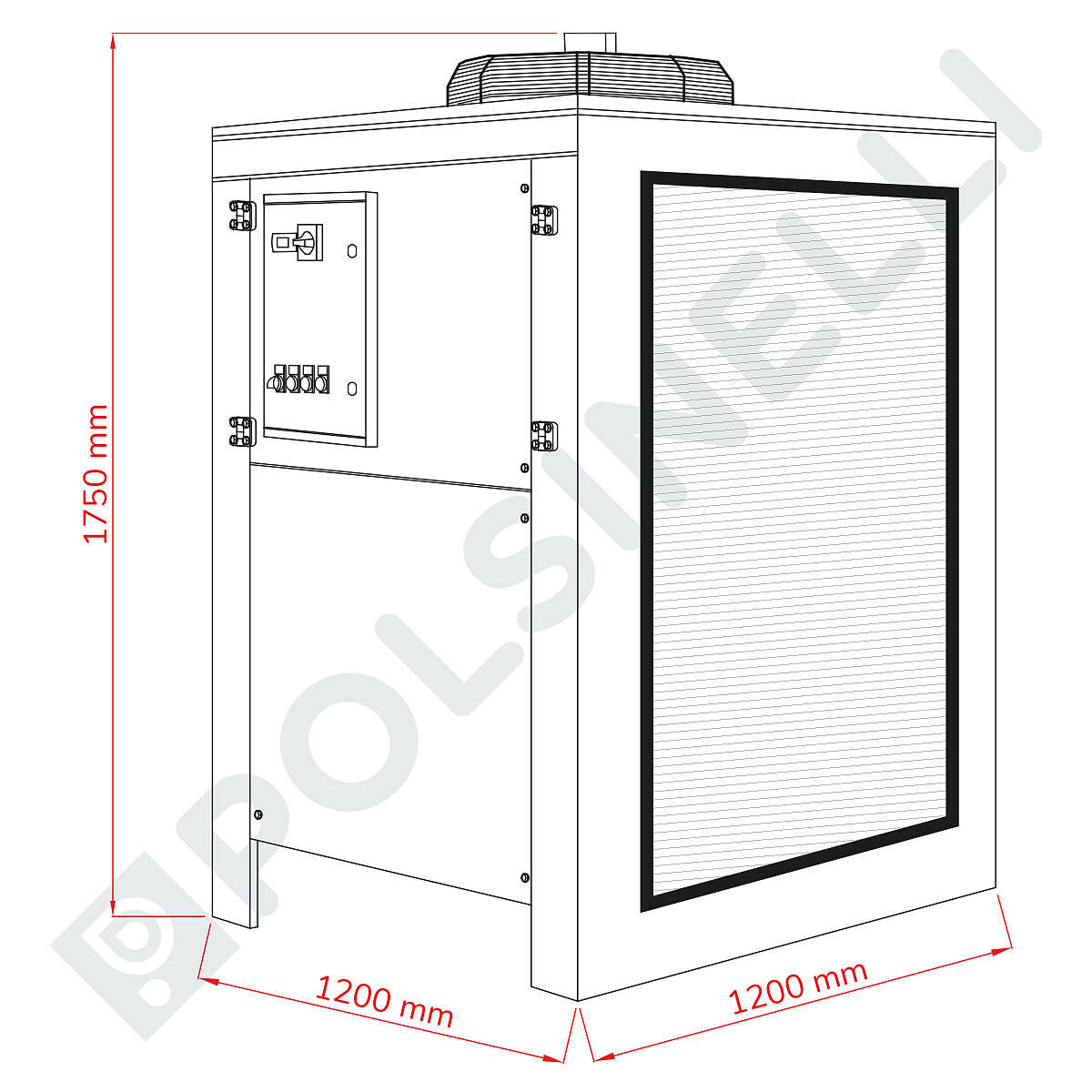

• Dimensions 1200x1200x1750 mm
• Machine weight 400 kg
