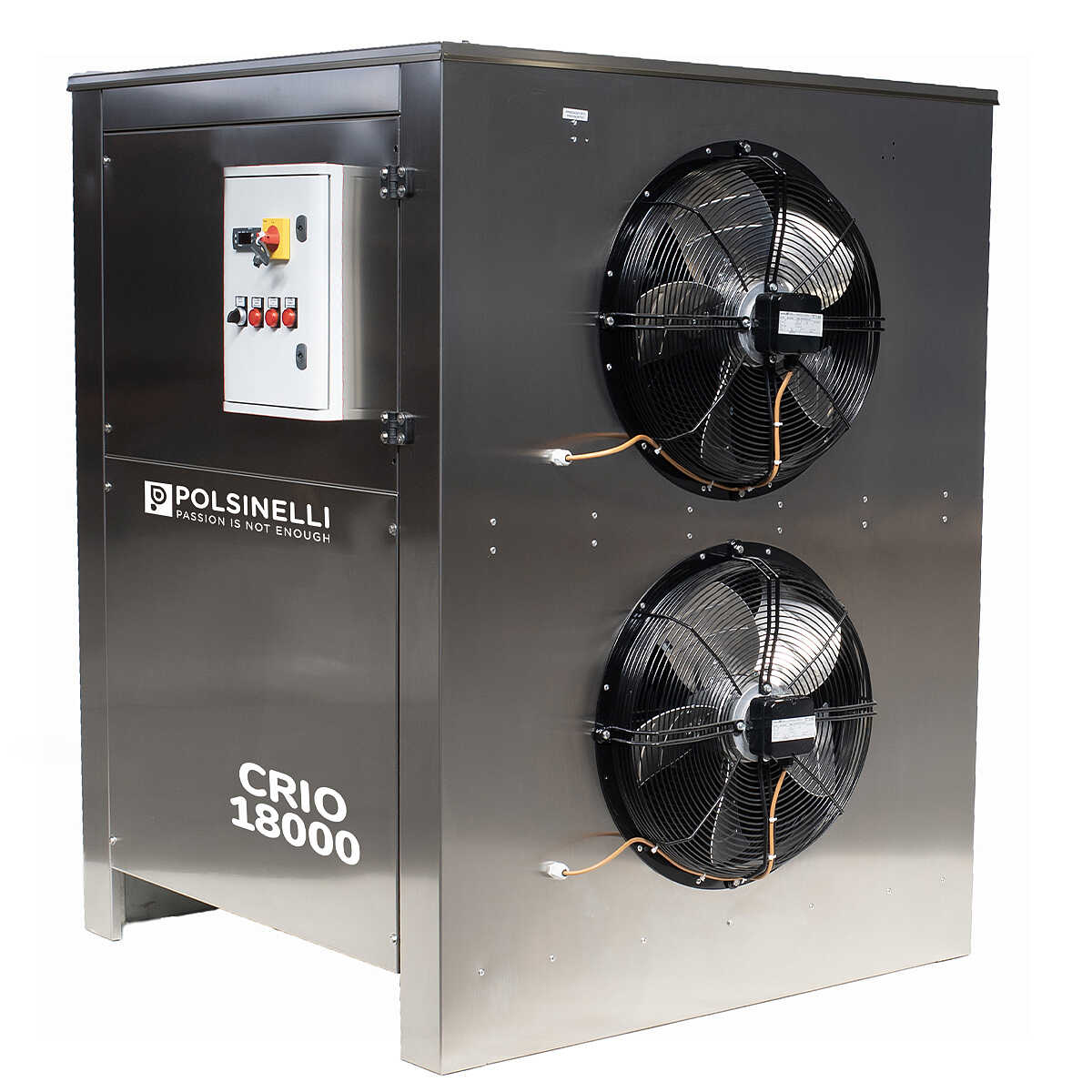

CRIO 18000 refrigerator

Cooler CRIO 18000

The CRIO 18000 is a highly efficient fermenter chiller with a high cooling capacity, ideal for completing wine and beer production facilities. Through a series of valves and filters, it can be easily connected to a control panel and to the fermenters, and, once in operation, is able to maintain the liquid at the desired temperature throughout the process. The CRIO 6000 chiller consists of several elements: a 9 kW compressor, 500 mm diameter fans and an electric pump to circulate the liquid. The instrument has a cooling capacity of 28.530 W with propylene glycol liquid at 5°C, and 18.540 W with glycol at a temperature of -8°C. The CRIO 18000 fermenter cooler measures 1160x1200x1578 mm, and weighs 365 kg (525 kg in operation). We recommend placing it at a distance of one metre from the wall so as not to compromise the ventilation of the fans.

Characteristics:

• CRIO 18000 made of stainless steel, R-448A refrigerant

Productivity in:

• must control 1200 Hl
• wine stabilization 150 hl

Conditions of use made refrigerated in watts:

• propylene glycol antifreeze
• power supply 400 V/3 + n + T / 50 Hz
• nominal absorbed current 31 A
• max nominal absorbed power 14,3 Kw
• noise level expressed in dB(A) at 1m. 70 dB

Cooling capacity:

• 28.530 W with glycol at +5°C
• 18.540 W with glycol at -8°C

Technical data of main components:

• 9 kW compressor
• finned packs 900 x 1260
• fan Ø 500 mm
• pump 0.55 kW + 0,55
• glycol in/out connections Ø 1''1/4 M
• internal glycol tank 160 Lt
• operating weight 525 kg
• pump flow rate 7000 l/h

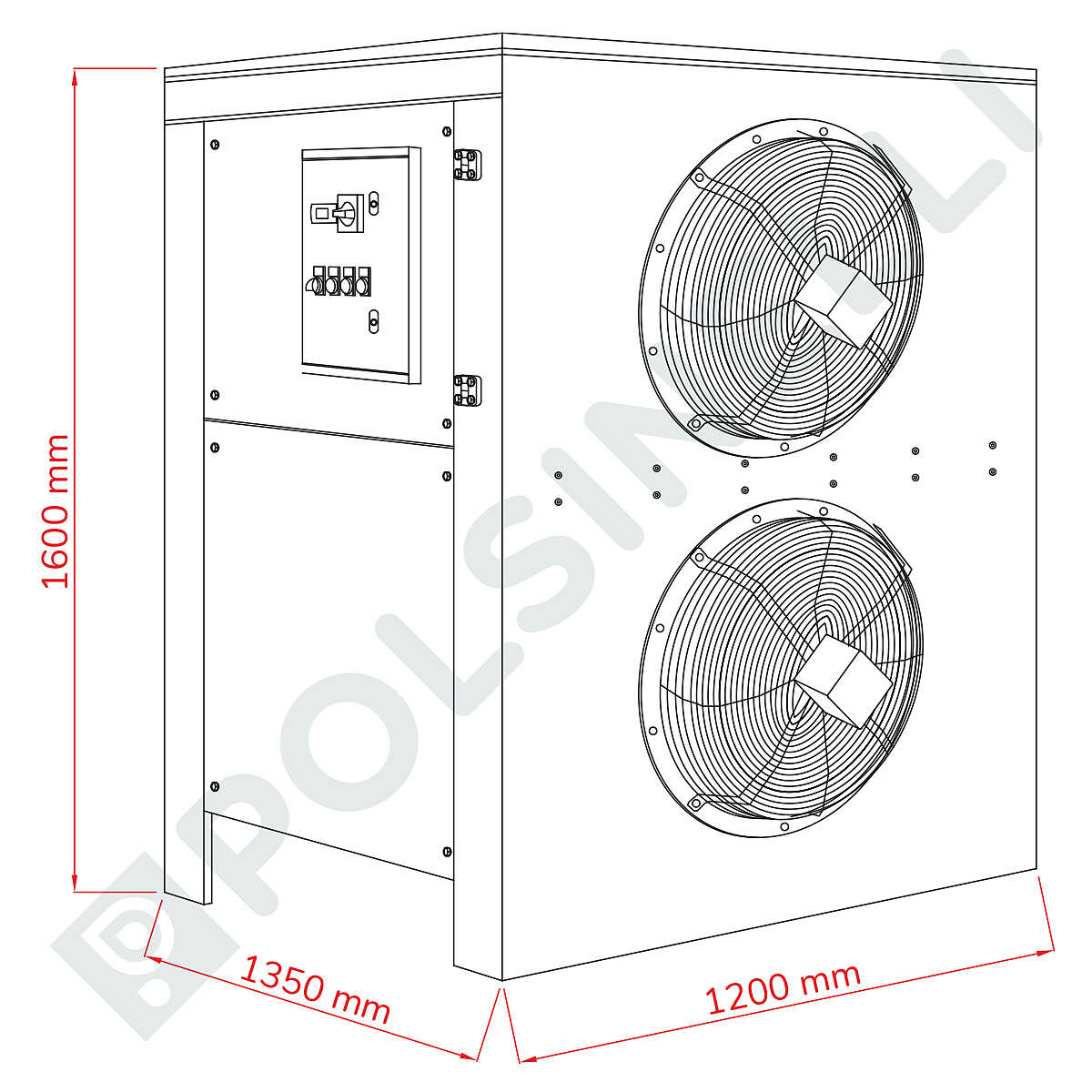

• Dimensions 1200x1350x1600 mm
• Machine weight 365 kg
