Cooler CRIO 6000
Description

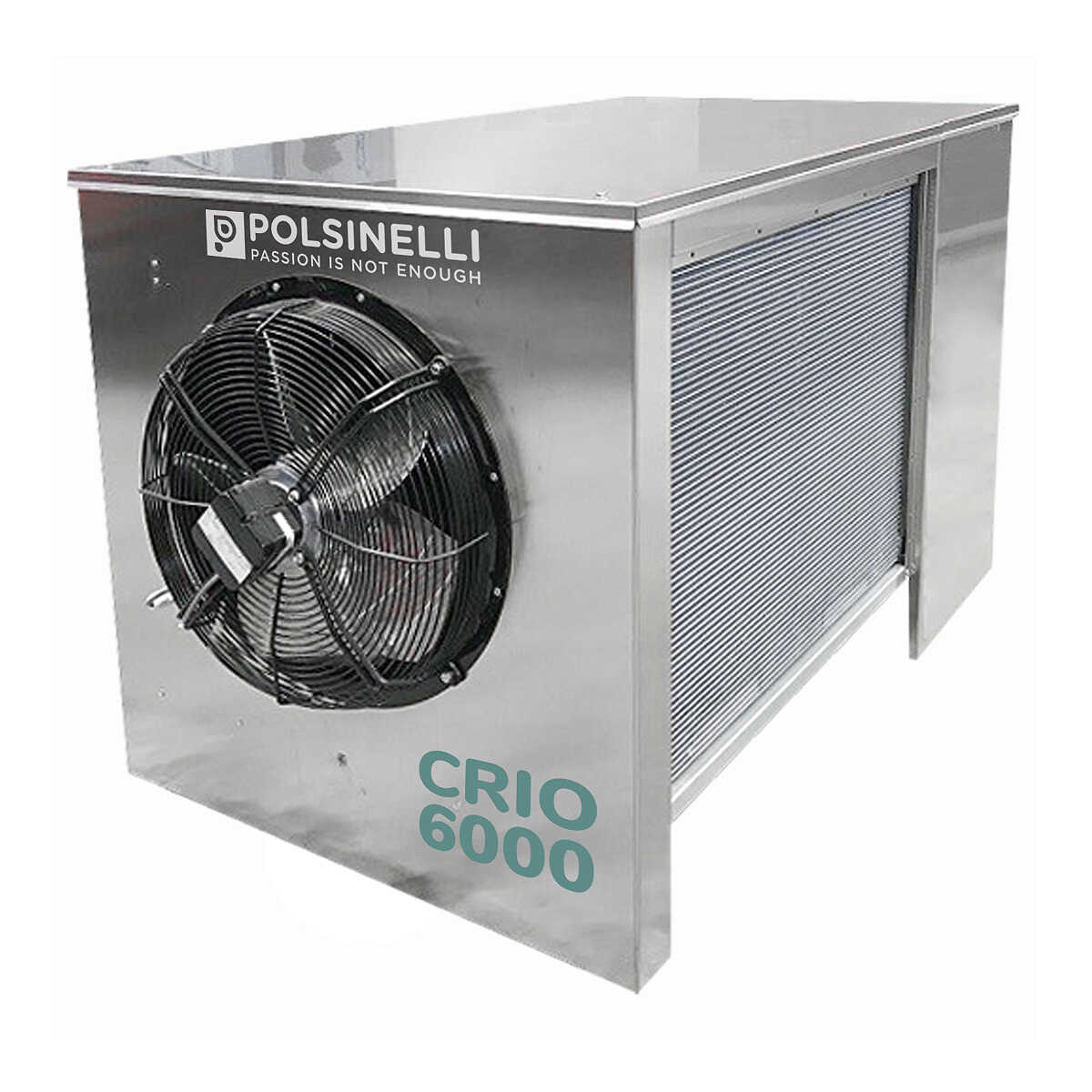

Cooler CRIO 6000
The CRIO 6000 is a highly efficient fermenter chiller with a high cooling capacity, ideal for completing wine and beer production facilities. Through a series of valves and filters, it can be easily connected to a control panel and to the fermenters, and, once in operation, is able to maintain the liquid at the desired temperature throughout the process. The CRIO 6000 chiller consists of several elements: a 2,6 kW compressor, 500 mm diameter fans and an electric pump to circulate the liquid. The instrument has a cooling capacity of 8.500 W with propylene glycol liquid at 5°C, and 5.250 W with glycol at a temperature of -8°C. The CRIO 6000 fermenter cooler measures 840x1150x965mm, and weighs 140 kg (230kg in operation). We recommend placing it at a distance of one metre from the wall so as not to compromise the ventilation of the fans.
Characteristics:
- Made of stainless steel, R-448A refrigerant
Productivity in:
- must control 280 Hl
- wine stabilization 35 hl
Conditions of use made refrigerated in watts:
- propylene glycol antifreeze
- power supply 400 V/3 + n + T / 50 Hz
- nominal absorbed current 8.10 A
- max nominal absorbed power 3.6 Kw
- noise level expressed in dB(A) at 1m. 65dB
Cooling capacity:
- 8.500 W with glycol at +5°C
- 5.250 W with glycol at -8°C
Technical data of main components:
- 2.6 kW compressor
- finned packs 720 x 700
- fan Ø 500 mm
- pump 0.37 kW
- glycol in/out connections Ø 1''1/4 M
- internal glycol tank 90 Lt
- operating weight 230 kg
- pump flow rate 2250 l/h

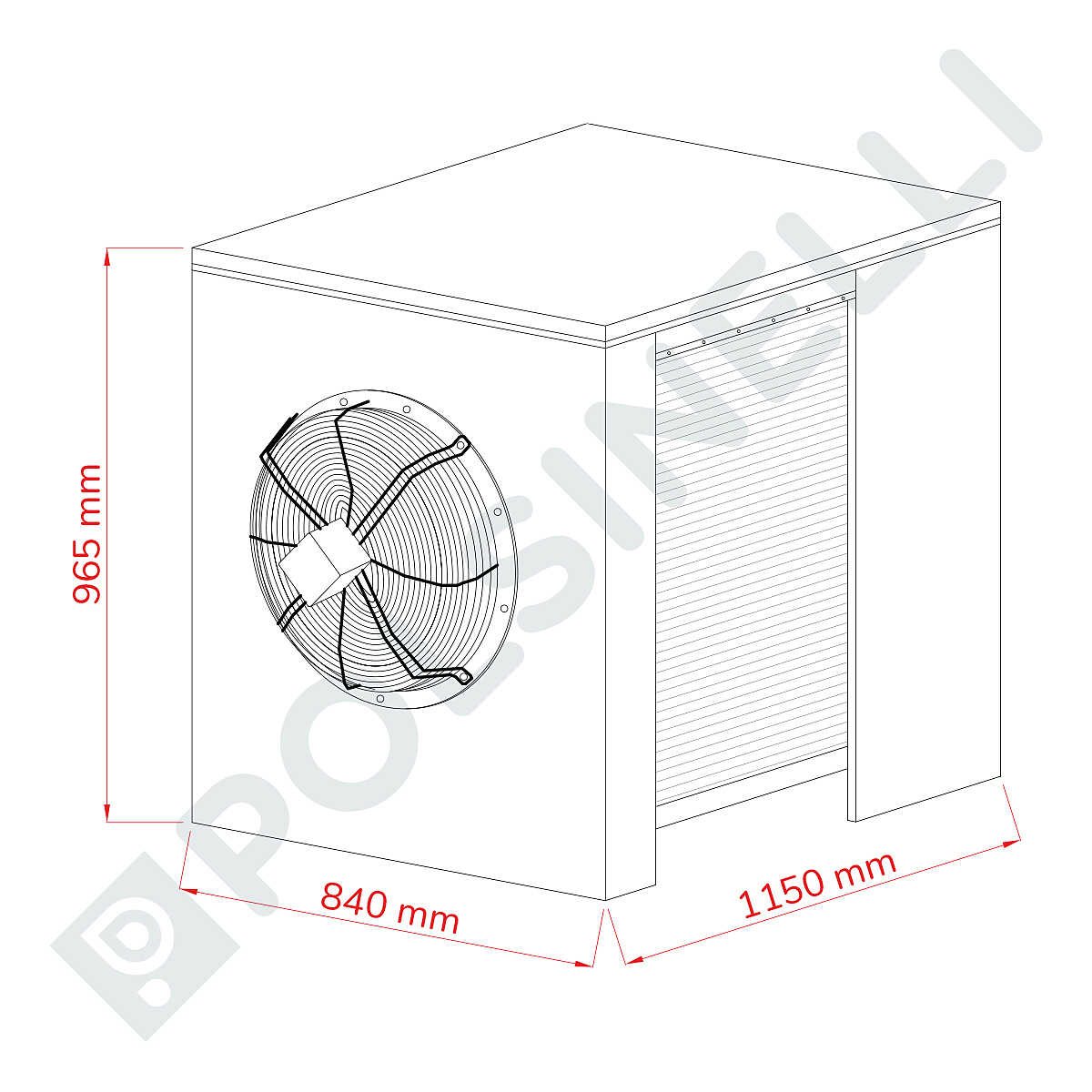

- Dimensions 840x1150x965 mm
- Machine weight 140 kg
