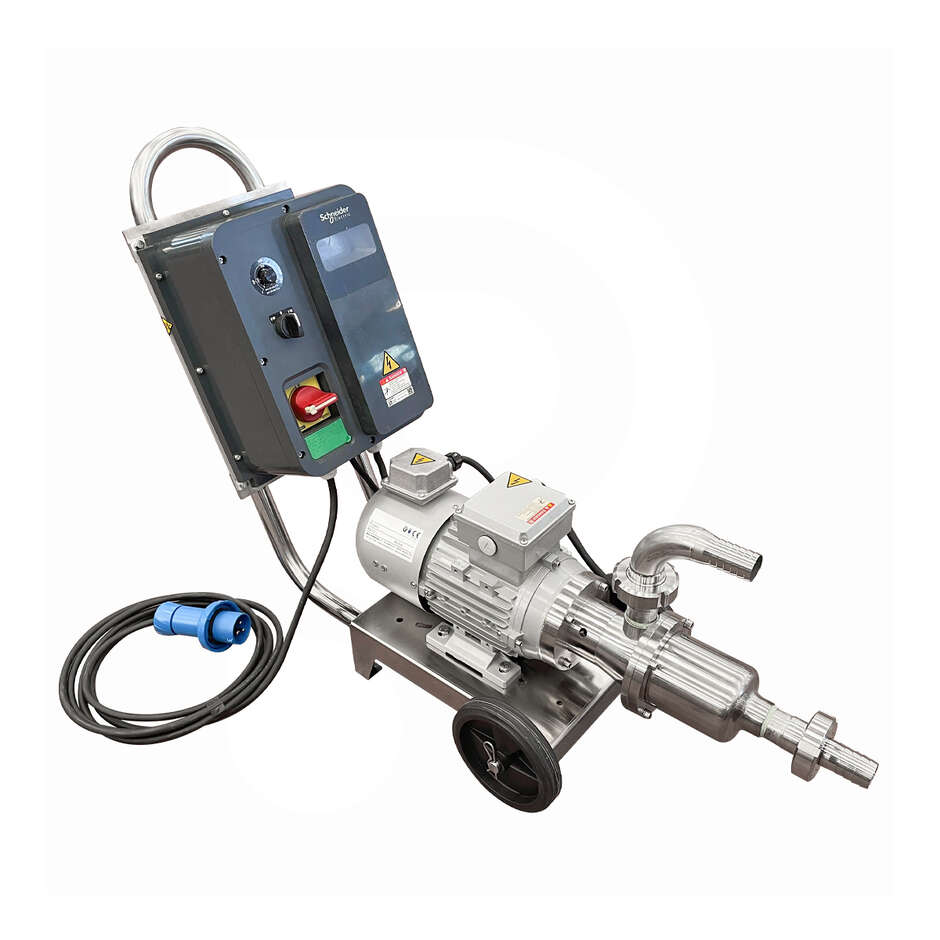

Electro pump P30 A.T. with inverter
Description
Electropump for food use P30 A.T. with inverter

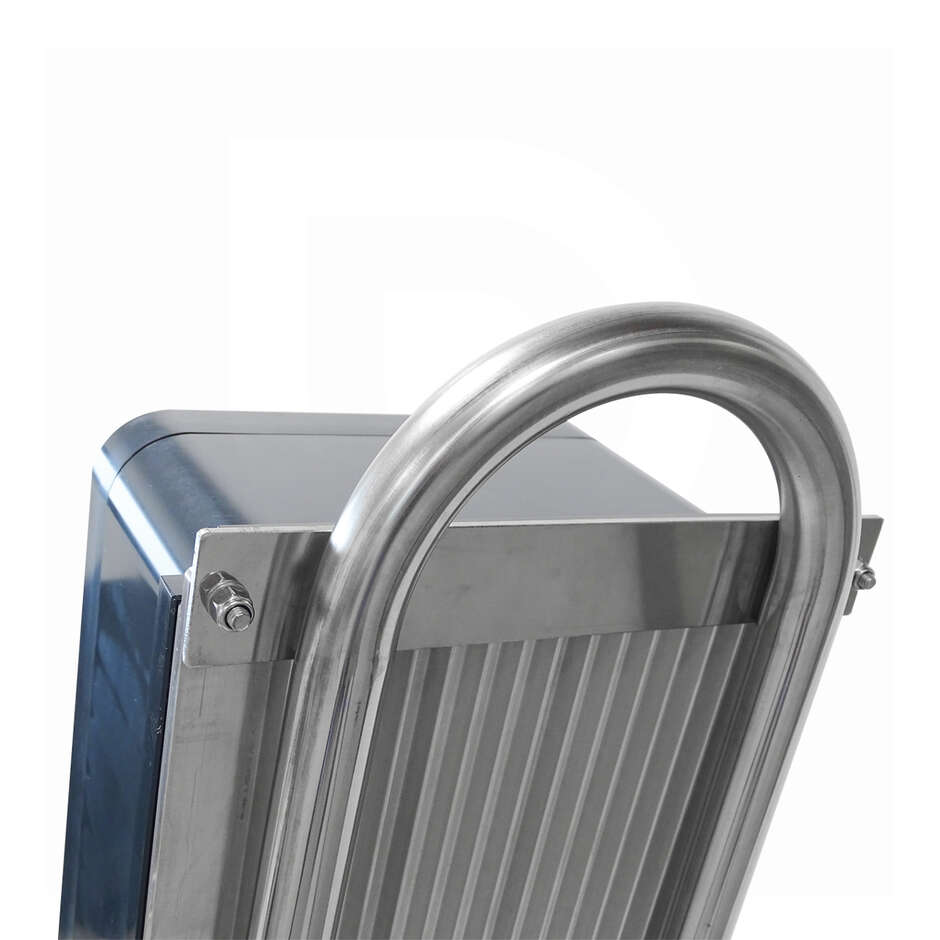

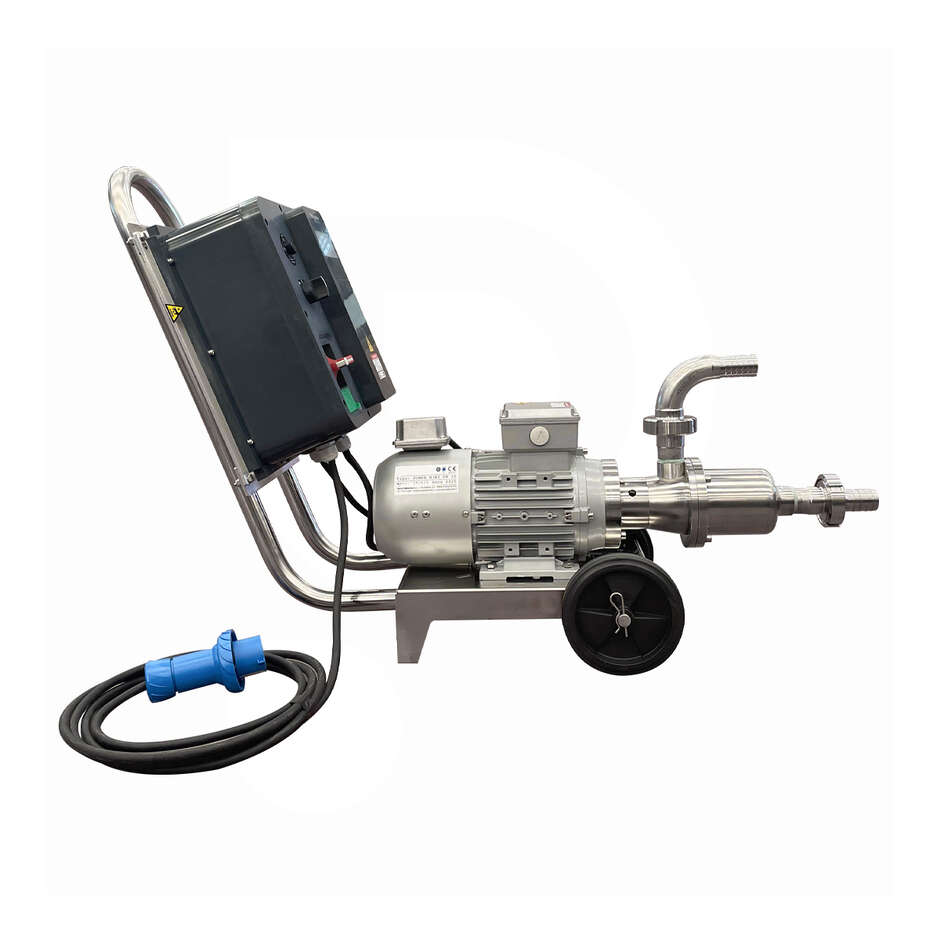

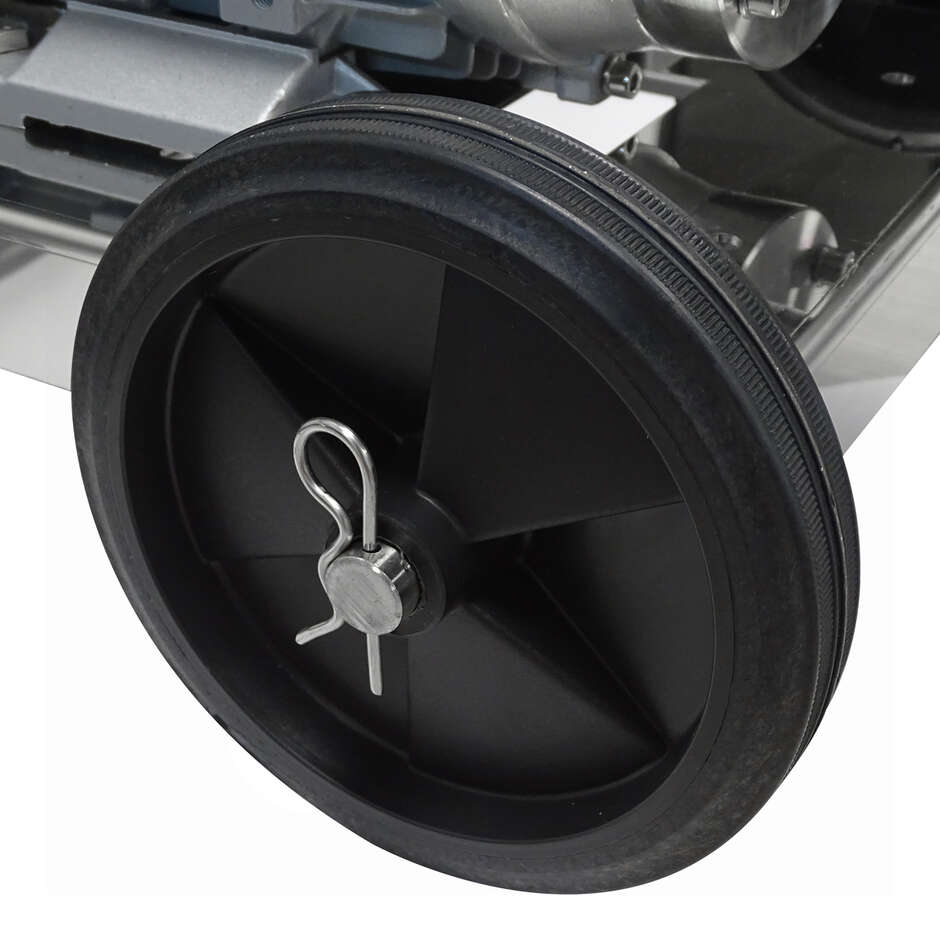

The P30 AT progressive cavity electric pump with inverter consists of a motor, an internal rotor and a practical trolley with wheels and handle, ideal for transporting it. It is a tool designed for transferring food liquids even at high temperatures, perfect for wine, olive oil, beer and milk producers. The P30 AT single-screw electric pump with inverter does not affect in any way the organoleptic properties of the transported products, respecting the power standards of D.M. 21/03/73. The rotor is powered by a 0.55 kW three-phase 4P electric motor, and has a speed range of 10 to 2000 rpm, for a flow rate of 2 to 42 hl/hour. The inverter of the P30 AT single-screw electric pump is very useful for controlling the speed, torque and acceleration of the motor, and optimising the consumption of the device.
Characteristics:
- Power supply 220 V (50 Hz)
- 0.55 KW 4P three-phase motor

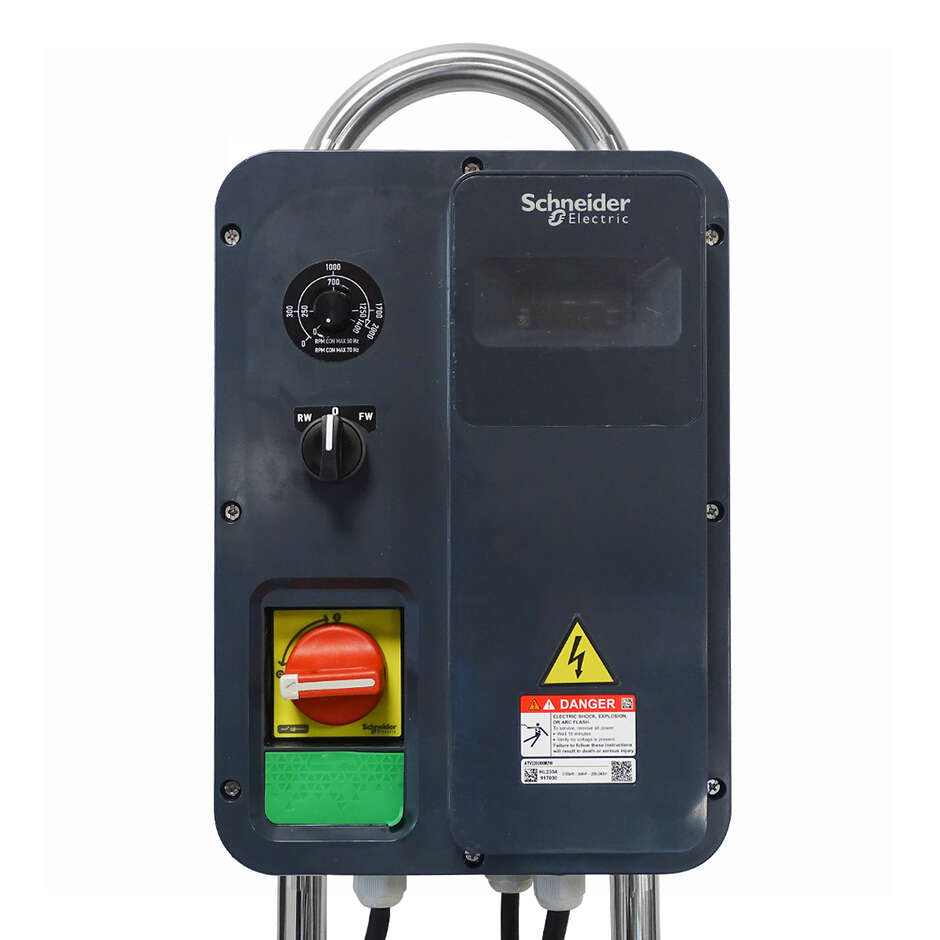

- IP65 single-phase inverter and servo-ventilation
- 10-2000 rpm (2-42 hl/hour)

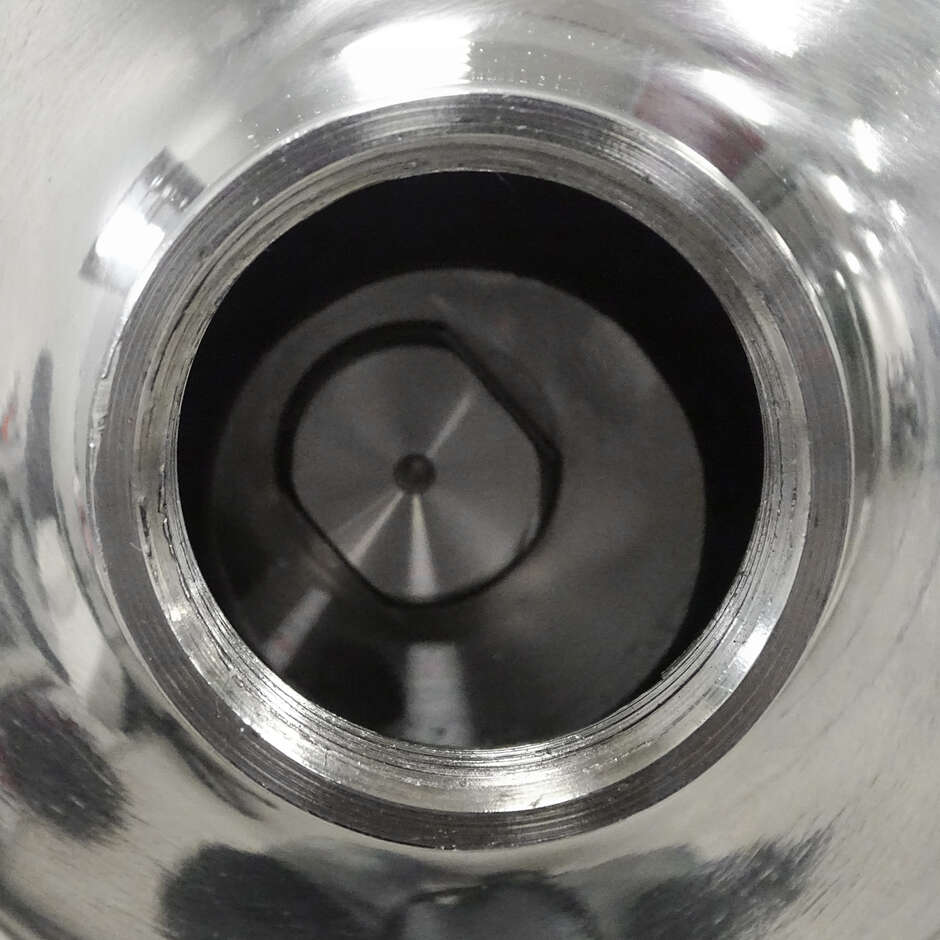

- Pump body in stainless steel Aisi 304

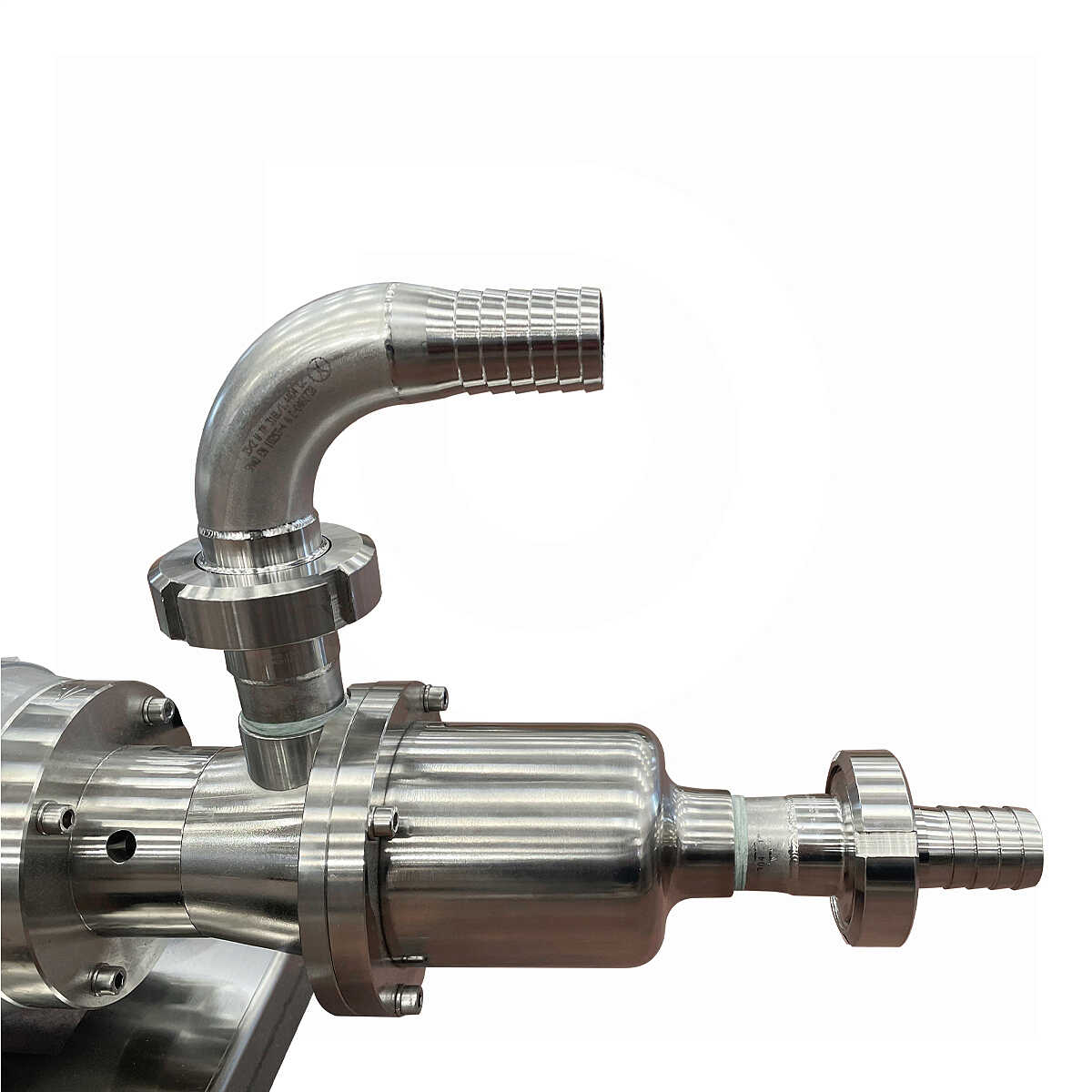

- Inlet/Outlet: 1" GAS
- Maximum operating temperature 80°C
