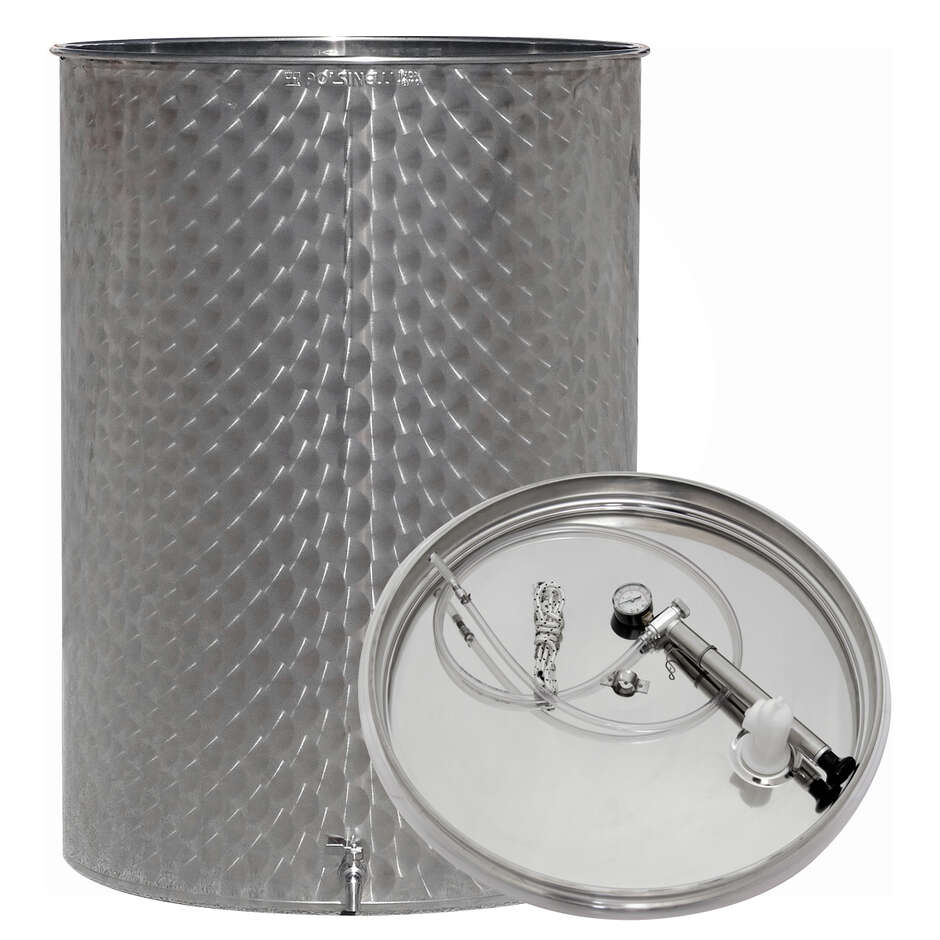

600 L stainless steel wine tank with air floating lid

Product code: SIP0204
Ready to order product
Shipping within 30 days from the receipt of payment.
We are sorry, for this order you will receive a quotation for shipping costs
Qty € 400.00
Add to cart
Description

600 L stainless steel wine tank with air floating lid

Ideal for wine and liquid food storage. Made of stainless steel 18/10 with flower patterned embossed exterior finishing. Concave welded bottom  for easy cleaning.  Complete with stainless steel threaded bushing for tap application  in chrome-plated brass, stainless steel or  plastic for foodstuffs.

Standard equipment:

  • 1" welded bushing

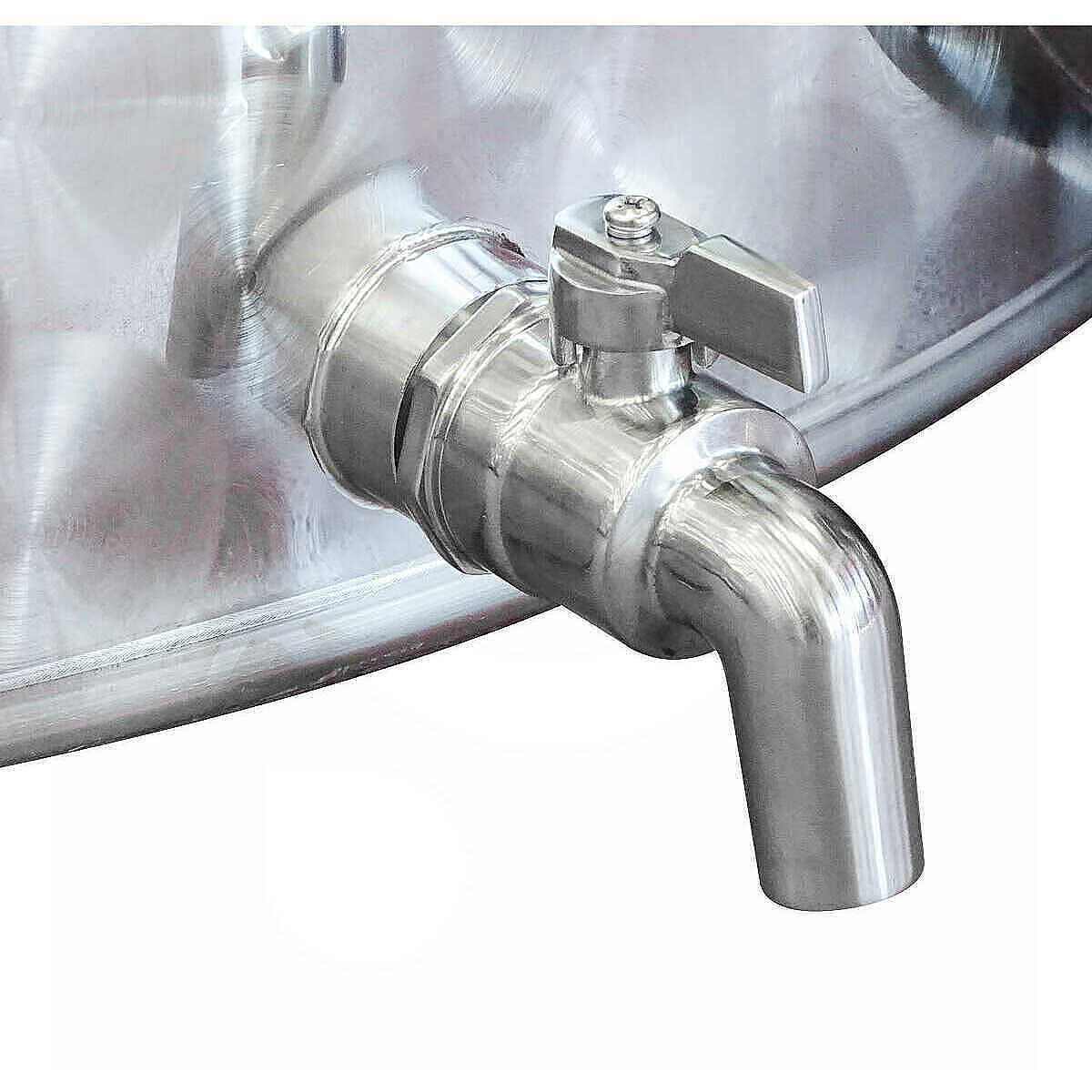

  • Chrome-plated brass valve 1" GAS x ENO 30
  • Curve in plastic material for foodstuffs
  • Stainless steel air float
  • Air chamber
  • Stainless steel pump with analogue manometer
  • Recovery cable
  • Vent valve 1"1/4

Technical specifications:

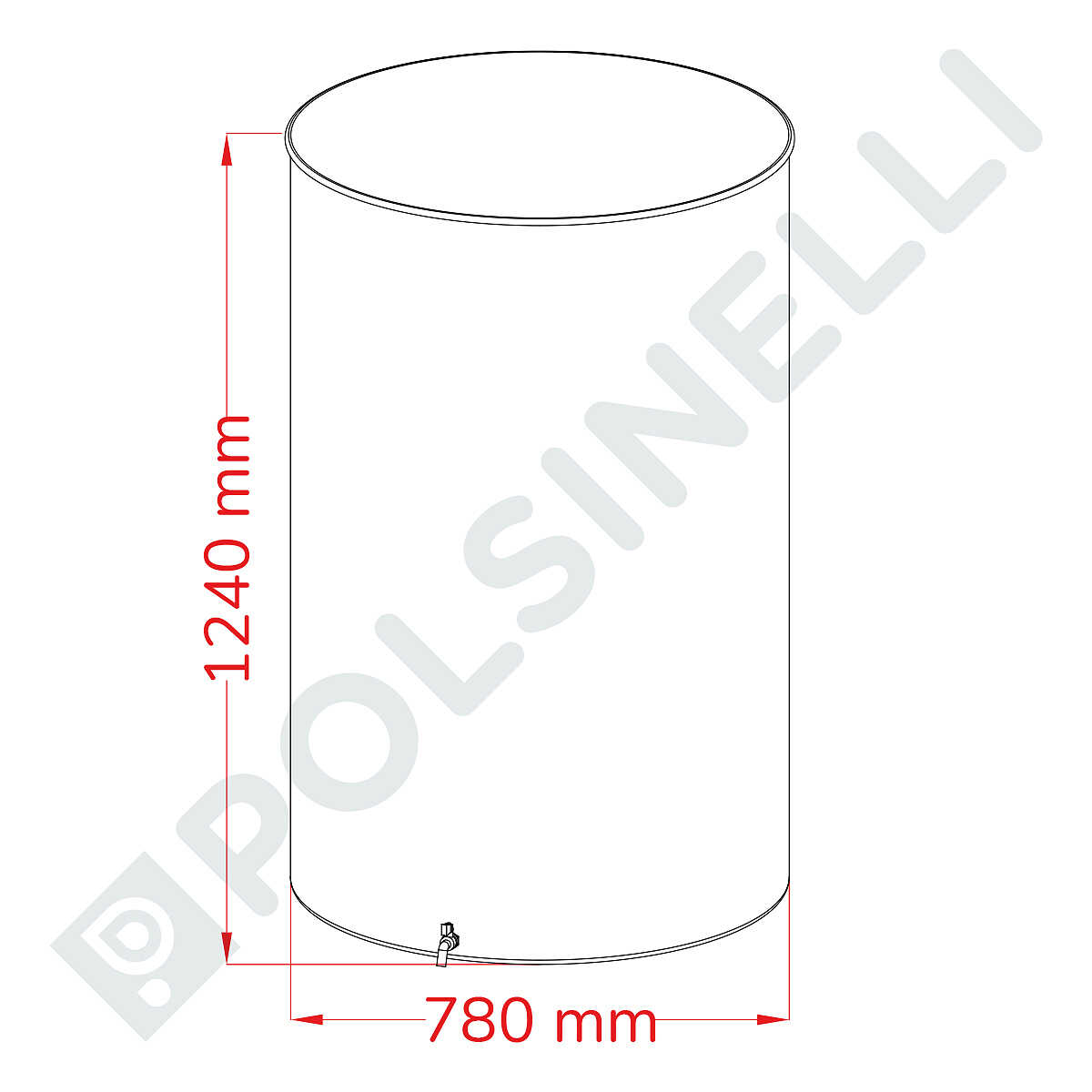

  • Capacity: 600 L
  • Inner diameter: 780 mm
  • Height: 1240 mm
  • Weight: 24 kg
  • Material: stainless steel 18/10 (AISI 304)
  • External finish: fluted
  • Bottom: rounded and welded flat

Thickness:

  • Walls: 0.6 mm
  • Bottom: 0,8 mm

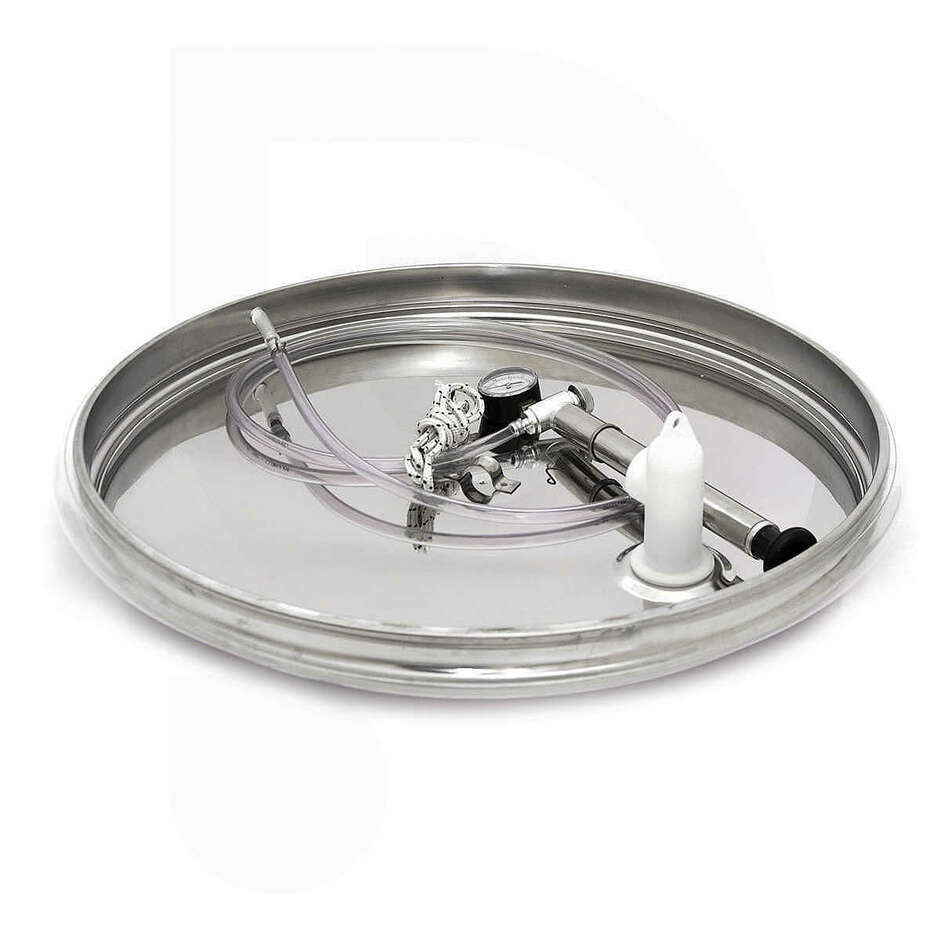

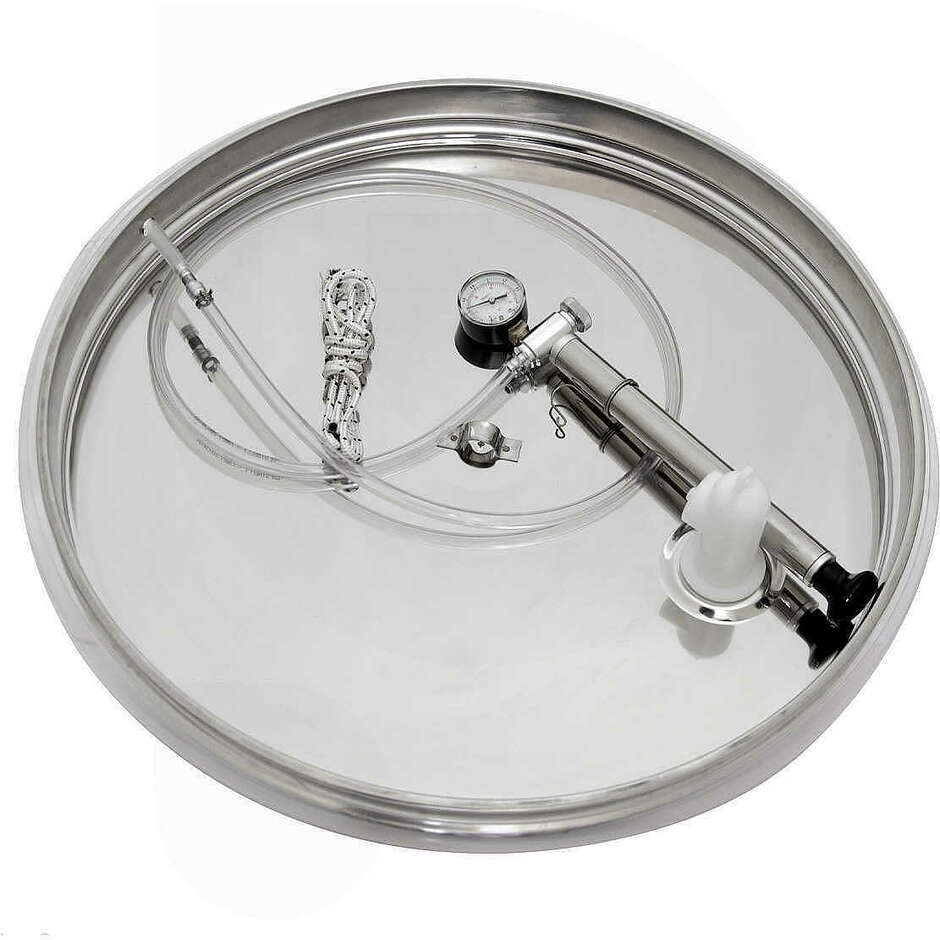

1 - Stainless steel pump with analog gauge

2 - stainless steel float lid

3 - vent  valve

4 - rope recovery



Proper use of floating air lids:

  1. always fully fill the tank with wine
  2. place the stainless steel float lid on the surface of the wine
  3. unscrew the valve on the pump to allow inflation
  4. inflate the tube to about 0.7 atm
  5. check that the tube is tight against the inner surface of the tank and close the valve of the pump
  6. you should check the air pressure every 15 days.

If the tube does not maintain the pressure, check:

  1. that there are no holes
  2. the attachment between the air chamber and plastic tube
  3. that the air hose clamps are not loose
  4. that the gauge is not broken
  5. if the pump valve is not working
Technical description

For wine; with air floating lid; with flat, rounded and welded bottom.
