Description
1000 L Stainless steel cone bottom with air floating lid
Made of AISI 304 18/10 stainless steel, the 1000 litre stainless steel tank with the conical bottom is the ideal product for wine fermentation and storage of liquid foodstuffs, a perfect solution for the most demanding companies that need professional, high-quality support.
The structure of the 1000 litre wine tank is supported by 3 stainless steel feet that guarantee maximum stability. The reinforced bottom has a conical shape with a 10° slope. Total and partial drains allow the liquid to be drawn off easily. Also present is the stainless steel wine taster, a practical tap for extracting minimal quantities of must.
The insulation of the wine inside the 1000 litre tank is guaranteed by the air float, equipped with an air chamber in transparent food-grade plastic, specially designed to best preserve the organoleptic characteristics of the product. The outer surface is flocked, while the inside is mirror polished for easy cleaning and sanitisation.
Characteristics:
- Material: stainless steel AISI 304
- Capacity: 1000 L
- Internal finishes: mirror polished
- External finishes: flamed, with satin welds
- Conical bottom 10° with reinforcements

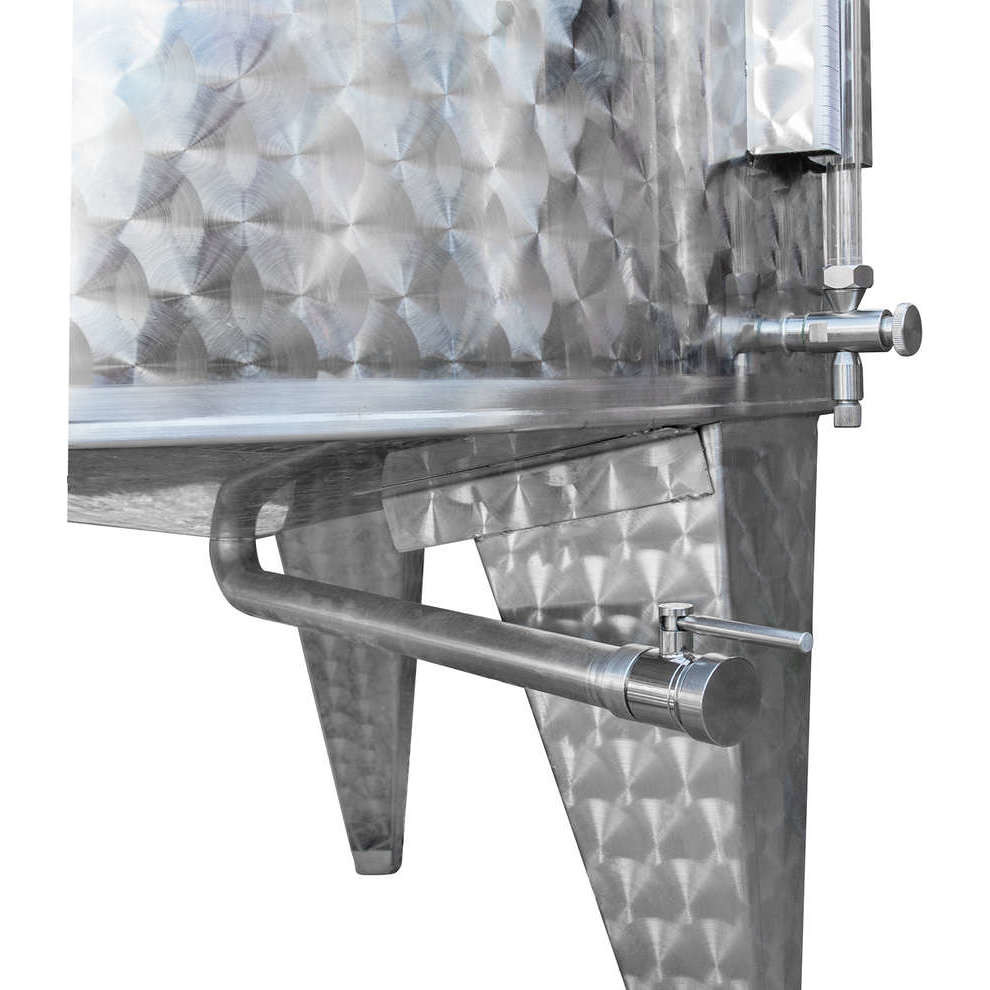

- Total discharge with valve 1" x ENO 30 (3)
- Partial discharge with stainless steel valve and plastic elbow 1" x ENO 30 (1)
- 3 stainless steel feet
- Stainless steel air float complete with a transparent food-grade plastic air chamber (4)
- Double-acting plastic vent valve

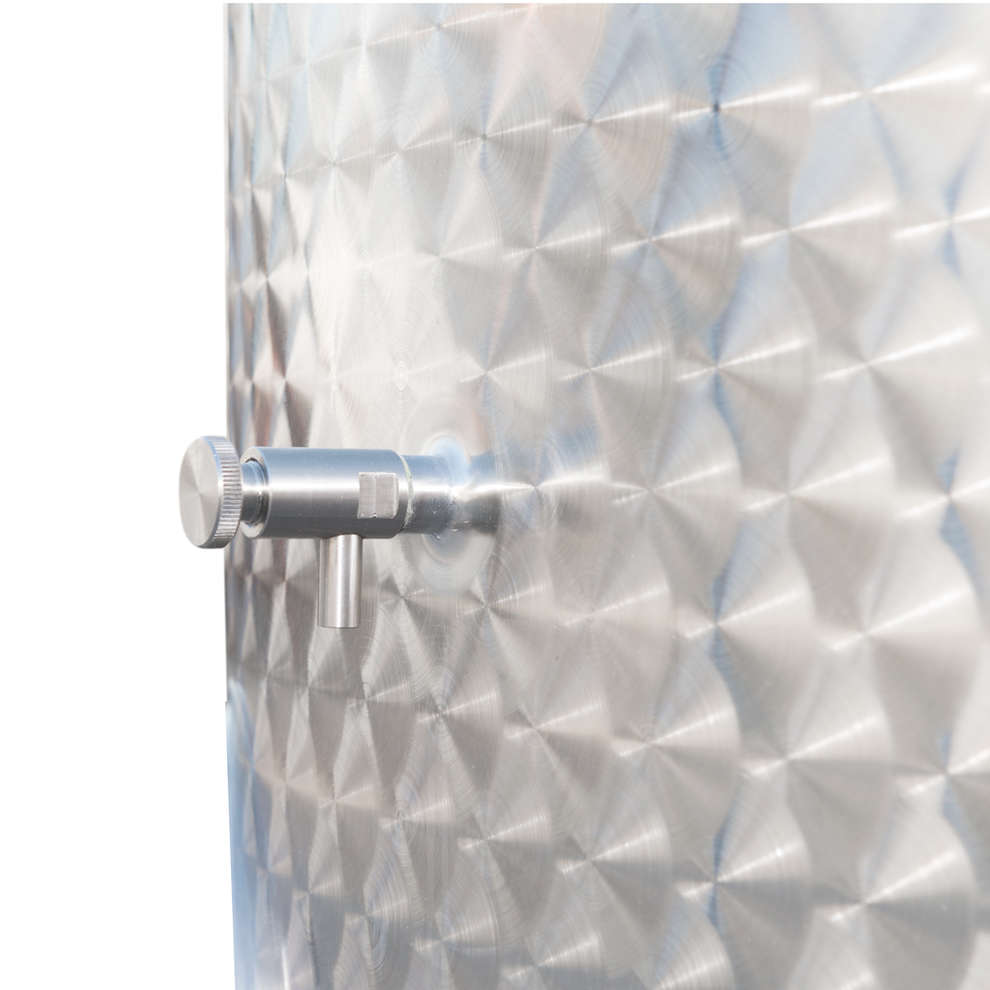

- Stainless steel wine taster (2)
- Level indicator with stainless steel protection

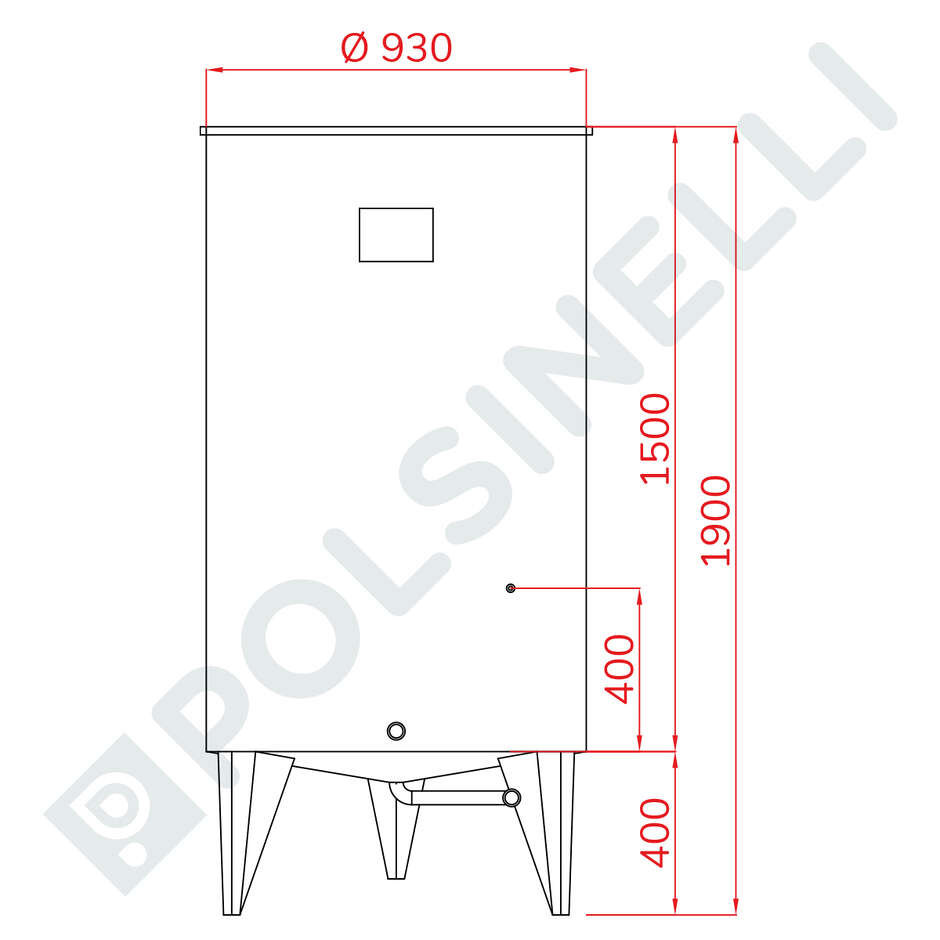

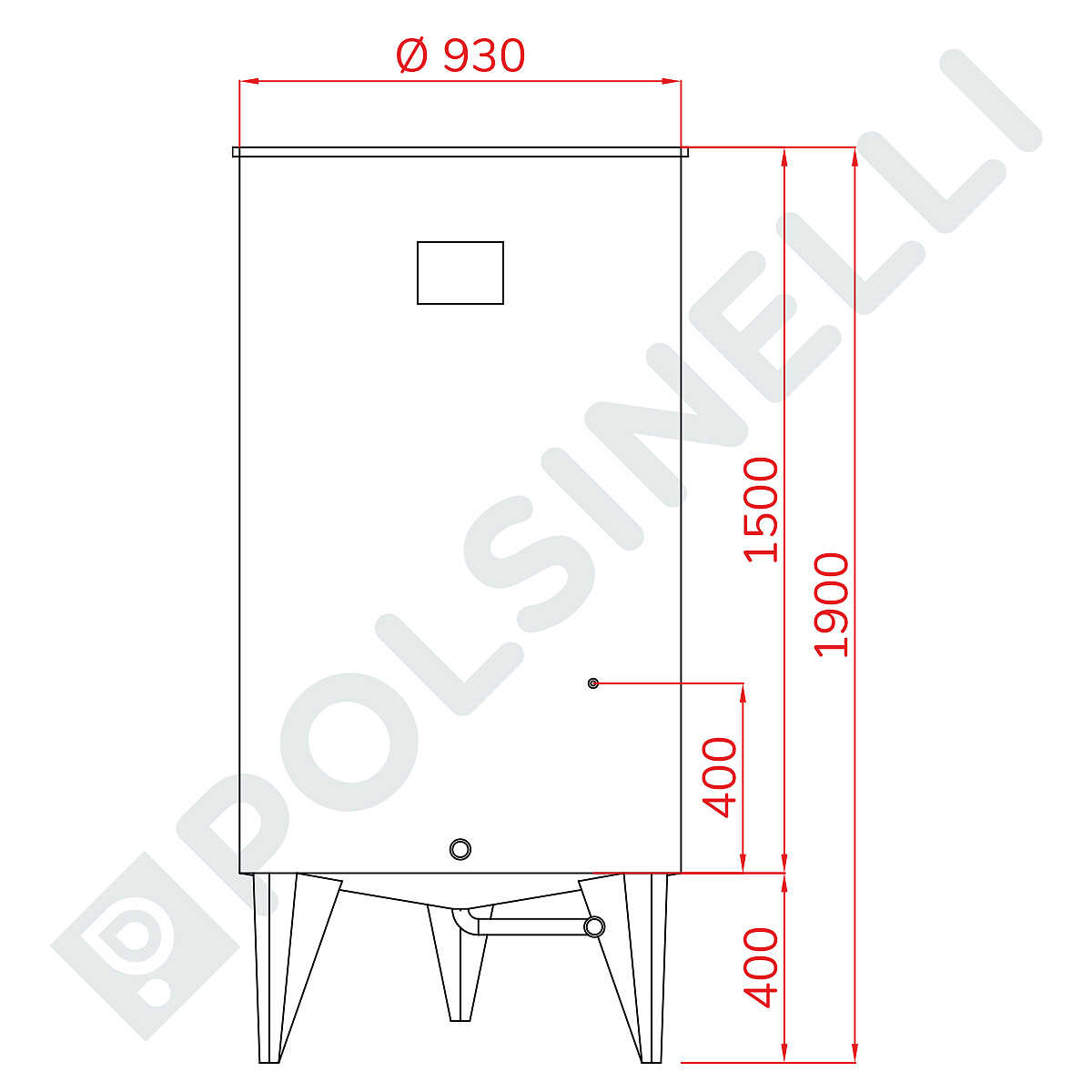

Dimensions:
- Diameter: 930 mm. (D1)
- Screw height: 1500 mm. (H3)
- Foot height: 400 mm. (H2)
- Total height with feet and sifter: 1900 mm. (H1)
Thickness:
- Walls: 1 mm
- Bottom: 1.5 mm
