1000 L Refrigerated cone bottom stainless steel tank with air floating lid
- 300 L 10° air floating lid
- 300 L 10° air floating lid with Ø300 manhole
- 500 L 10° air floating lid
- 500 L 10° air floating lid with Ø300 manhole
- 500 L 10° Refrigerated air floating lid
- 500 L 10° Refrigerated air floating lid with Ø300 manhole
- 1000 L 10° air floating lid
- 1000 L 10° Refrigerated air floating lid
- 1000 L 10° air floating lid with Ø300 manhole
- 1000 L 10° Refrigerated air floating lid with Ø300 manhole
- 1500 L 10° air floating lid
- 1500 L 10° air floating lid with Ø300 manhole
- 2000 L 10° air floating lid with Ø300 manhole
- 2000 L 10° air floating lid with manhole Ø400
- 2500 L 10° air floating lid with Ø400 manhole
- 3000 L 10° air floating lid with Ø400 manhole
- 3000 L 10° Refrigerated air floating lid with Ø400 manhole
Description

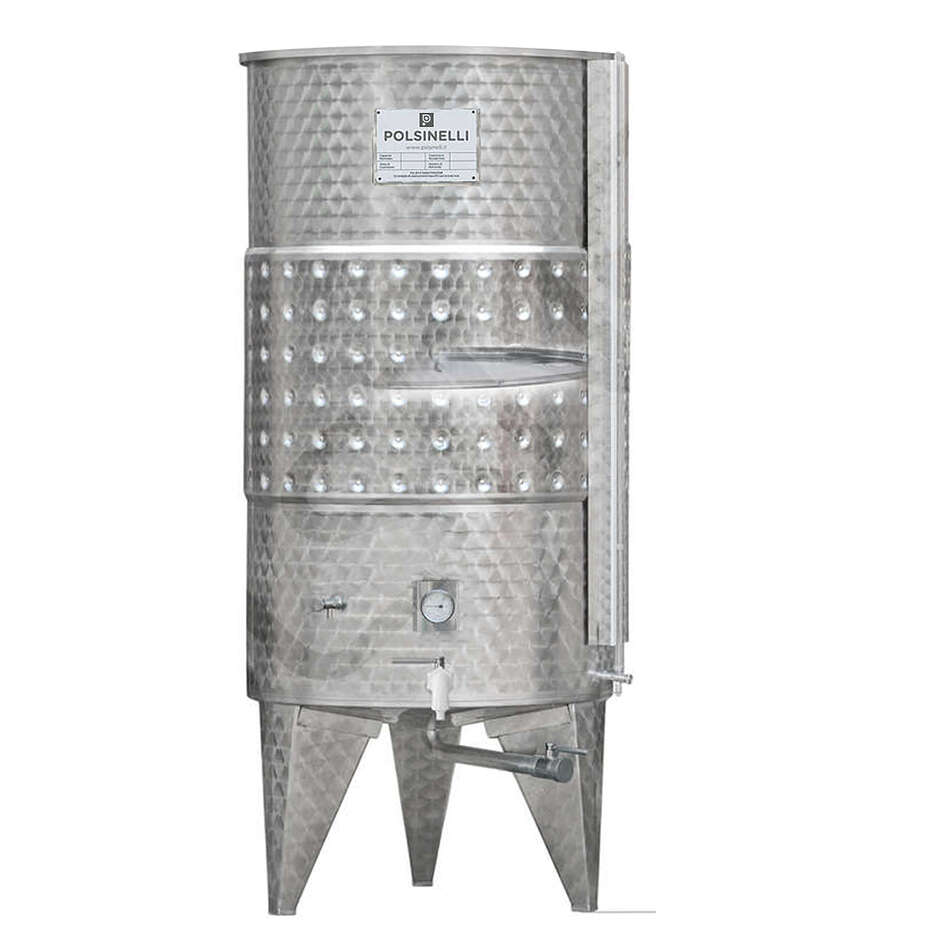

1000 L Refrigerated cone bottom stainless steel tank with air floating lid
The 1000-litre refrigerated floating conical-bottom tank, on sale on Polsinelli, is a tool that allows you to keep your wine processing tank efficient, constantly improve its performance and obtain a valuable end product. The 1000-litre conical-bottom tank is made of AISI 304 stainless steel, a material that ensures great durability over time, high resistance to moisture and, above all, excellent thermal conductivity that allows you to optimise the performance of the coolant to be inserted through the special pocket with connections. The bottom of the 1000-litre Conical Floating Air Tank is characterised by a slight inclination of the bottom that facilitates the emptying of the contents and the cleaning of the tank once it has been used. The 1000-litre stainless steel tank is equipped with an analogue thermometer for temperature control, which can be placed inside a special steel probe holder, a wine-tasting tap and a practical level indicator with protection that accurately indicates the amount of liquid contained. A lid with an air float allows the final product to be perfectly insulated. Maintenance of the 1000-litre refrigerated tank is facilitated by the mirror-polished interior finish, which allows easy cleaning and sanitisation of the product.
Characteristics:
- Material: AISI 304 stainless steel
- Capacity: 1000 L
- Mirror polished internal finishes
- Satin-brushed external finishings
- Conical bottom inclined at 10° with reinforcements

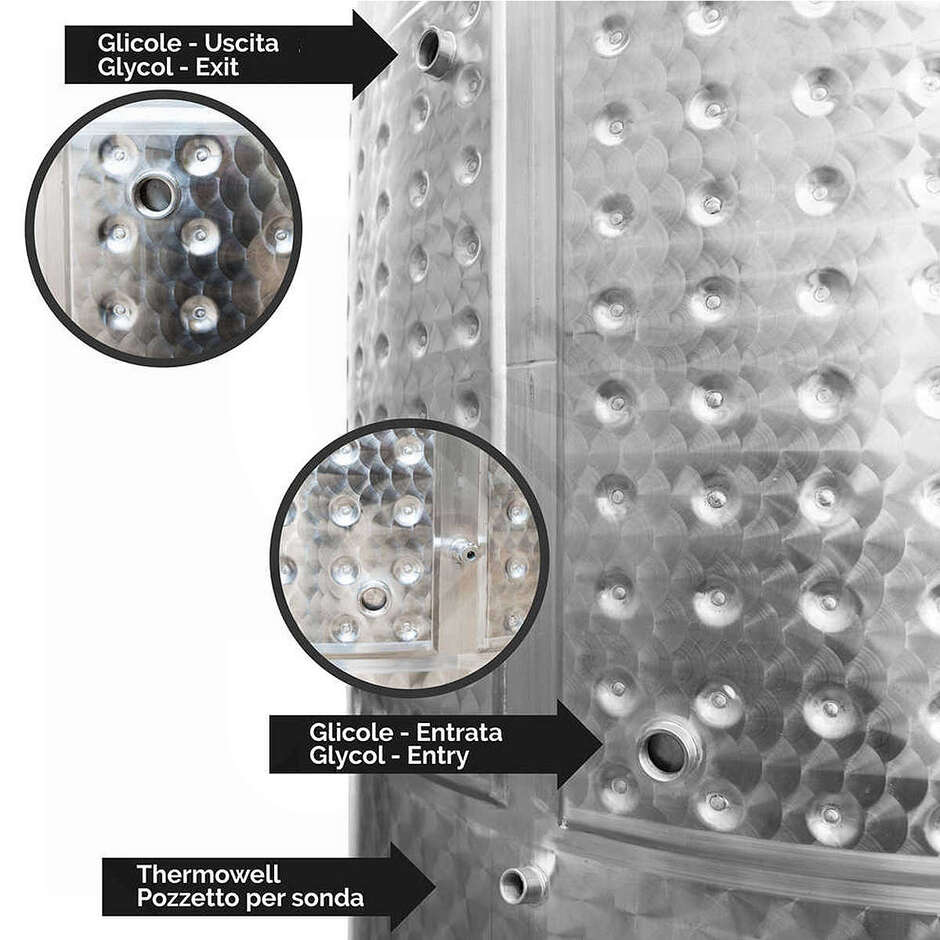

- Refrigeration pocket with 1" connections for coolant inlet and outlet

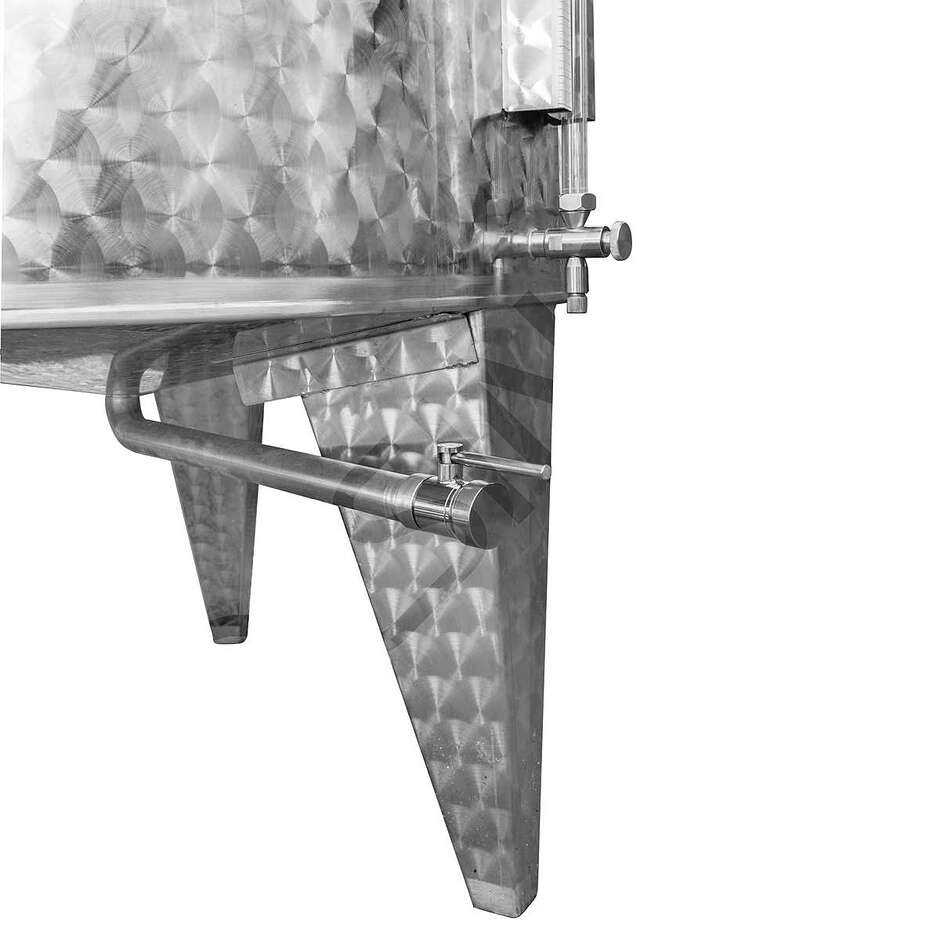

- Total drain with 1" valve x ENO 30 (3)

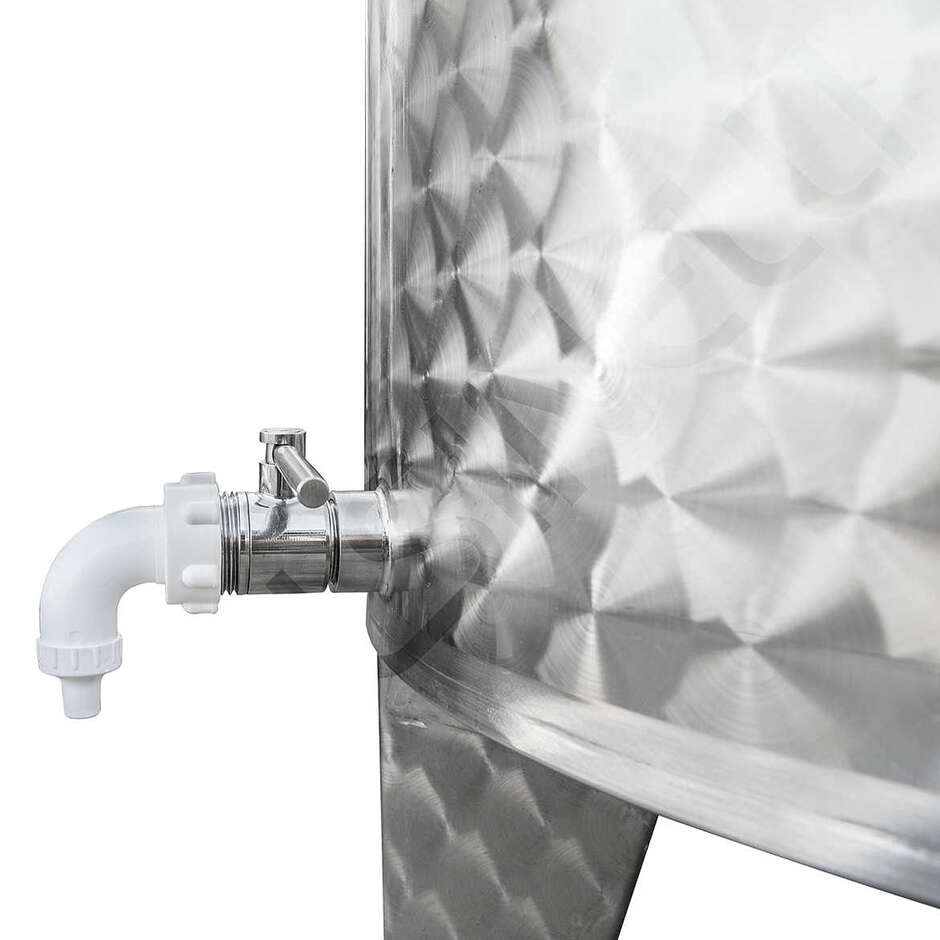

- Partial drain with stainless steel valve and plastic elbow 1" x ENO 30 (1)

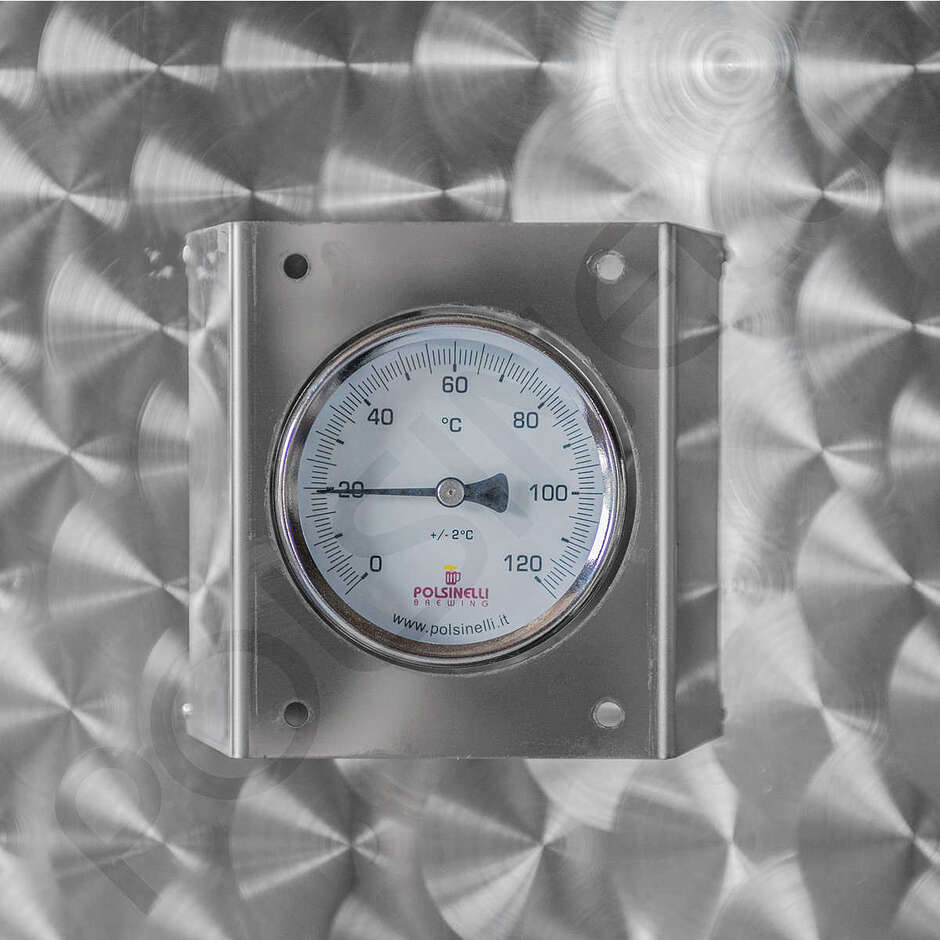

- Analogue thermometer
- 3 stainless steel feet
- Stainless steel air float complete with transparent food-grade plastic air chamber (4)
- Double-acting plastic vent valve
- Analogue thermometer with stainless steel thermowell
- Level indicator with stainless steel protection
- Stainless steel wine taster (2)
- Apparatus complying with CE safety standards

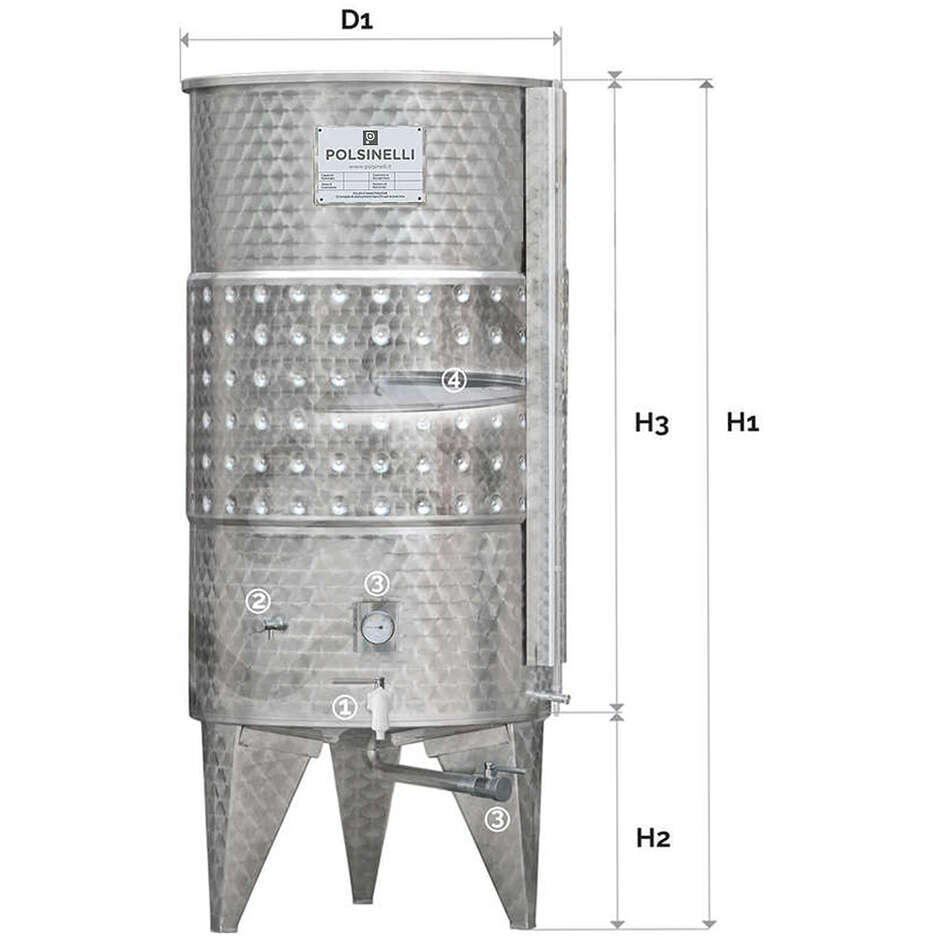

Dimensions:
- Diameter: 930 mm (D1)
- Screw height: 1500 mm (H3)
- Foot height: 400 mm (H2)
- Total height with feet, sash and roof: 1900 mm (H1)
Thickness:
- Walls: 1 mm
- Bottom: 1.5 mm
