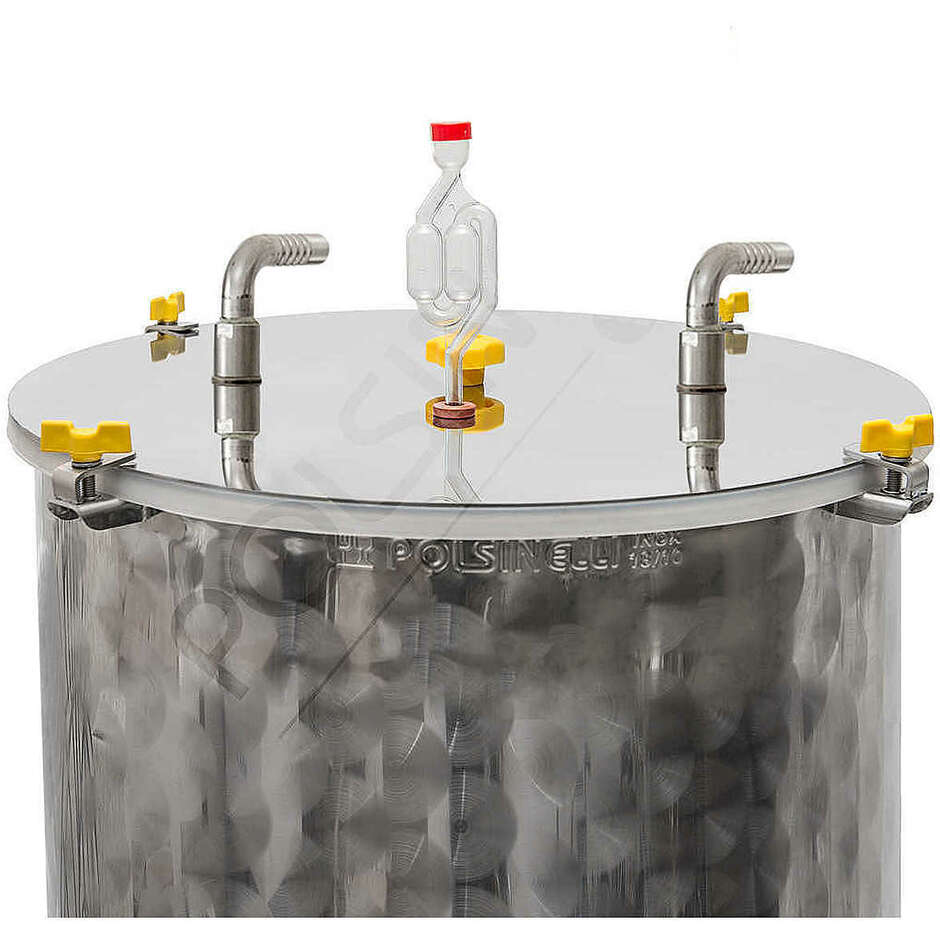

Refrigeration kit for 500 L flat bottom stainless steel tank
Description
Refrigeration Plate for 500 L Stainless Steel Tank
The 500 L Stainless Steel Tank cooling plate is the ideal accessory to optimally reduce the internal temperature of the beer and wine production tank. The refrigeration plate for 500 L Stainless Steel Tank is made of AISI 304 stainless steel, an excellent material to leave unchanged the organoleptic characteristics of the food liquids with which it comes into contact.

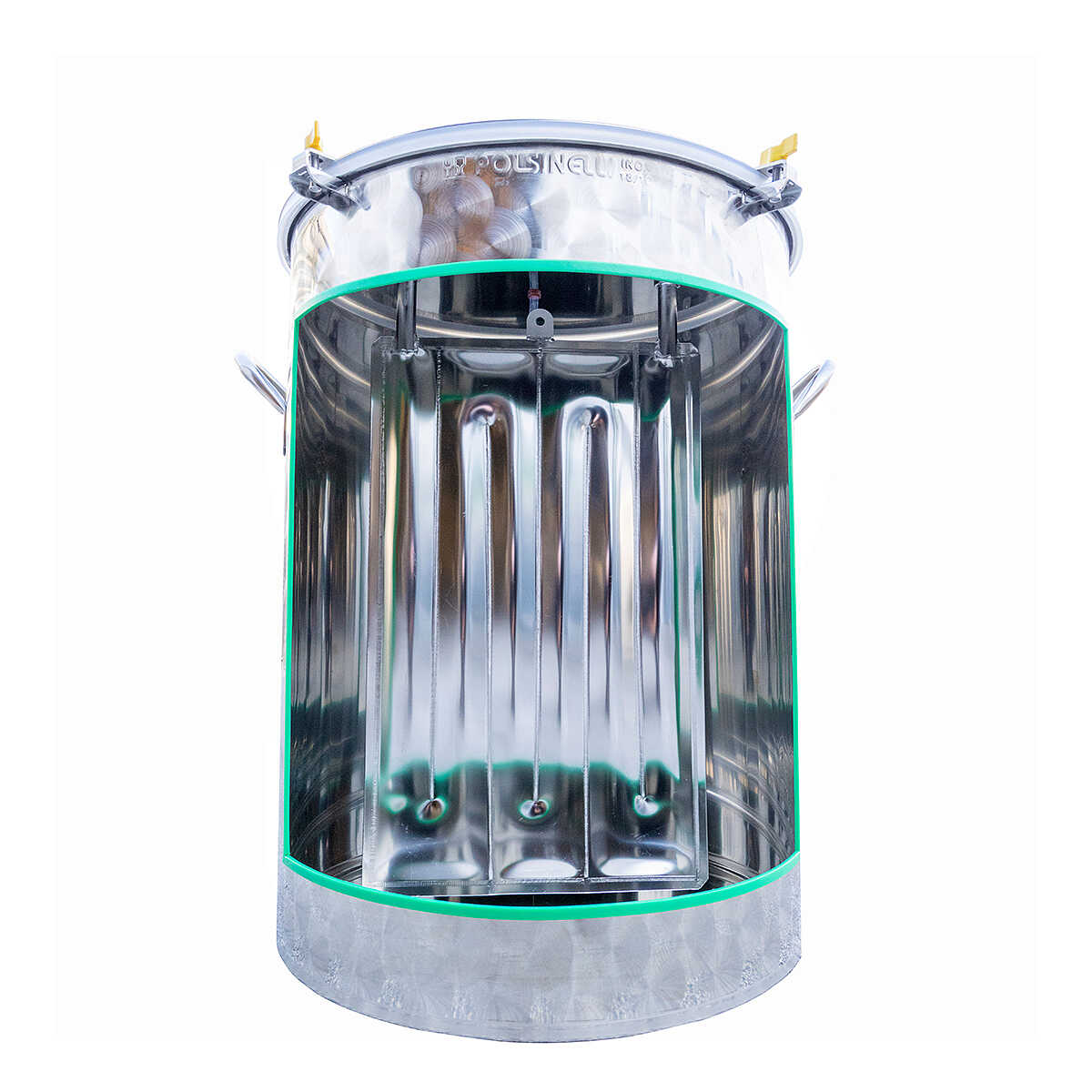

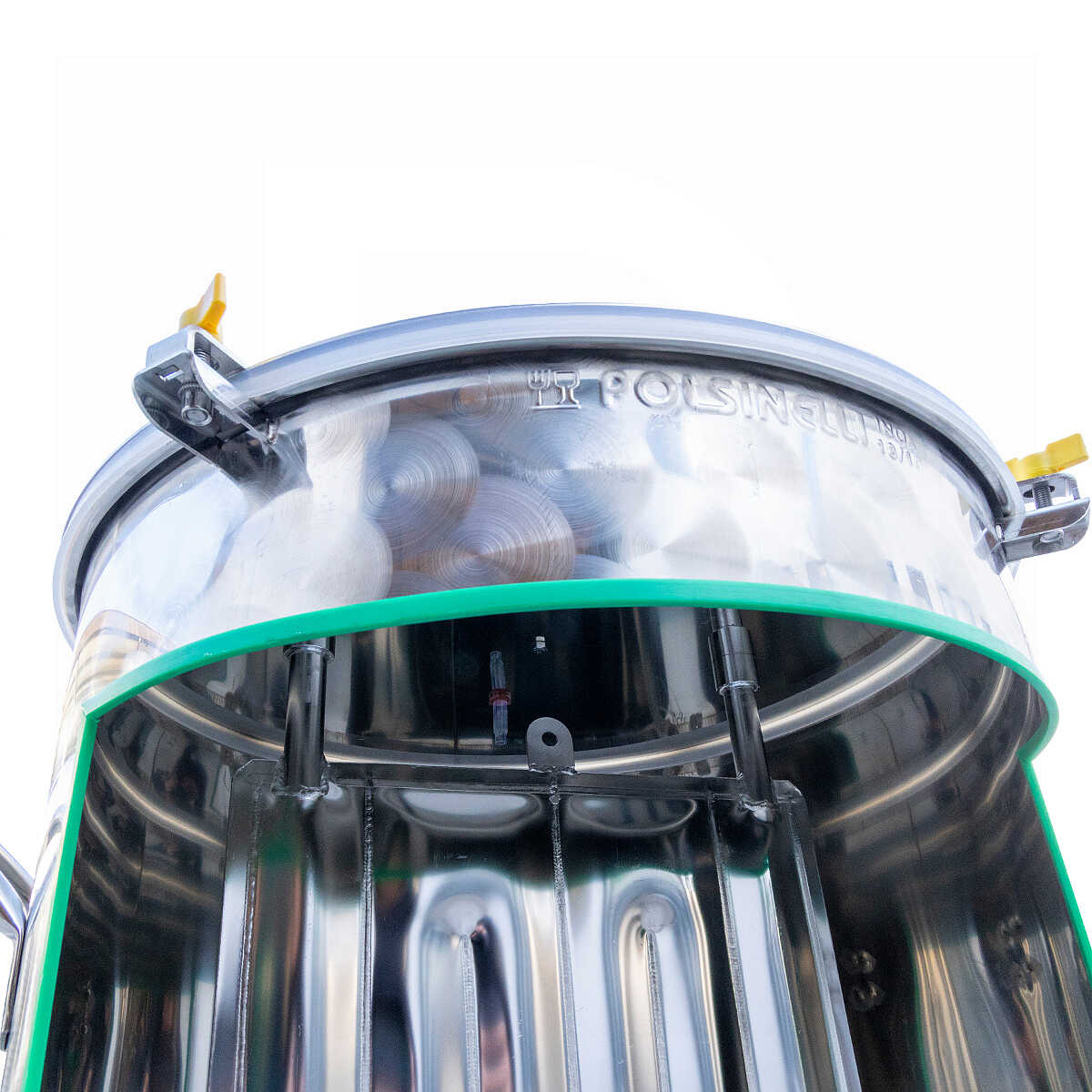

Easy to immerse in the tank, the tool can be removed if necessary to be cleaned and sanitiened. The refrigeration plate allows the perfect exchange of temperature between the solution of water and glycol, flowing inside it, and the must, beer and wine contained in the tank.

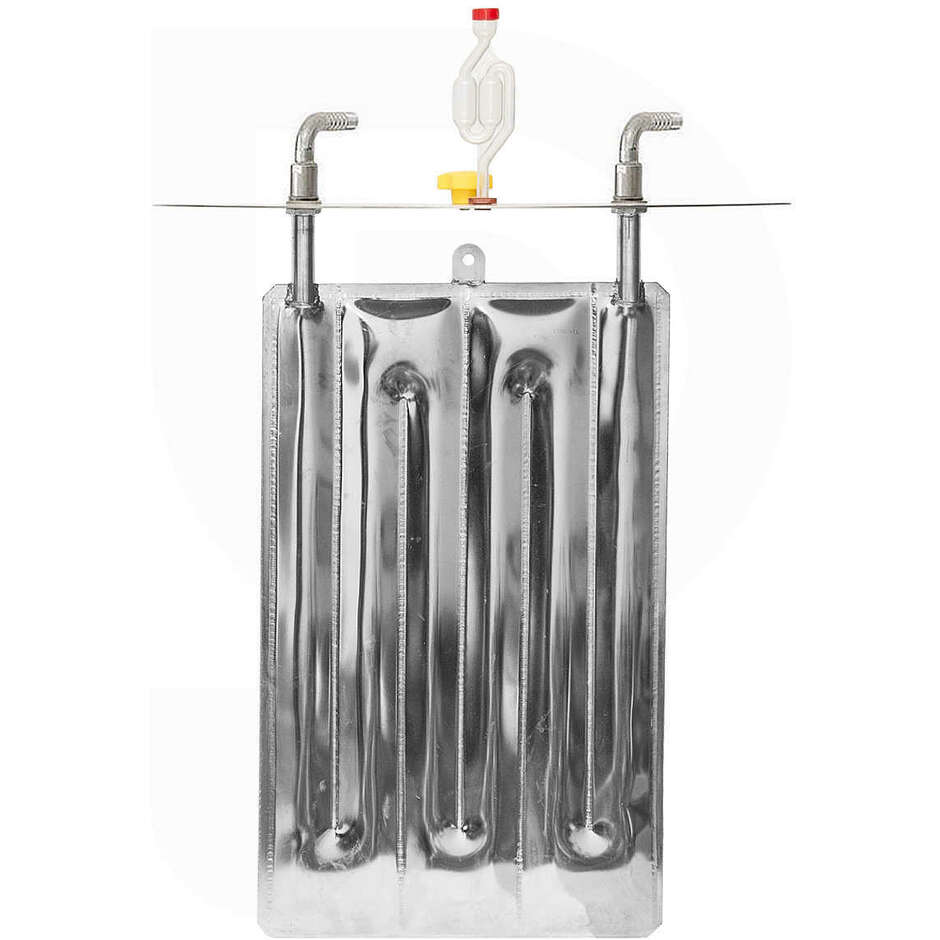

It is a product recommended for the processing of lager beers, thanks to its ability to reach the ideal temperature for yeasts, and high fermentation, by circulating hot liquid inside the pipes. The cooling kit for fermenter is composed of a plate, measuring 370x800 mm, with an internal capacity of 1.48 L.
Technical specifications of plate:
- Material: Stainless steel 18/10 (AISI 304)
- Width: 370 mm
- Height: 800 mm
- Exchange surface: 0,59 m²
- Internal capacity: 1,48 L
- Foil thickness: 1 + 1 mm
Attention: for the correct functioning of the cooling plate, it is essential to circulate inside it a solution of water and glycol, previously cooled by an external chiller.
N.B. this article does not have a probe holder and is NOT suitable for conical bottom fermenters.
