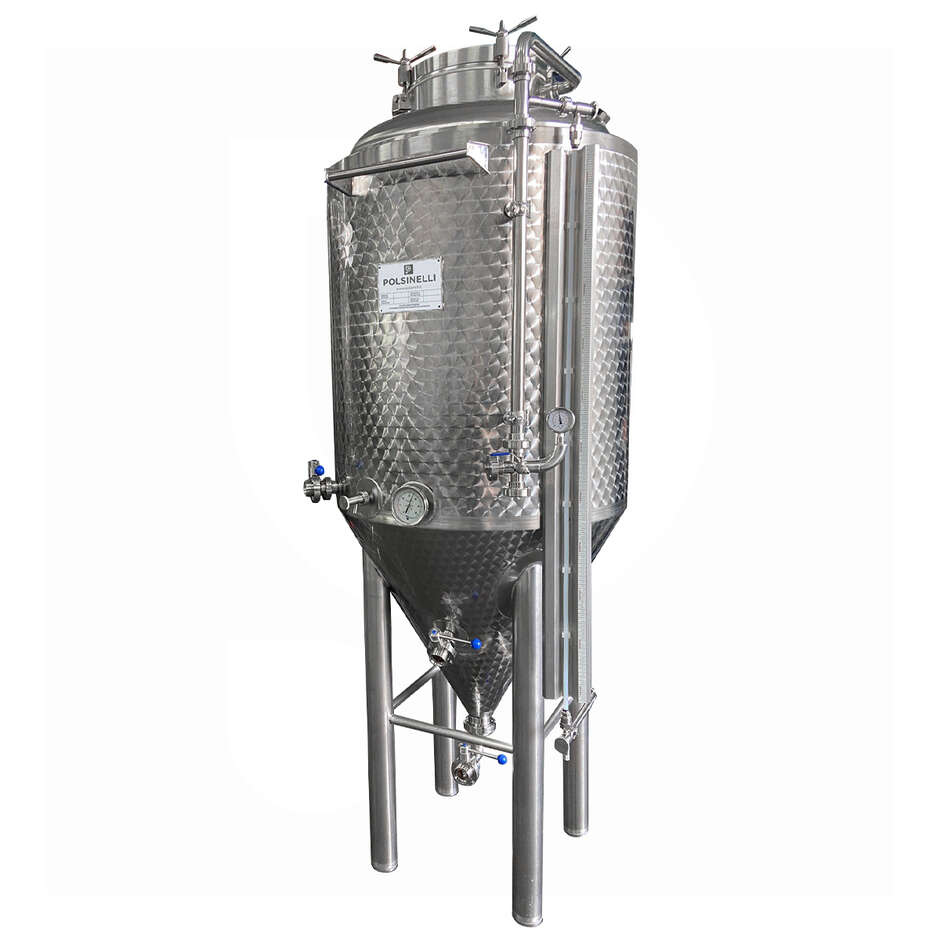

Refrigerated isobaric fermenter 650 L

Refrigerated isobaric fermenter 650 L

Stainless steel isobaric tank for beer fermentation and storage, pressure holding 3 Bar, ideal for maturation and dry-hopping.
Thanks to the pressure seal, it is ideal for all companies and breweries requiring isobaric fermentation. The natural carbonation of the beer caused by the carbon dioxide produced by the yeasts during a leavening process taking place in an airtight container without the addition of sugars.

Provided with:

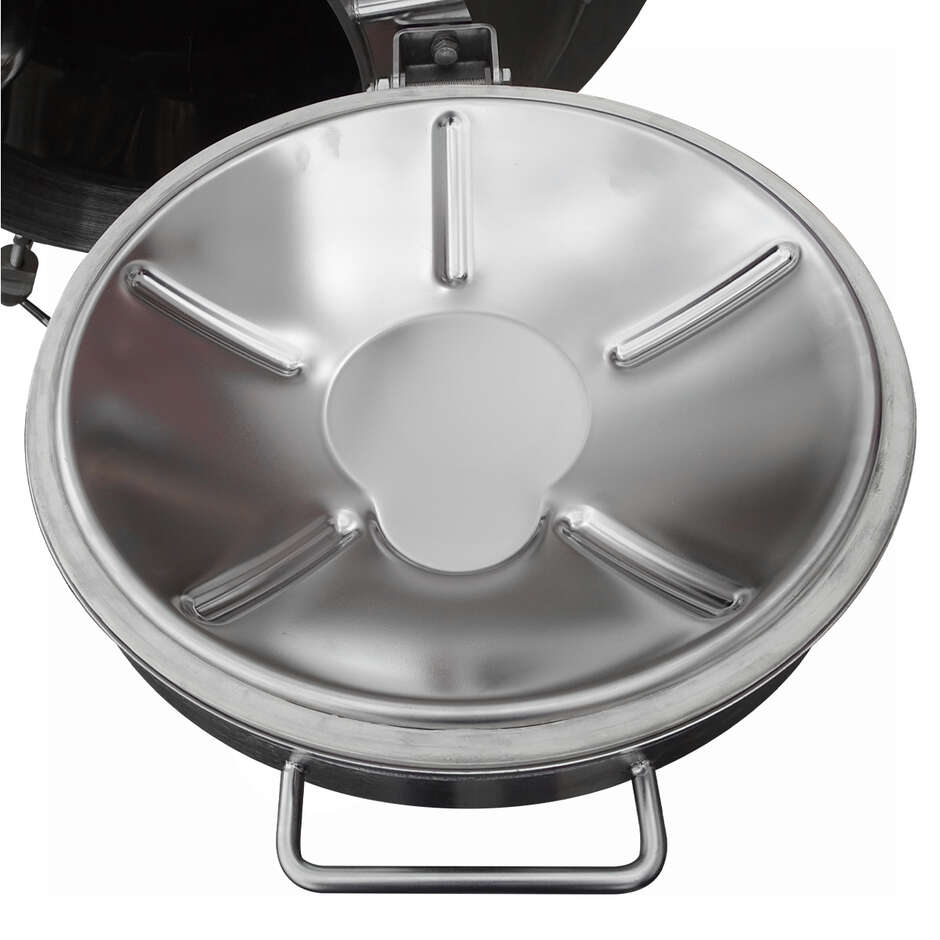

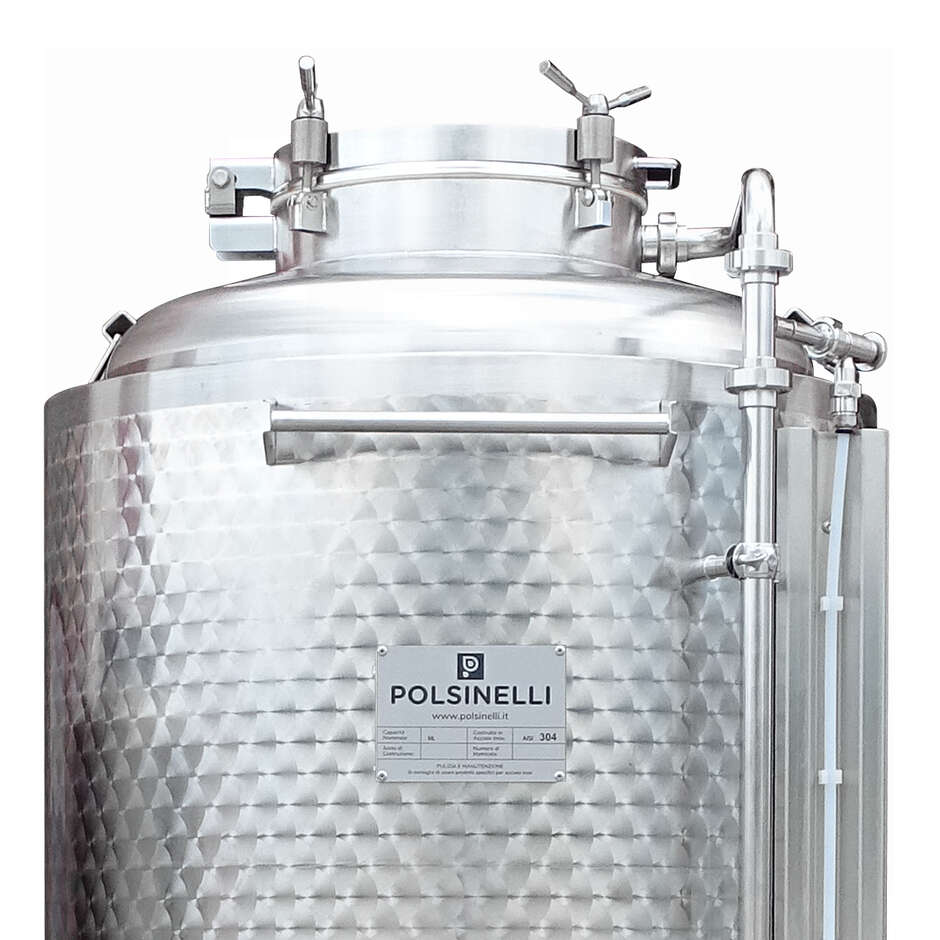

• Upper manhole cover Ø 400, frame height 80 mm, hooks closure, side and flag opening
• Complete with no. 2 stainless steel lifting and handling handles

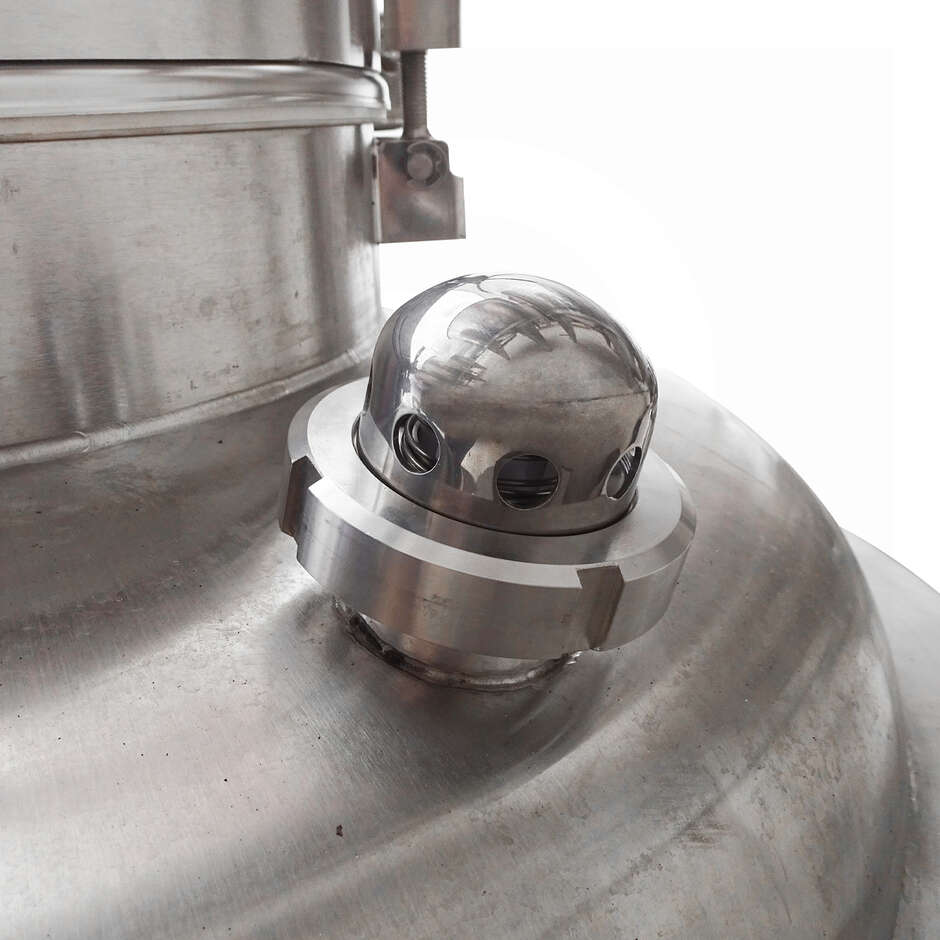

• AISI 304 stainless steel Din 50 vacuum breaker vent valve
• Predisposition for safety valve with 1/2" female threaded connection in AISI 304 stainless steel
• Aisi 304 stainless steel  500 mm  ladder support

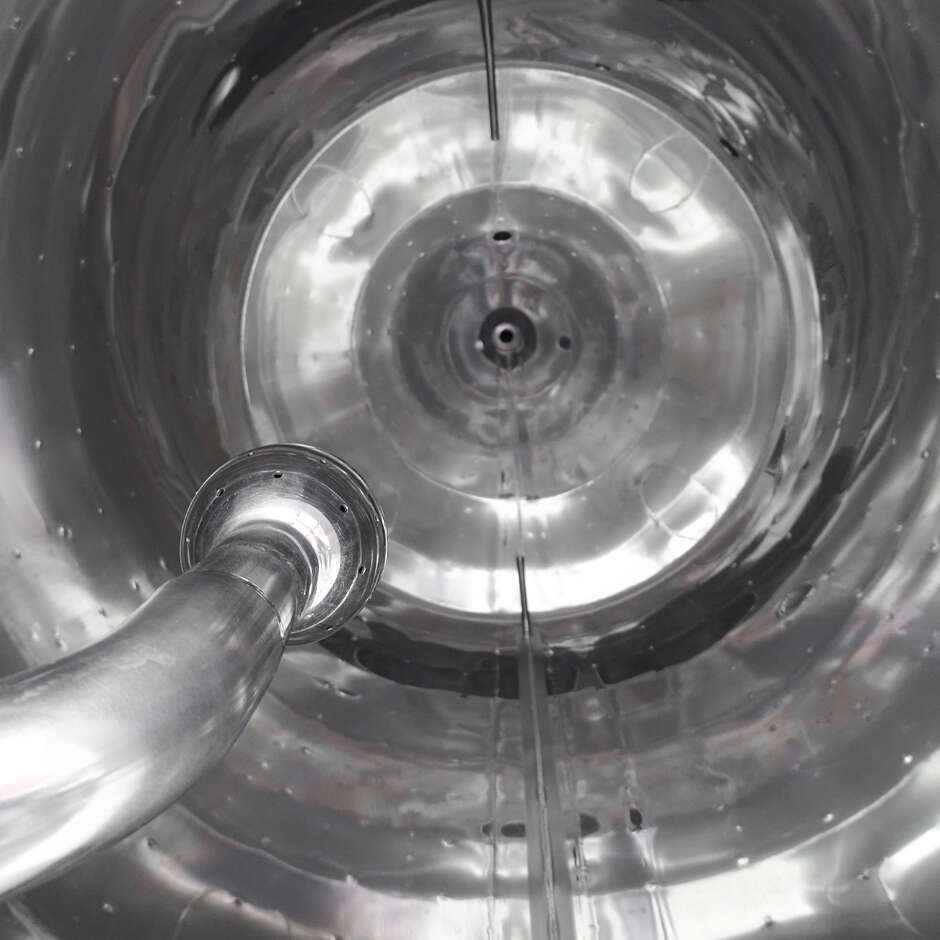

• Internal spray  ball Ø 65 Aisi 316 completely removable
• Removable Din 32 Aisi 304 washing hose
• Aisi 304 cross shaped connection, 0-5 bar pressure gauge housing, Co2 inlet butterfly Din 32 valve male-swivel / 32 Din female, predisposition for bubbler connection Din 32 female

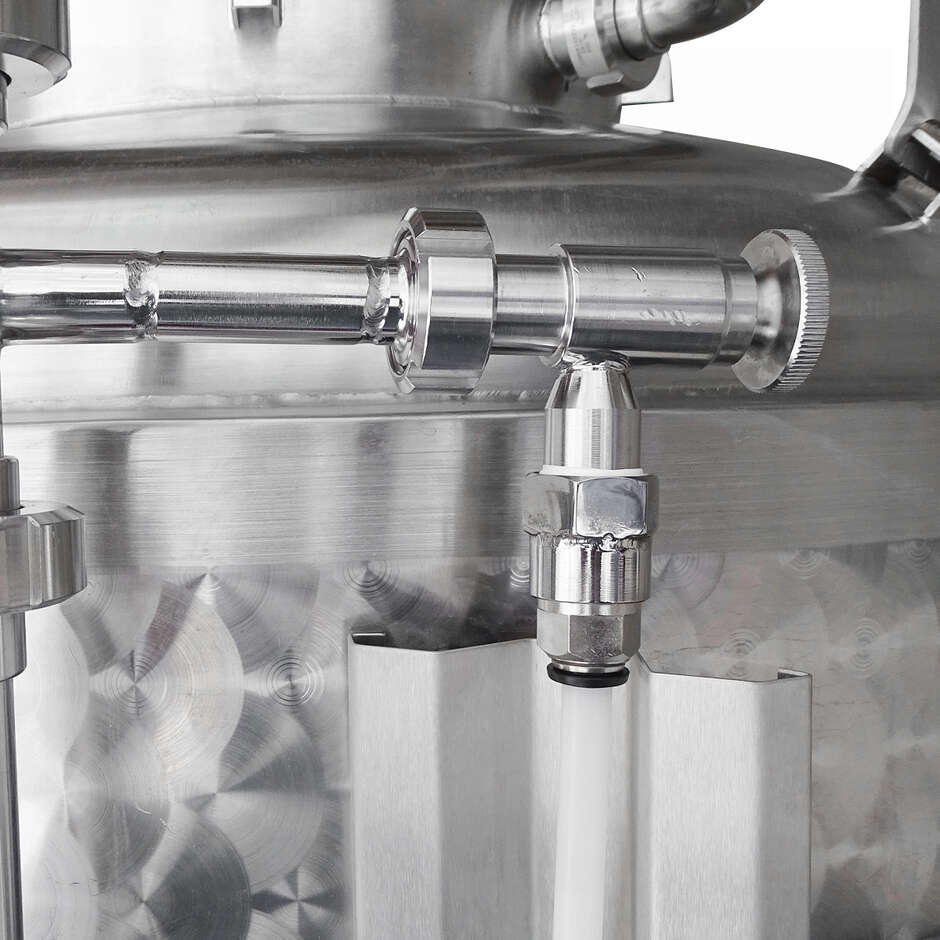

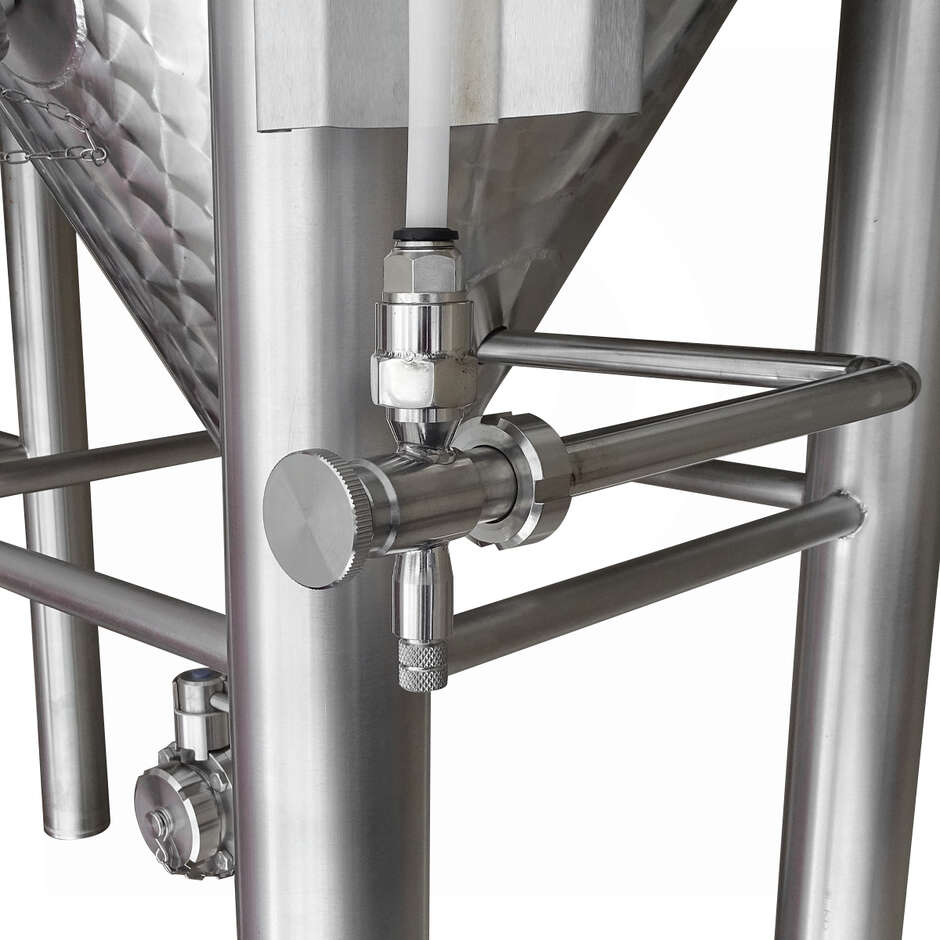

• Inwards going level indicator with stainless steel protection complete with upper and lower level holder Din 15 x tube Ø 12, connected to the washing tube for easy sanitization
• AISI 304 stainless steel cylinder cooling jacket  h 750 mm , in/out sleeves for cooling liquid Ø 1" gas, max. operating pressure 1.5 bar
• Cooling jacket  on the molded cone h 300 mm in AISI 304 stainless steel, in/out sleeves for refrigerant liquid Ø 1" gas, max. operating pressure 1.5 bar
• Cylinder and bottom insulation with 60 mm of Armaflex type adhesive insulation
• Bimetallic thermometer in Aisi 304 stainless steel, scale -10/+50°C, stem length 200 mm
• Additional stainless steel probe holder
• Probe holder in Aisi 304 stainless steel, length 300 mm

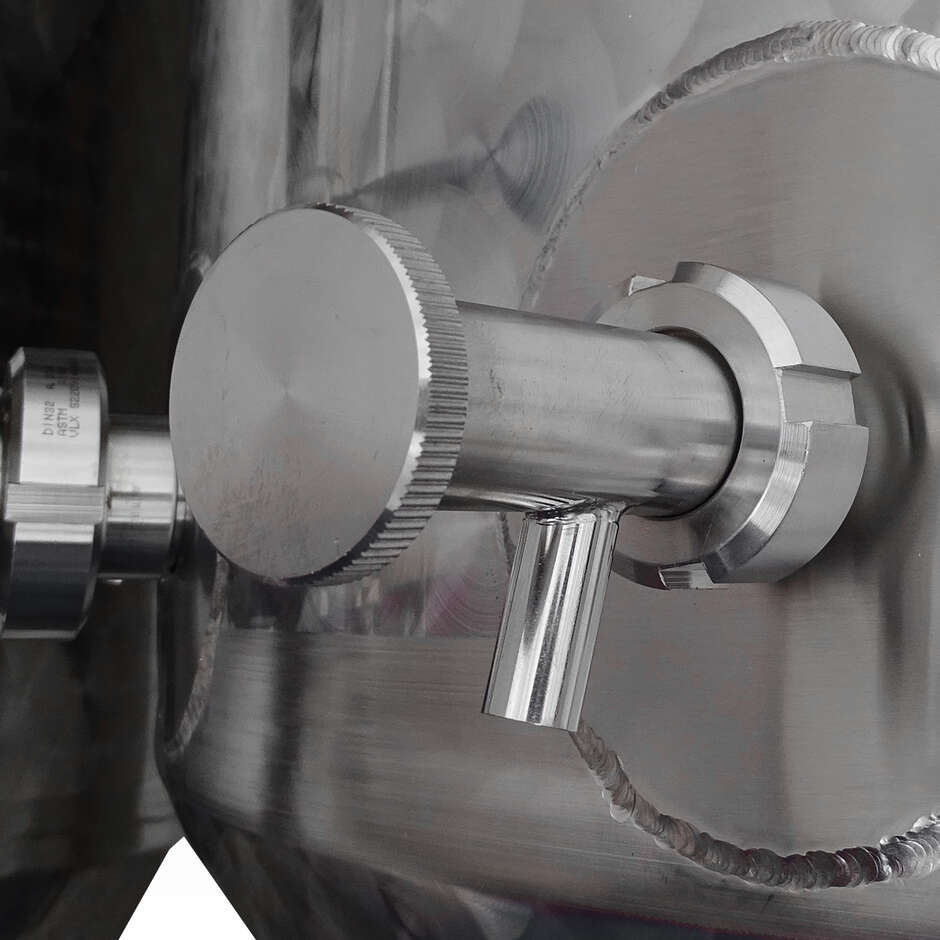

• Take Din 15 sample in Aisi 304 stainless steel

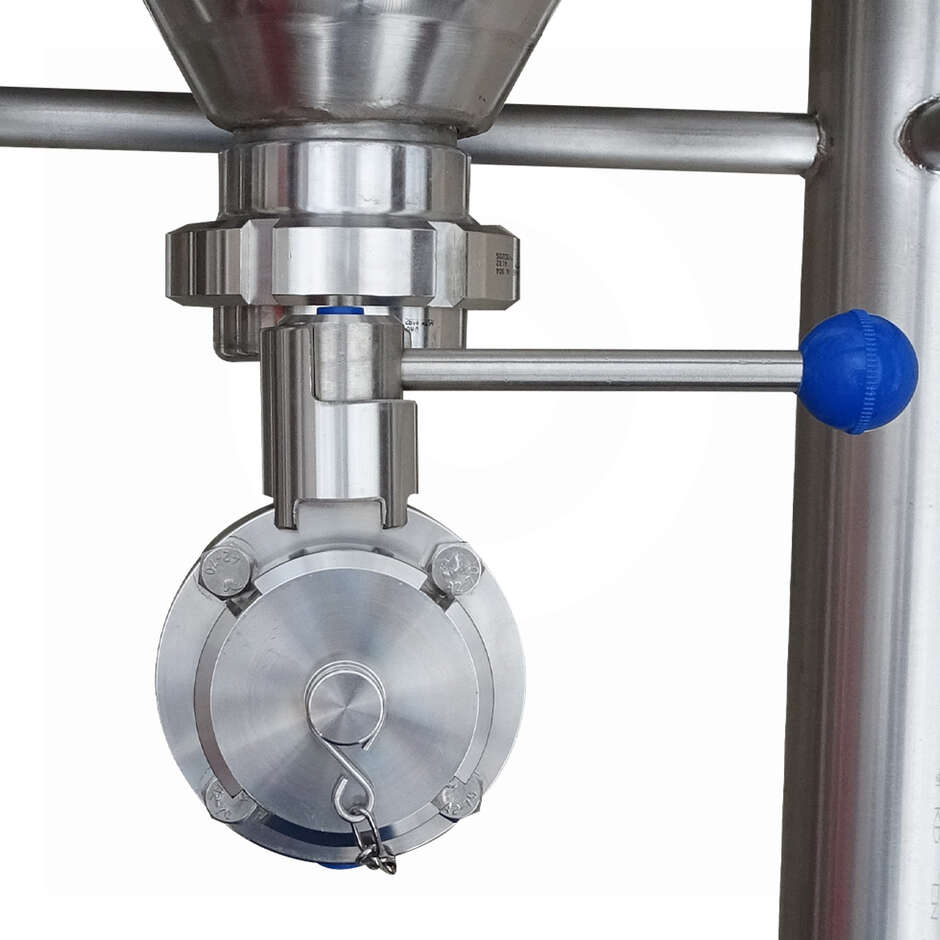

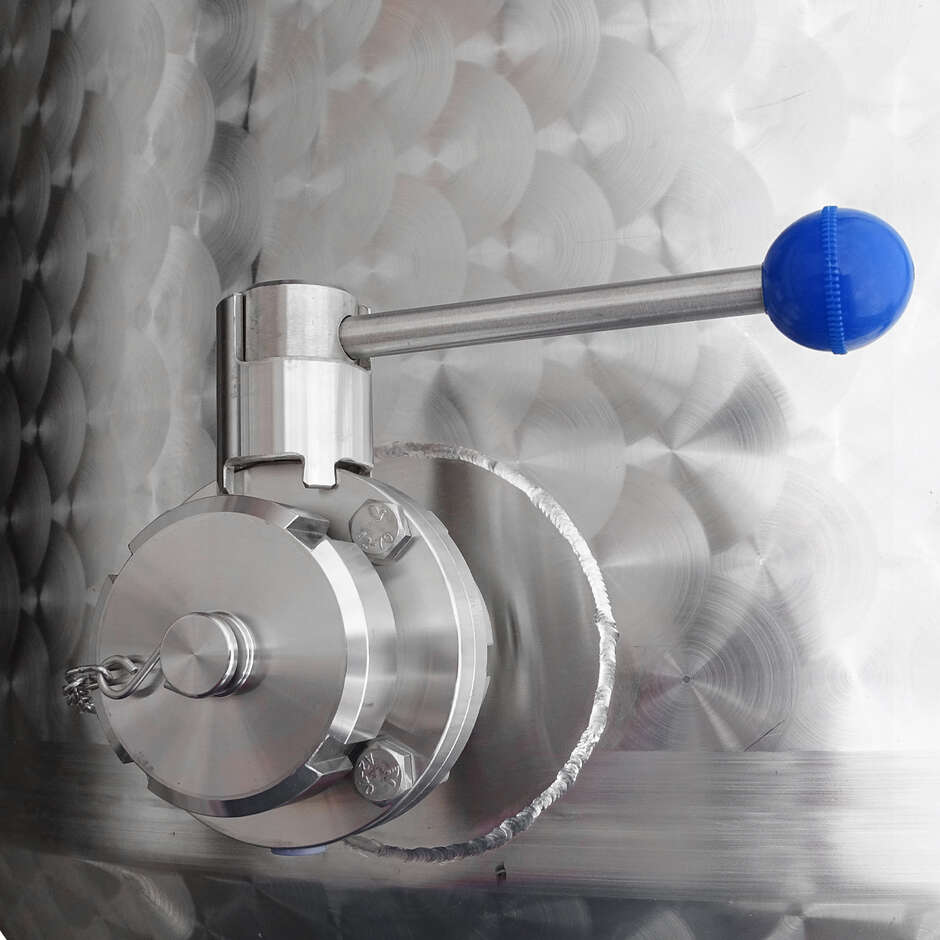

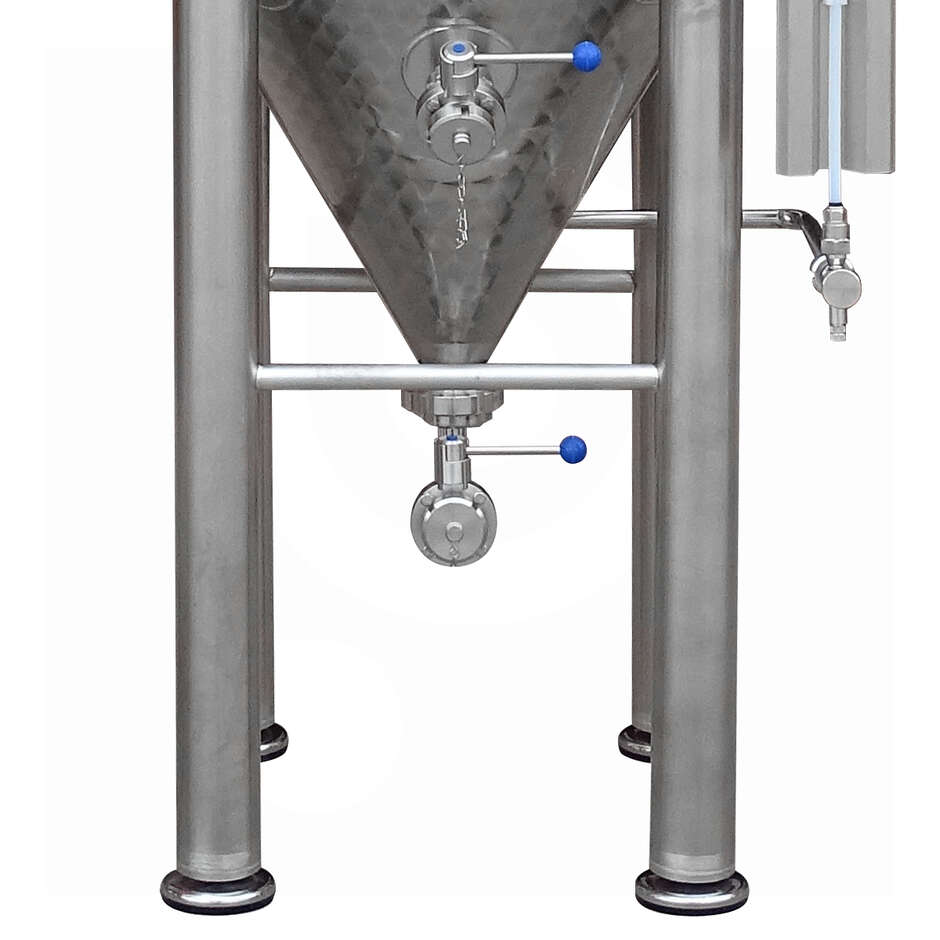

• Total discharge with butterfly valve Din 32 male-swivel/32 Din female in AISI 304 stainless steel
• Partial discharge with butterfly valve Din 32 male-swivel/32 Din female in AISI 304 stainless steel
• Butterfly valve Din 32 male-swivel / 32 Din female in AISI 304 stainless steel for dryhopping
• Nr. 4 legs with adjustable M 20 feet in Aisi 304 stainless steel

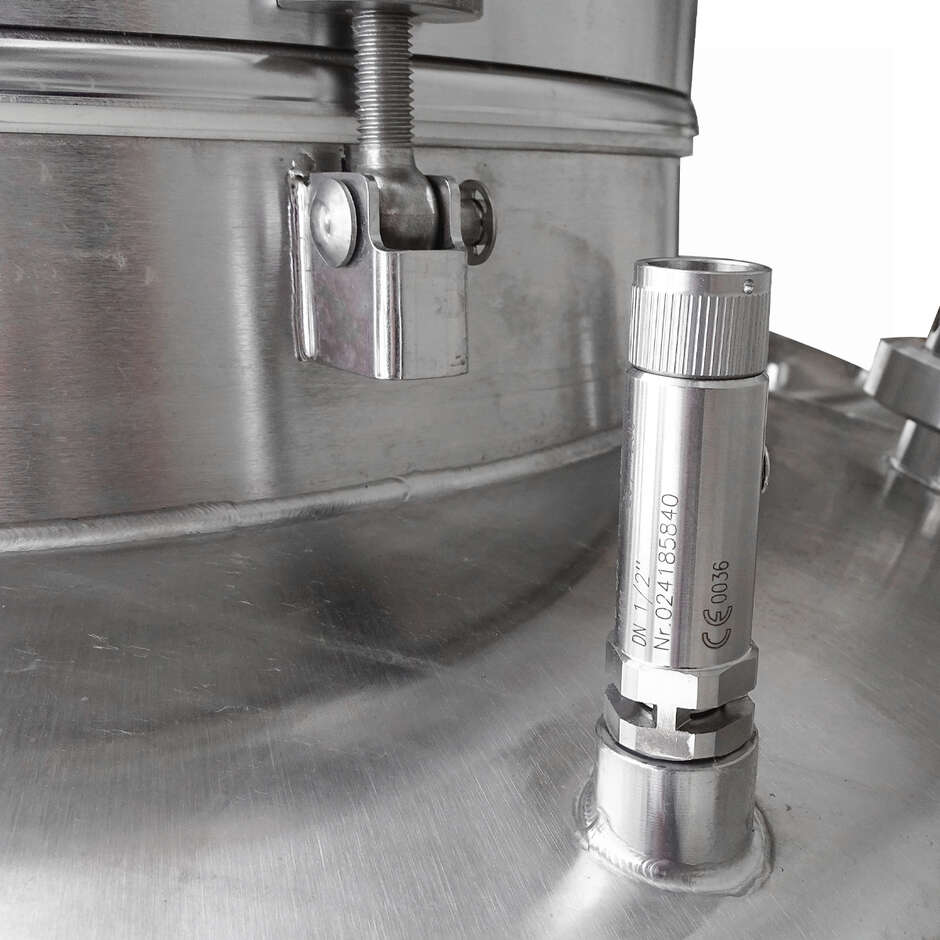

• 3 bar safety valve with 1/2" threaded connection in AISI 304 stainless steel
• AISI 304 stainless steel bubbler connection Din 32 male swivel complete with butterfly valve Din 32 male-swivel / 32 Din female in AISI 304 stainless steel

Technical features:

• Made of AISI 304 25/10 mm thick stainless steel
• Ba glossy internal finish with satin welds, flower-patterned external finishing with satin welds
• Conical bottom 60° - 10° conical lid
• Capacity: 650 L +/- 3%

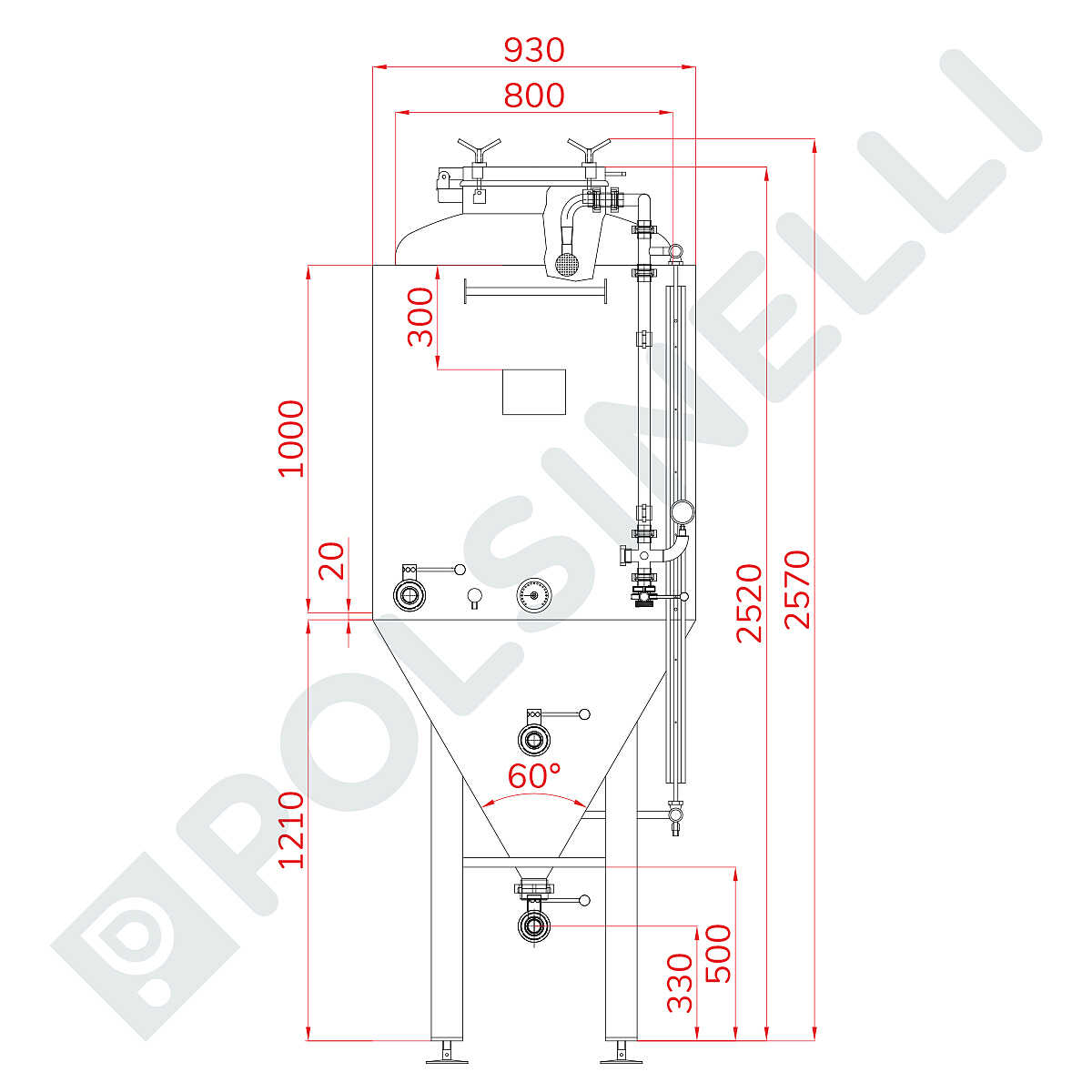

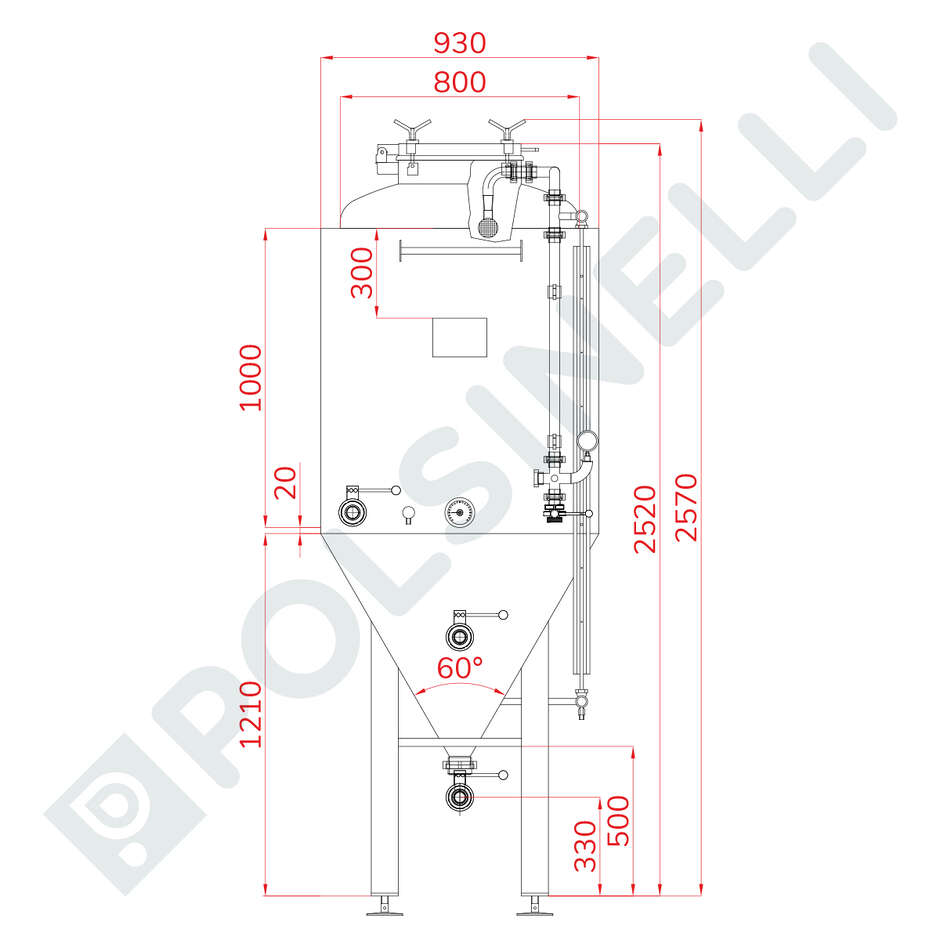

• Internal diameter: 800 mm
• External diameter: 930 mm
• Cylinder height: 1000 mm
• Leg height: 1210 mm
• Total height: 2570 mm
