1000 L stainless steel wine tank with air floating lid

Product code: SIP0208
Product available
We are sorry, for this order you will receive a quotation for shipping costs
Qty € 815.00
Add to cart

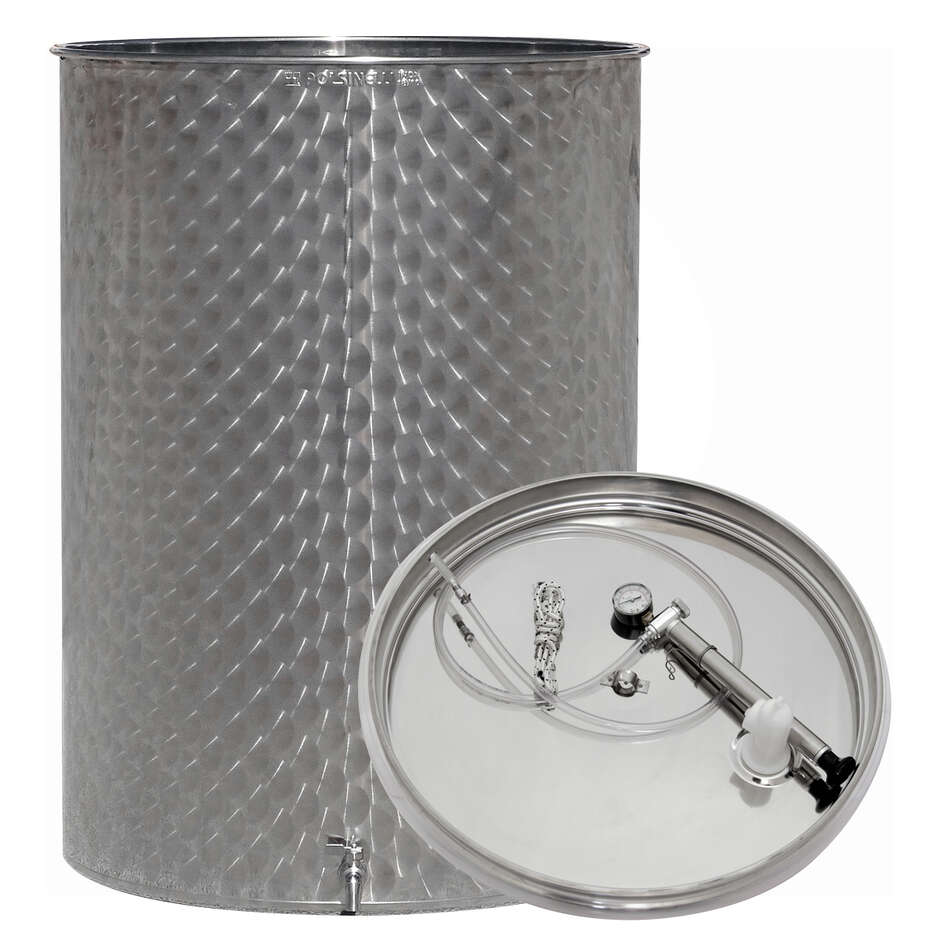

1000 L stainless steel wine tank with air floating lid

Ideal product for storing wine and food liquids. Constructed of stainless steel with a fluted exterior finish. The bottom of the tank is rounded and welded for easy cleaning. It is equipped with a threaded stainless steel bushing for the application of the tap in chrome-plated brass, stainless steel or plastic material for foodstuffs.

Standard equipment:

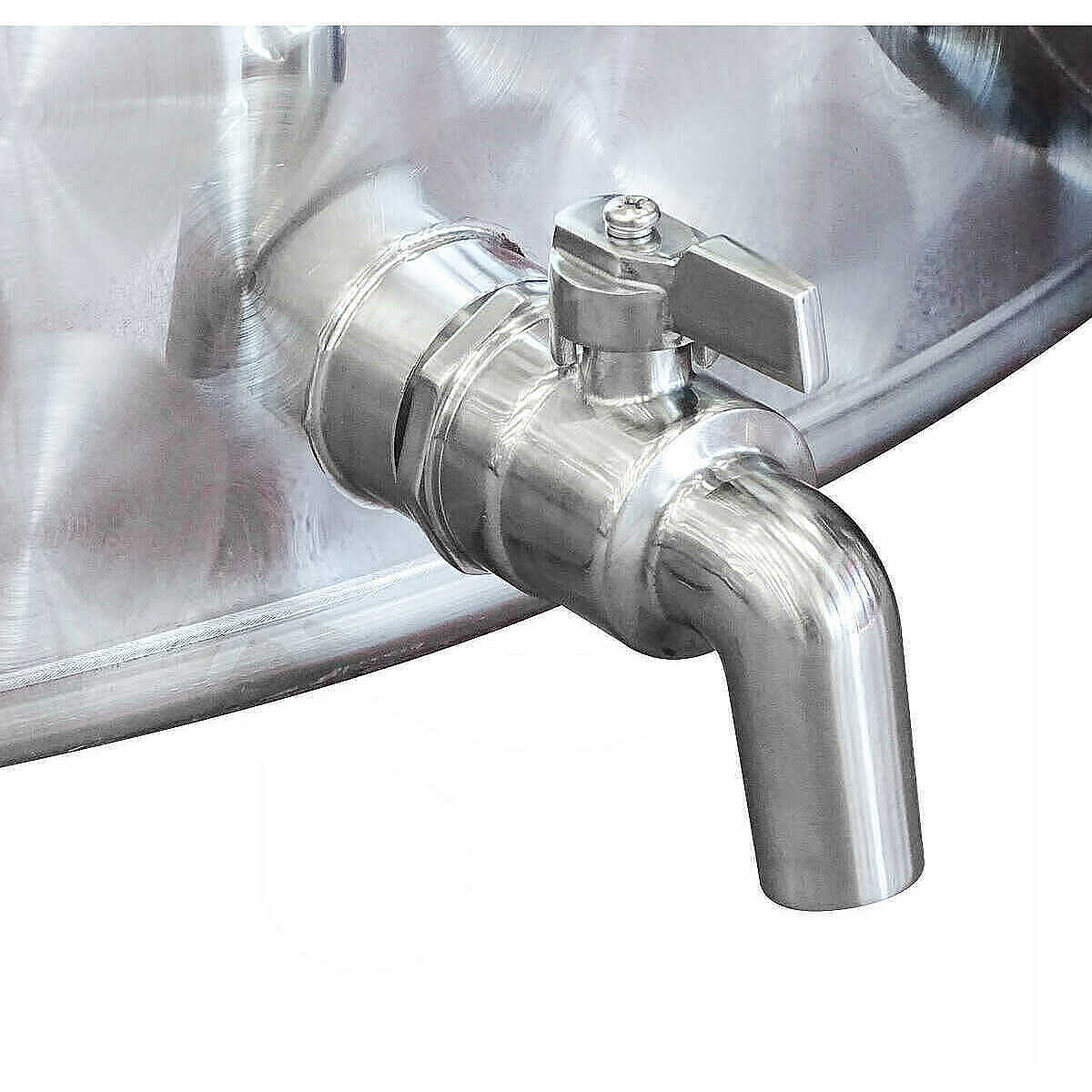

  • 1" stainless steel spigot
  • axle box welded 1"
  • flower patterned embossed exterior
  • welded rounded bottom
  • floating stainless steel air lid
  • inner tube
  • stainless steel pump

Technical specifications:

  • Capacity: 1000 L

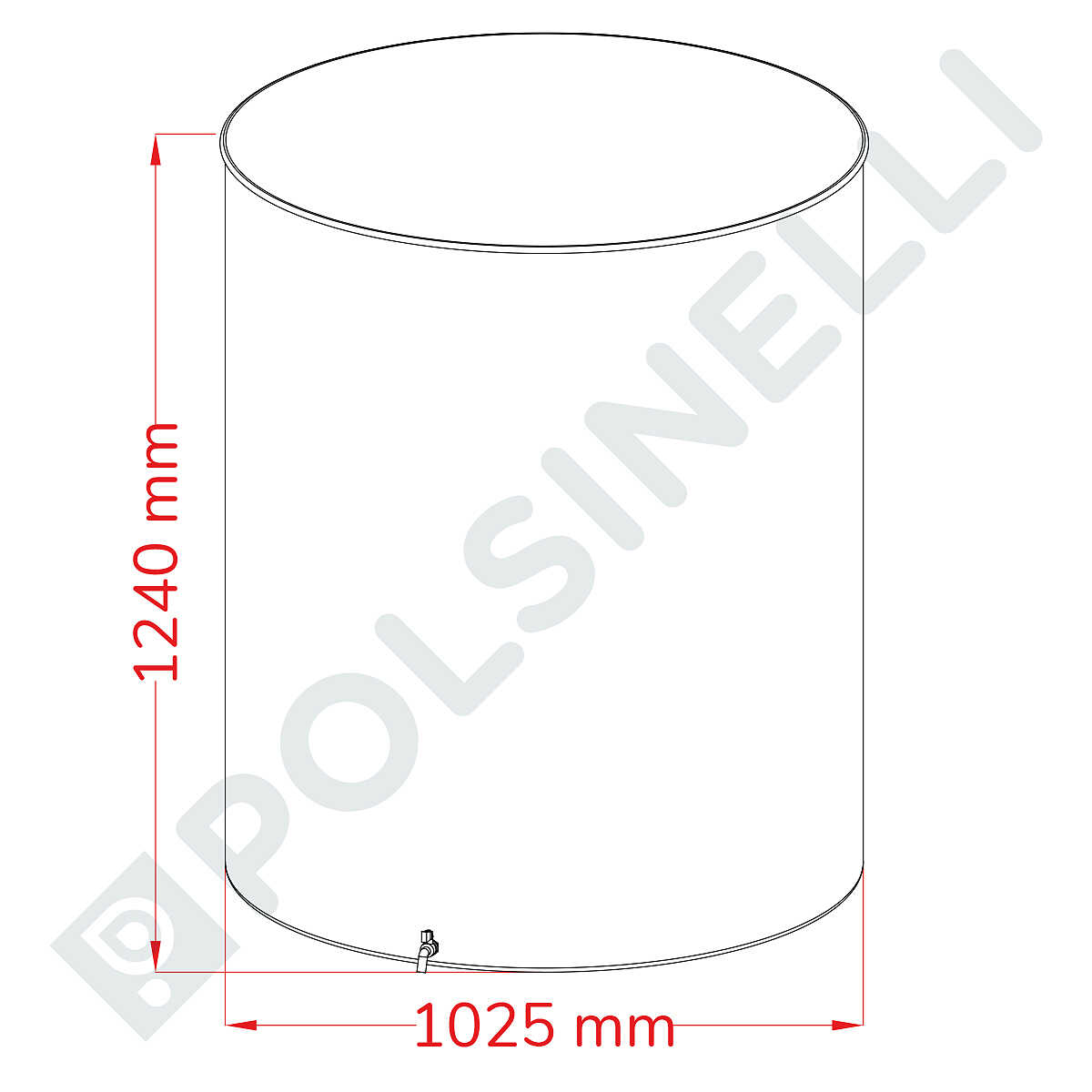

  • Inside diameter: 102.5 cm
  • Height: 124 cm
  • Material: stainless steel 18/10 (AISI 304)
  • Exterior finish: fluted
  • Flat, rounded and welded bottom


  • Walls: 0,8 mm
  • Bottom: 0,8 mm

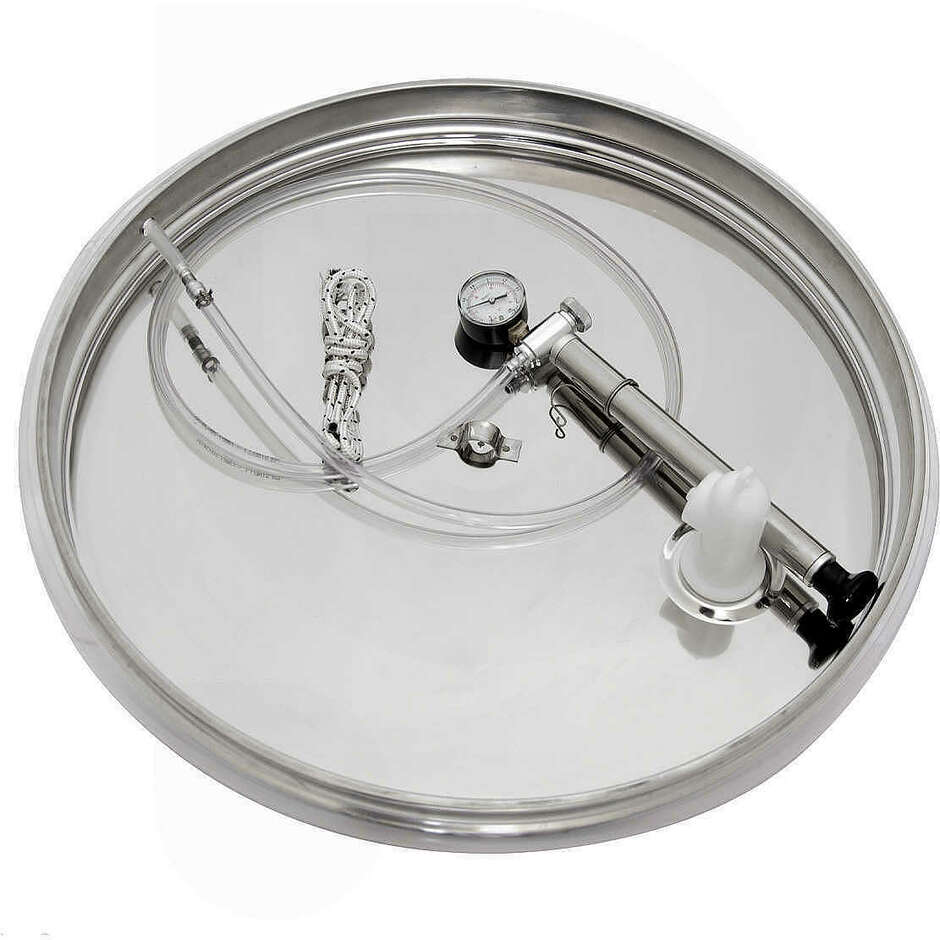

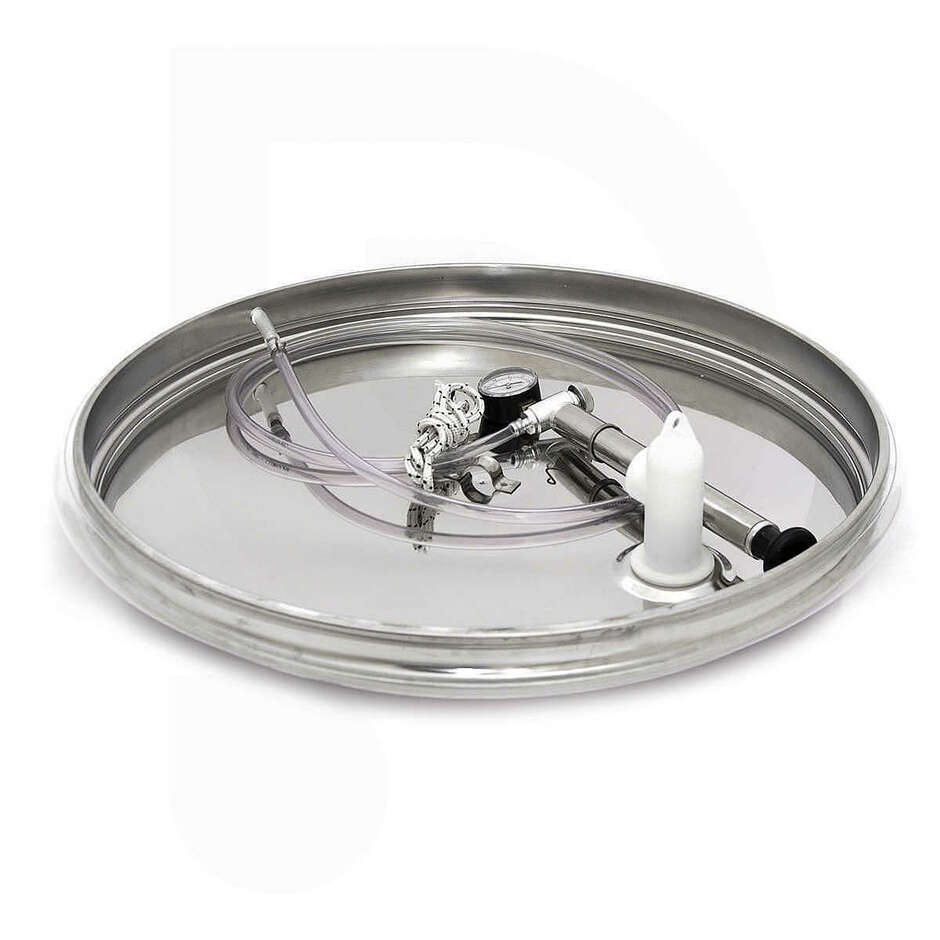

1 - Stainless steel pump with analogue gauge
2 - stainless steel float lid
3 - vent  valve
4 - recovery rope


Proper use of floating air lids:

  1. always fill the tank with wine
  2. place the stainless steel float lid on the surface of the wine
  3. unscrew the valve on the pump to allow inflation
  4. inflate the tube to about 0.7 atm
  5. check that the tube is tight against the inner surface of the tank and close the valve of the pump
  6. you should check the air pressure every 15 days.

If the tube does not maintain the pressure, check:

  1. that there are no holes
  2. the attachment between the air chamber and plastic tube
  3. that the air hose clamps are not loose
  4. that the gauge is not broken
  5. if the pump valve is not working


Technical description

For wine; with air floating lid; with flat, rounded and welded bottom.
