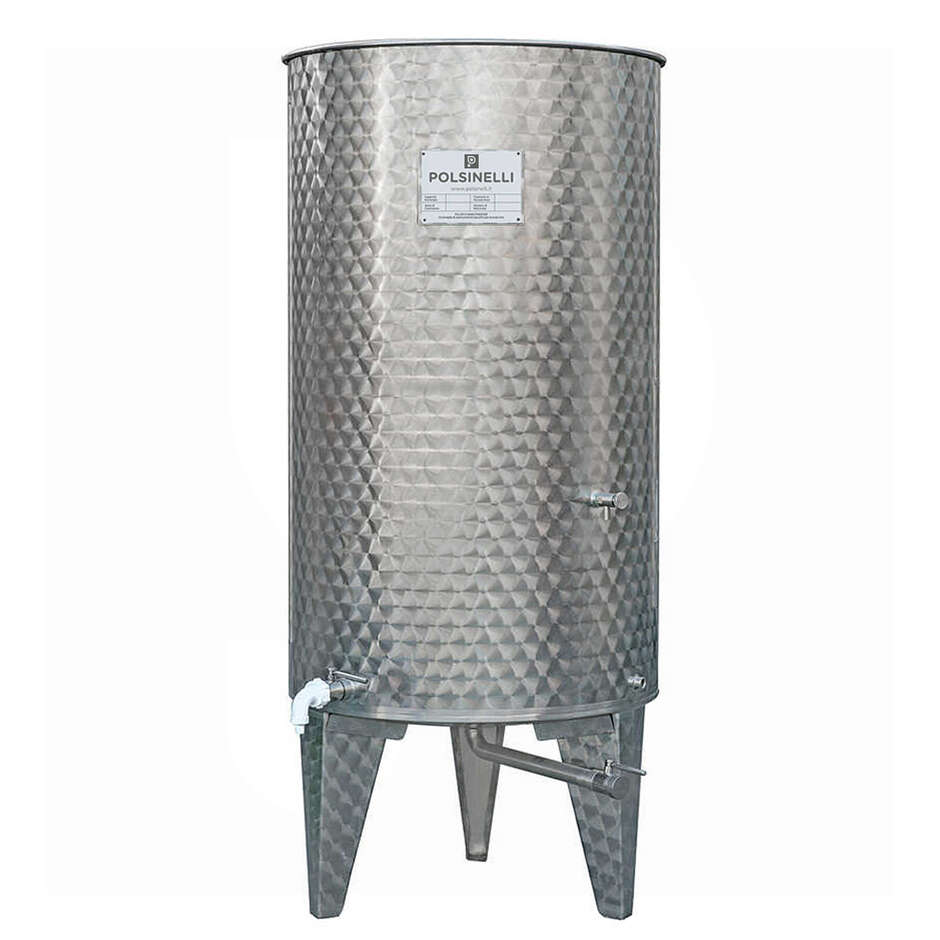

500 L Stainless steel cone bottom tank with air floating lid

Product code: SIP0097
Ready to order product
Shipping within 40 days from the receipt of payment.
We are sorry, for this order you will receive a quotation for shipping costs
Qty € 740.00
Add to cart
Description

500 L Stainless steel cone bottom tank with air floating lid

Characteristics:

  • Material: stainless steel AISI 304
  • Capacity: 500 L
  • Internal finishes: mirror polished
  • External finishes: flamed, with satin welds
  • Conical bottom 10° with reinforcements
  • Total discharge with valve 1" x ENO 30 (3)
  • Partial discharge with stainless steel valve and plastic elbow 1" x ENO 30 (1)
  • 3 stainless steel feet
  • Stainless steel air float complete with transparent food grade plastic air chamber (4)
  • Double-acting plastic vent valve
  • Stainless steel wine taster (2)
  • Appliance conforms to CE safety standards

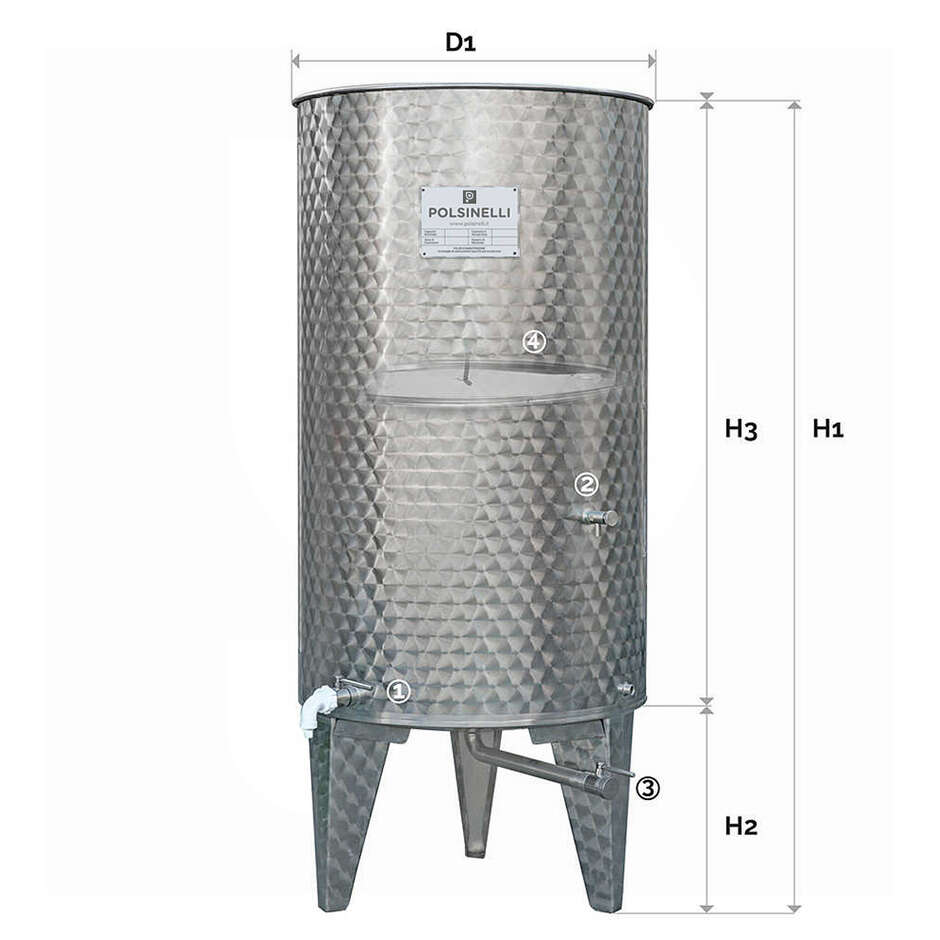

Dimensions:

  • Diameter: 720 mm(D1)
  • Total height 1250 mm (H1)
  • Foot height 400 mm (H2)
  • Virola height 1650 mm (H3)

Thickness:

  • Walls: 1 mm
  • Bottom: 1.2 mm
