Description

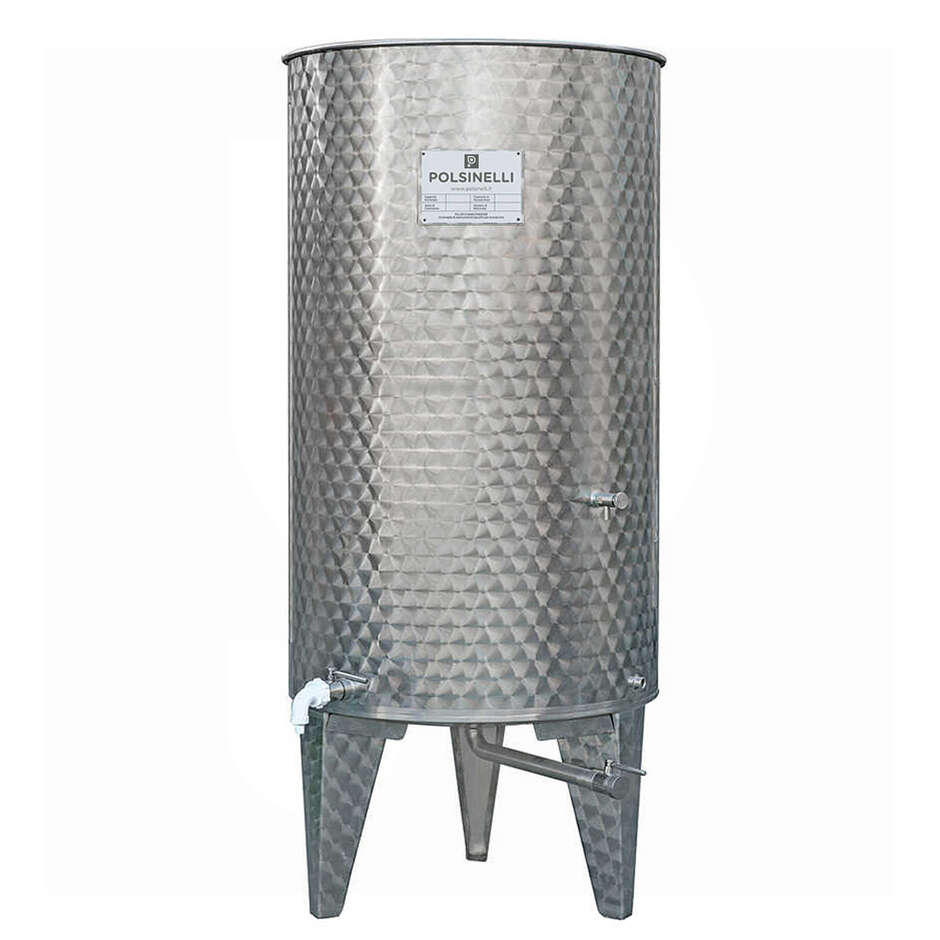

300 L Stainless steel cone bottom tank with air floating lid
The stainless steel tank with conical bottom and air float can be used for storing wine, beer and oil, thanks to its capacity of 300 litres, a diameter of 64 cm and a total height of 140 cm (height of feet 40 cm and height of virola 100 cm). The 300 L liquid food tank with the conical bottom is made entirely of AISI 304 stainless steel, with a thickness of 1 mm in the walls and 1.2 mm in the bottom. It has an external finish with satin-finish welded seams and an internal finish with a mirror polish that facilitates cleaning and sanitising. The 300 L stainless steel tank has a 10° conical bottom with reinforcements and is equipped with the partial and total discharge with 1" ENO 30 valve and 1" ENO 30 plastic elbow, float with a transparent food-grade plastic inner tube and double-acting plastic vent valve. The device is also complete with 3 feet, wine taster and ENO 30 hose connector for PG 20 and PG 25.
Characteristics:
- Material: stainless steel AISI 304
- Capacity: 300 L
- Internal finishes: mirror polished
- External finishes: flamed, with satin welds
- Conical bottom 10° with reinforcements
- Total drain with valve 1" x ENO 30 (3)
- Partial drain with stainless steel valve and plastic elbow 1" x ENO 30 (1)
- 3 stainless steel feet

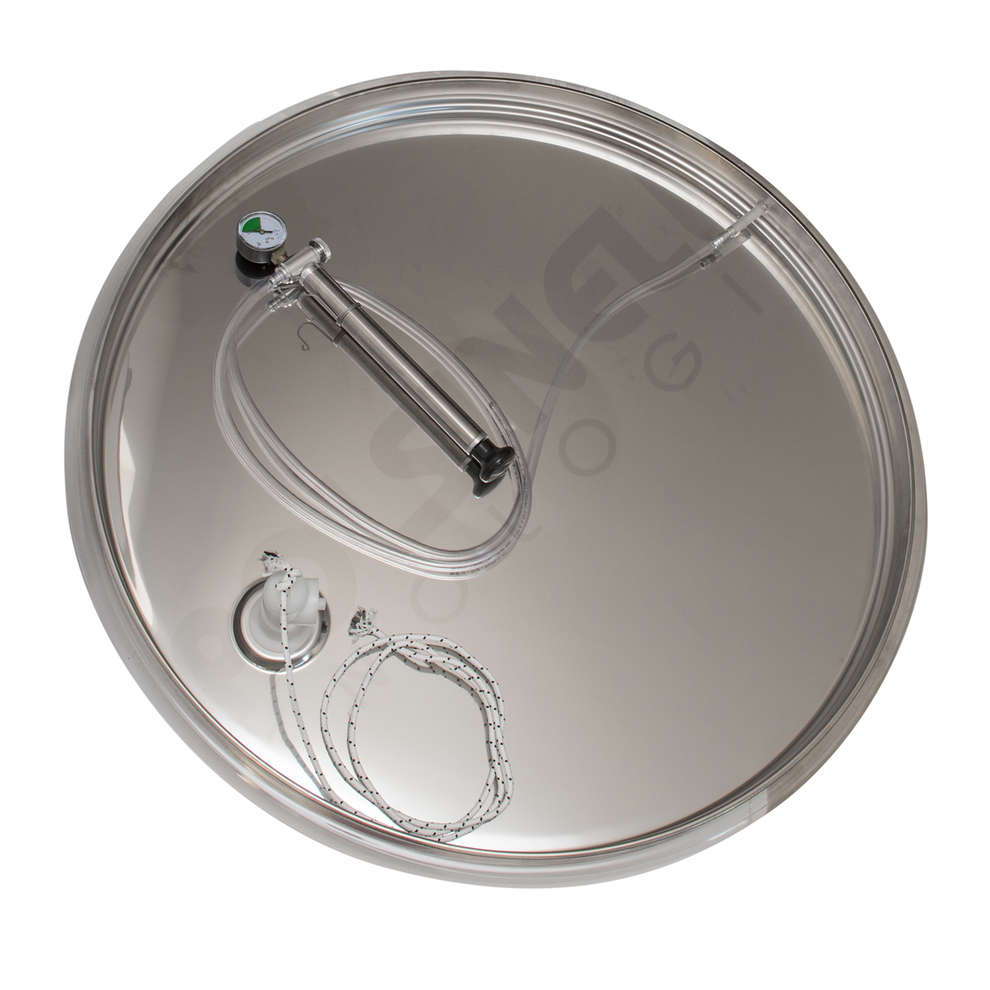

- Stainless steel air float complete with a transparent food-grade plastic air chamber (4)
- Double-acting plastic vent valve
- Stainless steel wine taster (2)
- Appliance conforms to CE safety standards

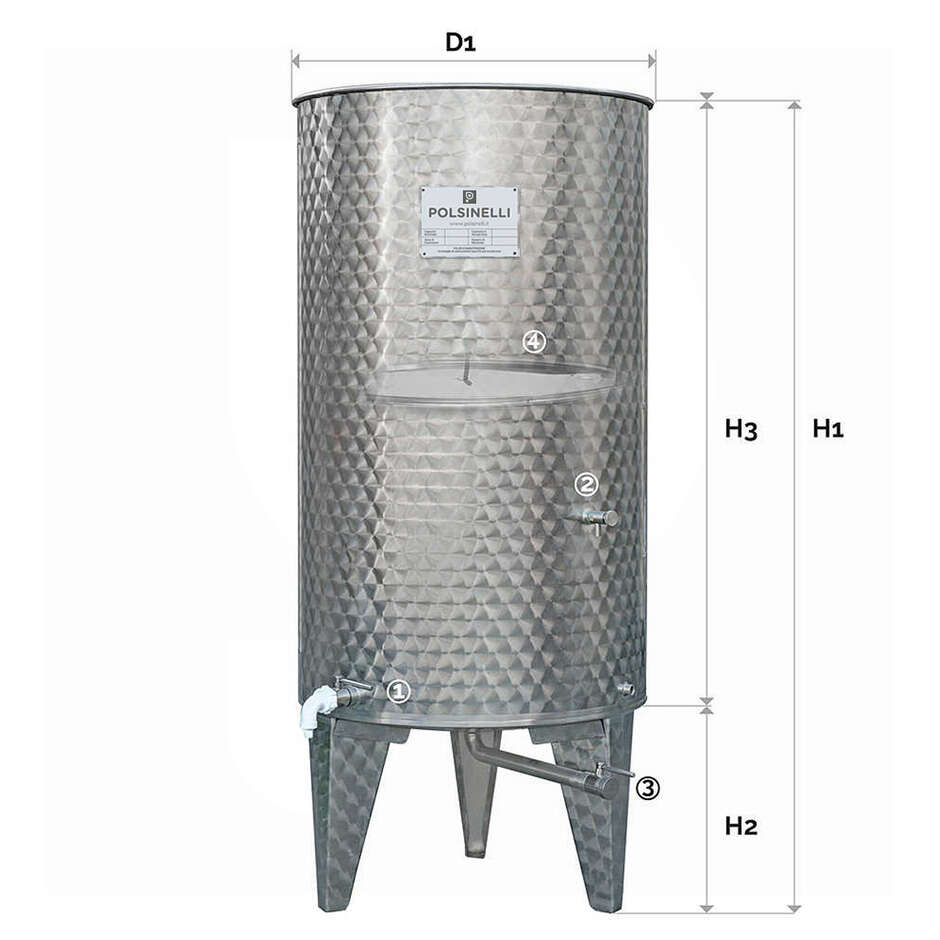

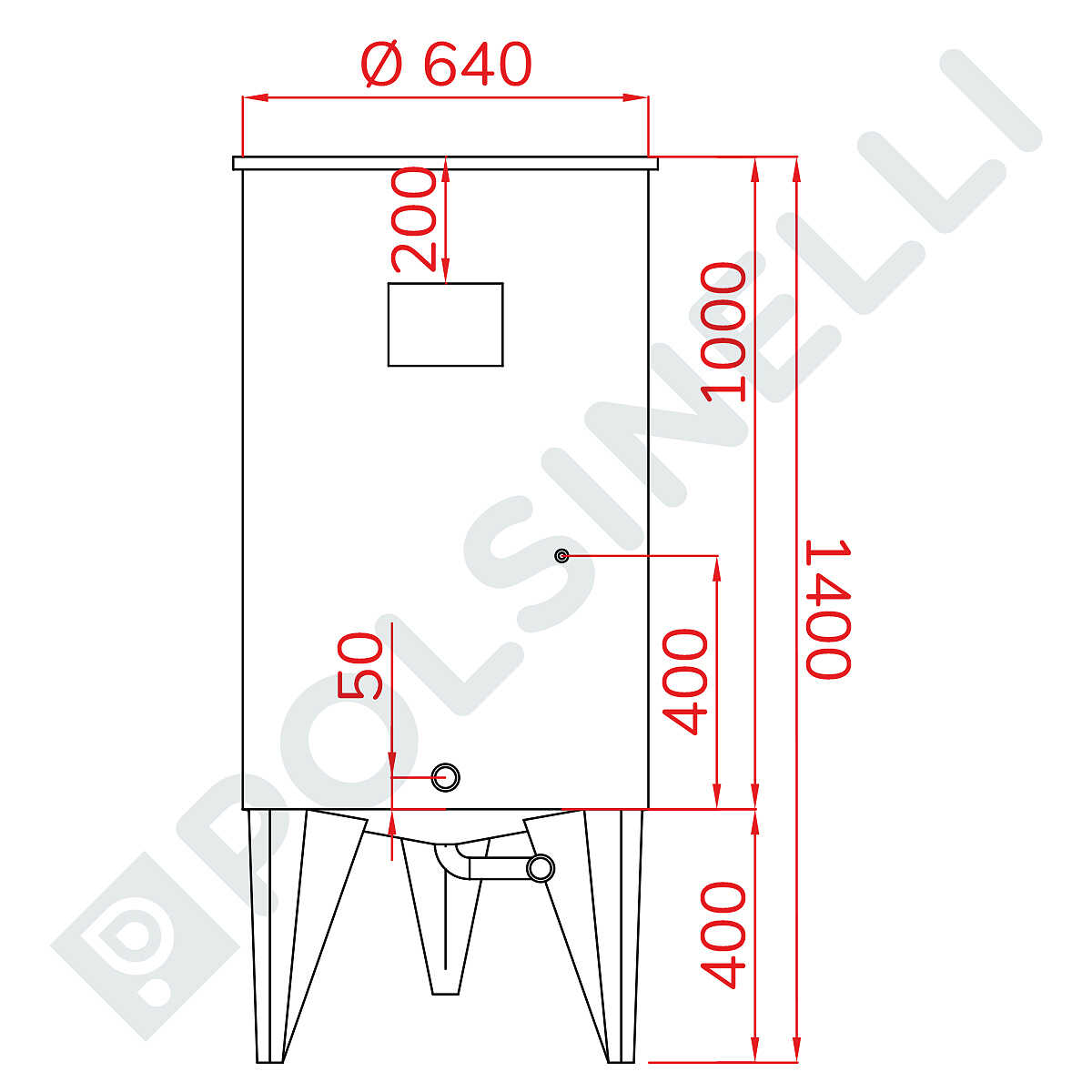

Dimensions:
- Diameter: 64 cm (D1)
- Total height 140 cm (H1)
- Foot height 40 cm (H2)
- Virola height 100 cm (H3)
Thickness:
- Walls: 1 mm
- Bottom: 1.2 mm
