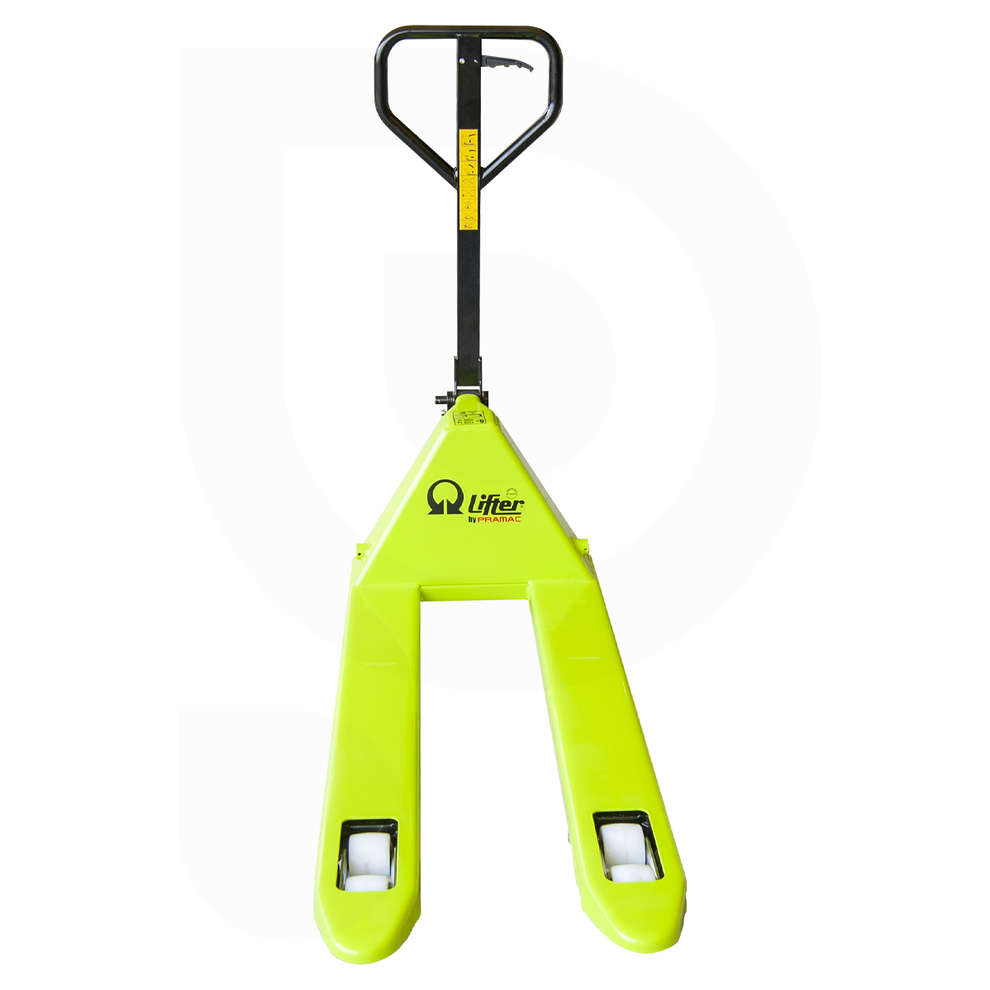

Pallet truck GS 25S4

Pallet truck GS 25S4 Nylon

The GS 25S4 hand pallet truck is easy to use and suitable for pallet transport. Reliable and easy to maintain, it is designed to be an excellent solution for intensive use. The hand pallet truck GS 25S4 is the right choice for the user looking for a simple but robust machine.

HYDRAULIC UNIT

The GS pump has been designed with extreme care of details in order to have superior characteristics and features, such as:

• Monolithic design: the resistant and reliable one-piece cast iron housing protects all components avoiding any accidental damages. Pump housing is processed with CNC machines to achieve high precision tolerances and high accuracy.
• Chromed piston rod and oil seal: in order to avoid rust and prevent oil leakage during the use.
• Maximum pressure valve: safety device that protects the transpallet against overloads.
• ON/OFF lowering valve

STANDARD CONFIGURATION

• Nylon - Poly 45 steering wheels
• Nylon rollers
• Four curves handle with all the controls in a single lever and with large grasping areas on the side. This allows to have much comfort during the operations avoiding excessive fatigue and comfort during pushing loads.

VARNISHING

Following an appropriate conditioning operation the frame is varnished with polyester powder at a temperature of 250° to guarantee maximum resistance to wear and atmospheric agents.

EASY TO MOUNT

Tiller easy to assemble with a fast mounting system. Robust tiller connection with two full welded joints that assure superior sturdiness in the toughest application.

Characteristics:

• Drive: Manual
• Operator type: Pedestrian
• Load capacity: Kg 2500
• Lift height: mm 115
• Overall lenght: mm 1550
• Overall width: mm 525
• Fork dimensions - Width: mm 150
• Fork dimensions - Lenght: mm 1150
• Distance between fork arms: mm 525
• Aisle width: mm 2048
• Turning radius: mm 1367
