Semi-automatic benchtop labelling machine ETI 10H
Description

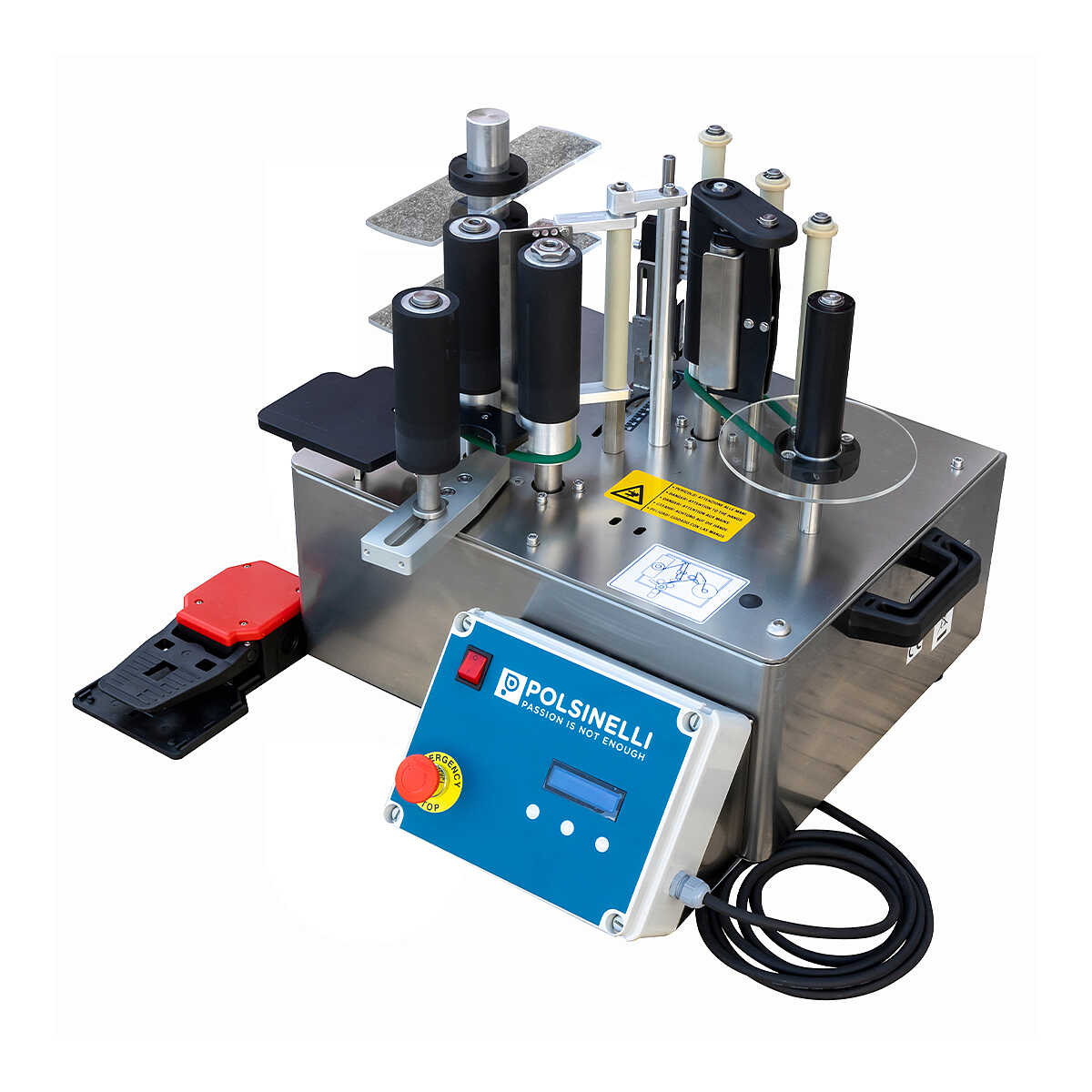

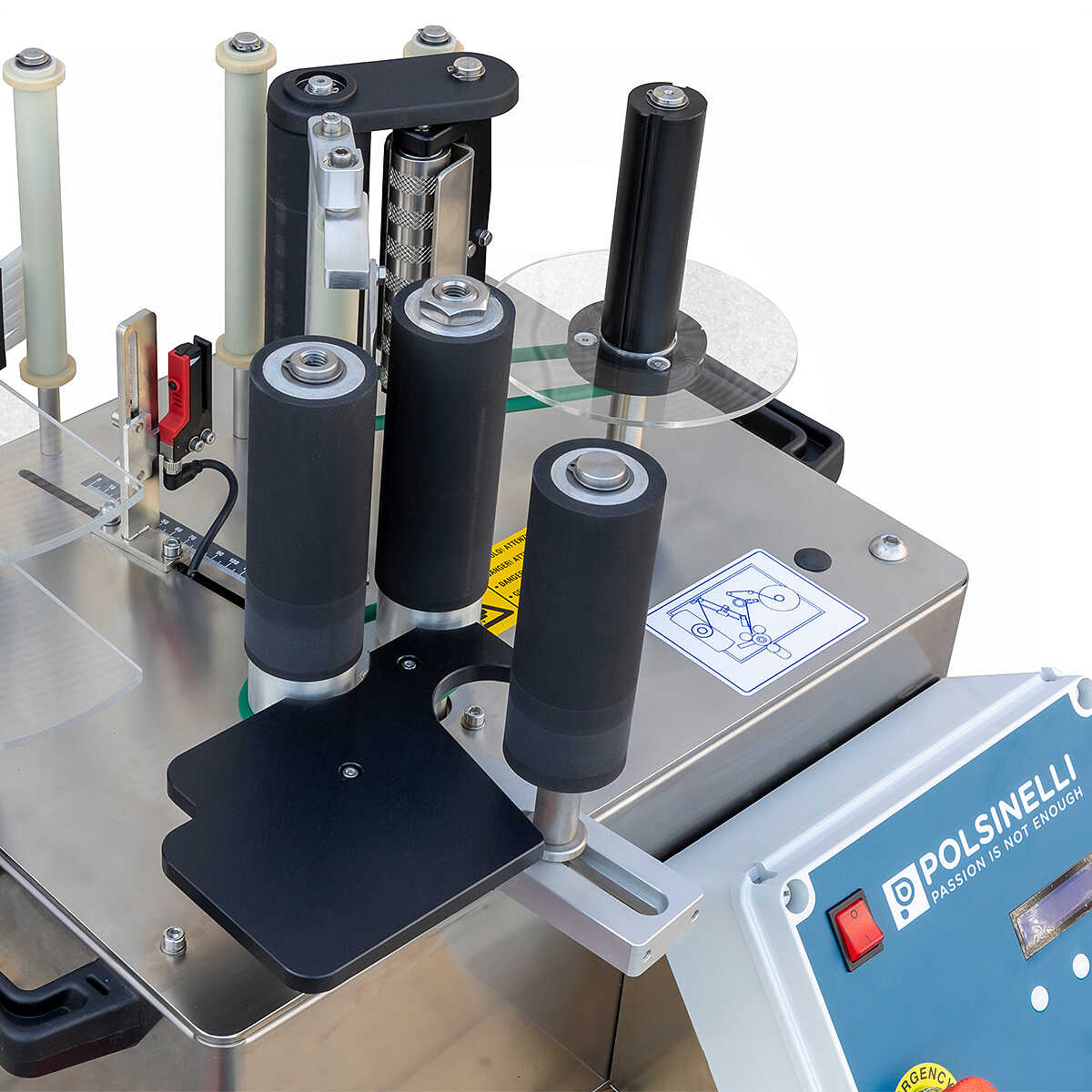

Semi-automatic benchtop labelling machine ETI 10H

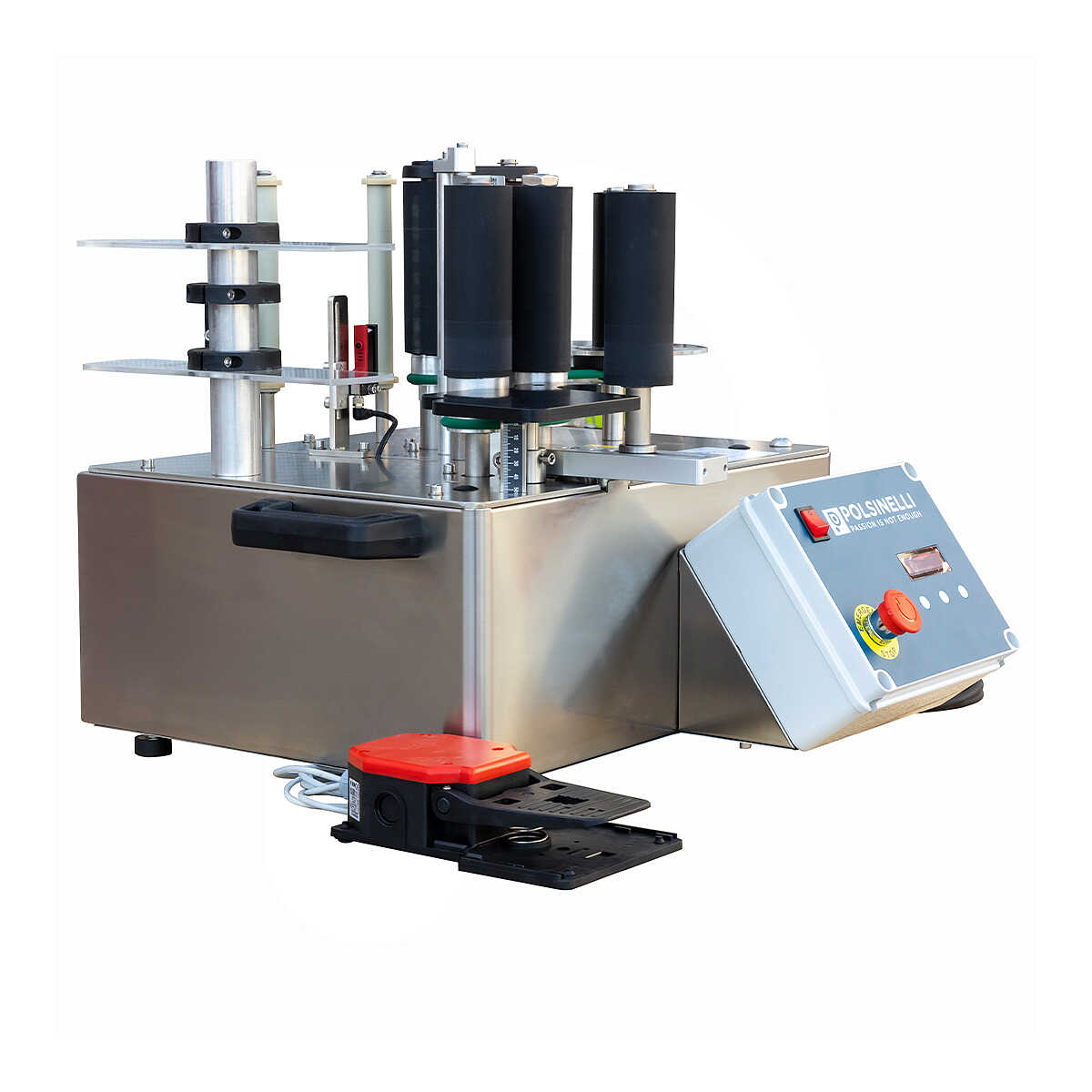

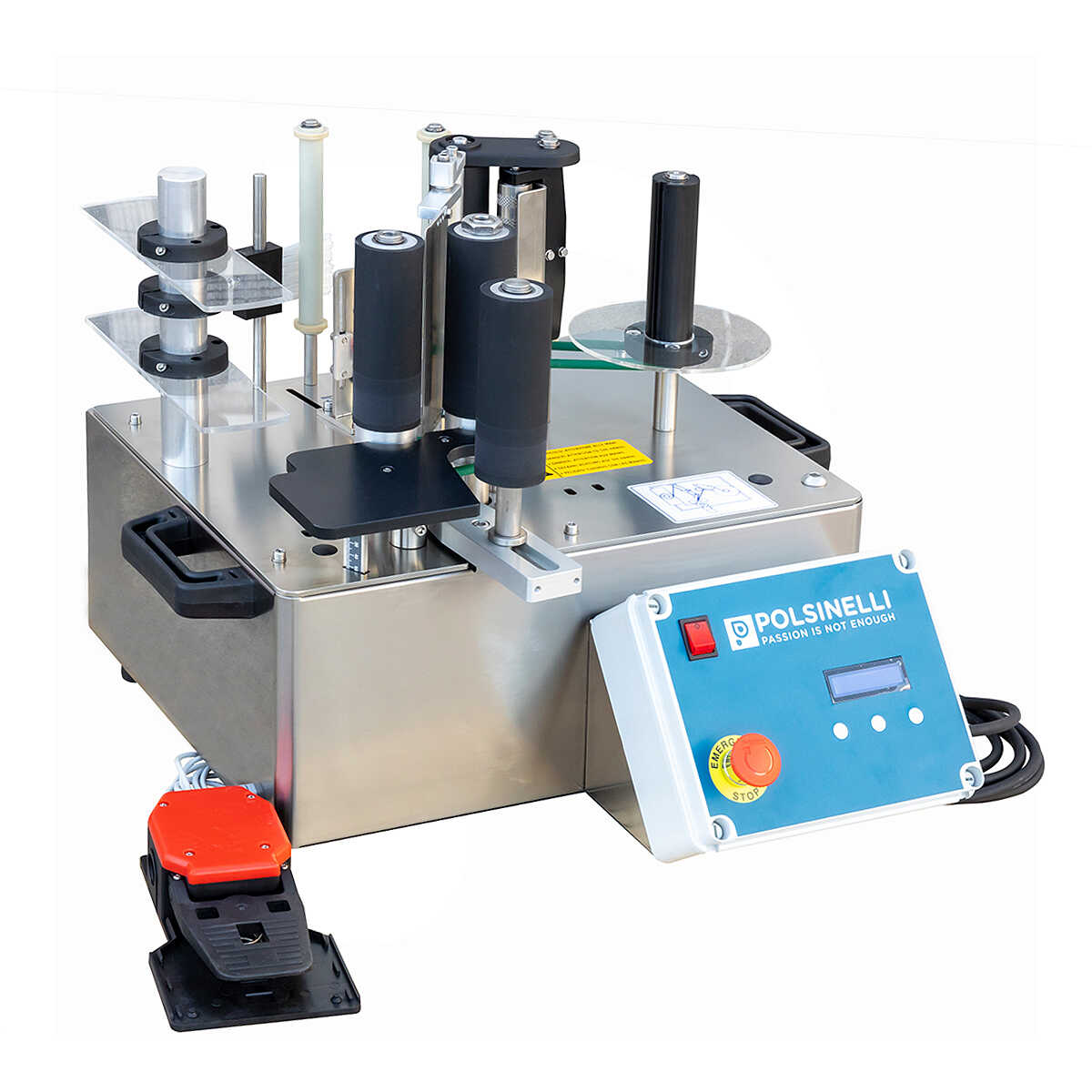

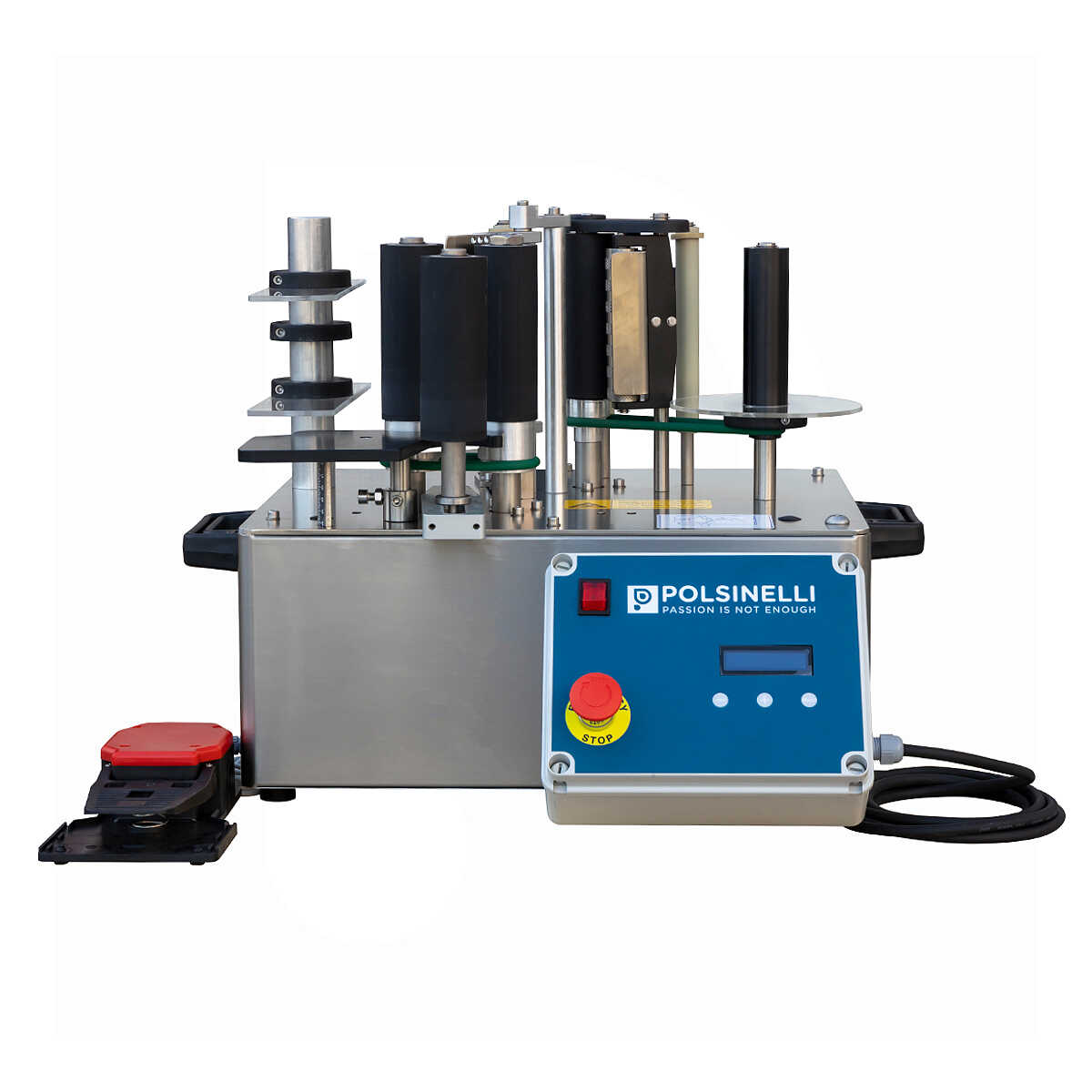

The ETI 10H is a semi-automatic benchtop labeller designed to apply self-adhesive labels with extreme precision. It allows the simultaneous application of the label and back label in a single work cycle, with the product inserted in an upright position.

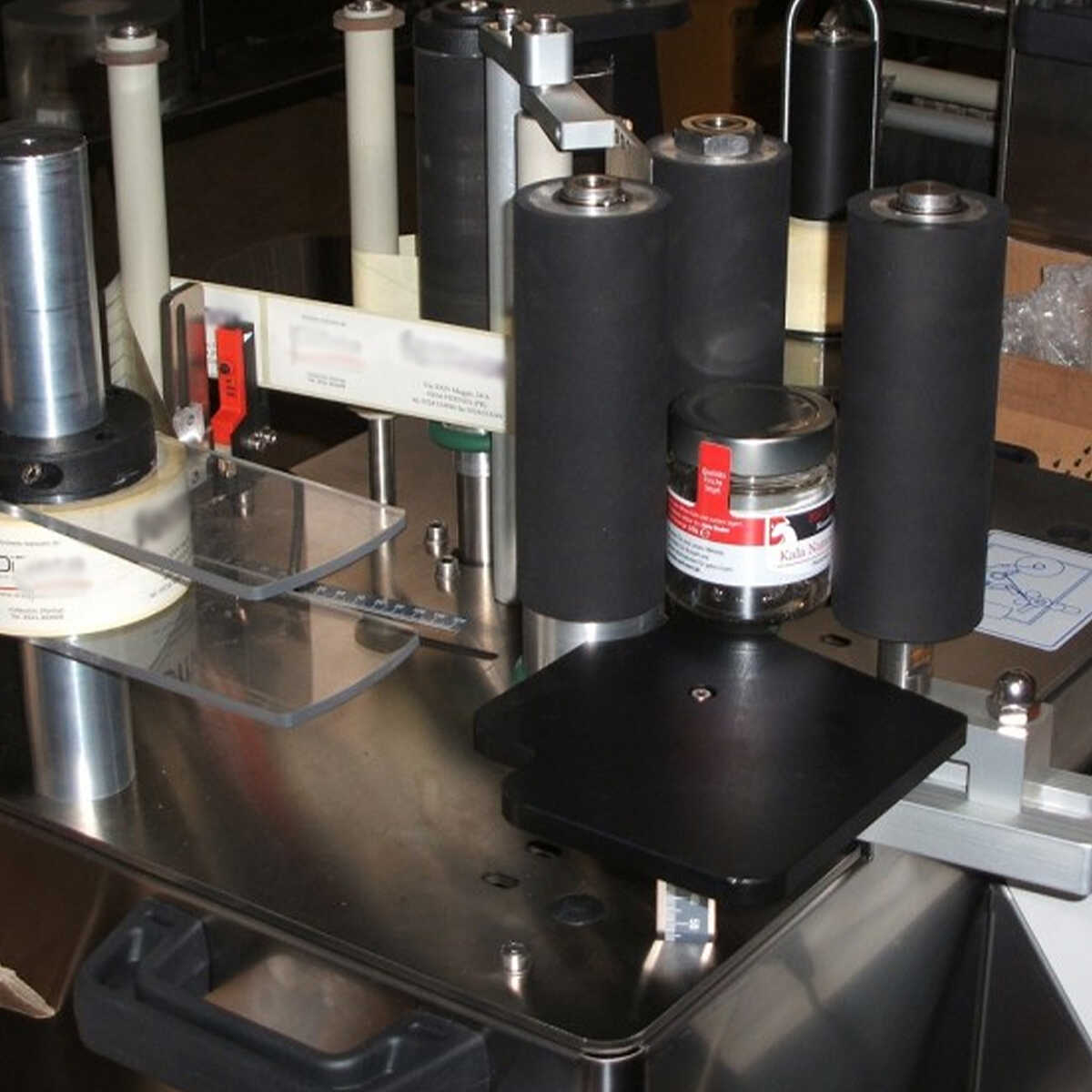

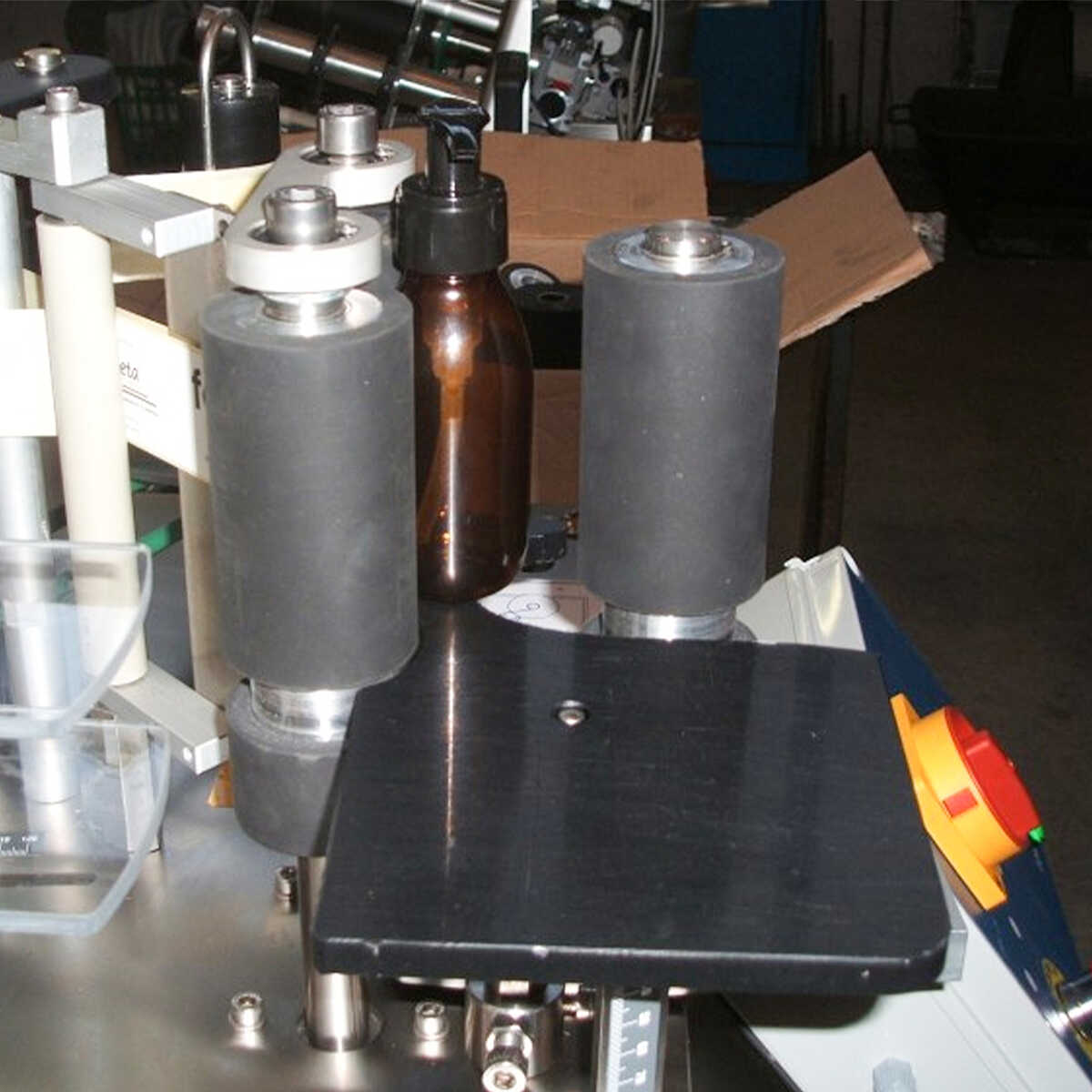

It is equipped with a mechanical lever for container locking and a practical support platform that allows the labelling phase to start easily. Ideal for bottles, jars, and plastic containers.
Thanks to the available options, it is possible to apply an additional label at a later stage, for example on a screen printing area or near a mechanical cap. It is also prepared for the installation of the stamping unit.

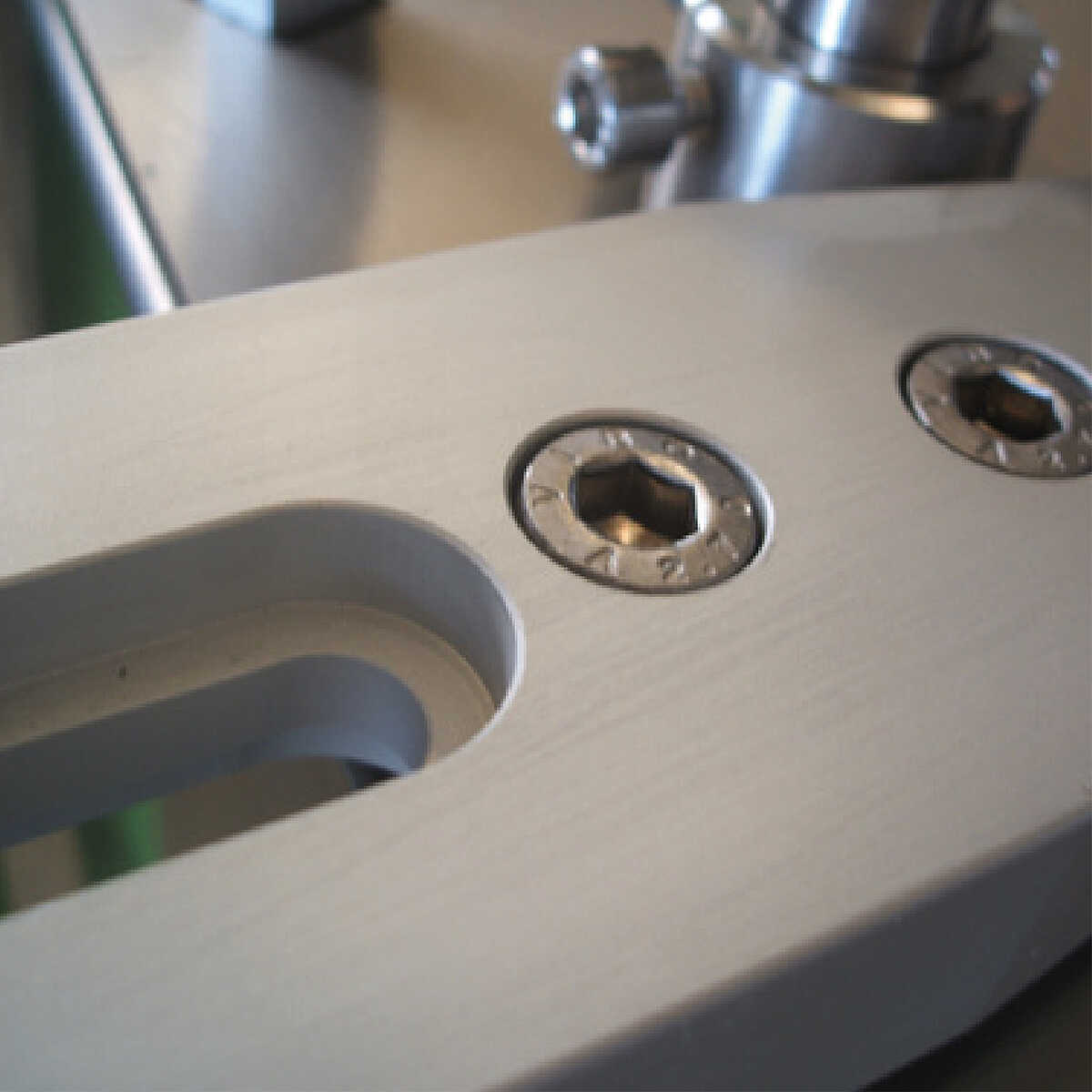

The stainless steel structure ensures robustness and ease of cleaning, while the knurled roller with quick release guarantees efficient traction of the silicon paper.

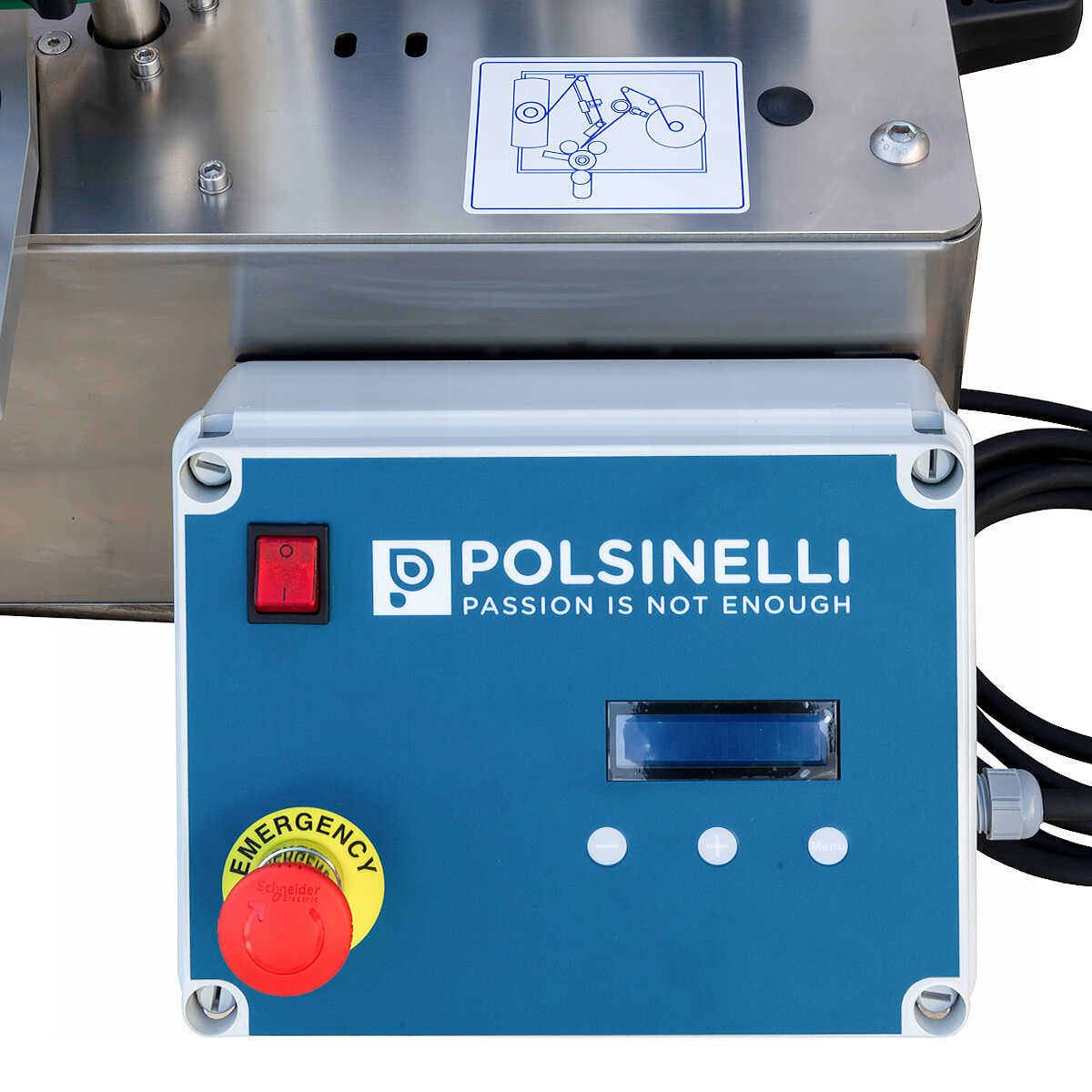

The electrical system, with microprocessor electronic board, allows different labelling configurations through optional groups and complies with CE regulations.
The standard version is equipped for dispensing a single label.
Main advantages:
- Vertical insertion of the container

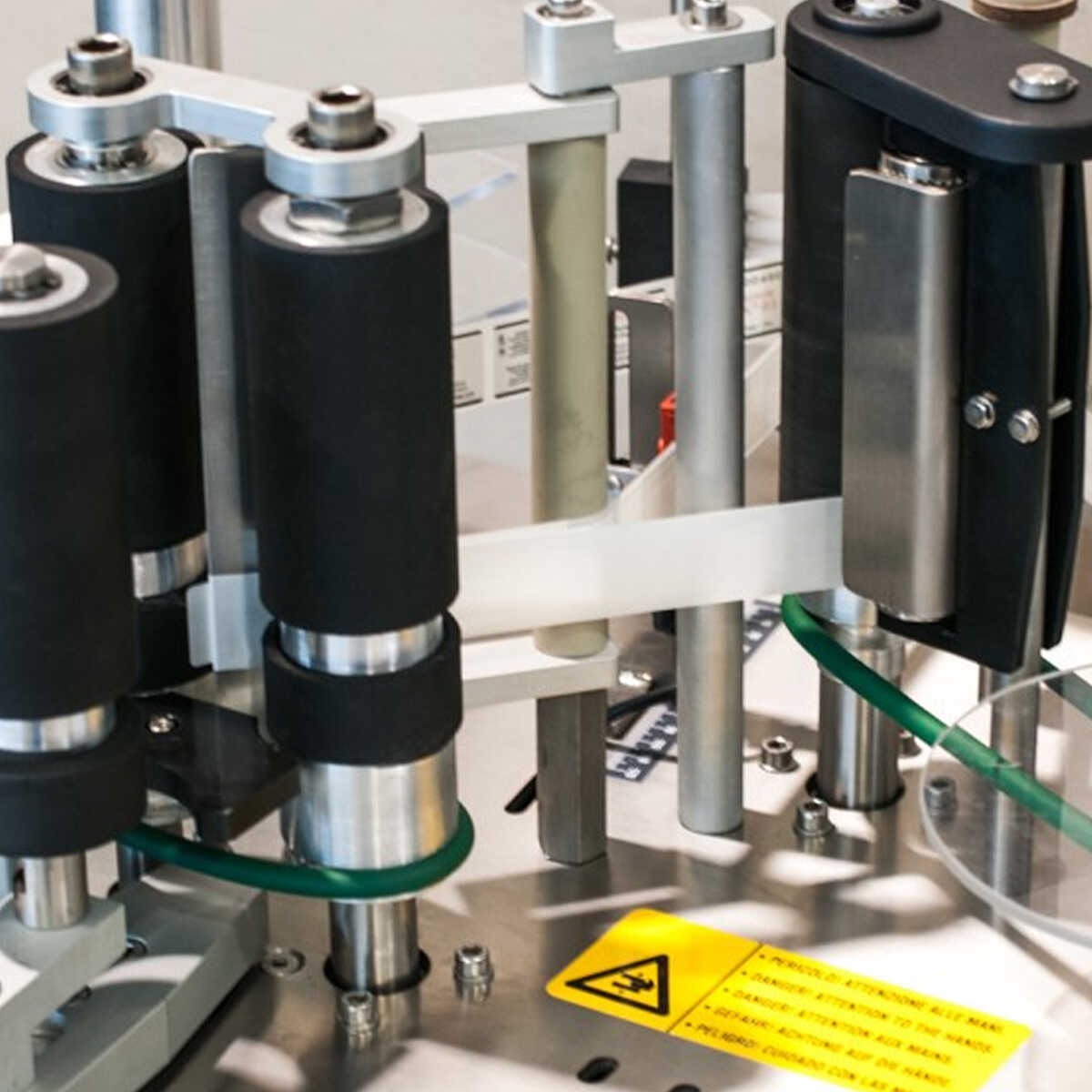

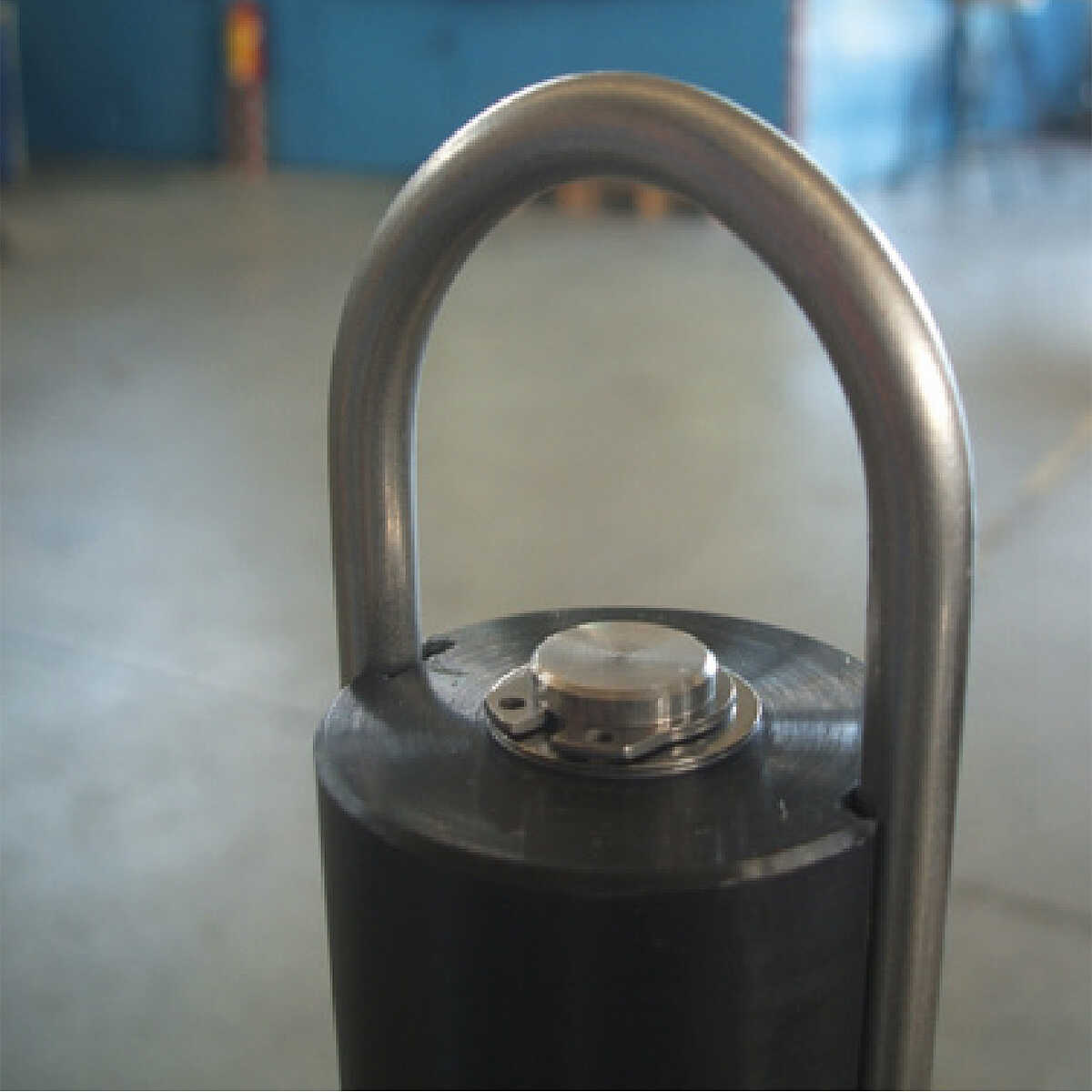

- Self-moving upper roller for maximum adaptability to different formats
- Full stainless-steel structure, durable and easy to clean
Technical features:
- Power supply: 230 V – 50 Hz
- Installed power: 0.2 kW
- Noise level: 40 decibels
- Hourly output: 700 b/h
- Maximum label length: 280 mm (optional: 340 mm)
- Maximum label height: 140 mm (optional: 190 mm)
- Diameter of cylindrical bottles: from 60 to 120 mm (optional: from 17 to 160 mm)

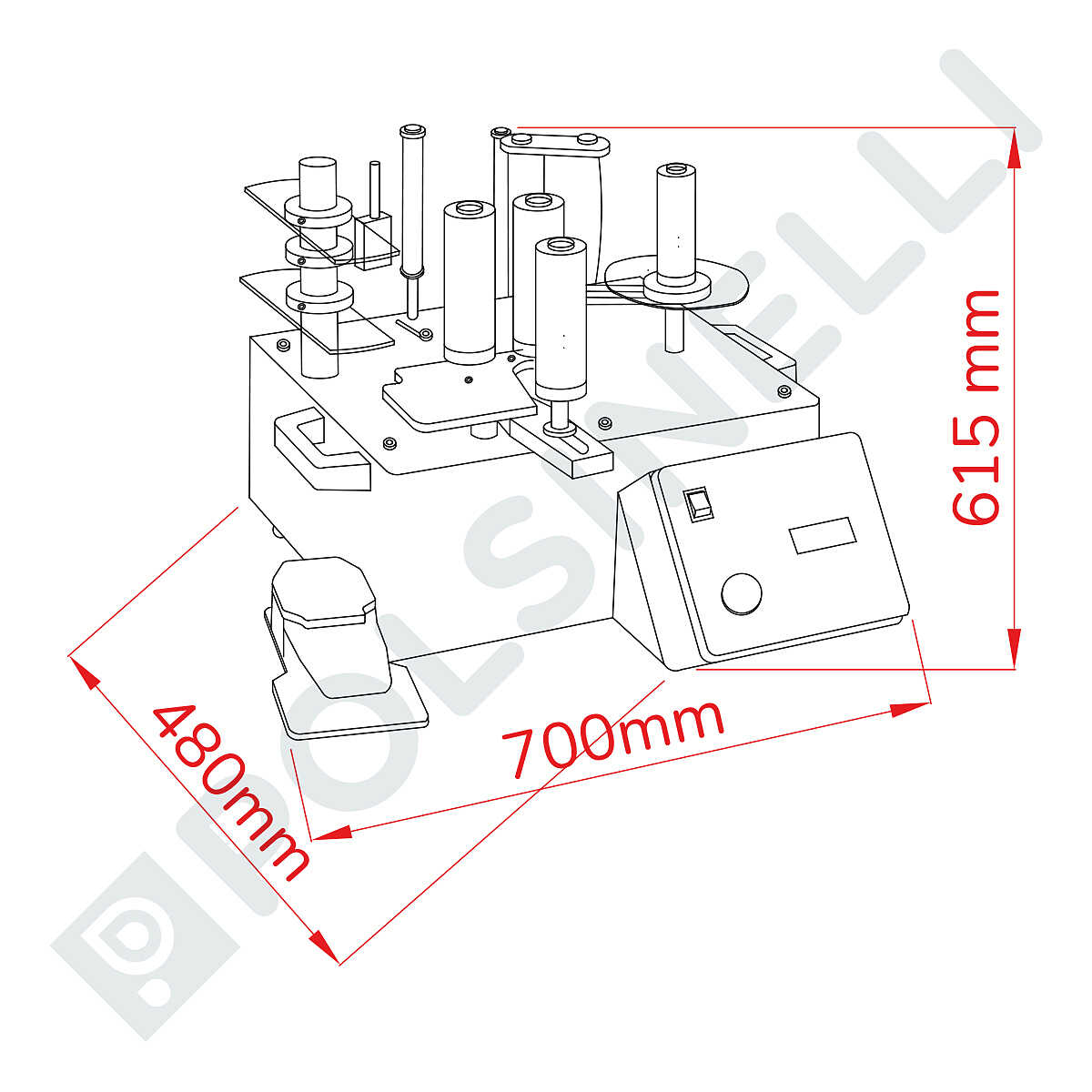

- Dimensions: 700x480x615h mm
- Weight: 55 kg
Optional (to be purchased separately):
- Second-step labelling
- Stamping unit on lower station
On request, the ETI 10H can be supplied with 110 V – 60 Hz power supply.
