Conical trunk for wine 60° 300 L with air floating lid

Code: SIP0359
Brand: Polsinelli
€ 740.00
Product available
Shipping within 5 working days (from Monday to Friday) from the receipt of payment.
Shipping costs:
Free shipping to Italy
Add to favorites

Description

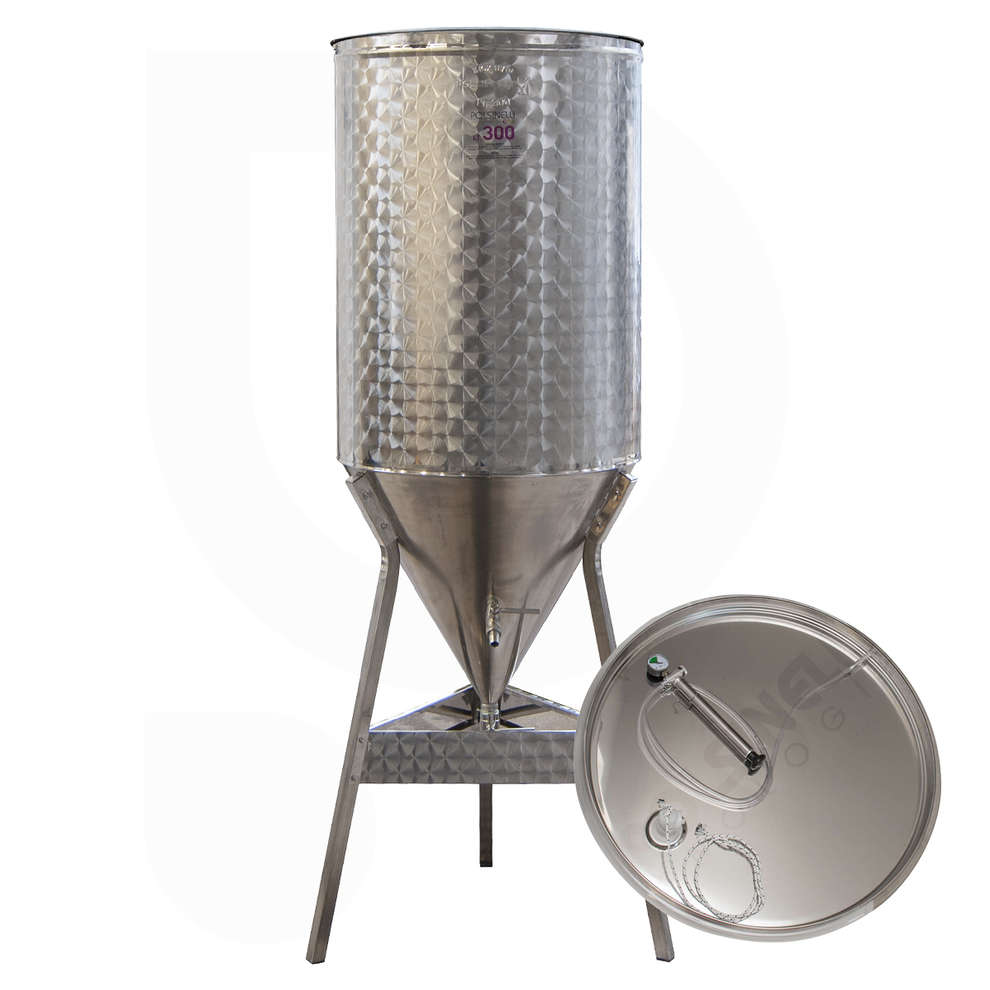

Conical trunk for wine 60° 300 L with air floating lid

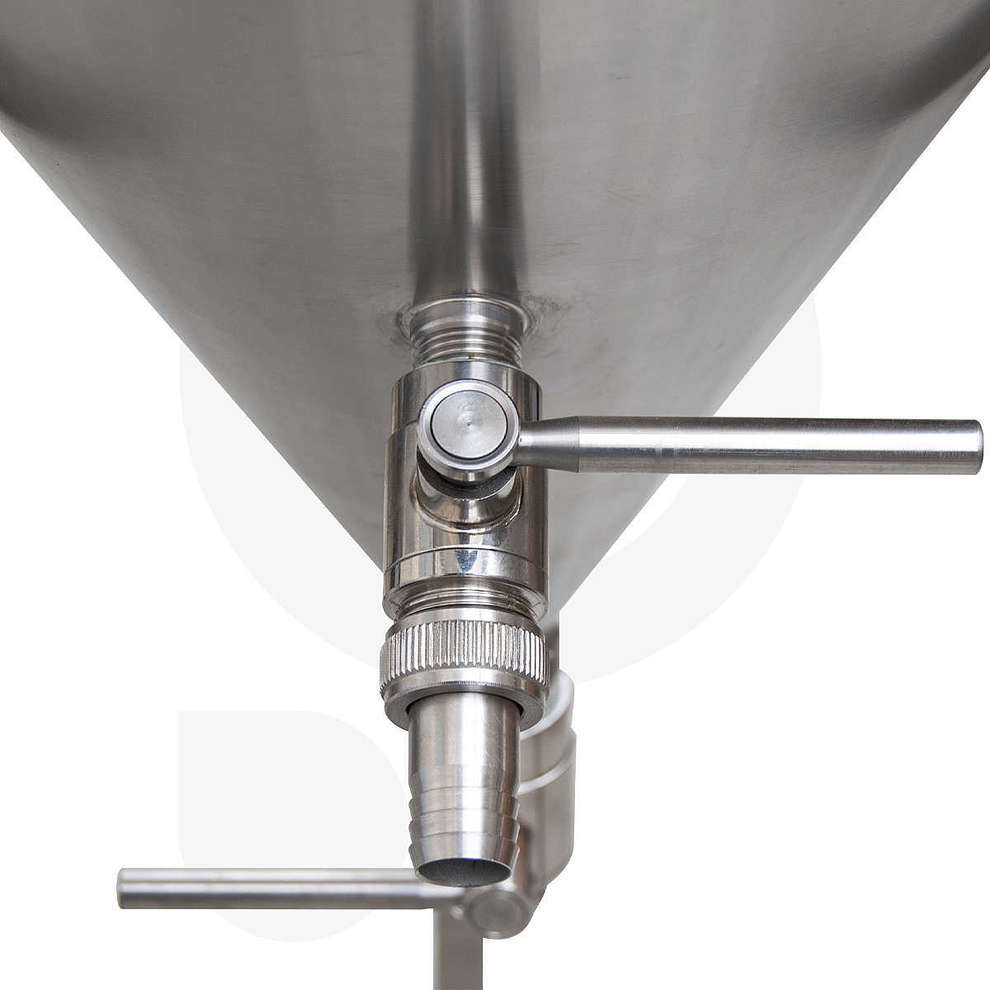

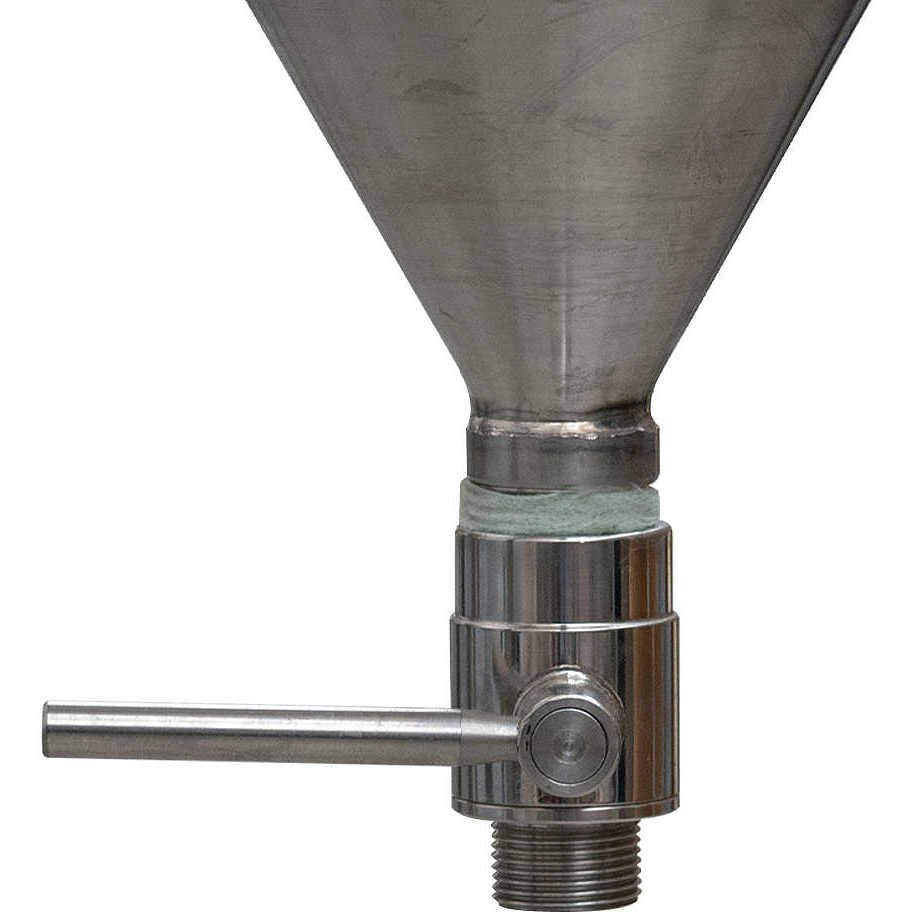

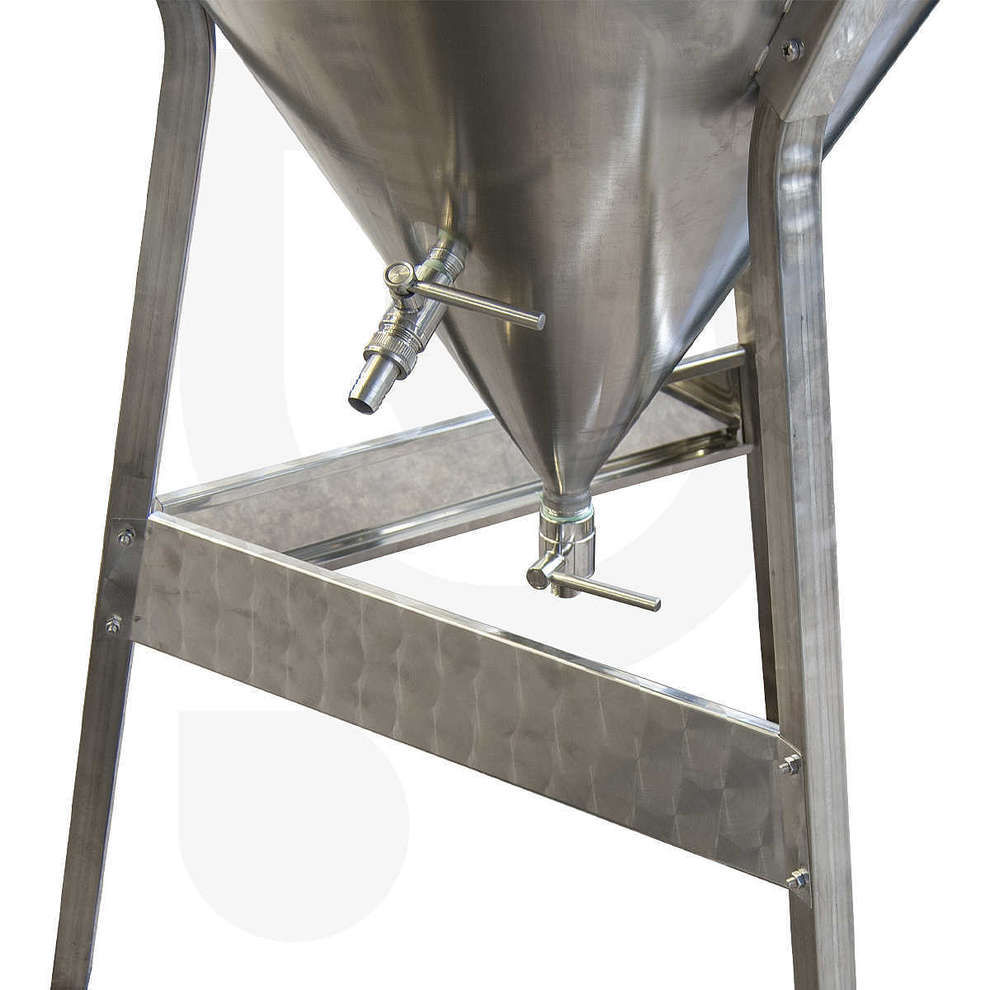

Ideal for storing wine and liquid foods during fermentation. Made of Aisi 304 stainless steel (18/10 for foodstuffs), complying with all food safety regulations. Equipped with air float kit, two stainless steel ball valves, one 1" for total discharge and the other 1/2" raised from the bottom, for the withdrawal of the liquid without sediment.

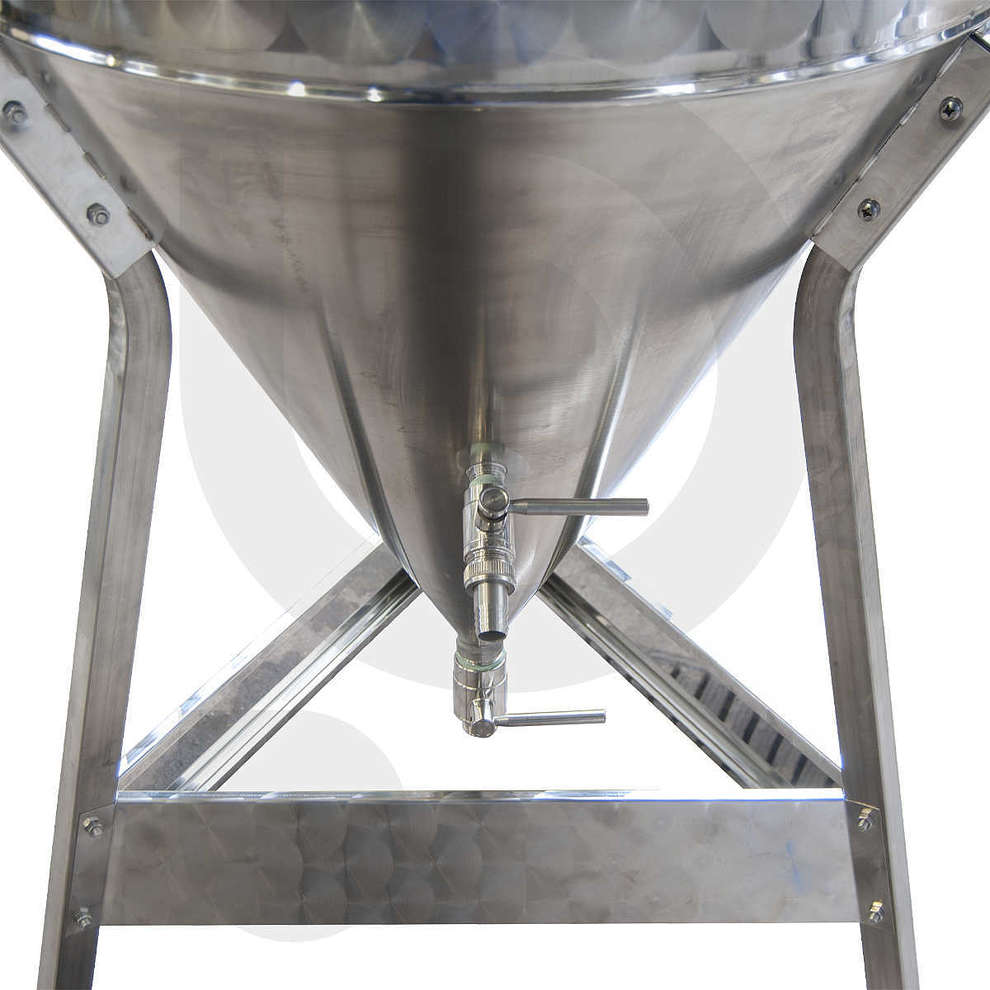

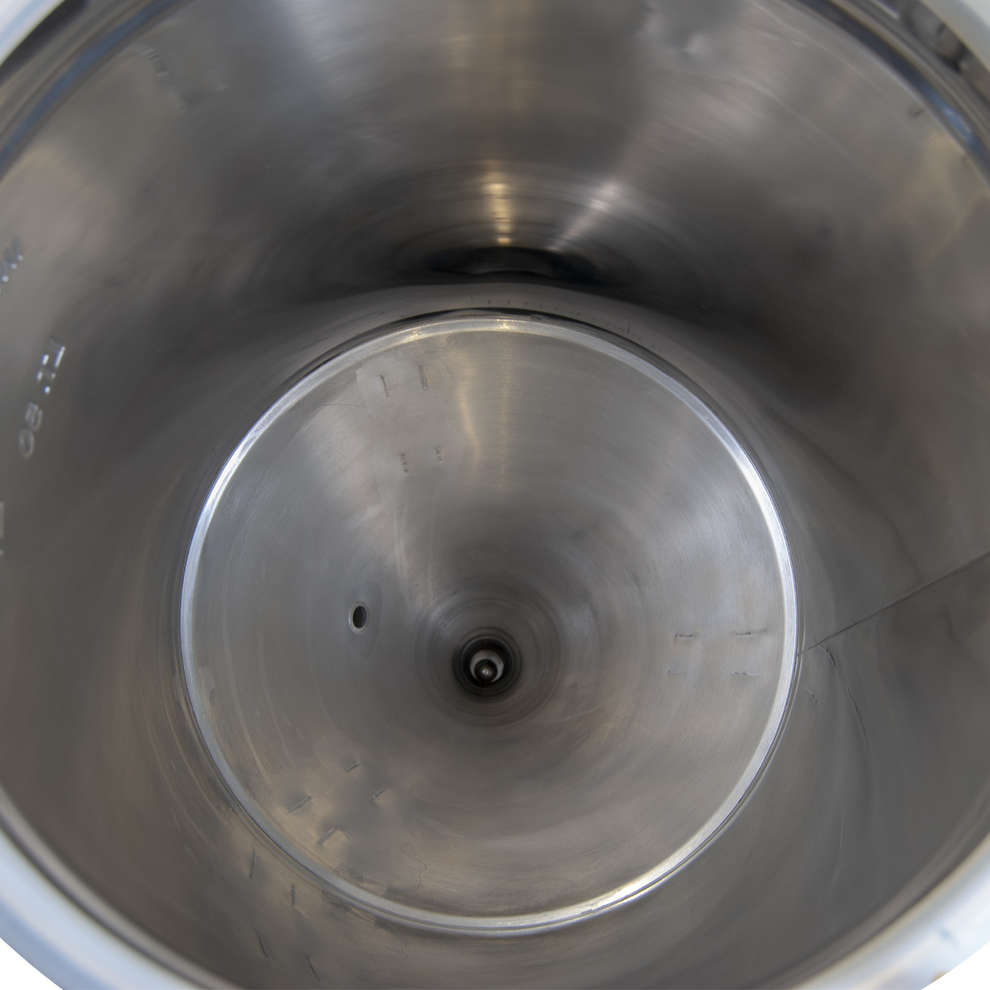

The 60° conical trunk facilitates the extraction of sediment that settles at the bottom of the cone, allowing greater cleanliness. TIG welds facilitate cleaning and sanitising operations. Excellent stability thanks to the integrated pedestal.

Standard equipment:

  • Stainless steel air float ∅ mm 610
  • Air chamber ∅ mm 600
  • Stainless steel pump
  • Vent valve 1"1/4
  • Total discharge valve 1" x 3/4"ampling valve 1/2" x 3/4"
  • No. 1 3/4" x Ø 20 stainless steel hose nozzle swivel connection
  • Flower embossed exterior
  • 60° conical bottom
  • Integrated pedestal

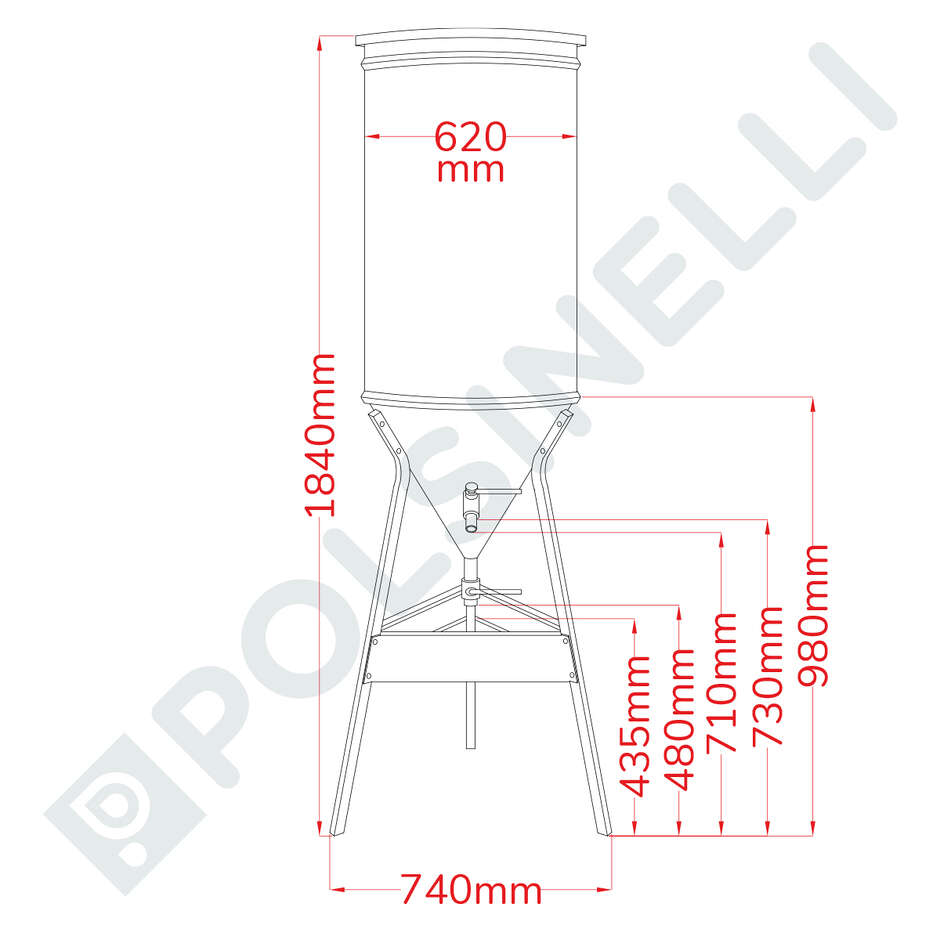

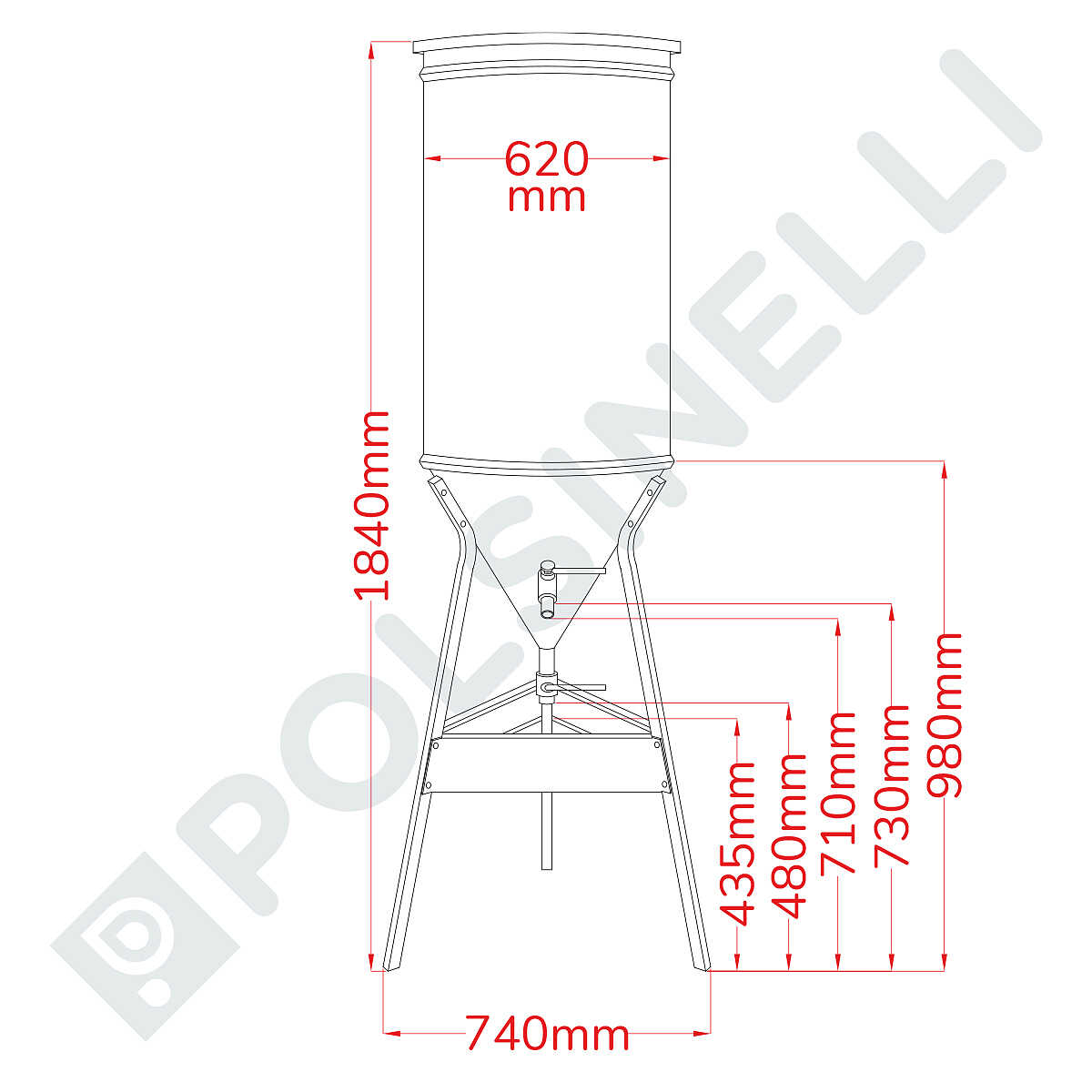

Dimensions:

  • Height of the cylinder: mm 850
  • Height of the cylinder plus conical bottom: mm 1390
  • Tank diameter: mm 620
  • Overall dimensions: mm 650x650x1790 (h)

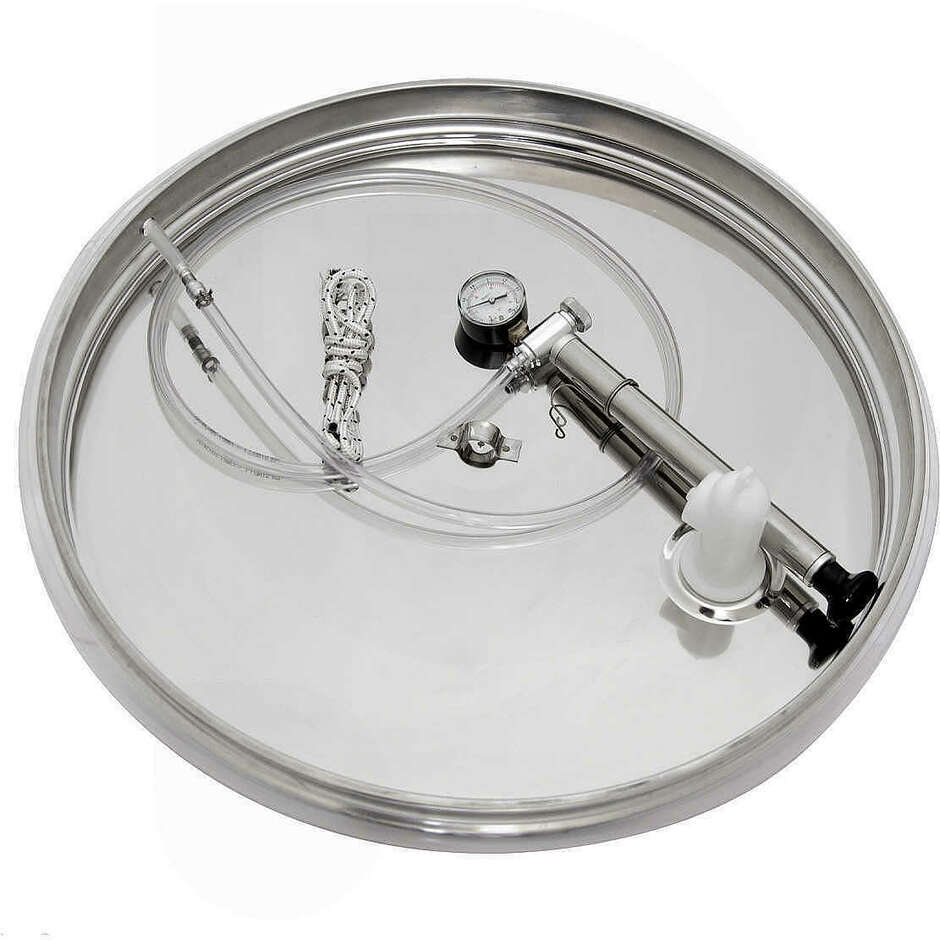

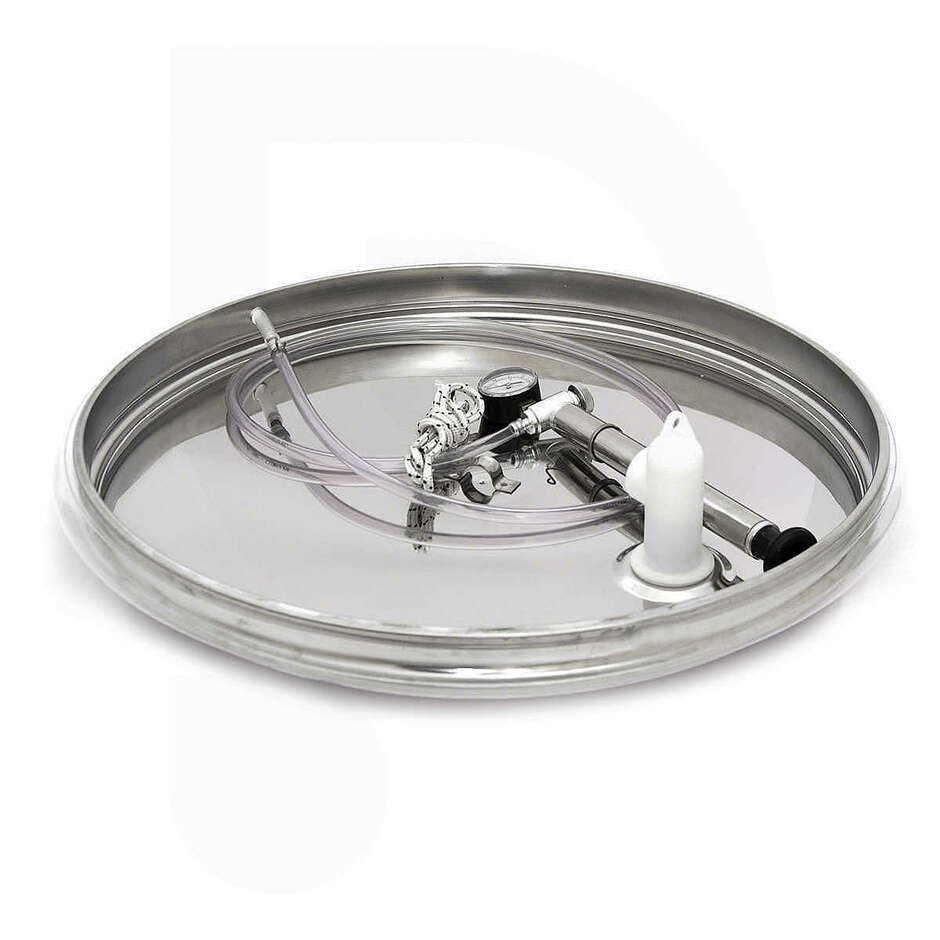

1 - Stainless steel pump with analogue gauge
2 - stainless steel float lid
3 - vent  valve
4 - recovery rope

Proper use of floating air lids:

  1. always fill the tank with wine
  2. place the stainless steel float lid on the surface of the wine
  3. unscrew the valve on the pump to allow inflation
  4. inflate the tube to about 0.7 atm
  5. check that the tube is tight against the inner surface of the tank and close the valve of the pump
  6. you should check the air pressure every 15 days.

If the tube does not maintain the pressure, please check:

  1. that there are no holes
  2. the attachment between the air chamber and plastic tube
  3. that the air hose clamps are not loose
  4. that the gauge is not broken
  5. if the pump valve is not working



Other products of the same brand
  • Bottle drip rack for 81 bottles
  • 100 L stainless steel beer fermenter
  • Enolmatic filling machine
  • 1/2" stainless steel spigot
  • Crown cap with inner cap golden ⌀29 (200 pcs)
  • Filter sheets V16 (25 pcs)
  • 35 L stainless steel beer fermenter
  • Stainless steel handles  - 160 mm  (2 pz)
  • Filter sheets 20x20 V8 (25 pcs)
  • Fermenter 50 L stainless steel barrel
    -10%
  • Spiral funnel
    Spiral funnel € 4.50
  • Self-regulating funnel
  • Similar products
  • Conical trunk for wine 60° 200 L with air floating lid
    New
  • Conical trunk for wine 60° 100 L with air floating lid
    New
  • Conical trunk for wine 60° 150 L with air floating lid
  • Conical trunk for wine 60° 50 L with air floating lid
    New
  • Conical trunk for wine 60° 75 L with air floating lid
    New

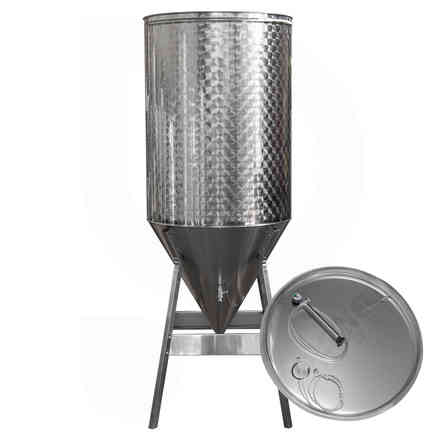

  • Stainless steel 60° conical trunk tank for wine 500 L with air floating lid
  • 50 L stainless steel wine tank with air floating lid
  • 200 L stainless steel wine tank with air floating lid
  • 150 L stainless steel wine tank with air floating lid
  • 100 L stainless steel wine tank with air floating lid
  • 600 L stainless steel wine tank with air floating lid
  • 500 L stainless steel wine tank with air floating lid
  • Other customers have purchased
  • Cork stopper 26x40 (100 pieces)
  • Cart for electric pump
  • Wine thermometer
    Wine thermometer € 5.50
  • Demijohn lift trolley
    Demijohn lift trolley € 174.00
  • 80 Lt Bucket
    80 Lt Bucket € 22.50
  • Round basket 20 Lt
    Round basket 20 Lt € 7.50
  • Pleated paper filter for wine ∅ 50 (10 pieces)
  • Plastic Measuring Mug  L 0,5
  • Bag-in-box with bag 5 L (1 piece)

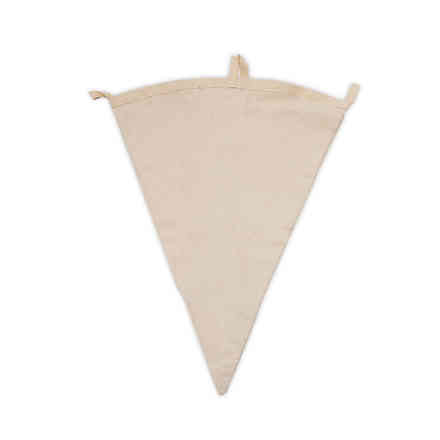

  • Jute filter for food products (5 L)
