AL aphrometer crown cap 29 mm

AL aphrometer crown cap 29 mm

The 26 mm universal aluminum aphrometer is an indispensable instrument for monitoring the final pressure in bottles and thus the carbon dioxide content of sparkling wines and carbonated drinks in general.

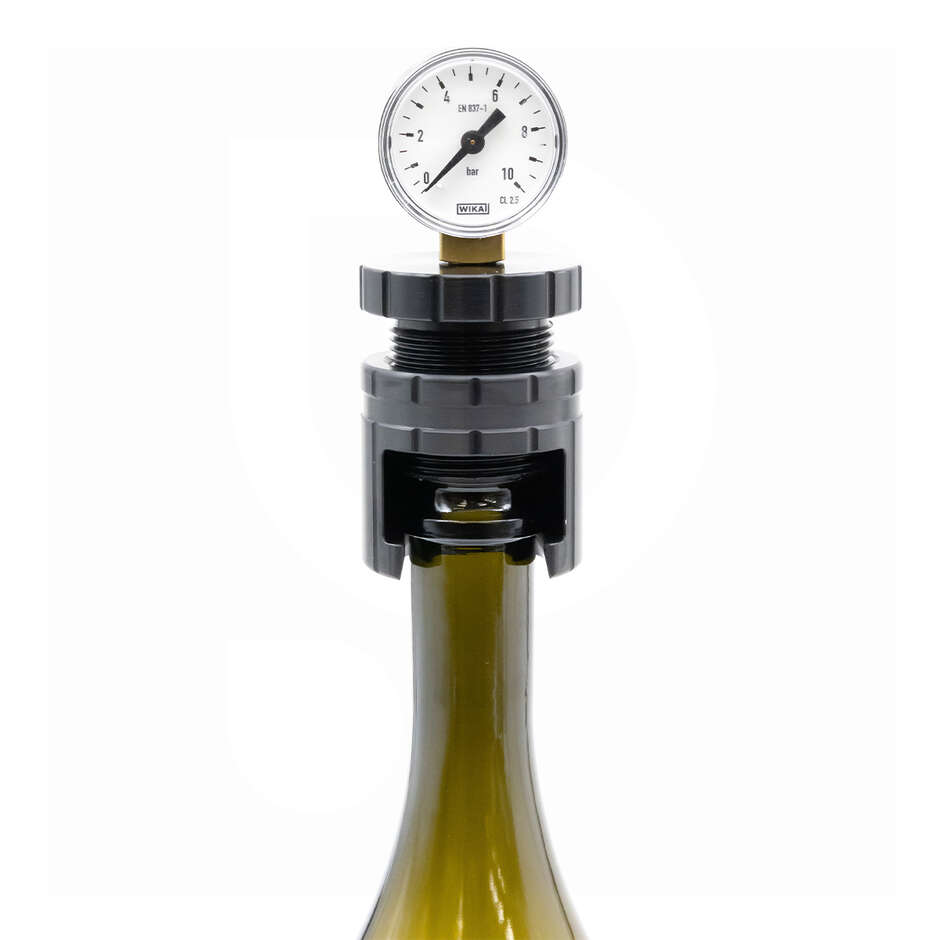

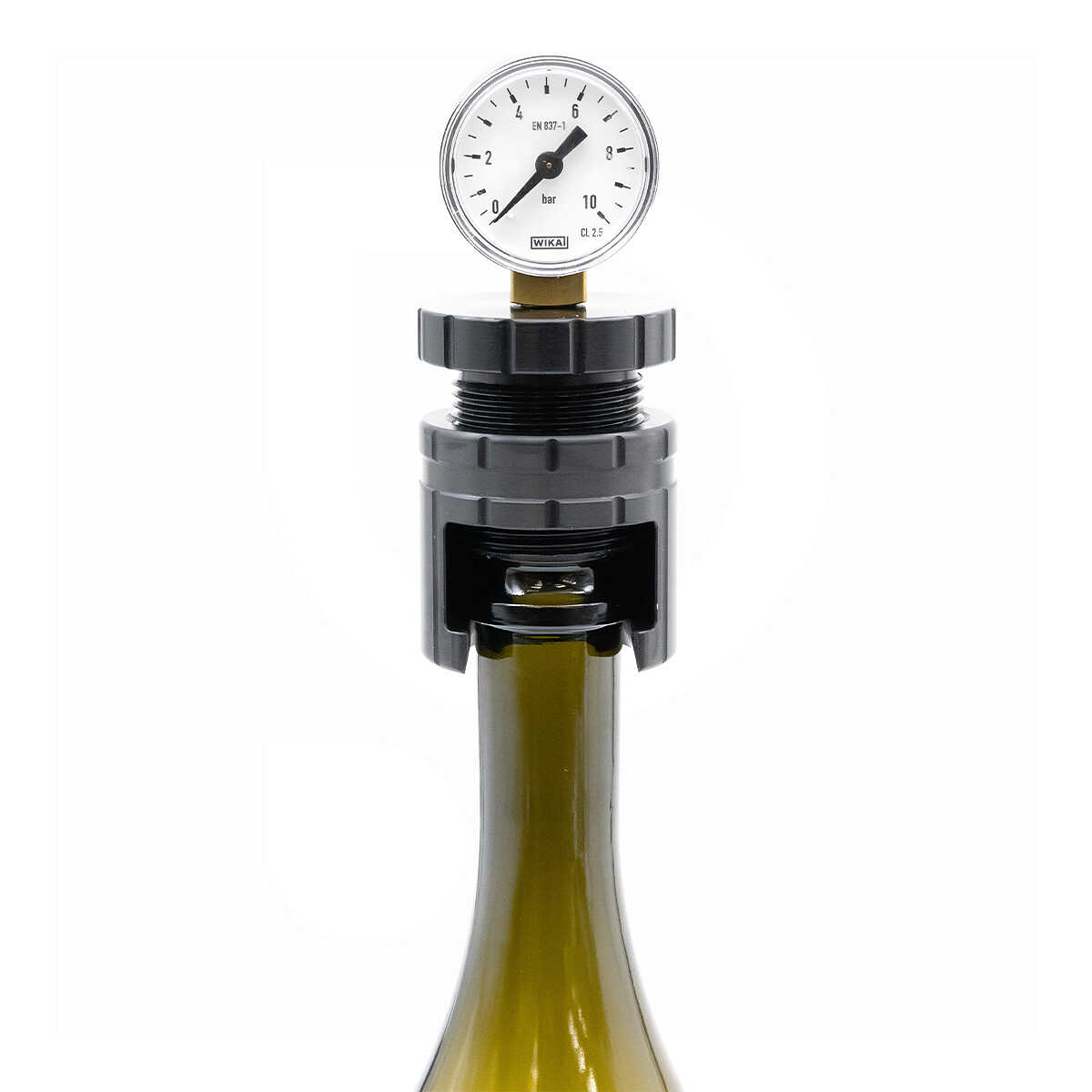

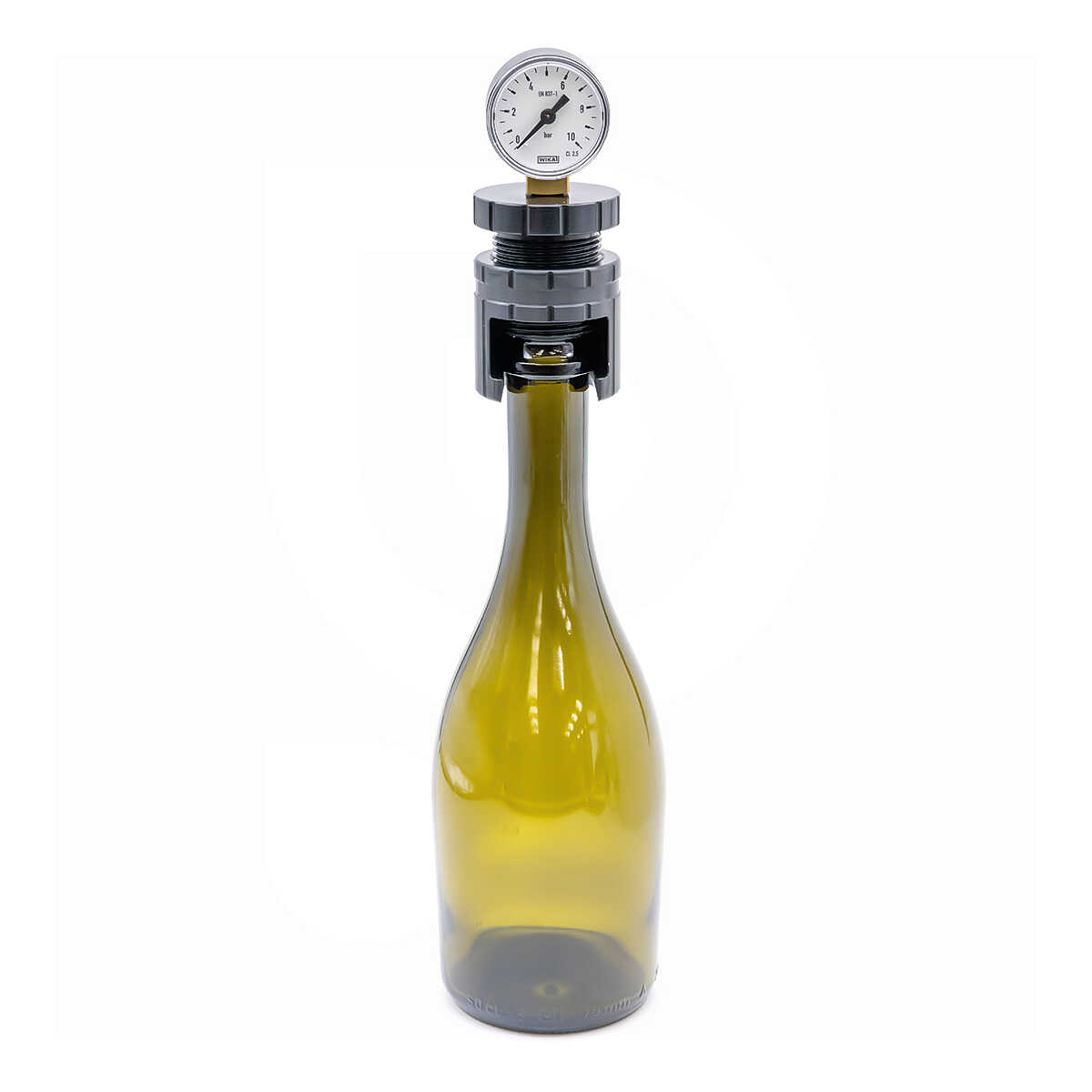

This universal tubular spring aphrometer is used on bottles with a 29 crown cap. Use is very simple, simply place the aphrometer on the bottle mouth and screw the sealing ring nut clockwise until an adequate hermetic seal is obtained. To disassemble, simply unscrew in an anti-clockwise direction.

Technical characteristics:

• Operation: tubular spring
• ∅ nominal: mm 40
• Accuracy class: 2.5 bar
• Working pressure:
       Static: 3/4 of full scale value
       Fluctuating: 2/3 of full scale value
       Short-term: Full scale value
• Permissible temperatures:
       Ambient: -40°C + 60°C
       Fluid: Maximum +60°C
• For bottles with crown cap 29
