300 L Stainless Steel Cone Bottom Tank with Air Floating lid and ∅300 Manhole
Description

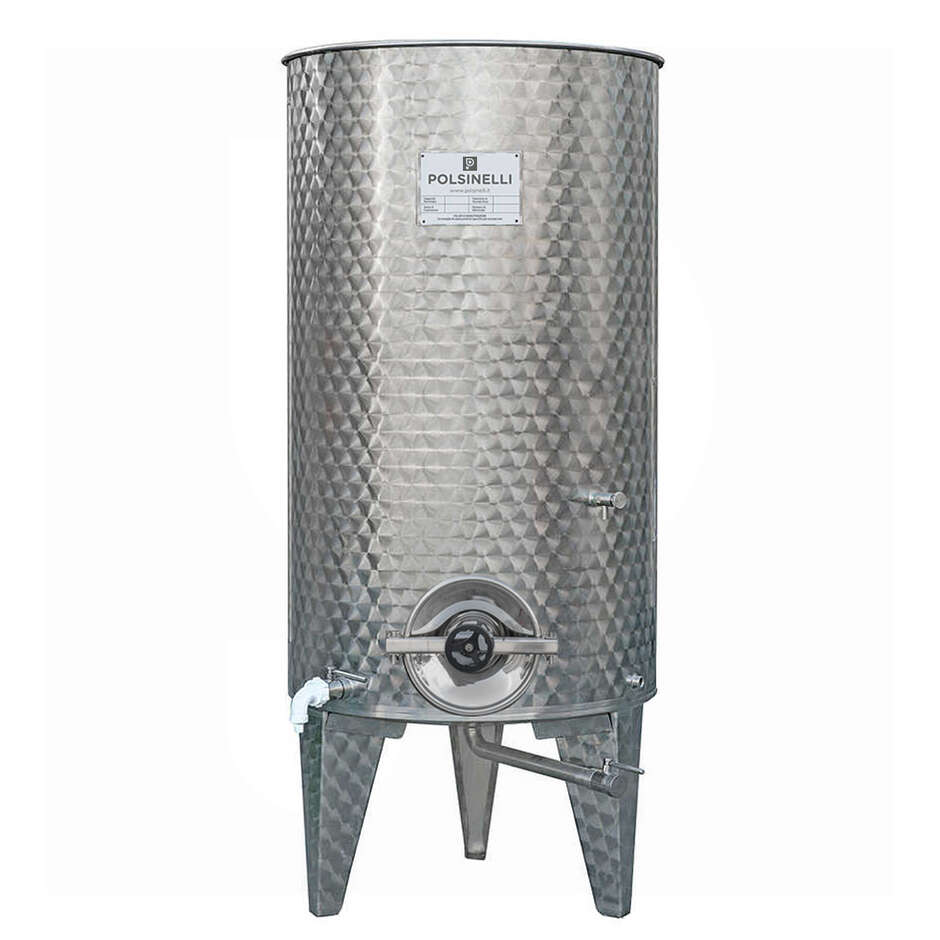

300 L Stainless Steel 10° Cone Bottom Tank with Air Floating lid and Ø300 mm manhole
The 300 litre stainless steel tank with the conical bottom is an interesting item dedicated to the storage and fermentation of wine products, as well as beer and other food liquids. Stainless steel is a fundamental element for conservation, thanks to its properties of inalterability with a very high-temperature range of use, with excellent resistance to acids and chlorides such as salt.
The reinforced bottom is in turn equipped with a 10° slope and thanks to the 1" end valve it offers both partial and total discharge possibilities. Supported by 3 stainless steel feet, it is completed by a stainless steel air float assisted by the air chamber made of transparent food-grade plastic.
The interior finish is mirror polished to ensure perfect cleanliness, while the exterior has satin-finished welds for impeccable aesthetics. At the end of the structure, there is a 300mm round door for easy emptying of the marc still stored.
Characteristics:
- Material: stainless steel AISI 304
- Capacity: 300 L
- Mirror polished interior finish with satin welds
- External finish with satin welded seams
- Conical bottom 10° with reinforcements

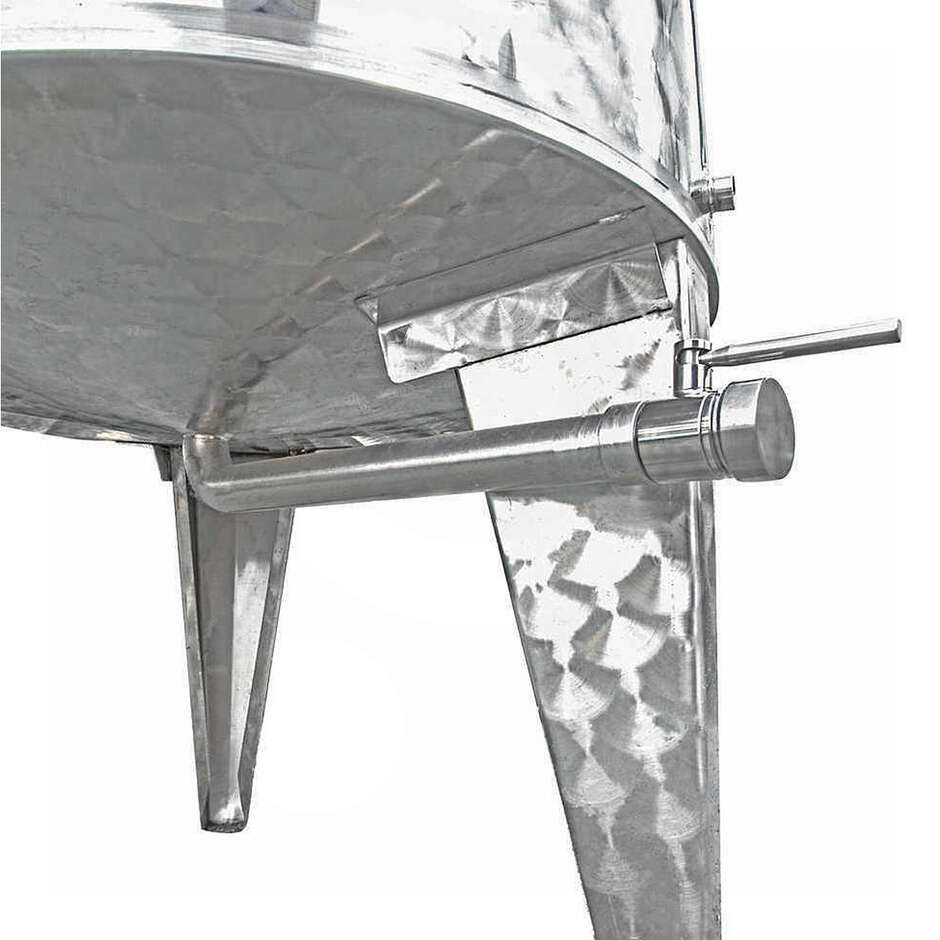

- Total drain with valve 1" x ENO 30

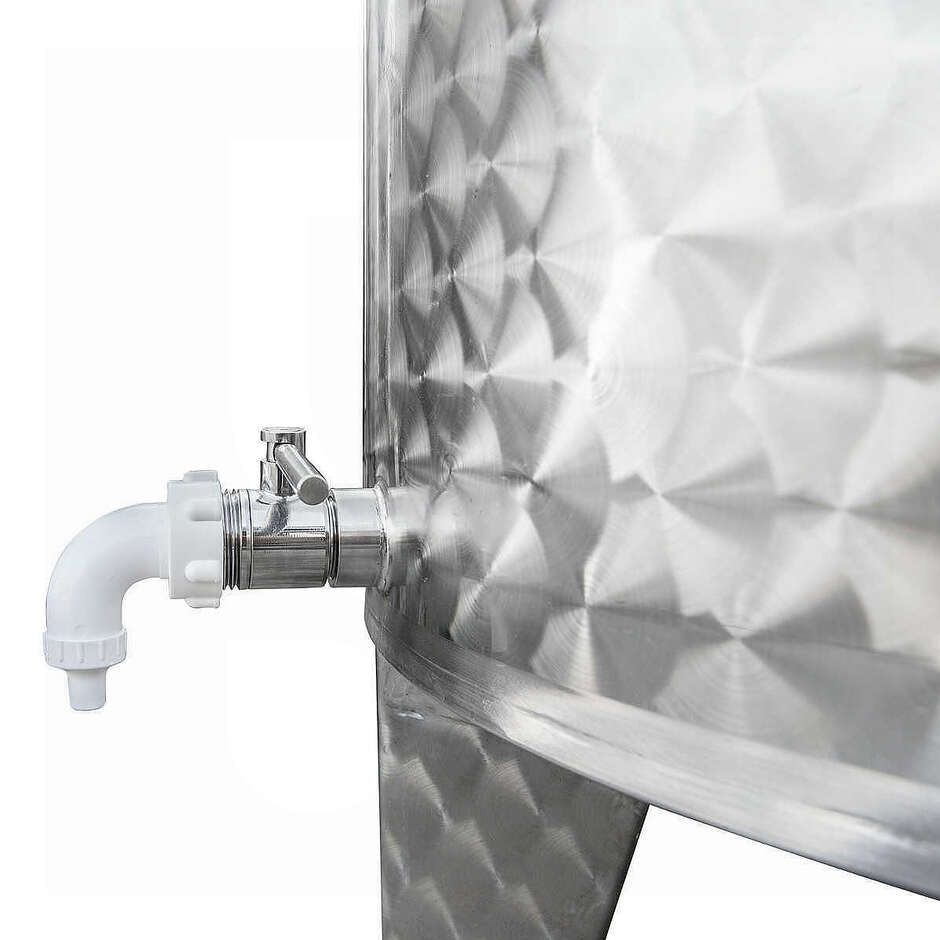

- Partial drain with stainless steel valve and plastic elbow 1" x ENO 30
- 3 stainless steel feet

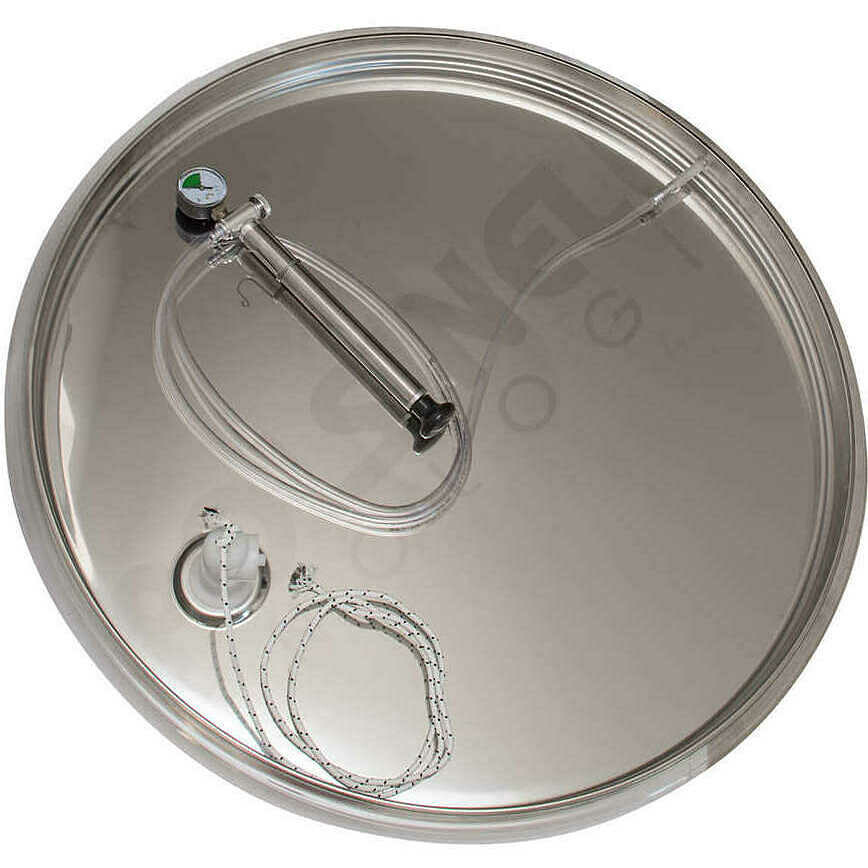

- Stainless steel air float complete with transparent food grade plastic air chamber
- Double-acting plastic vent valve

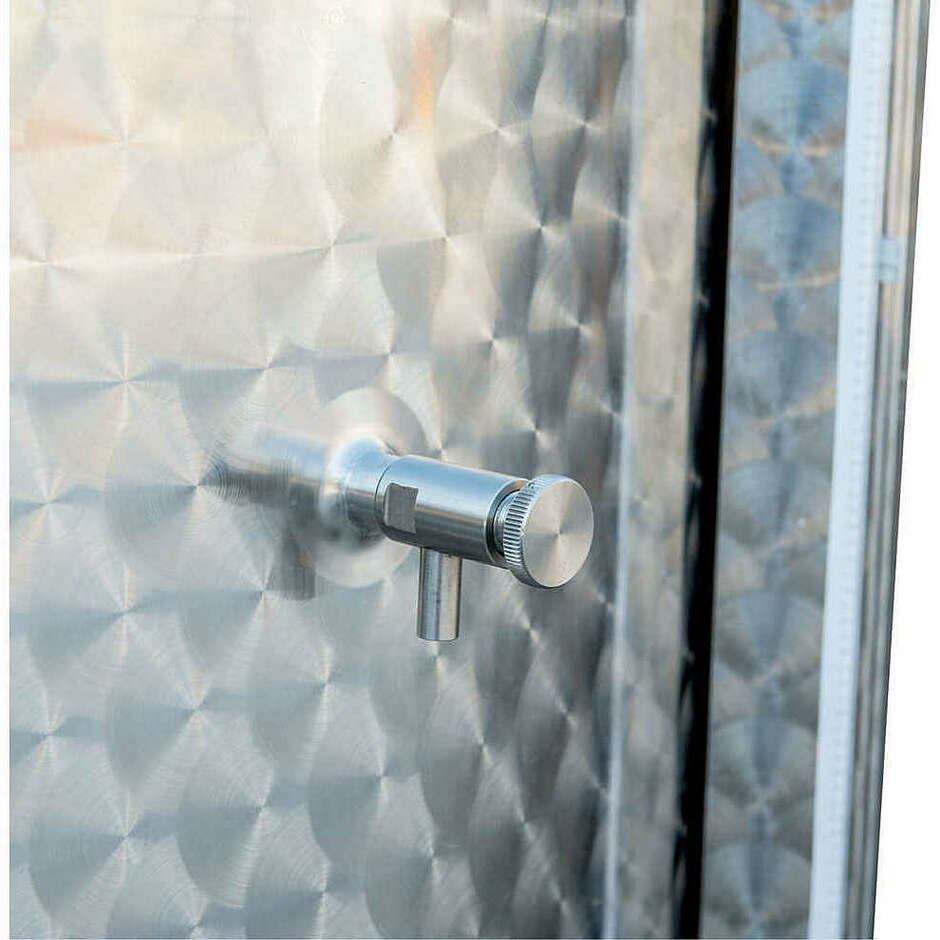

- Stainless steel wine taster
- Wine taster 3/8'' stainless steel

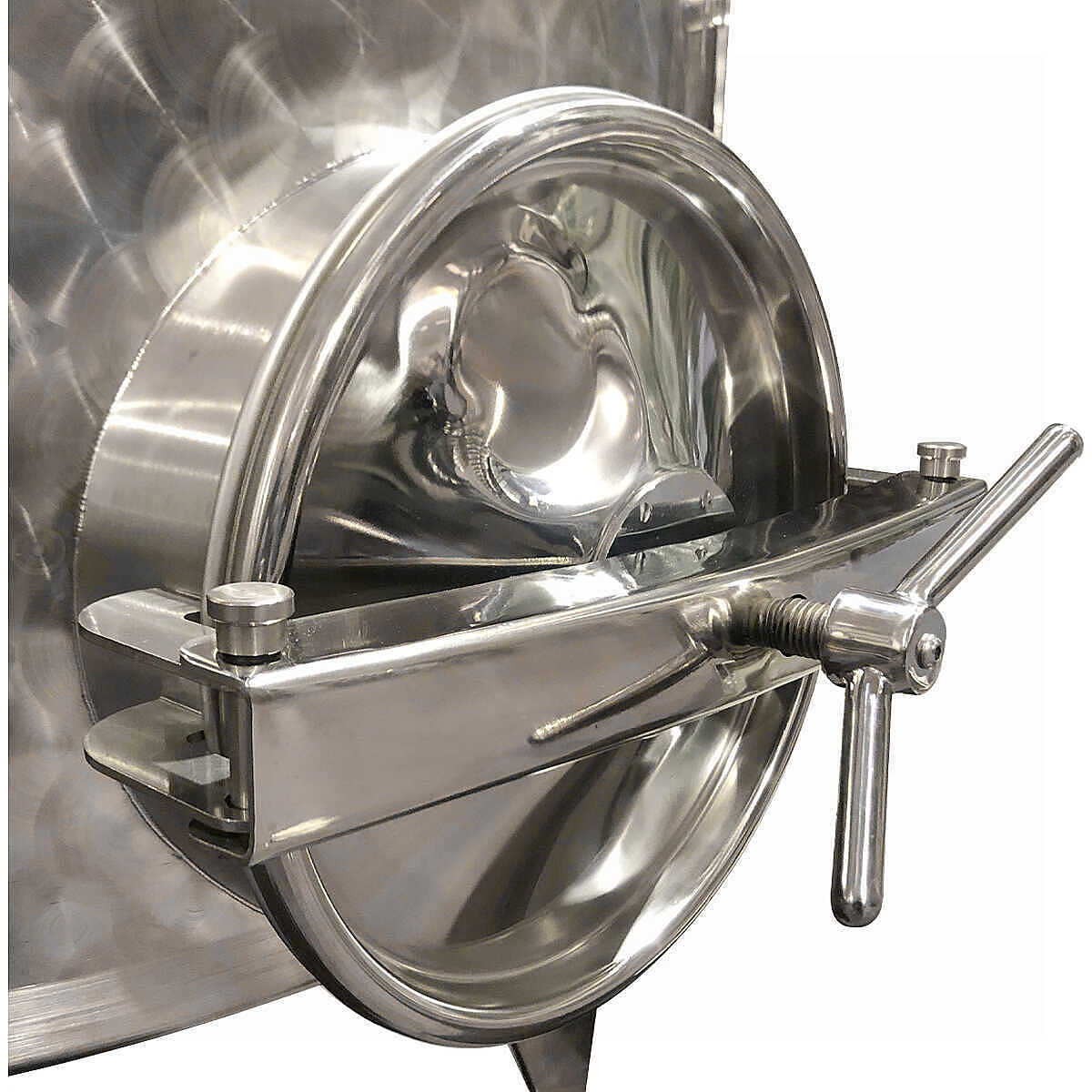

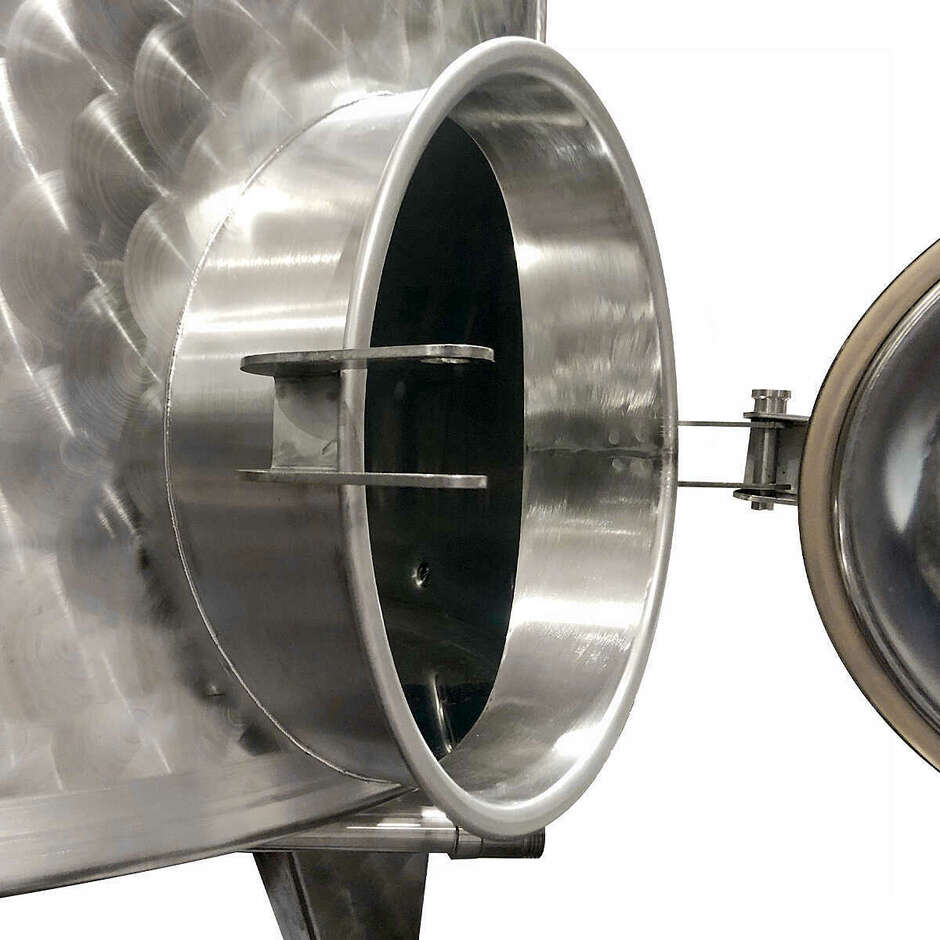

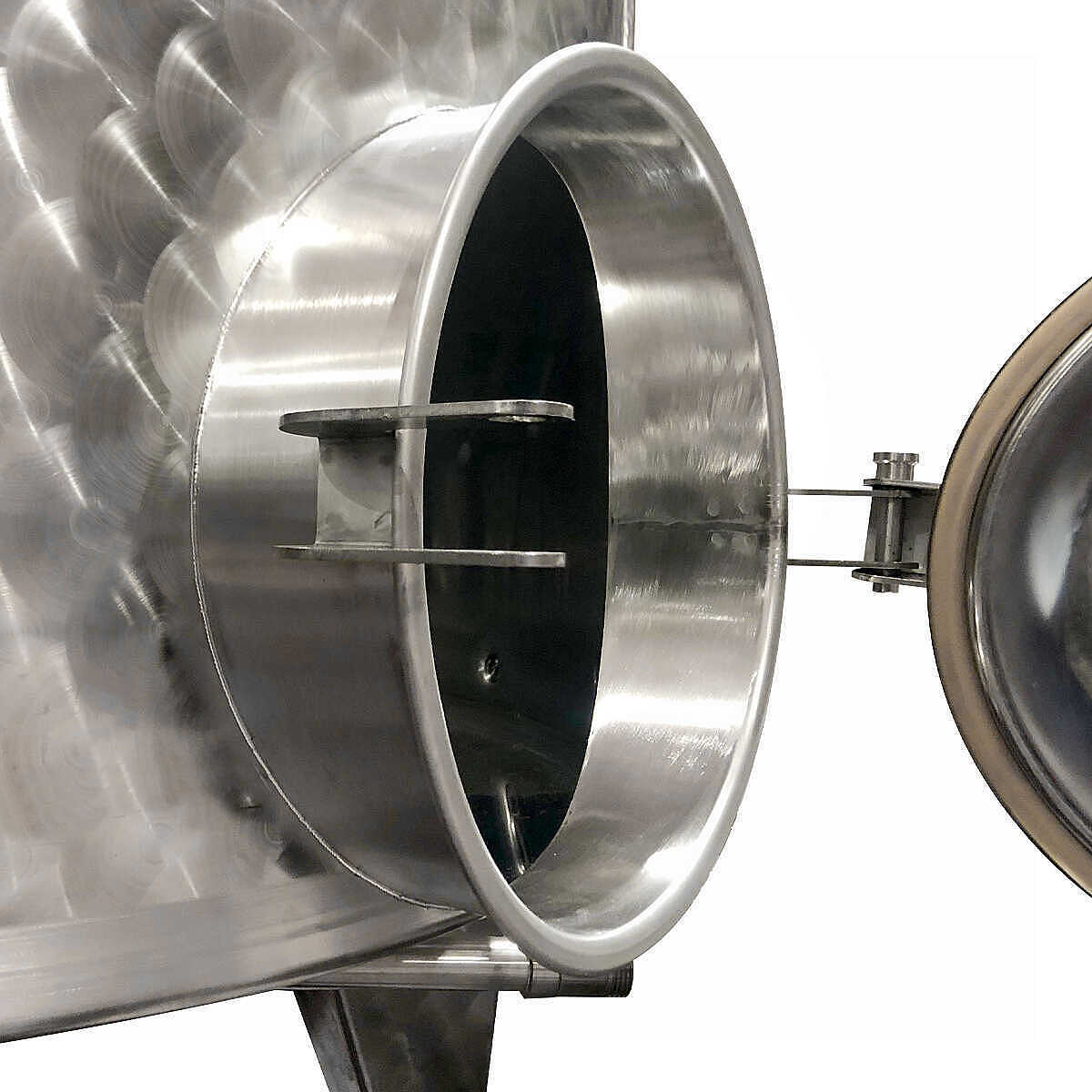

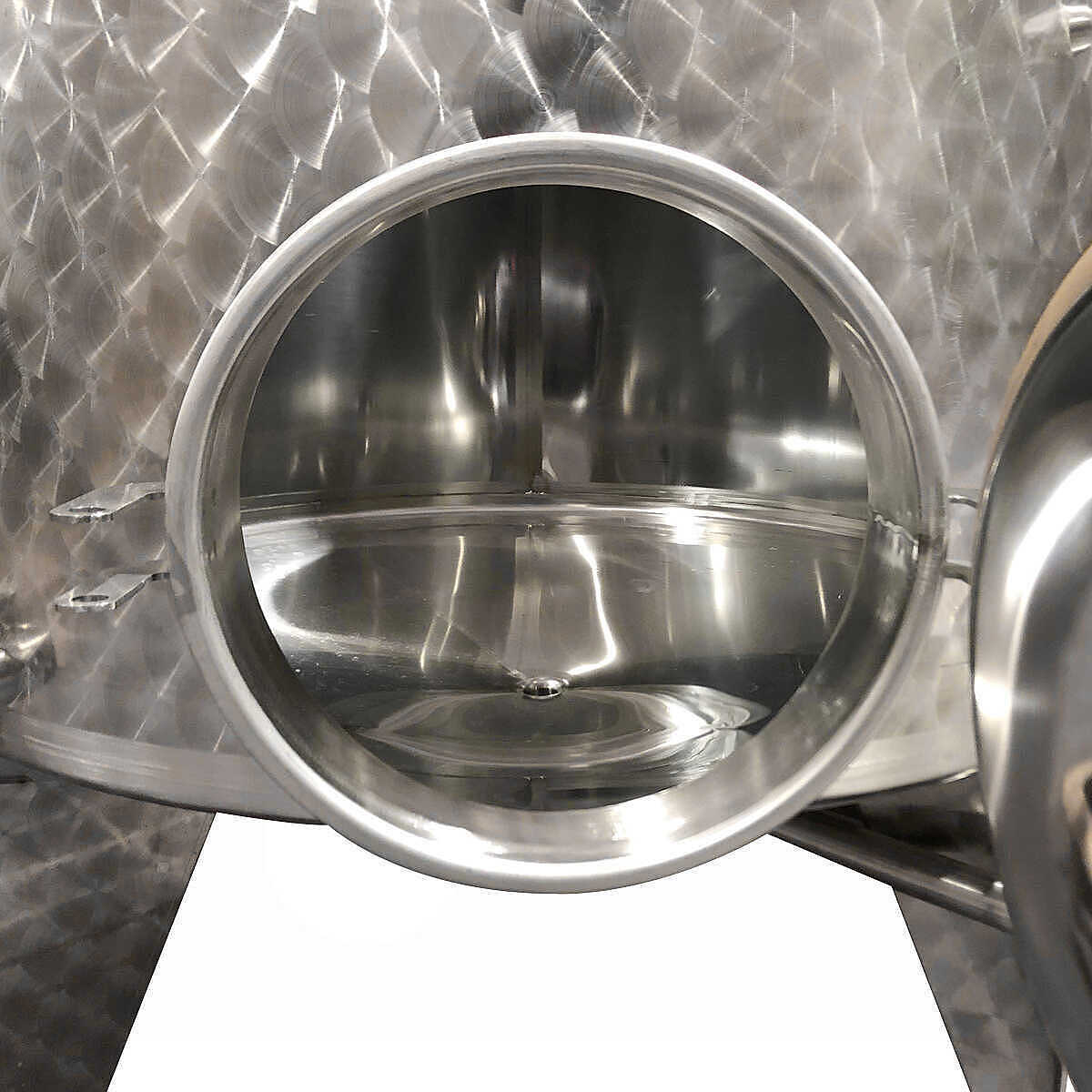

- 300 mm round manhole, flush with the bottom for easy emptying of the marc

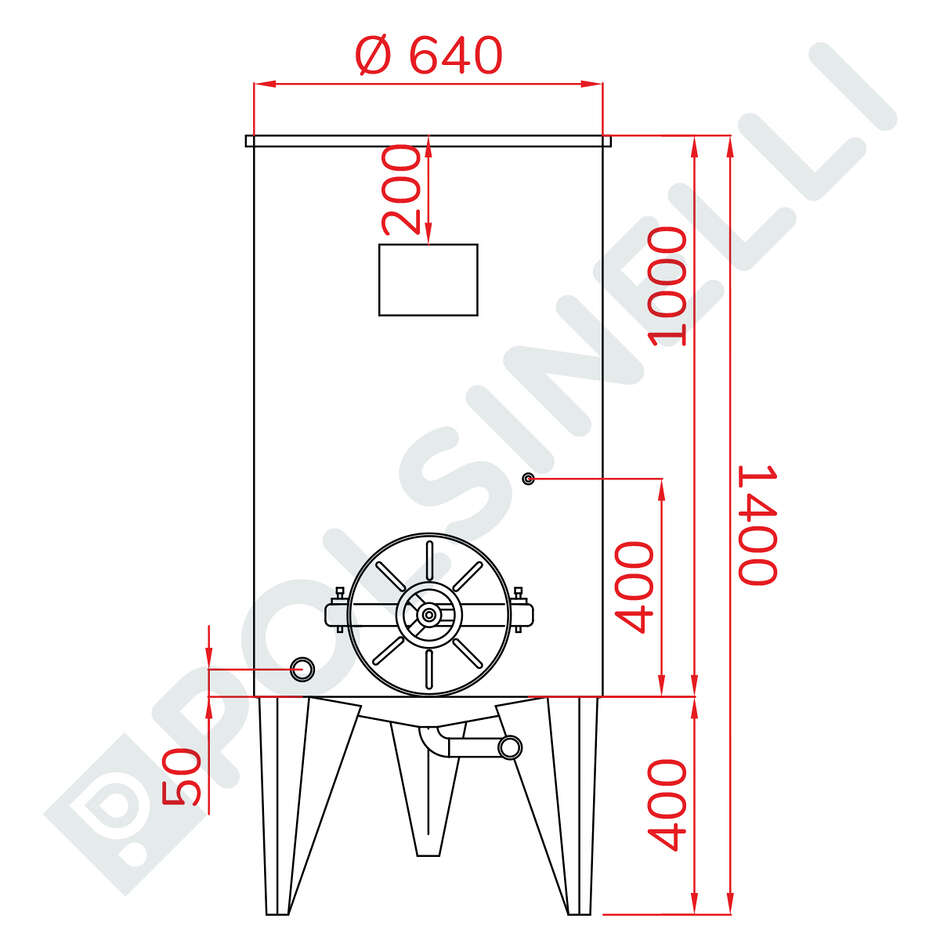

Dimensions:
- Diameter: 640 mm
- Wheel height: 1000 mm
- Foot height: 400 mm
- Total height: 1400 mm
- Ø manhole: 300 mm
Thickness:
- Walls: 1 mm
- Bottom: 1.2 mm
