1500 L Stainless Steel Cone Bottom Tank with Air Floating lid and ∅300 Manhole
- 1500 L 10° air floating lid
- 1500 L 10° air floating lid with Ø300 manhole
- 2000 L 10° air floating lid with Ø300 manhole
- 2000 L 10° air floating lid with manhole Ø400
- 2500 L 10° air floating lid with Ø400 manhole
- 3000 L 10° air floating lid with Ø400 manhole

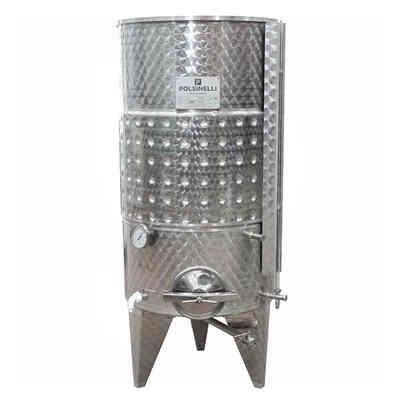

- 3000 L 10° Refrigerated air floating lid with Ø400 manhole
Description

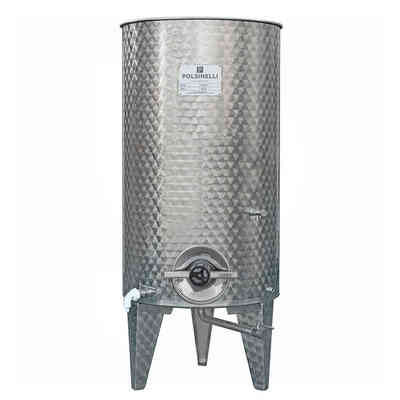

1500 L Stainless Steel 10° Cone Bottom Tank with Air Floating lid and Ø300 mm manhole
The 1500 litre stainless steel tank with air float and the conical bottom is a large container ideal for storing wine, beer and food liquids. The AISI 304 stainless steel frame makes it resistant and at the same time preserves the organoleptic characteristics of the contained product over time. The air float also perfectly insulates the liquid from the action of oxygen.
The 1500 litre stainless steel tank is supported by three metal feet and has an overall height of 2200 mm and a diameter of 1150 mm. The walls and bottom are 1.2 mm and 1.5 mm thick. It is equipped with a total and partial drain with stainless steel valves, a round manhole for emptying the marc, and a wine taster for drawing off smaller quantities of liquid.
The 1500 litre stainless steel tank features a conical bottom with a 10° slope. It is sold together with the float air chamber, the pressure gauge for measuring the pressure and the lifting winch.

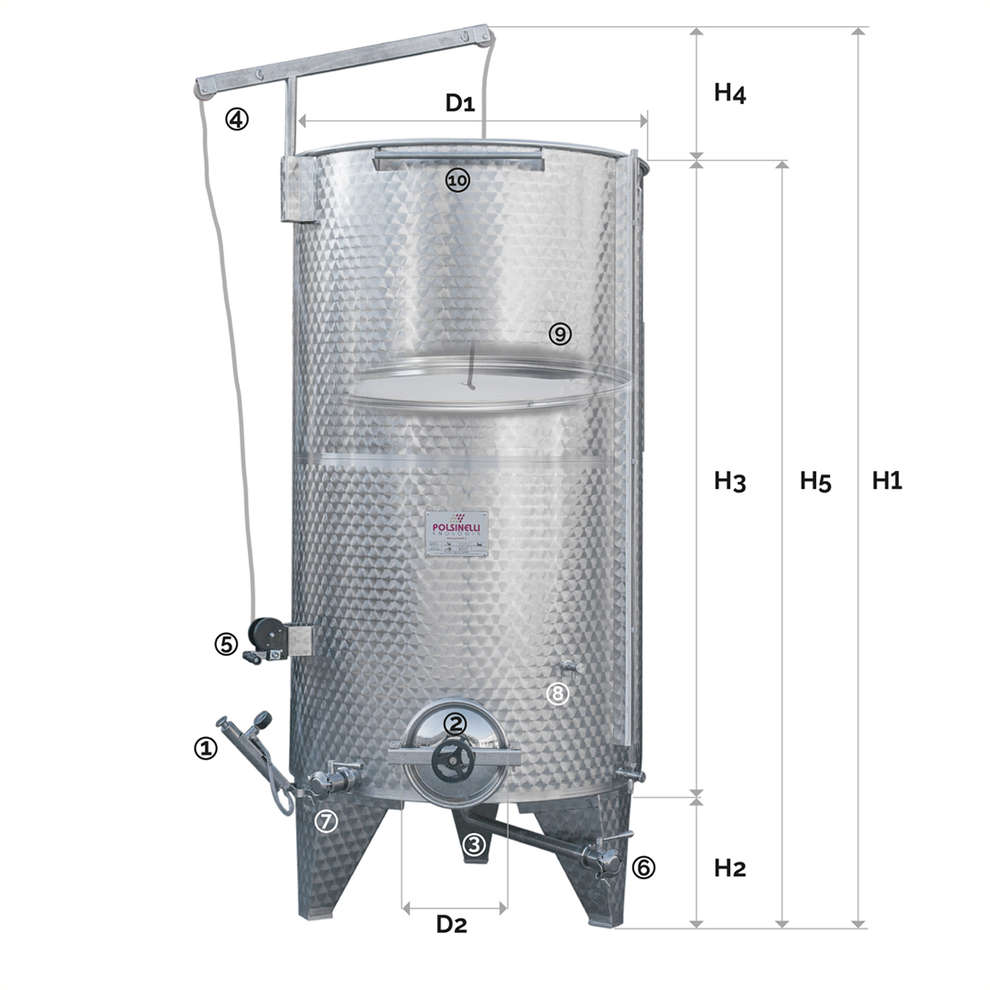

Characteristics:
- Made of AISI 304 stainless steel
- Conical bottom 10° with reinforcements (3)

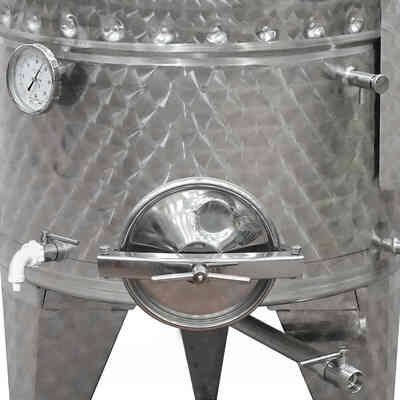

- Round 300 mm door, flush with the bottom for easy pomace emptying (2)

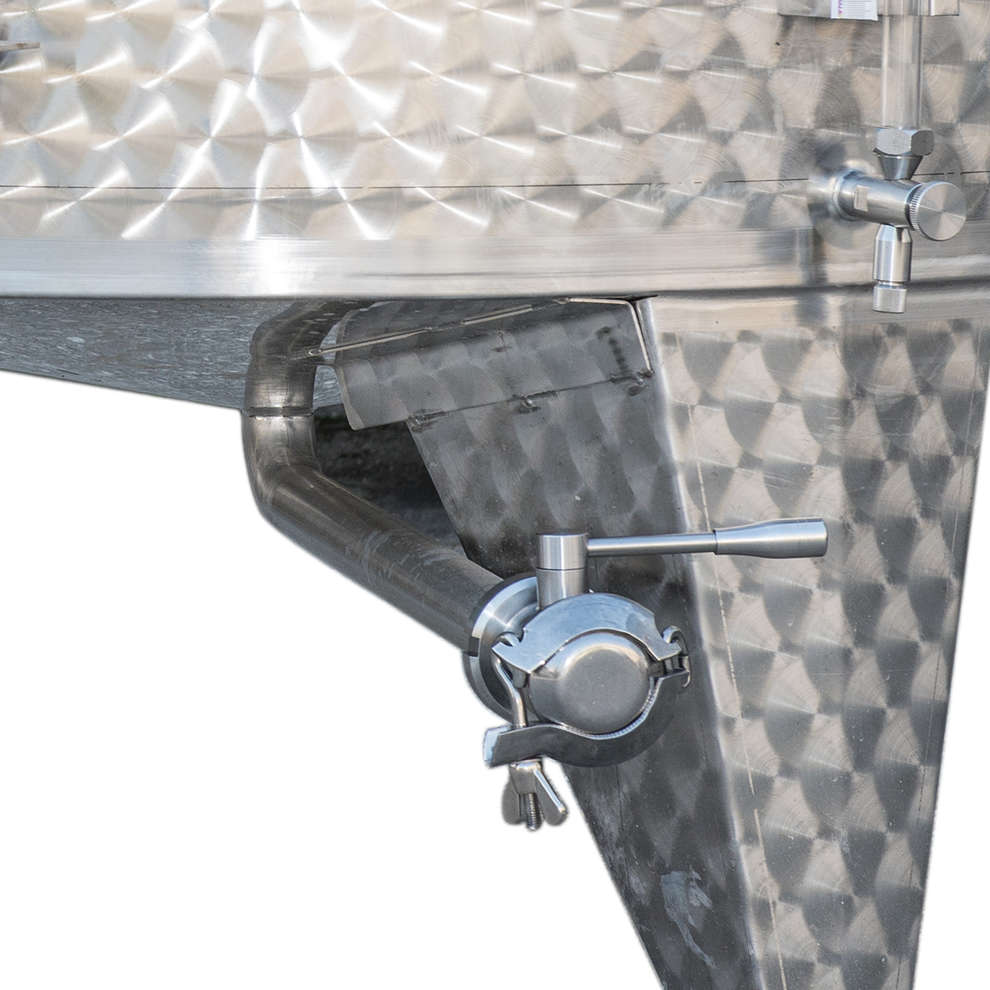

- Total drain DIN 40 with stainless steel valve 1 "e 1/2 GA50 (6)
- Partial drain DIN 40 with stainless steel valve 1 "and 1/2 GA50 (7)
- 3 stainless steel feet
- Adjustable stainless steel feet with stainless steel plate

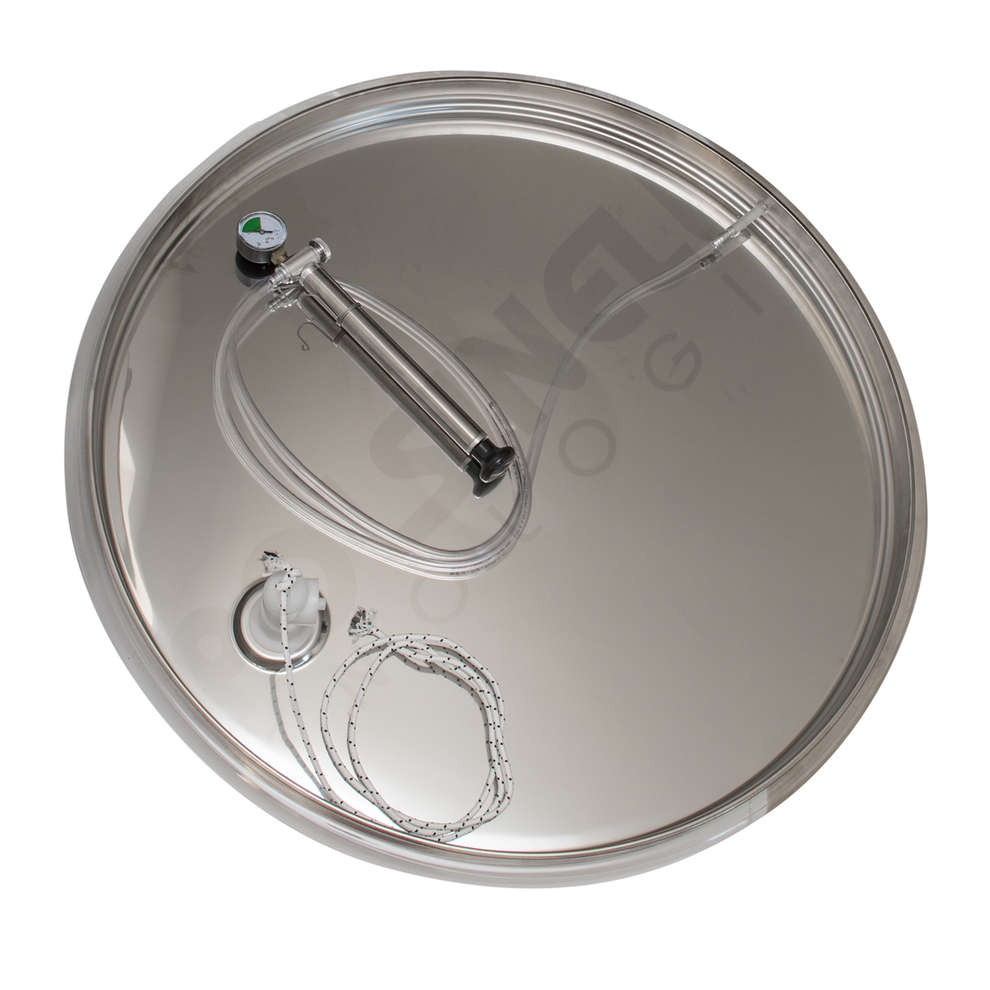

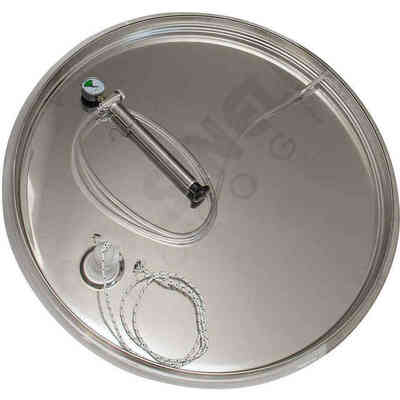

- Stainless steel air float complete with a transparent food-grade plastic air chamber (9)
- Double-acting plastic vent valve,
- Stainless steel pump with pressure gauge, food-grade plastic tube, rope. (1)
- With swivel arm (4)

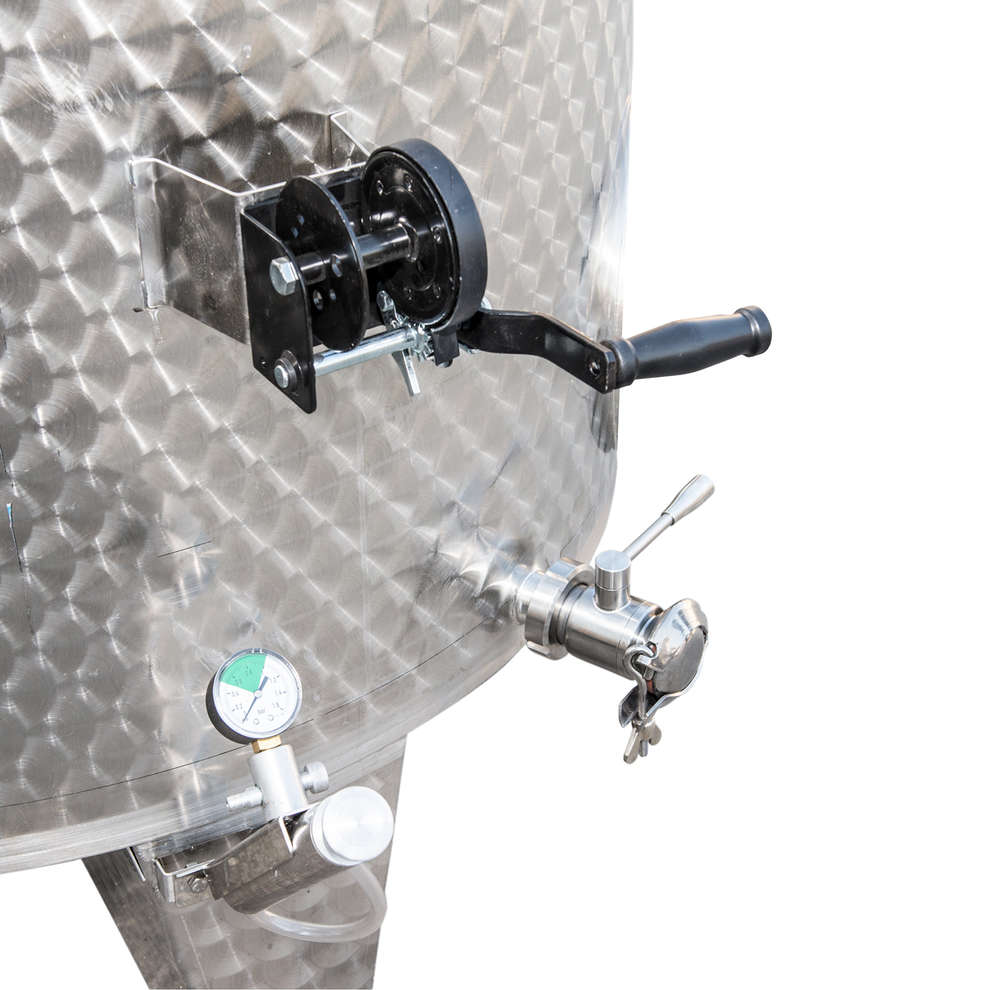

- Galvanised steel floating lifting winch (5)

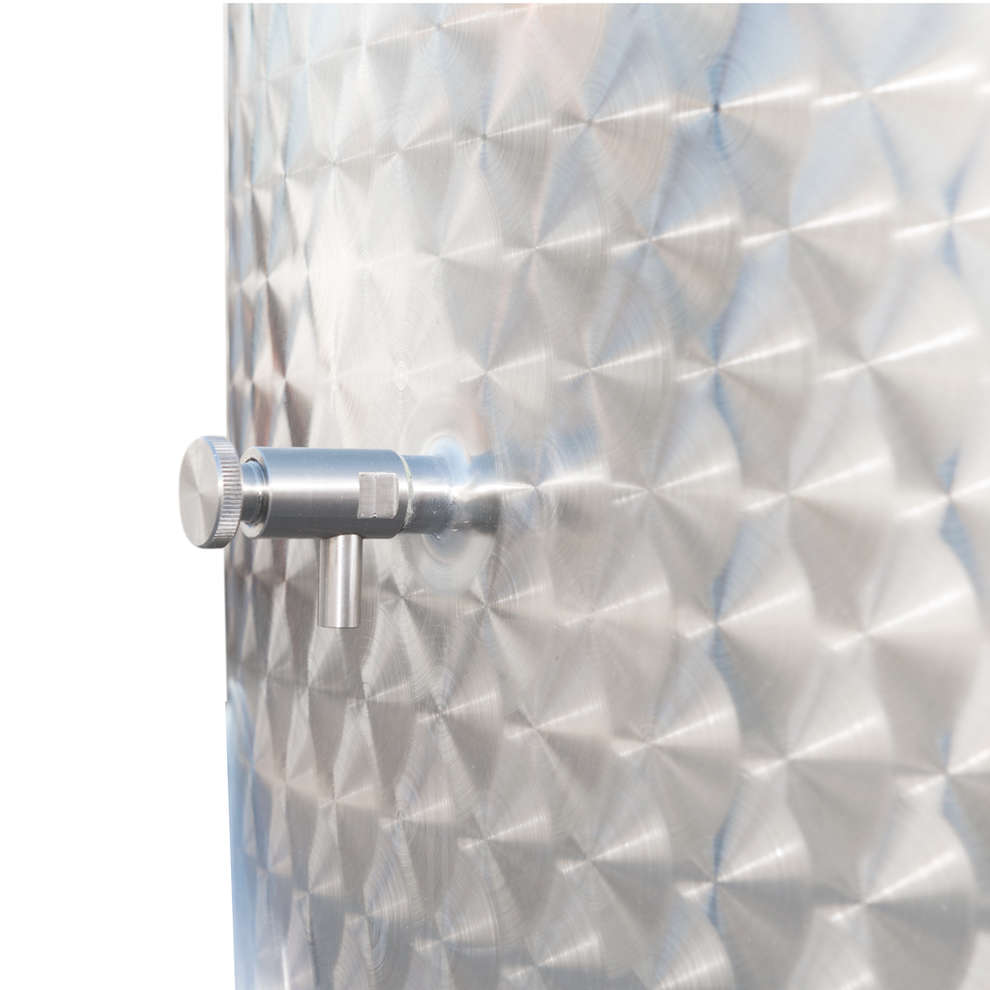

- Stainless steel wine taster (8)
- Scale holder (10)
- Level indicator with stainless steel protection
- Internal finishes: mirror polished for easy cleaning and sanitising
- External finishes: flamed, with satin-finish welds.

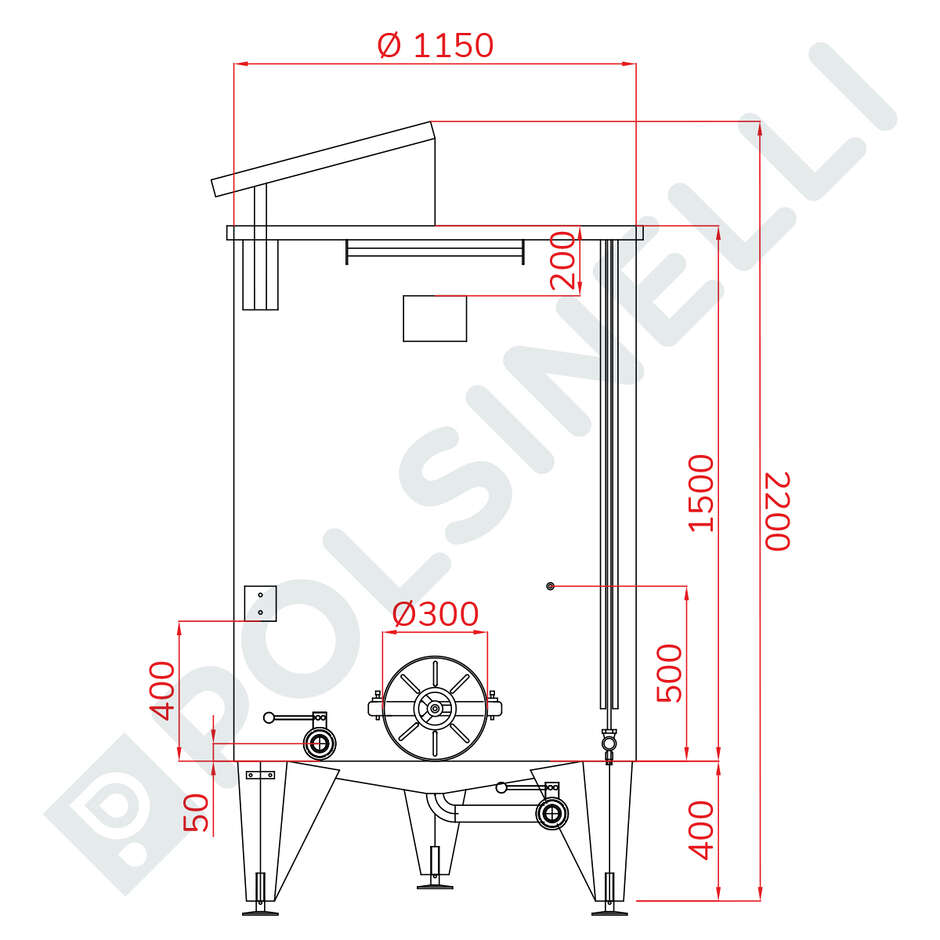

Dimensions:
- Diameter: 1150 mm (D1)
- Door diameter: 300 mm (D2)
- Wing height: 1500 mm (H3)
- Foot height: 400 mm (H2)
- Floating arm height: 400 mm (H4)
- Total height with feet and sifter: 1900 mm (H5)
- Total height with feet, sling and boom: 2200 mm (H1)
Thickness:
- Walls: 1,2 mm
- Bottom:1,5 mm
