Stainless steel tank with conical bottom 1500 L and air floating lid
- 1500 L 10° air floating lid
- 1500 L 10° air floating lid with Ø300 manhole
- 2000 L 10° air floating lid with Ø300 manhole
- 2000 L 10° air floating lid with manhole Ø400
- 2500 L 10° air floating lid with Ø400 manhole
- 3000 L 10° air floating lid with Ø400 manhole
- 3000 L 10° Refrigerated air floating lid with Ø400 manhole
- 5000 L 10° air floating lid with Ø400 manhole
Descripción
Stainless steel tank with conical bottom 1500 L and air floating lid
Made of AISI 304 18/10 stainless steel, the 1500 litre stainless steel tank with the conical bottom is the ideal product for wine fermentation and storage of liquid foodstuffs, a perfect solution for the most demanding companies that need professional, high-quality support.
The structure of the 1500 litre wine tank is supported by 3 stainless steel feet that guarantee maximum stability. The reinforced bottom has a conical shape with a 10° slope. Total and partial drains allow the liquid to be drawn off easily. Also present is the stainless steel wine taster, a practical tap for extracting minimal quantities of must.
The insulation of the wine inside the 1500 litre tank is guaranteed by the air float, equipped with an air chamber in transparent food-grade plastic, specially designed to best preserve the organoleptic characteristics of the product. The lid with float is easy to lift thanks to the winch system, made of galvanised steel for maximum durability. The 1500 litre stainless steel wine tank is complete with a level indicator, scale support and stainless steel pump with pressure gauge. The outer surface is flocked, while the inside is mirror polished for easy cleaning and sanitisation.
Characteristics:
- Made of AISI 304 stainless steel
- Conical bottom 10° with reinforcements (3)

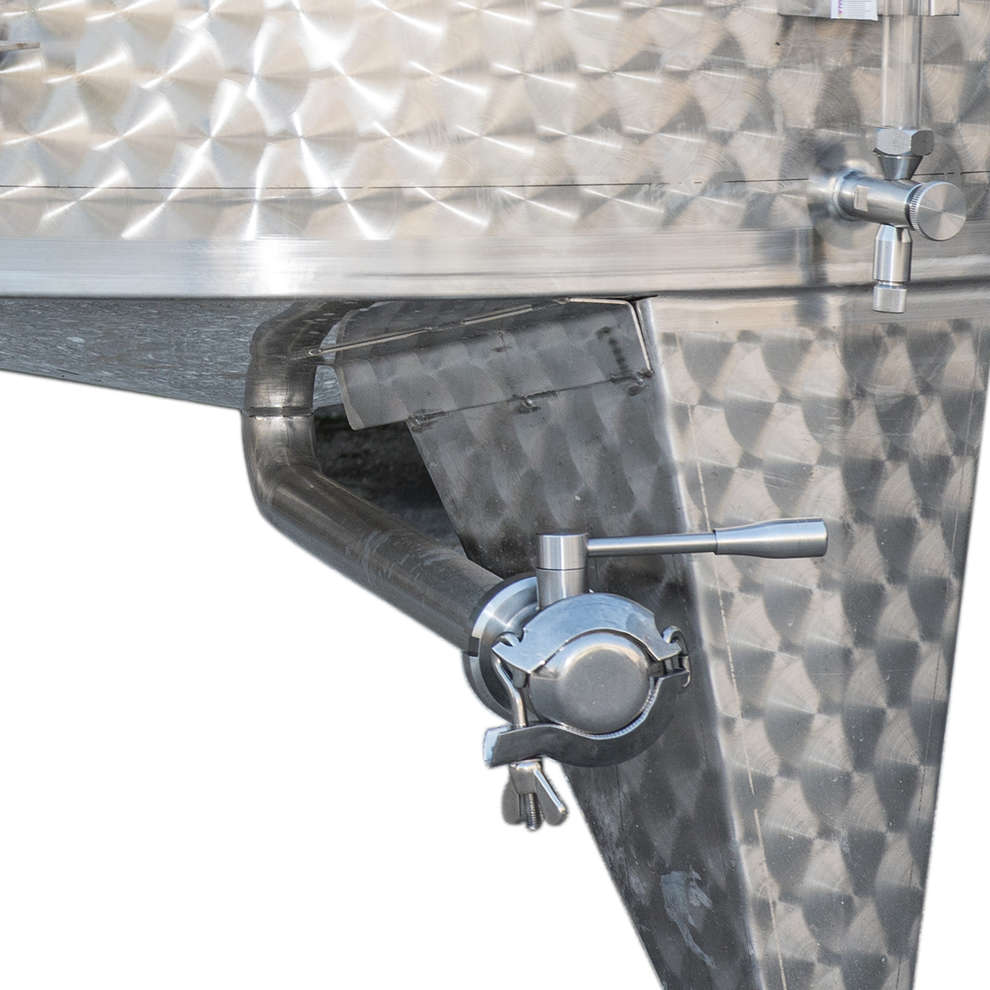

- Total drain DIN 40 with stainless steel valve 1 "e1/2 GA50 (6)
- Partial drain DIN 40 with stainless steel valve 1 "e1/2 GA50 (7)
- 3 stainless steel feet
- Adjustable stainless steel feet with stainless steel plate
- Stainless steel air float complete with a transparent food-grade plastic air chamber (9)
- Double-acting plastic vent valve,
- Stainless steel pump with pressure gauge, food-grade plastic tube, rope. (1)
- With swivel arm (4)

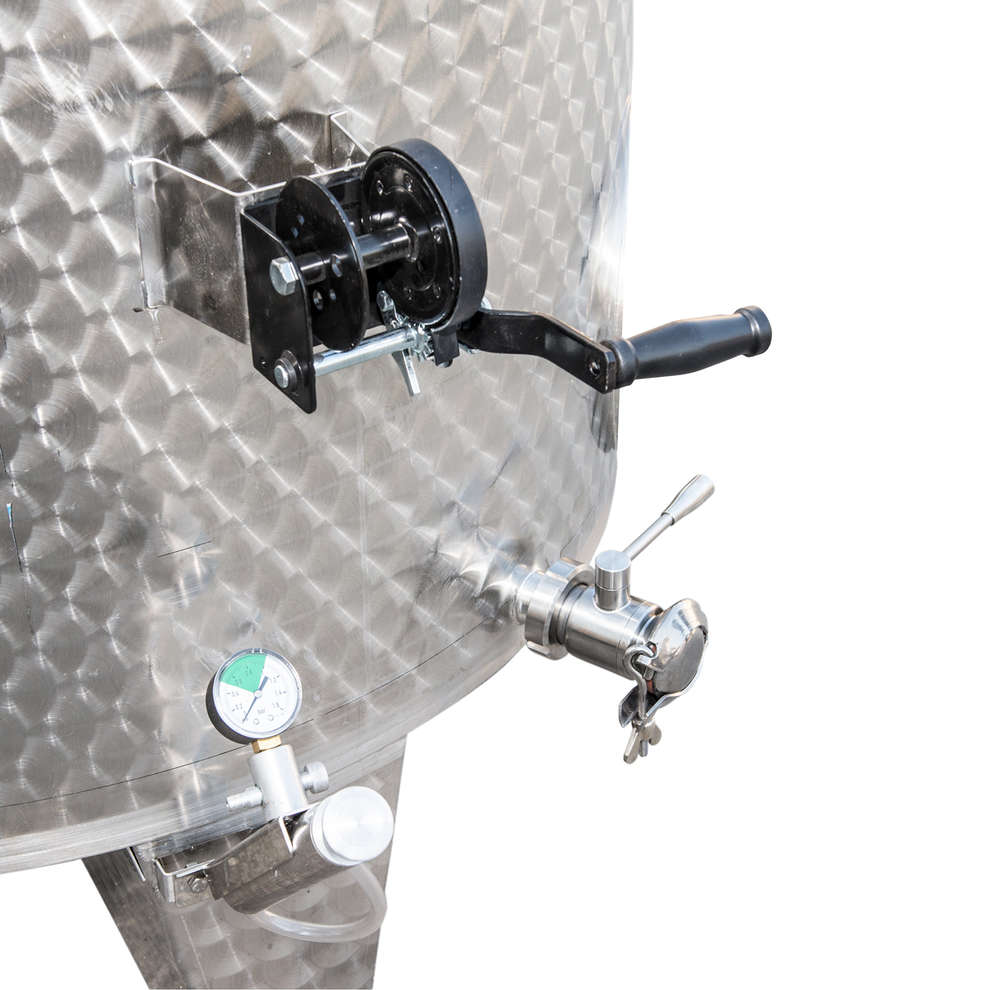

- Galvanised steel floating lifting winch (5)

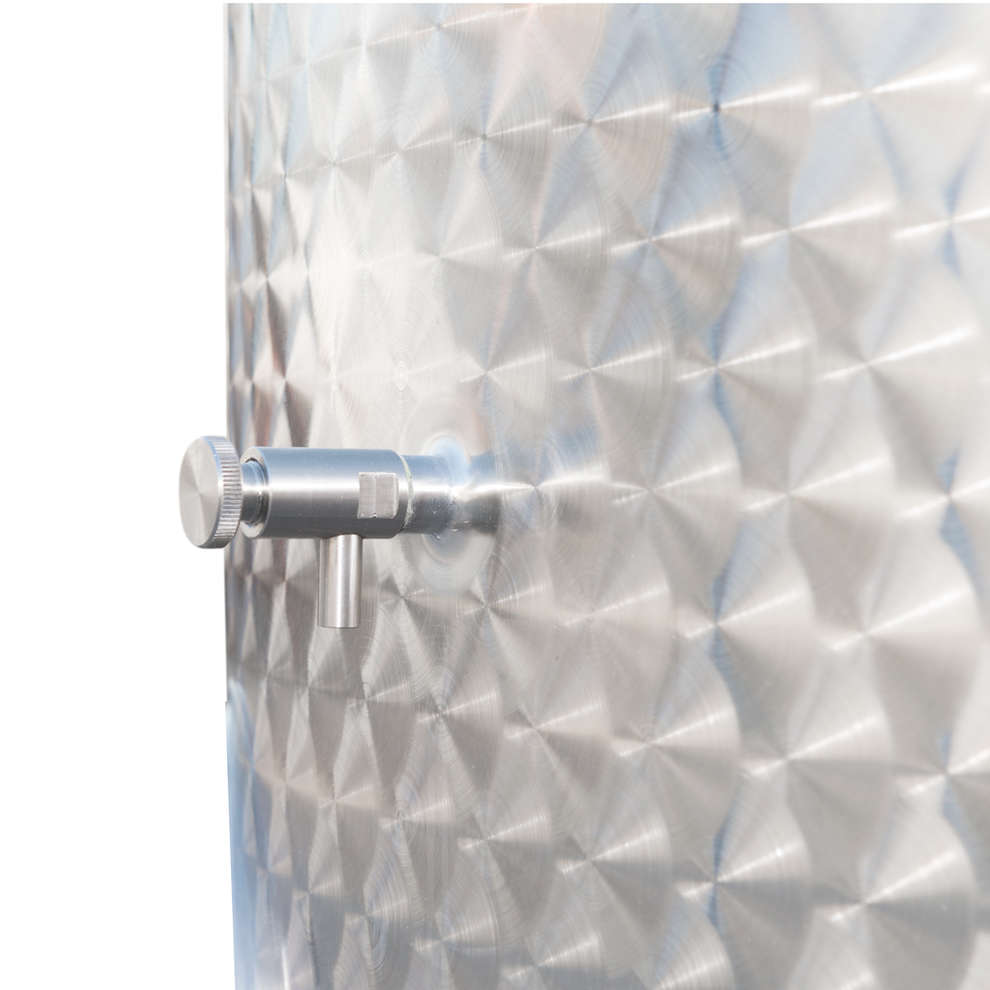

- Stainless steel wine taster (8)
- Scale holder (10)
- Level indicator with stainless steel protection
- Internal finishes: mirror polished for easy cleaning and sanitising
- External finishes: flamed, with satin-finish welds.

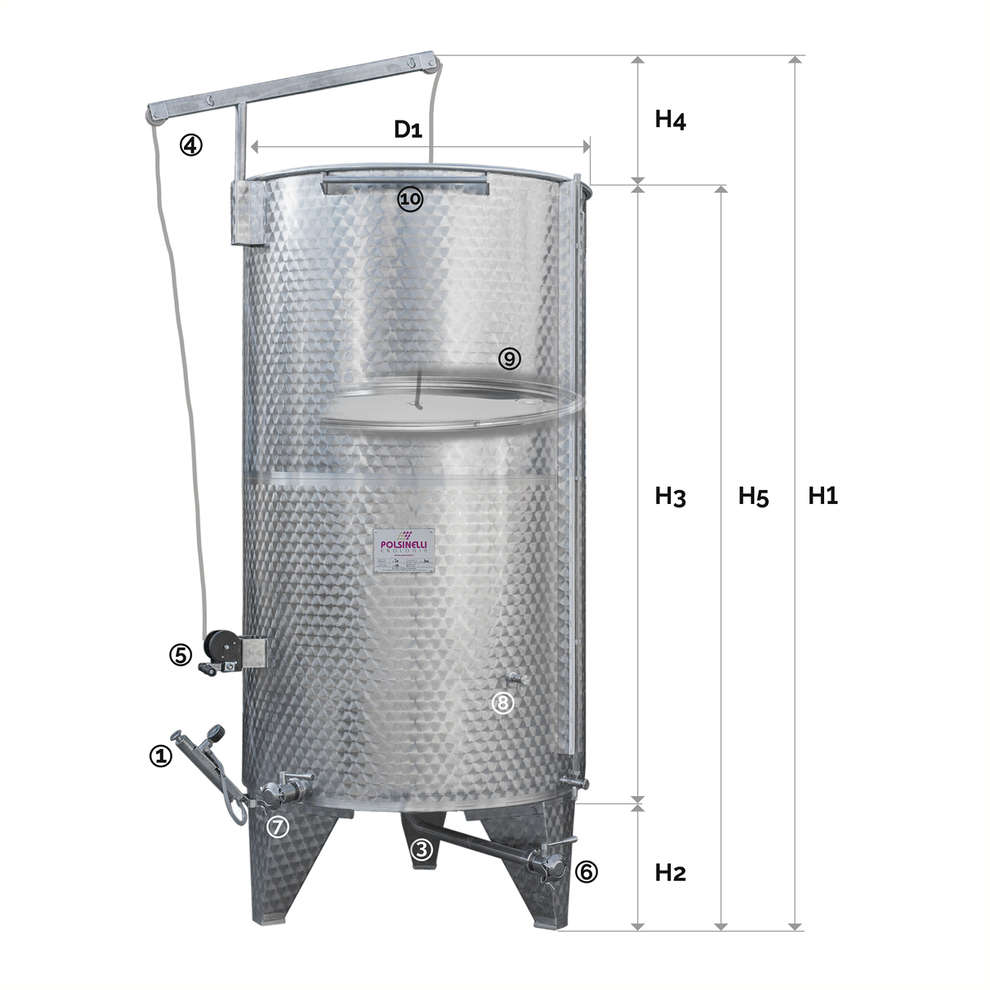

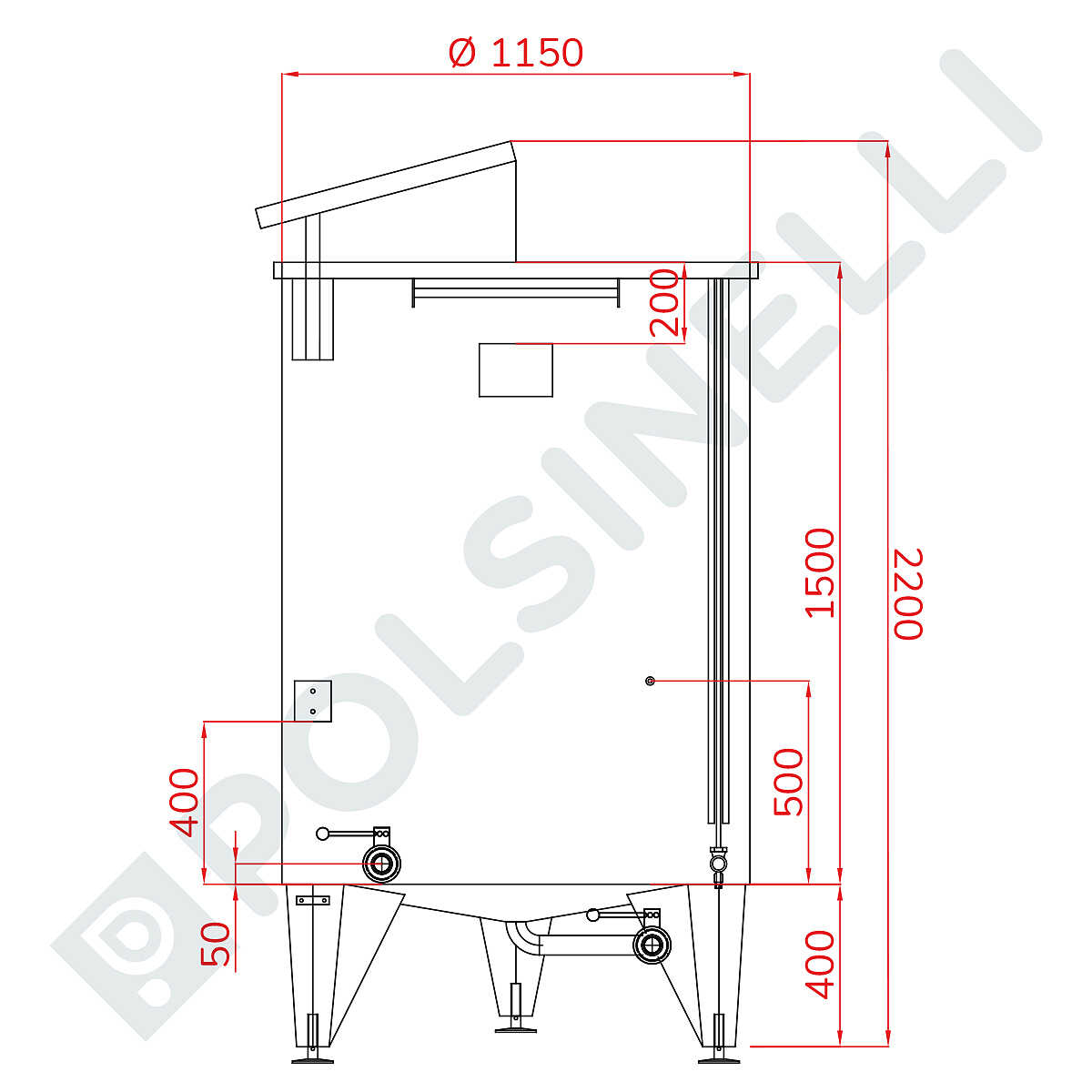

Dimensions:
- Diameter: 1150 mm. (D1)
- Screw height: 1500 mm. (H3)
- Foot height: 400 mm. (H2)
- Floating arm height: 400 mm (H4)
- Total height with feet and sifter: 1900 mm. (H5)
- Total height with feet, ferrule and arm: 2200 mm. (H1)
Thickness:
- Walls: 1,2 mm
- Bottom: 1,5 mm
