Refrigerating stainless steel plate 370 x 1000

Category: Cold plates

Product code: IPP0134

Product available

We are sorry, for this order you will receive a quotation for shipping costs

Qty € 170.00

Add to cart

Description

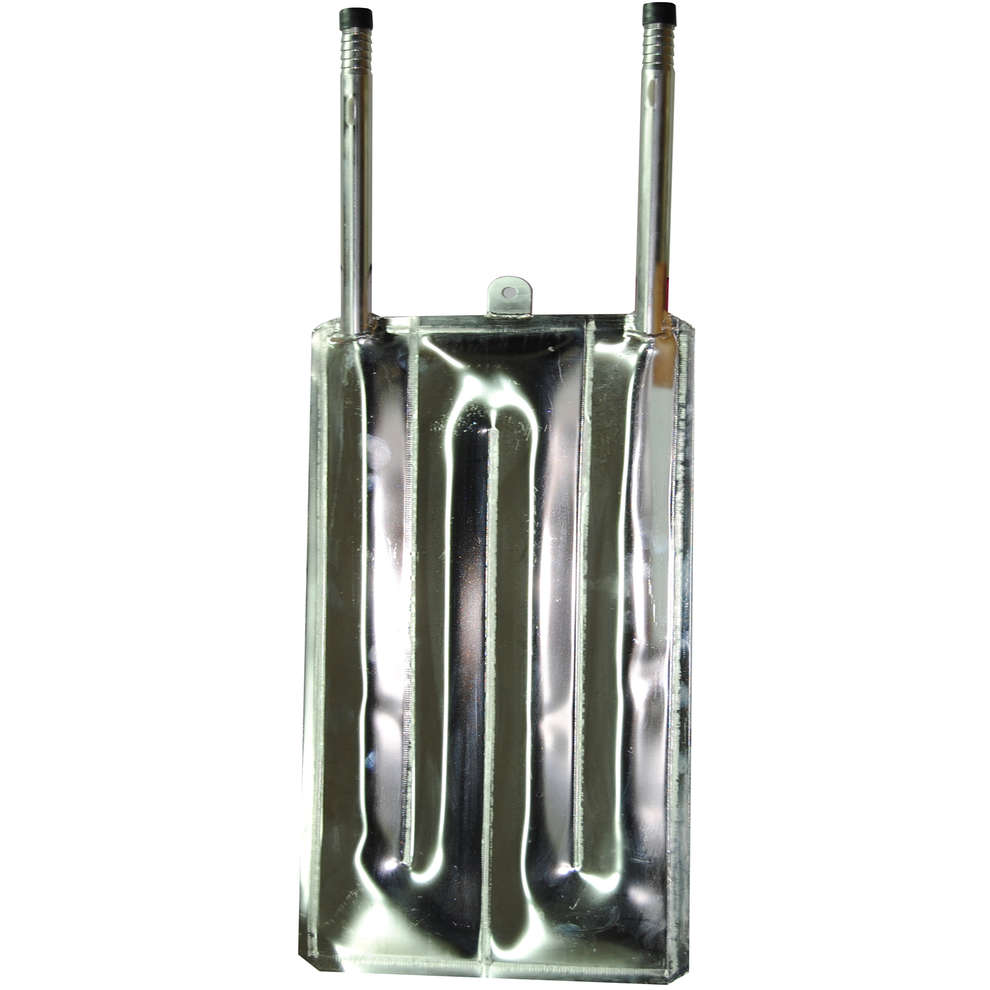

Refrigerating stainless steel plate 370x1000

Conditioning immersion plate to check the fermentation and to be connected to chillers.

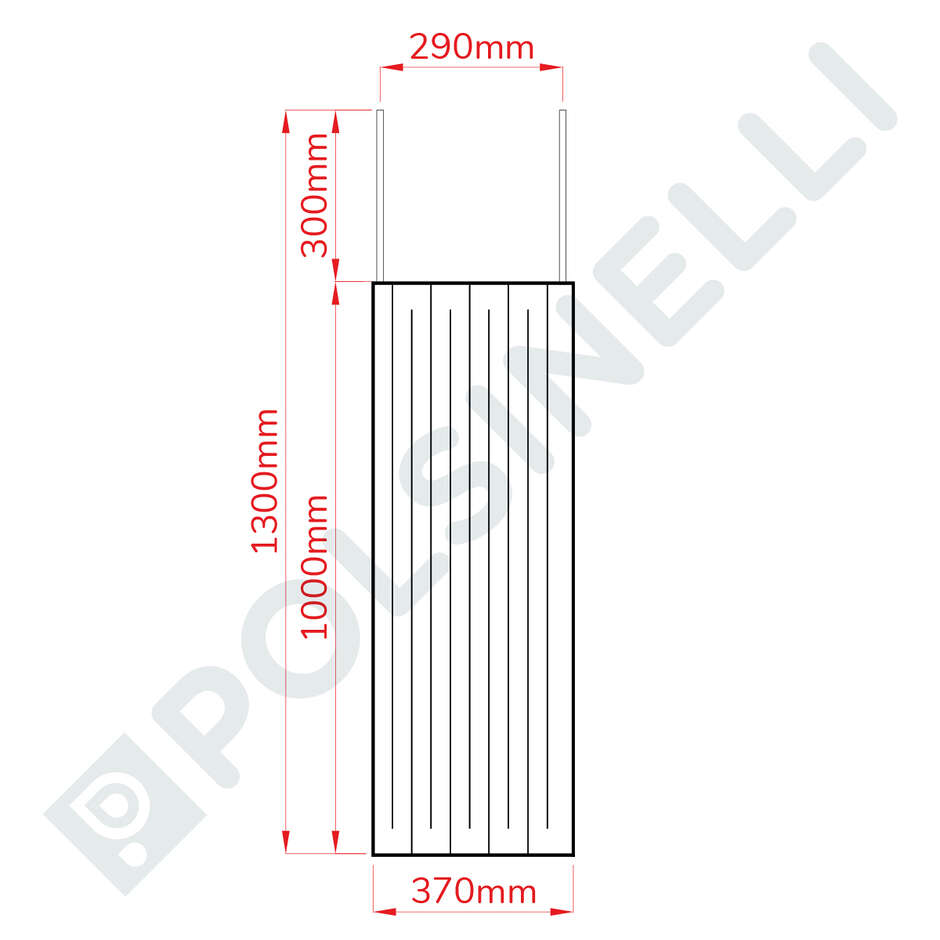

Dimensions: 370x1000 (h)mm

The stainless steel plates are printed with double channel and should be fixed vertically into the tanks; the plates are equipped with threads 1/2” for inlet and outlet of refrigerating liquid. The plates efficiency depends also on the real efficiency of liquid chiller and on the power supply system.

Sheet thickness: 1,0 +1,0mm
Material: stainless steel AISI 304 (on demand 316)
Finish: electropolished
Connection: diameter ½”
Perimeter welding TIG
For cooling liquid food

Plates of any size and dimension are available on request; in the table below are listed the standard sizes:

TYPE	H (mm)	L (mm)	C (mm)	SURFACE (m²)	WEIGHT (Kg)
PP6027	270	600	210	0,32	2,9
PP8027	270	800	210	0,44	3,8
PP10027	270	1000	210	0,54	4,8
PP12027	270	1200	210	0,65	5,8
PP14027	270	1400	210	0,75	6,7
PP16027	270	1600	210	0,86	7,8
PP18027	270	1800	210	0,97	8,7
PP20027	270	2000	210	1	9,6
PP25027	270	2500	210	1,35	10,8
PP30027	270	3000	210	1,62	13
PP6037	370	600	290	0,44	3,8
PP8037	370	800	290	0,59	5,2
PP10037	370	1000	290	0,74	6,5
PP12037	370	1200	290	0,89	7,7
PP14037	370	1400	290	1,04	9,2
PP16037	370	1600	290	1,18	10,3
PP18037	370	1800	290	1,33	11,4
PP20037	370	2000	290	1,48	13,2
PP25037	370	2500	290	1,85	16,8
PP30037	370	3000	290	2,22	20
PP6047	470	600	380	0,56	5,2
PP8047	470	800	380	0,75	6,6
PP10047	470	1000	380	0,94	9,2
PP12047	470	1200	380	1,13	9,8
PP14047	470	1400	380	1,32	11,6
PP16047	470	1600	380	1,5	12,8
PP18047	470	1800	380	1,69	15,2
PP20047	470	2000	380	1,88	16
PP25047	470	2500	380	2,35	20,4
PP30047	470	3000	380	2,82	25,6
PP6057	570	600	460	0,68	5,8
PP8057	570	800	460	0,91	7,8
PP10057	570	1000	460	1,14	10
PP12057	570	1200	460	1,37	11,6
PP14057	570	1400	460	1,6	13,6
PP16057	570	1600	460	1,82	15,5
PP18057	570	1800	460	2,05	17,4
PP20057	570	2000	460	2,28	19,8
PP25057	570	2500	460	2,85	25,2
PP30057	570	3000	460	3,42	29,8
