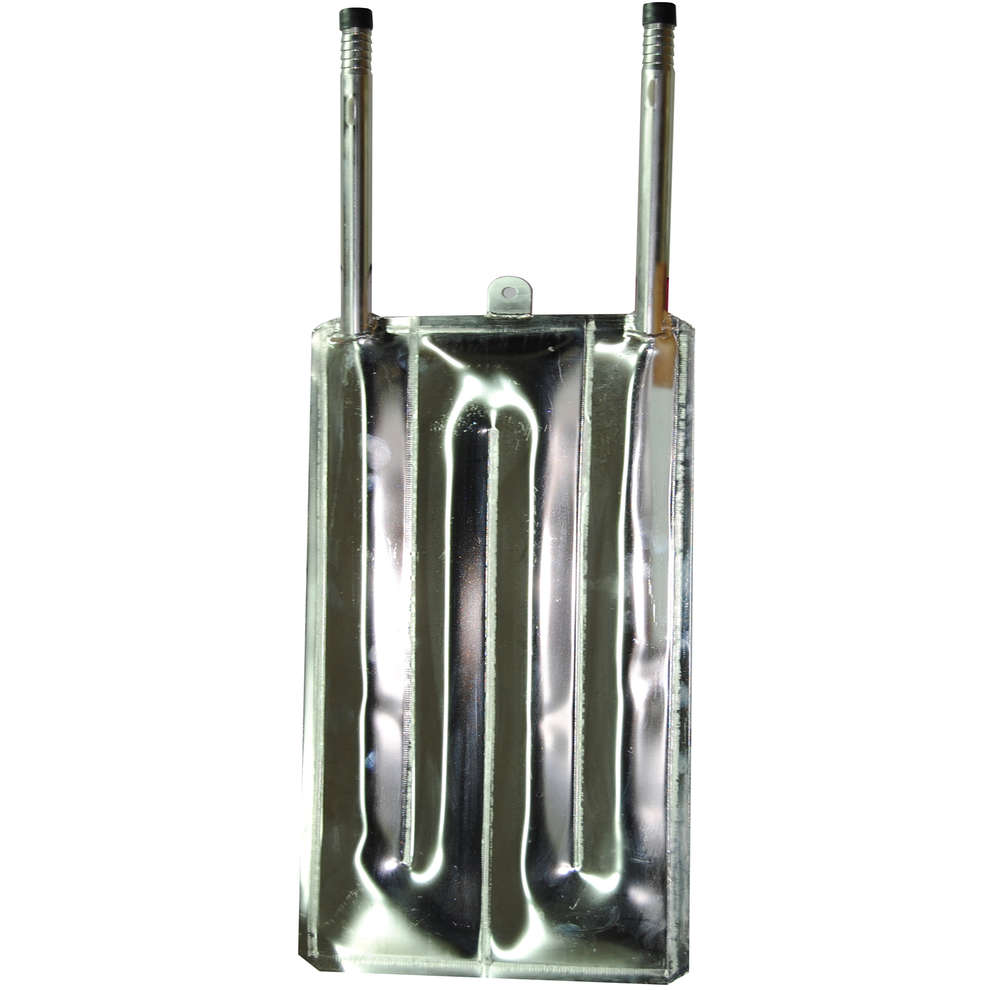

Refrigerating stainless steel plate 370 x 1600
Refrigerating stainless steel plate 370x1600
Conditioning immersion plate to check the fermentation and to be connected to chillers.

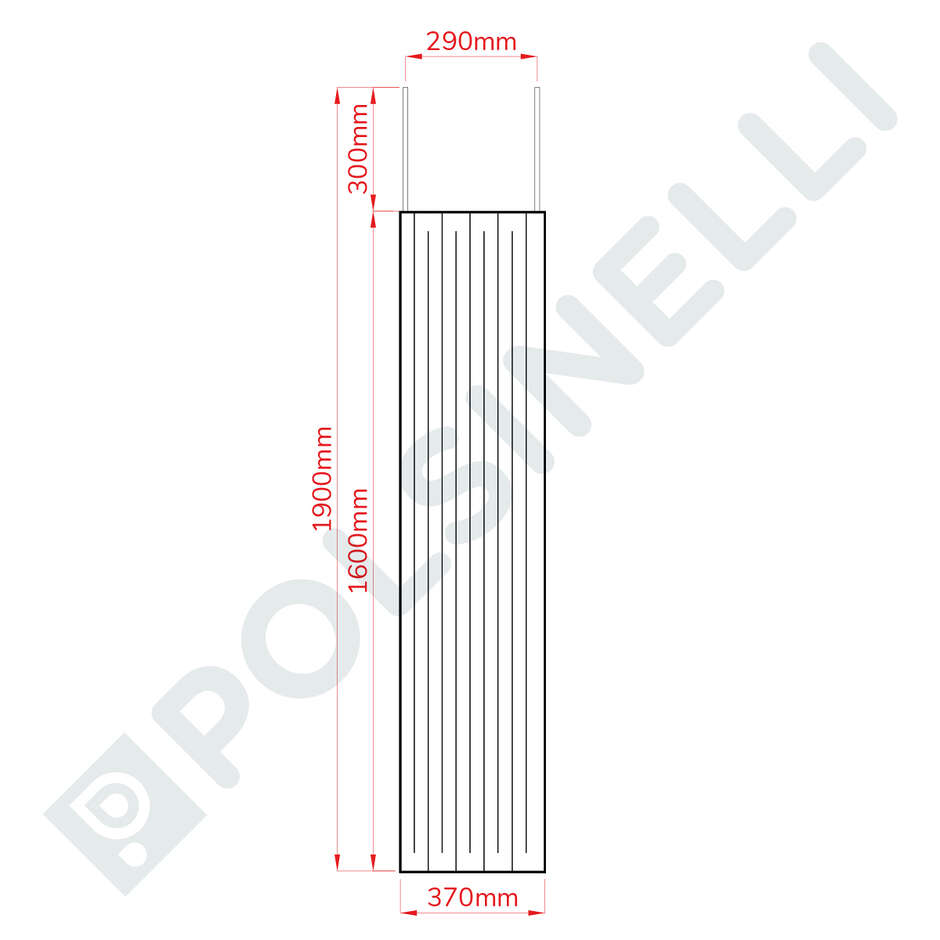

Dimensions: 370x1600 (h)mm
The stainless steel plates are printed with double channel and should be fixed vertically into the tanks; the plates are equipped with threads 1/2” for inlet and outlet of refrigerating liquid. The plates efficiency depends also on the real efficiency of liquid chiller and on the power supply system.
- Sheet thickness: 1,0 +1,0mm
- Material: stainless steel AISI 304 (on demand 316)
- Finish: electropolished
- Connection: diameter ½”
- Perimeter welding TIG
- For cooling liquid food
