Alfa 60 Inox Vertical Press with Removable Cage
Description

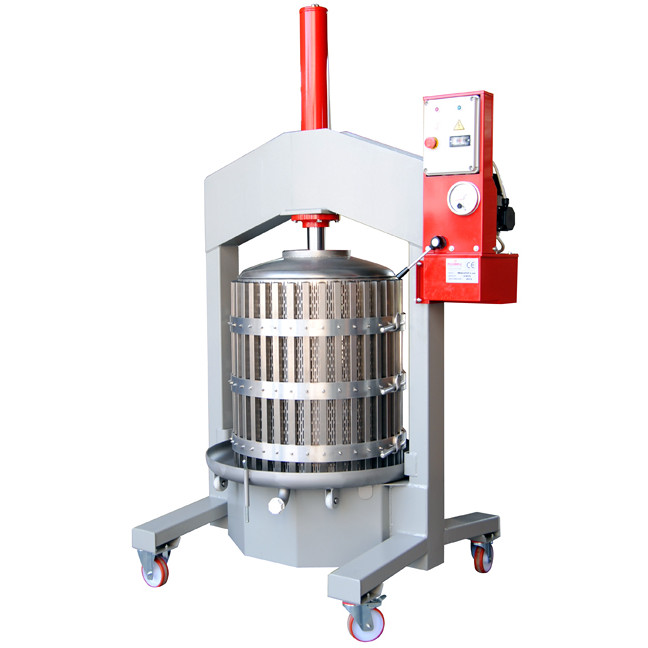

Alfa 60 Vertical Press with Removable stainless steel Cage
The Alfa 60 vertical press for sale online on Polsinelli is designed to facilitate the processing of residual grape marc from the grape harvest, and can also be used to refine fruit for the production of jam.
Machine manufactured according to the most modern technical-constructive criteria and with carefully selected materials, the Alfa 60 Vertical Press consists of a stainless steel structure, a light material but extremely performing in terms of durability and reliability, which is composed of a removable collection basin, which facilitates the loading and extraction operations from the cage, and of a pressing plate made of the same metal. Operation is electric and is supported by a single-phase motor powered at 220V. The pressure, 350 atmospheres, is exerted from top to bottom and is regulated automatically by a pressure gauge. The double-acting chrome plated piston ensures a fast and effective return force and, consequently, maximum machine performance.
Alfa Vertical Presses are available in different sizes and capacities and, on request, can be customised to suit your needs by making it compatible with other voltages (380V). A versatile article of great professional quality, the Alfa 60 by Polsinelli is the ideal choice for equipping your business with an instrument which, although traditional and always used to process different types of food products, has now reached truly unparalleled efficiency thanks to the application of the most modern technologies.
Technical data sheet:
- Removable collecting basin with buttweld 1" 1/4 GAS and pressing plate in stainless steel
- Automatic pressure gauge for pressure regulation
- For a production of: 700 Kg of grapes
- Grape marc capacity: 210 L
- Working pressure: 350 atmospheres
- 220V power supply
- Absorption: 700 W

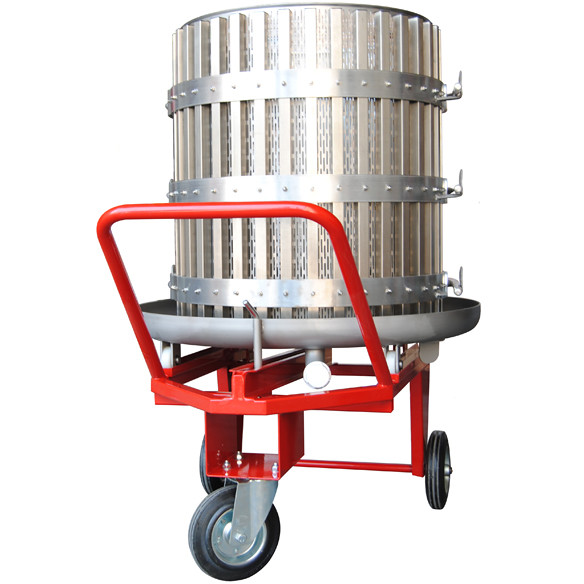

- Removable gathering basin with trolley
- Weight: 400 Kg

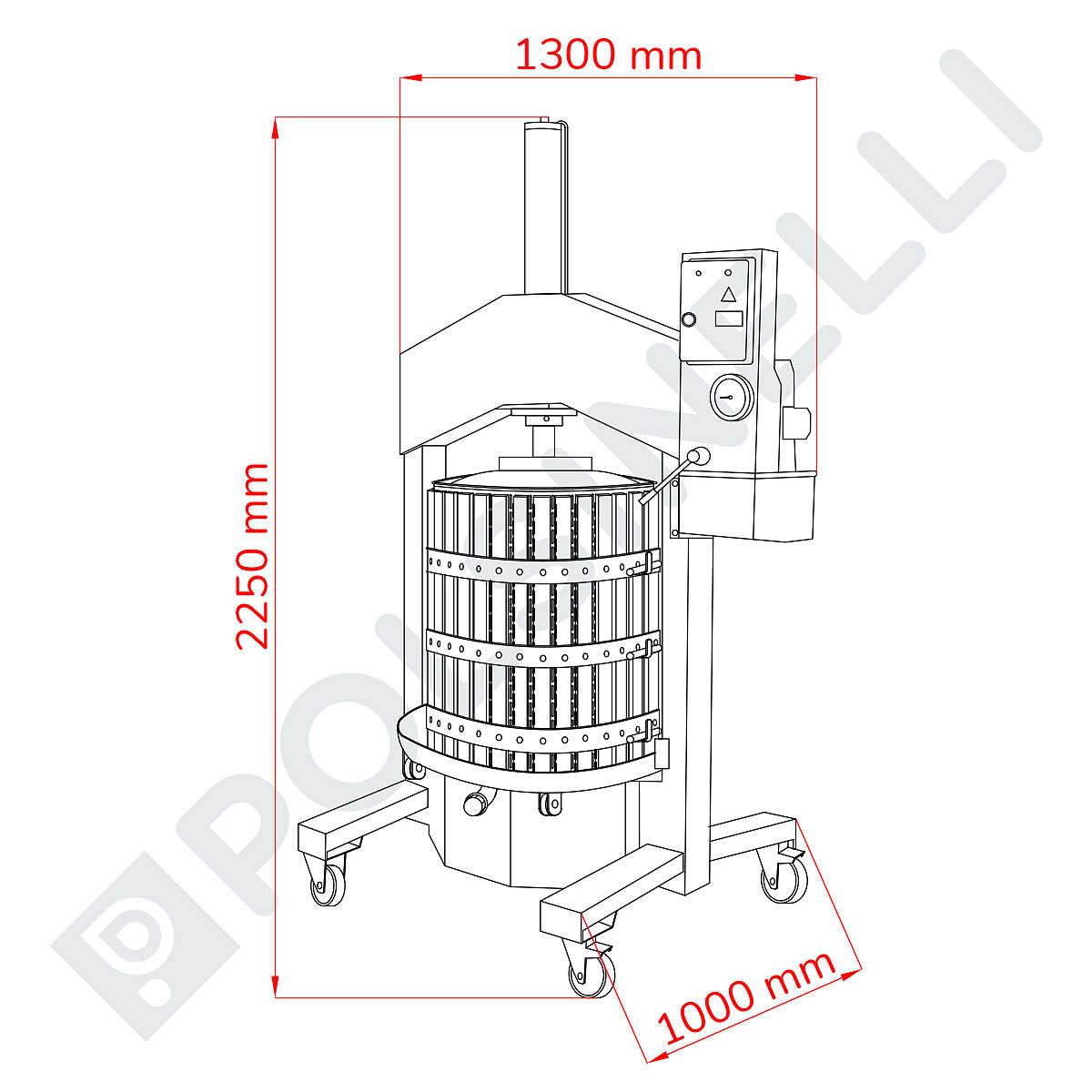

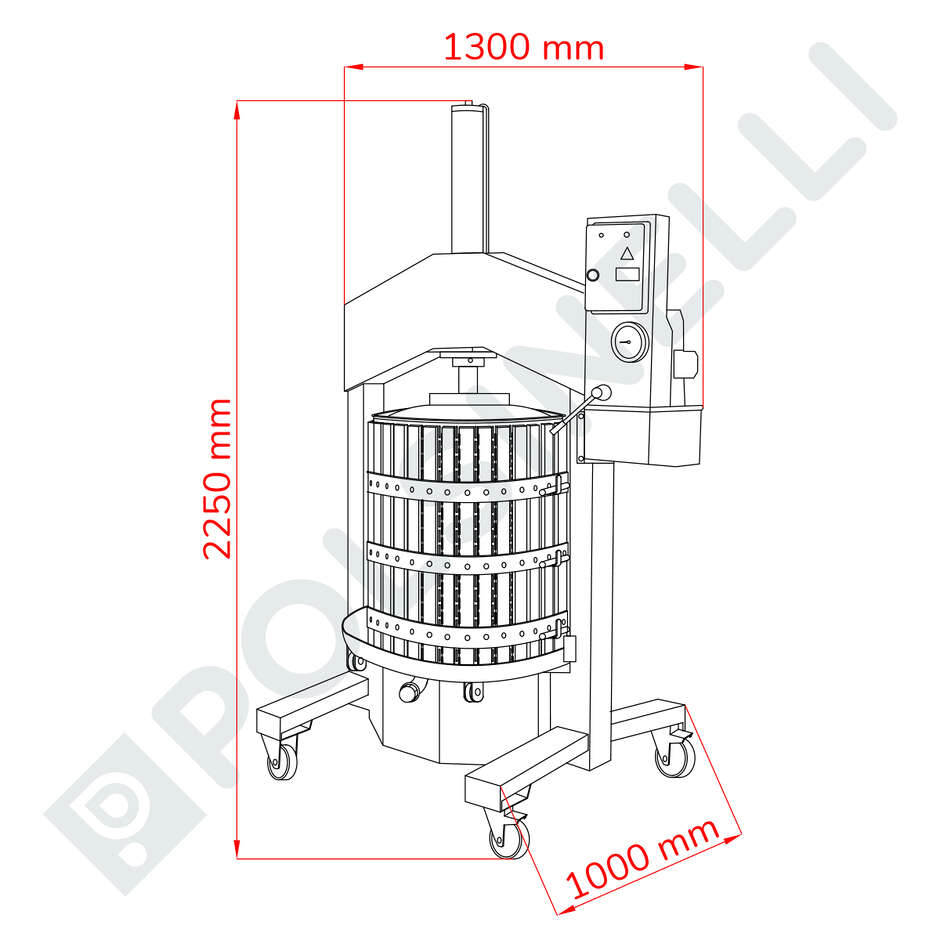

Measurements:
- mm 1100 x 1320 x 2050(h)
Cage dimensions:
- Inner diameter: mm 600
- Outer diameter: mm 670
- Height: mm 740
- Capacity: Lt 210
