Alfa 80 Inox Vertical Press with Removable Cage
Descrizione

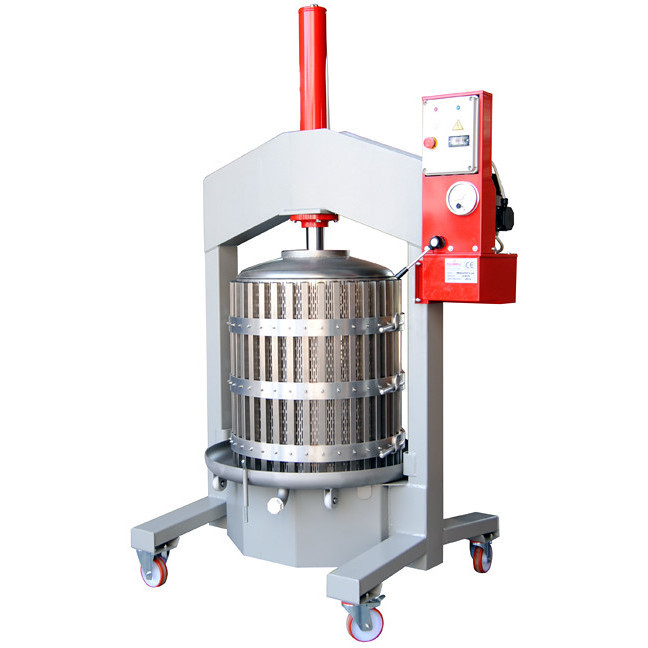

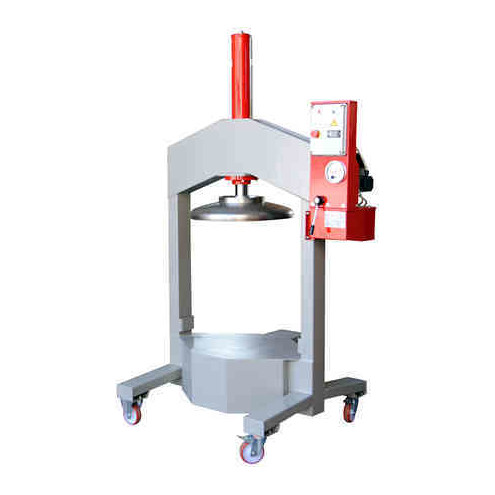

Alfa 80 Vertical Press with Removable stainless steel Cage
The Alfa 80 vertical press for sale online on Polsinelli is designed to facilitate the processing of residual grape marc from the grape harvest, and can also be used to refine fruit for the production of jam.
Machine manufactured according to the most modern technical-constructive criteria and with carefully selected materials, the Alfa 80 Vertical Press consists of a stainless steel structure, a light material but extremely performing in terms of durability and reliability, which is composed of a removable collection basin, which facilitates the loading and extraction operations from the cage, and of a pressing plate made of the same metal. Operation is electric and is supported by a single-phase motor powered at 220V. The pressure, 350 atmospheres, is exerted from top to bottom and is regulated automatically by a pressure gauge. The double-acting chrome plated piston ensures a fast and effective return force and, consequently, maximum machine performance.
Alfa Vertical Presses are available in different sizes and capacities and, on request, can be customised to suit your needs by making it compatible with other voltages (380V). A versatile article of great professional quality, the Alfa 80 by Polsinelli is the ideal choice for equipping your business with an instrument which, although traditional and always used to process different types of food products, has now reached truly unparalleled efficiency thanks to the application of the most modern technologies.
Characteristics:
- Stainless steel gathering basin with buttweld 1" 1/4 GAS
- Stainless steel pressing plate
- Automatic pressing gauge for automatic pressure adjustment
- For a production of: 1500 Kg of grapes
- Operating pressure: 350 atmospheres
- With trolley and extractable gathering basin
- 220V power supply
- Absorption: 700 W
- Removable gathering basin with trolley
- Weight: 910 Kg
Measurements:
- mm 1180 x 1180 x 2400(h)

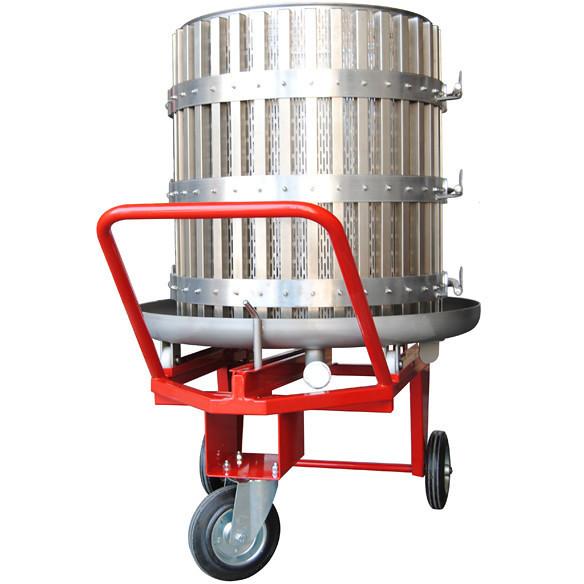

Wooden cage Measurements:
- Internal diameter: mm 800
- Outside diameter: mm 880
- Height: mm 950
- Dreg capacity: Lt 475
