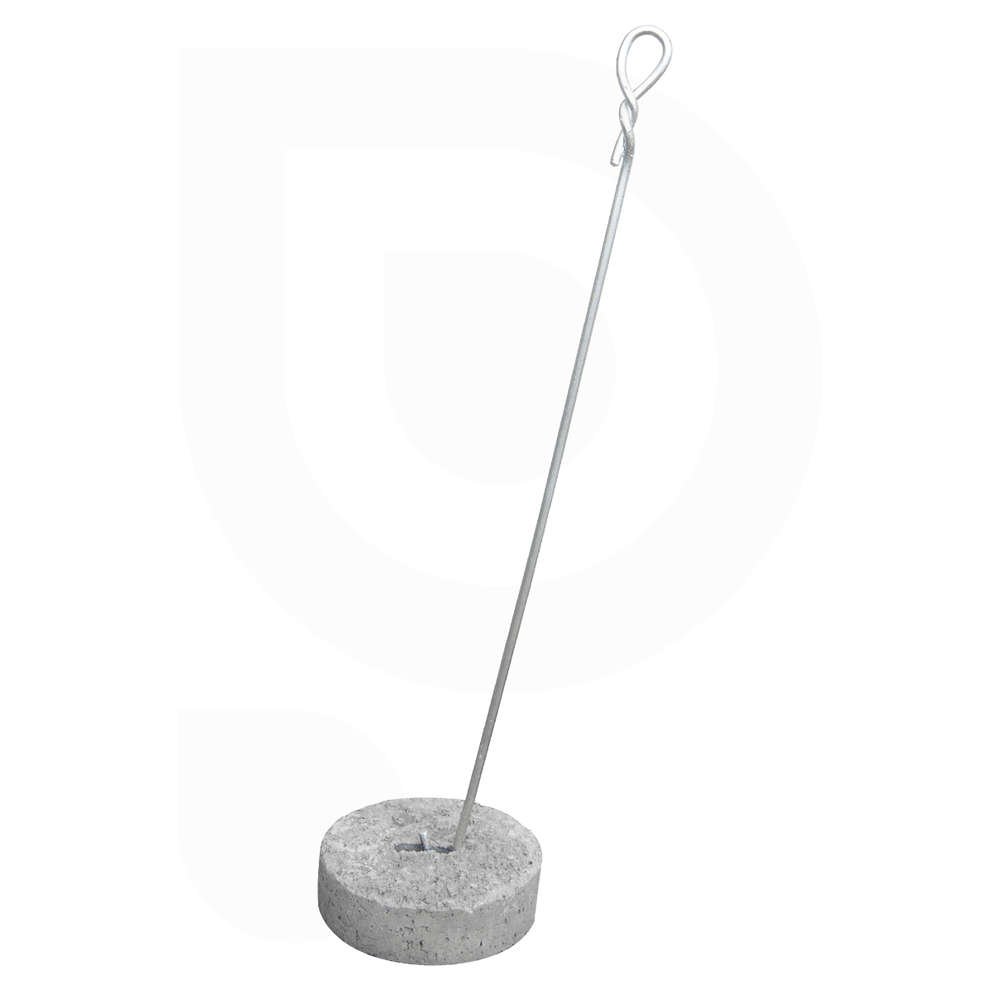

Rod with concrete plate for end posts (2 pcs)

Rod with plate for fixing end posts (2 pieces)

With the anchor kit you can easily fix your end poles.

The kit consists of:

• High-strength galvanised steel rod (x2)
• Rod stop pin (x2)
• Concrete plate (x2)

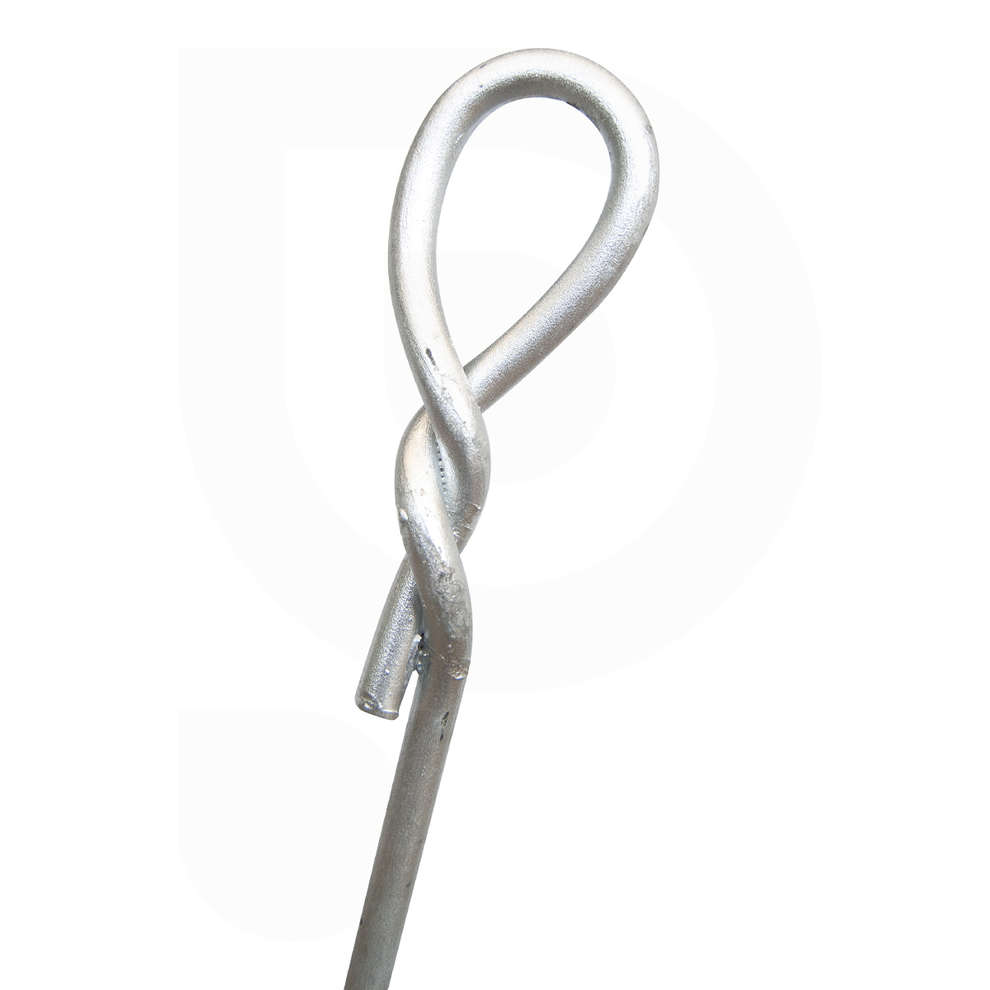

The rod is made of high-strength galvanised steel with a diameter of 12 to 14 mm with an eyelet and hook at both ends. The eyelet wrapped around itself guarantees a hold when the eyelet is subjected to high stress.

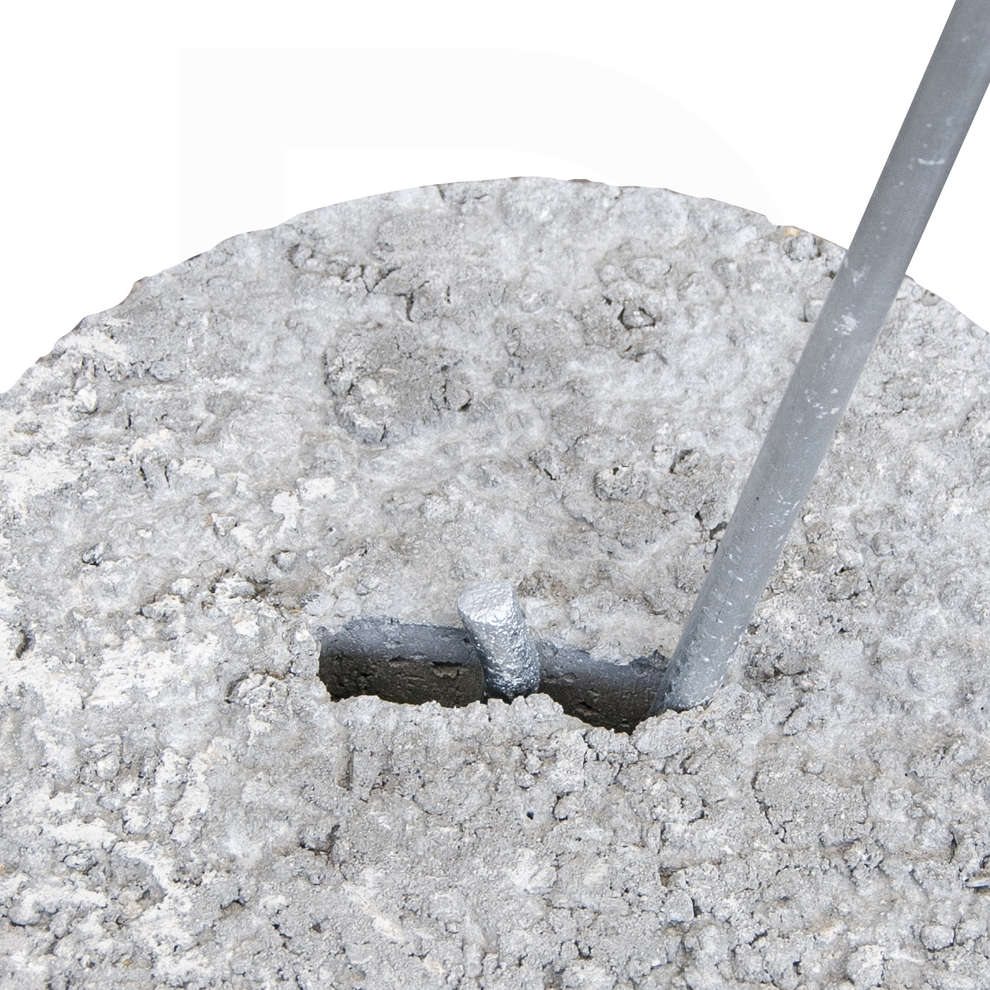

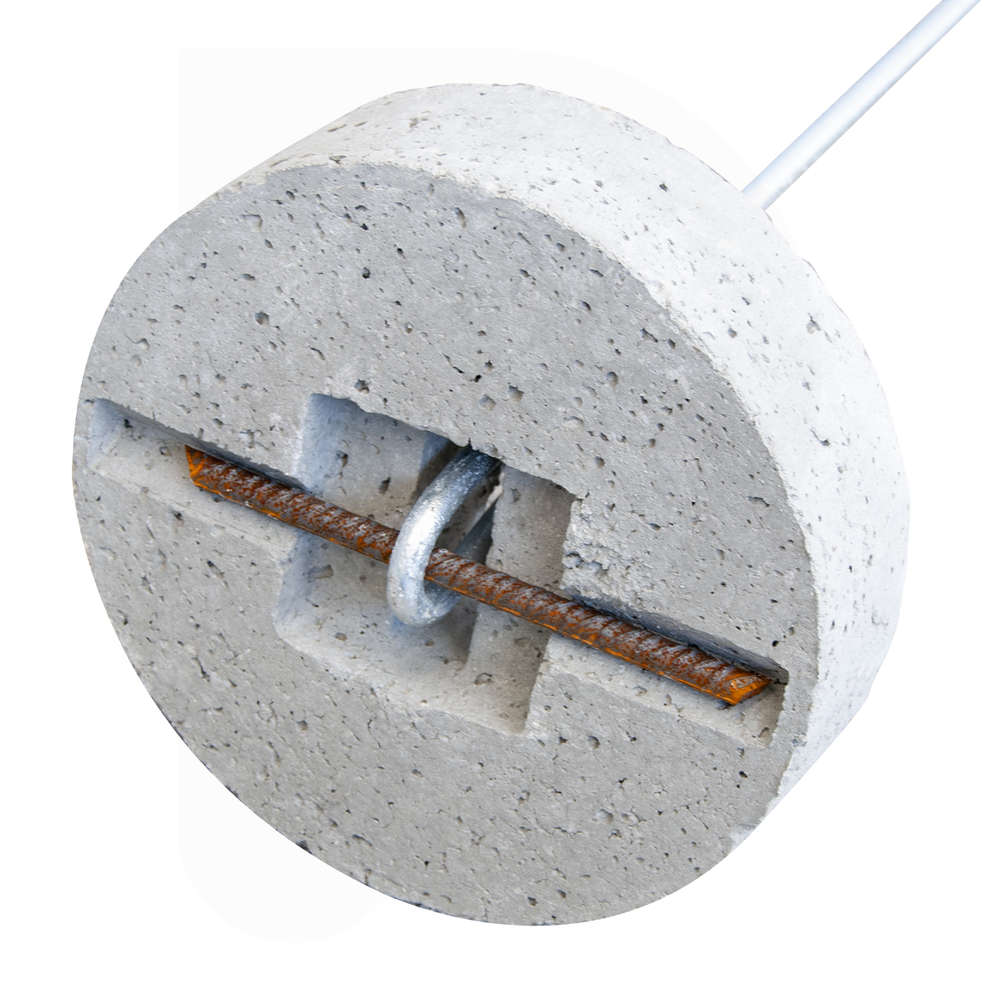

Simply insert the hook into the hole in the concrete plate and secure it with the rod stop. Then insert the kit into the previously prepared hole and cover it, keeping the eyelet out of the ground by attaching the anchoring wires or ropes of the head posts to it.

Characteristics:

• Rod material: Galvanised steel
• Rod diameter: 12/14 mm
• Rod length: 1180 mm
• Pole weight: 2.3 kg approx.
• Plate material: concrete
• Plate diameter: 300 mm
• Plate height: 80 mm
• Plate weight: 11.2 kg approx.
• Rod stop pin material: Iron
