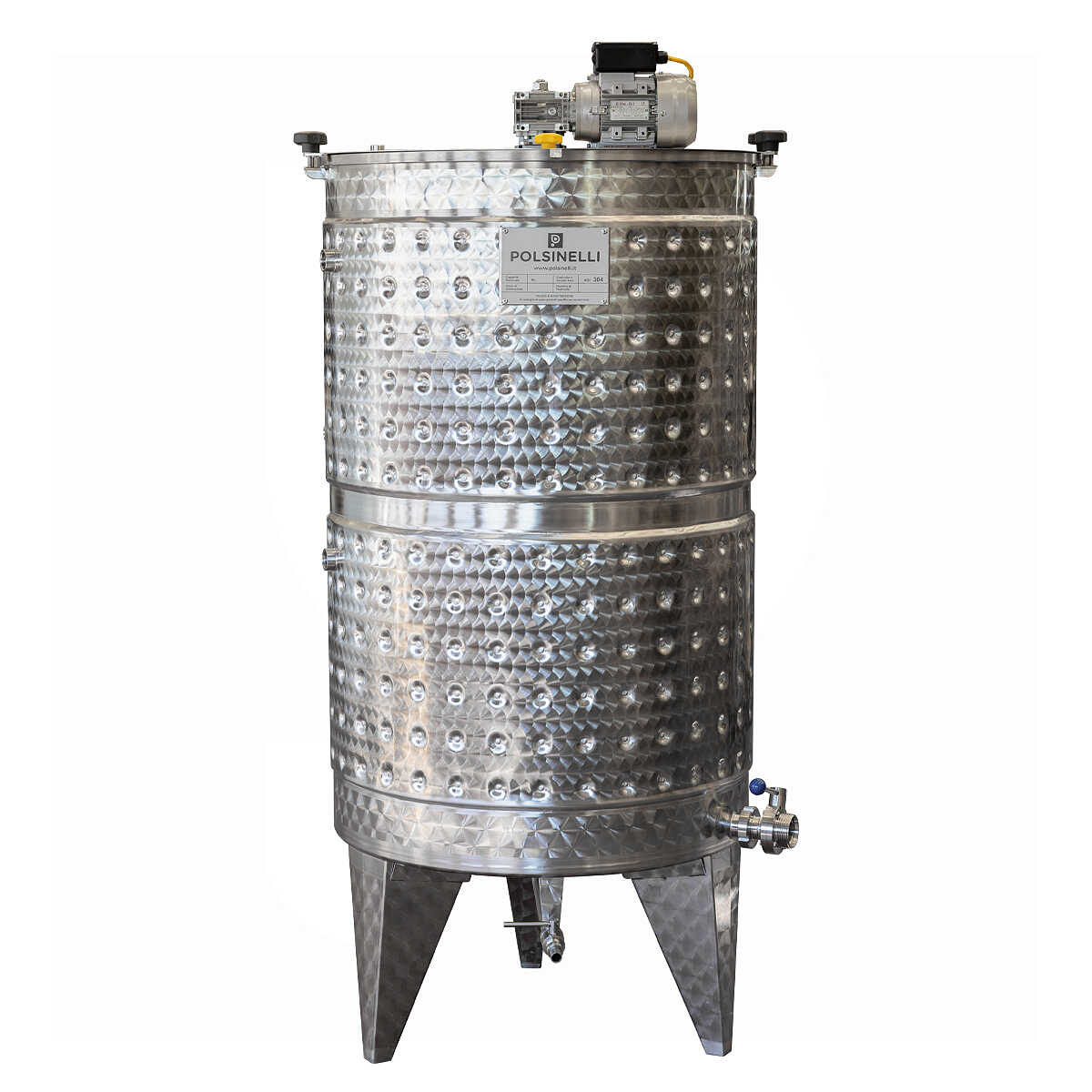

Refrigerated Stainless Steel 10° 600 L Fermentation Tank
Description
Refrigerated Stainless Steel 10° 600 L Fermentation Tank
The fermentation tank is a fundamental tool for introducing whey into milk, thus promoting the curdling process.
Made of stainless steel, it is provided with a double cooling jacket that doubles the surface area of the cavity. A low-temperature water-glycol cooling solution circulates within it, ensuring optimal product conditioning.
It is also equipped with a motorized stirrer, ensuring homogeneous mixing.

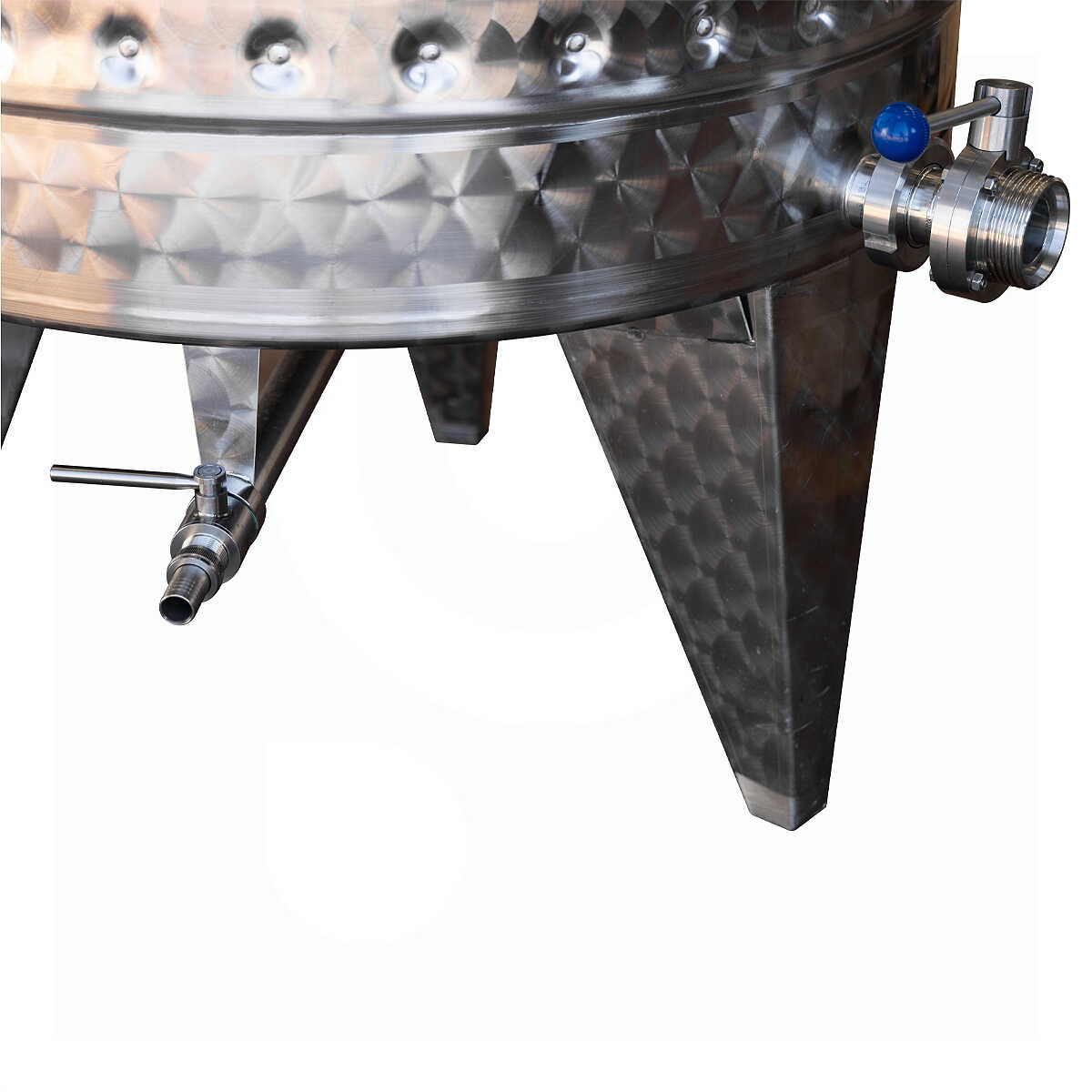

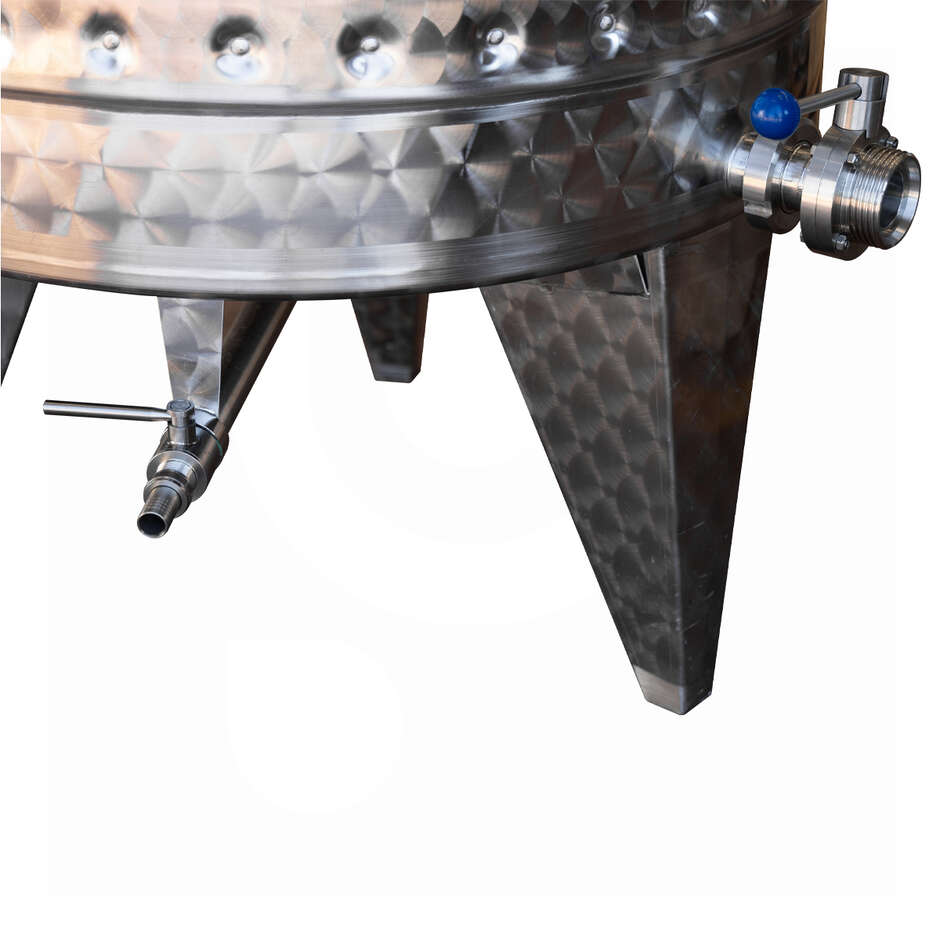

The tank features a 10° conical bottom, designed to facilitate both cleaning and total draining thanks to a 1" ball valve. A partial drain with a DIN32 butterfly valve is also available, which is useful during product decanting or transfer.
On demand, we manufacture customized fermenters in various capacities to meet specific customer needs. In addition to the basic model, an insulated version is also available, ideal for reducing condensation and optimizing energy consumption.
Characteristics:
- Tank made of AISI 304 stainless steel
- 1.5 mm thick.
- Mirror-polished interior finish with satin-finish welding.
- Embossed-pattern finished exterior with satin-finish welding.
- 10° conical bottom with reinforcements.
- 3 pyramid-shaped legs welded to the bottom, height 400 mm.
- Total drain with a 1" stainless steel ball valve, Ø 20 mm hose connection.
- Partial drain with a stainless steel valve DIN DN40 butterfly valve positioned at 210°.
- Double cooling jacket, 500 mm high, each with two 1" hose connections, positioned at 90° to the left, operating pressure 1.5 bar.

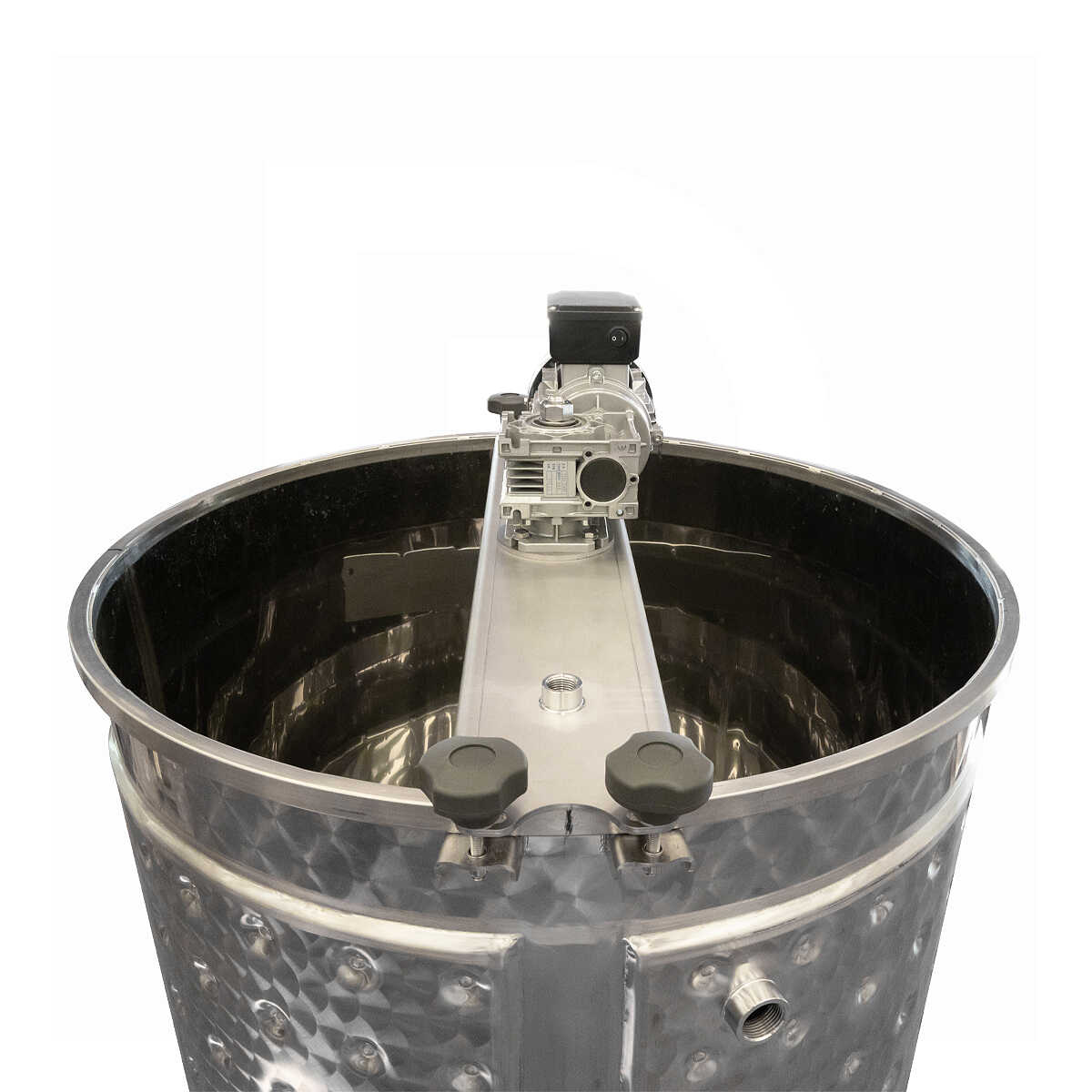

- 220V gear motor, 0.37 W with 1:50 reduction.

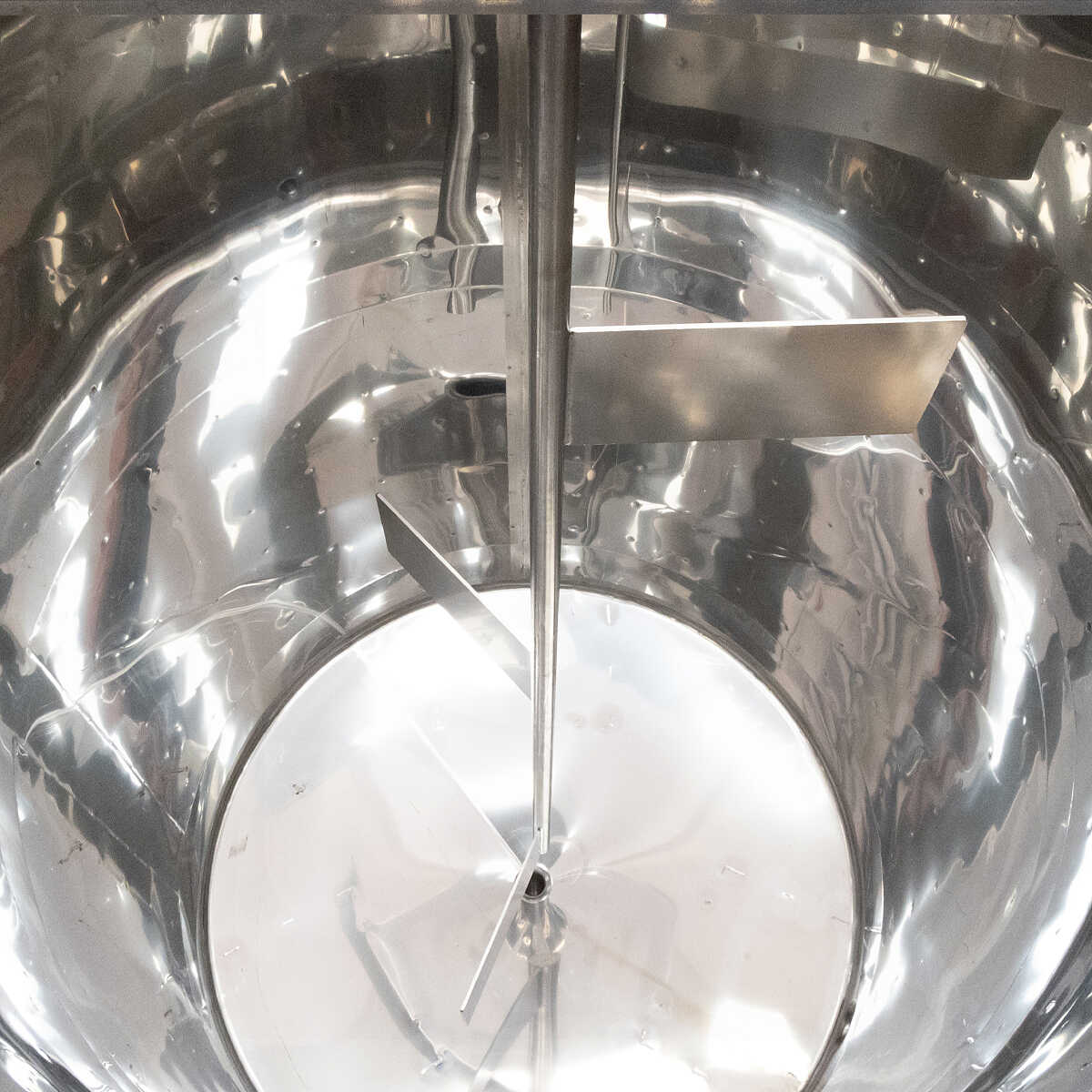

- Mixing rod, 1100 mm high, with three 120° blades, 400, 775, and 1100 mm high, dimensions 100 x 200 mm; with coupling on the gear motor hub.

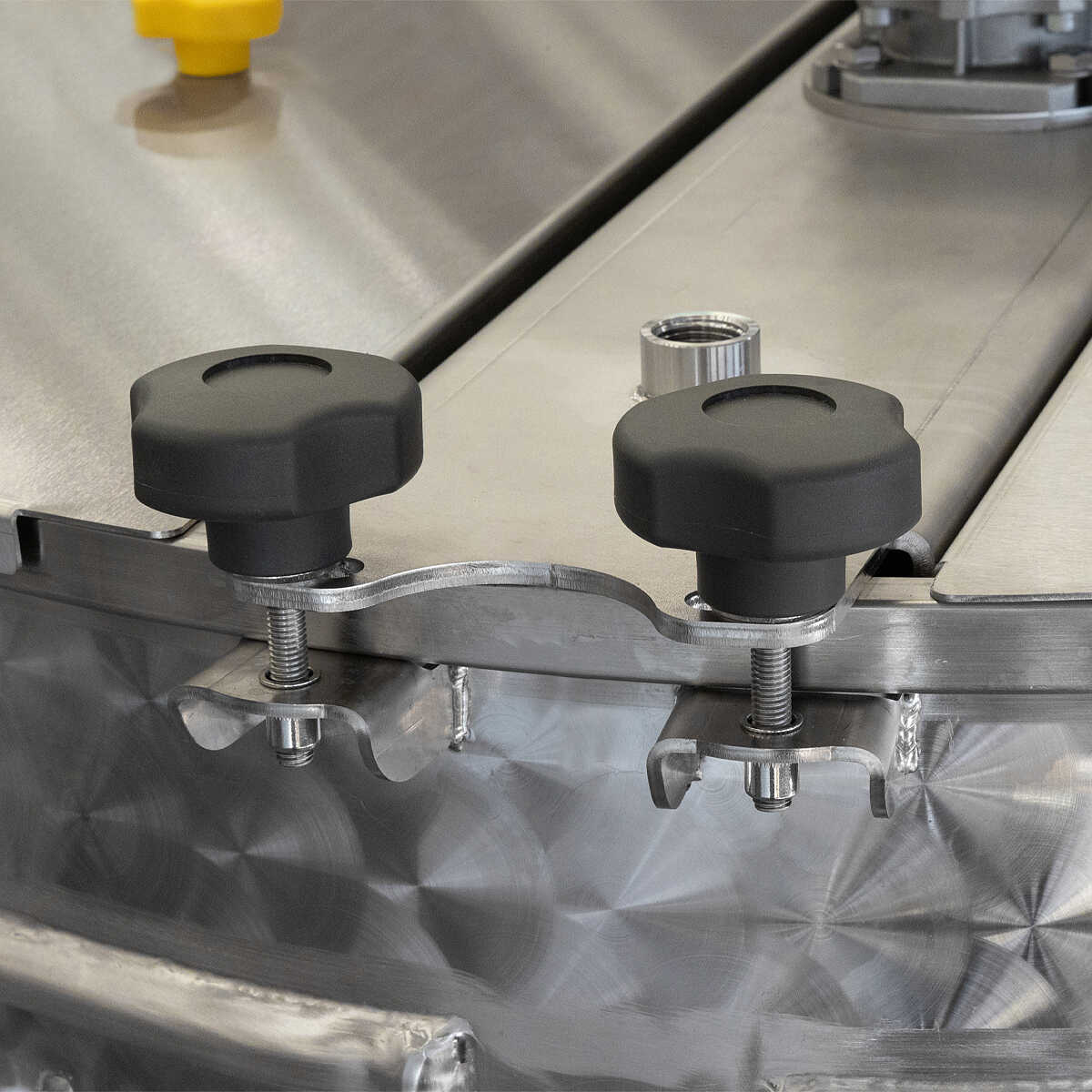

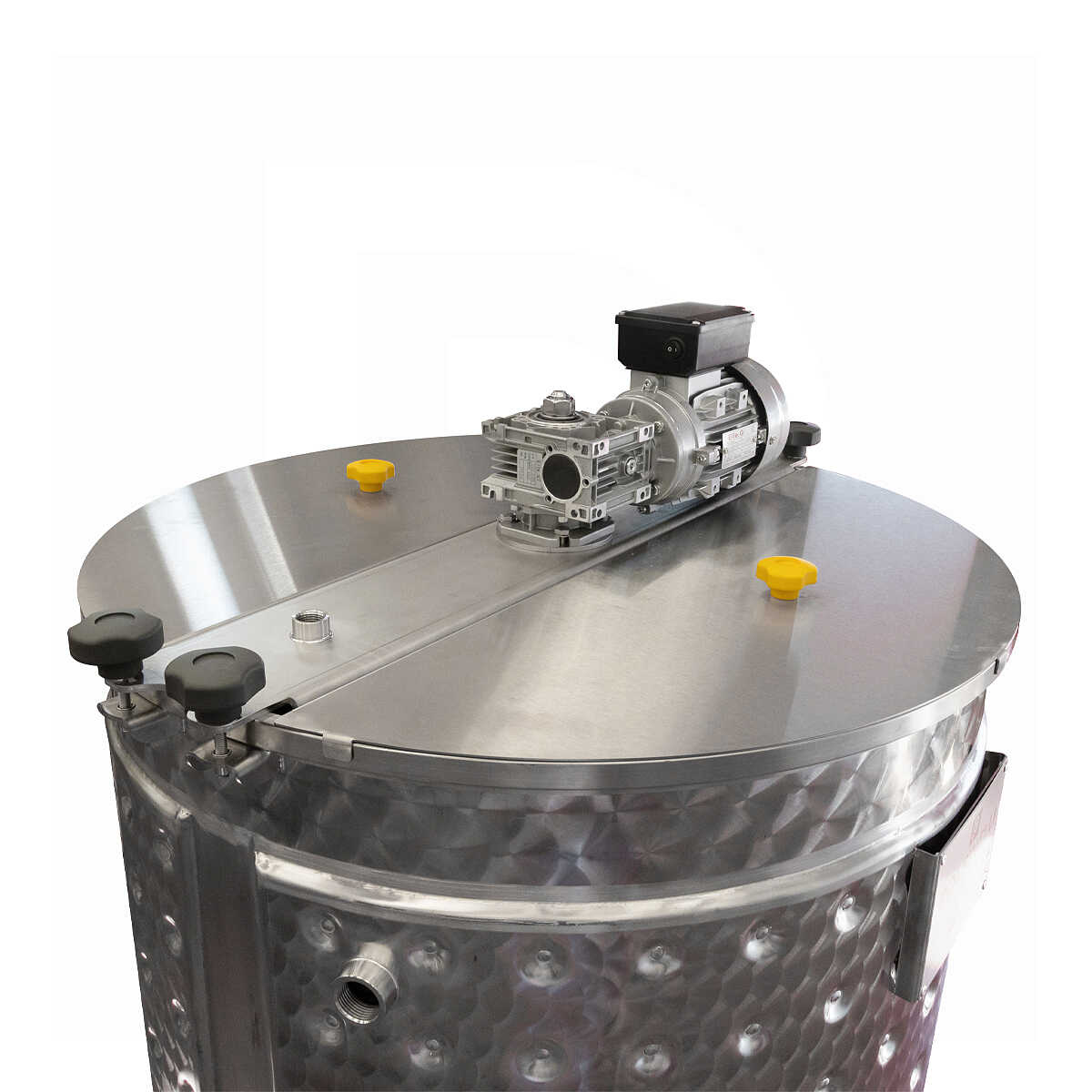

- Lid consisting of: 100 mm thick central band with four motor fastening knobs and two half-moon half-lids with a downward facing for fastening.
- Analog thermometer in frontal position and additional stainless steel thermo-well probe holder.

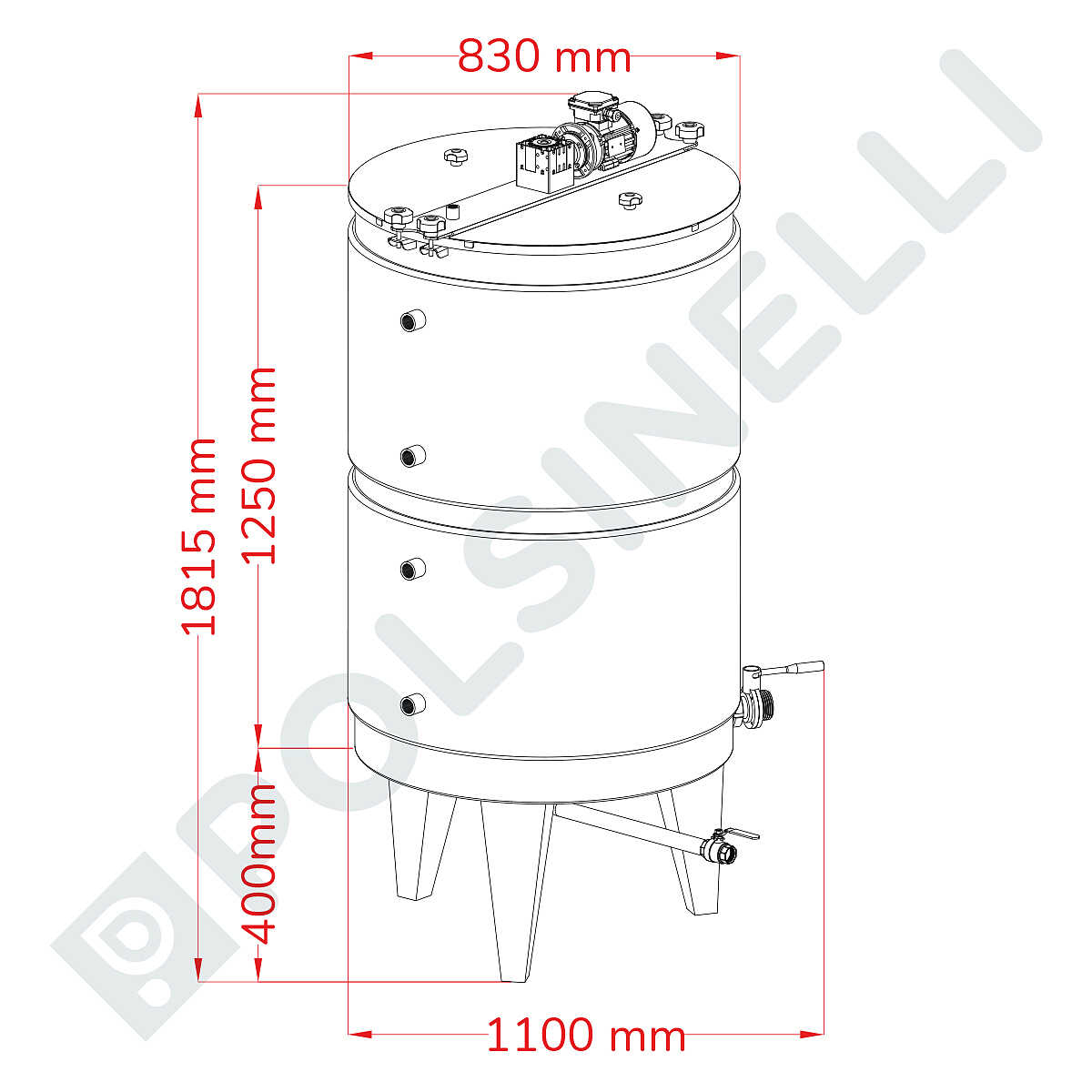

Dimensions:
- Diameter: Ø 800 mm
- Cylinder height: 1250 mm
- Leg height: 400 mm
- Total height: 1650 mm
