Description

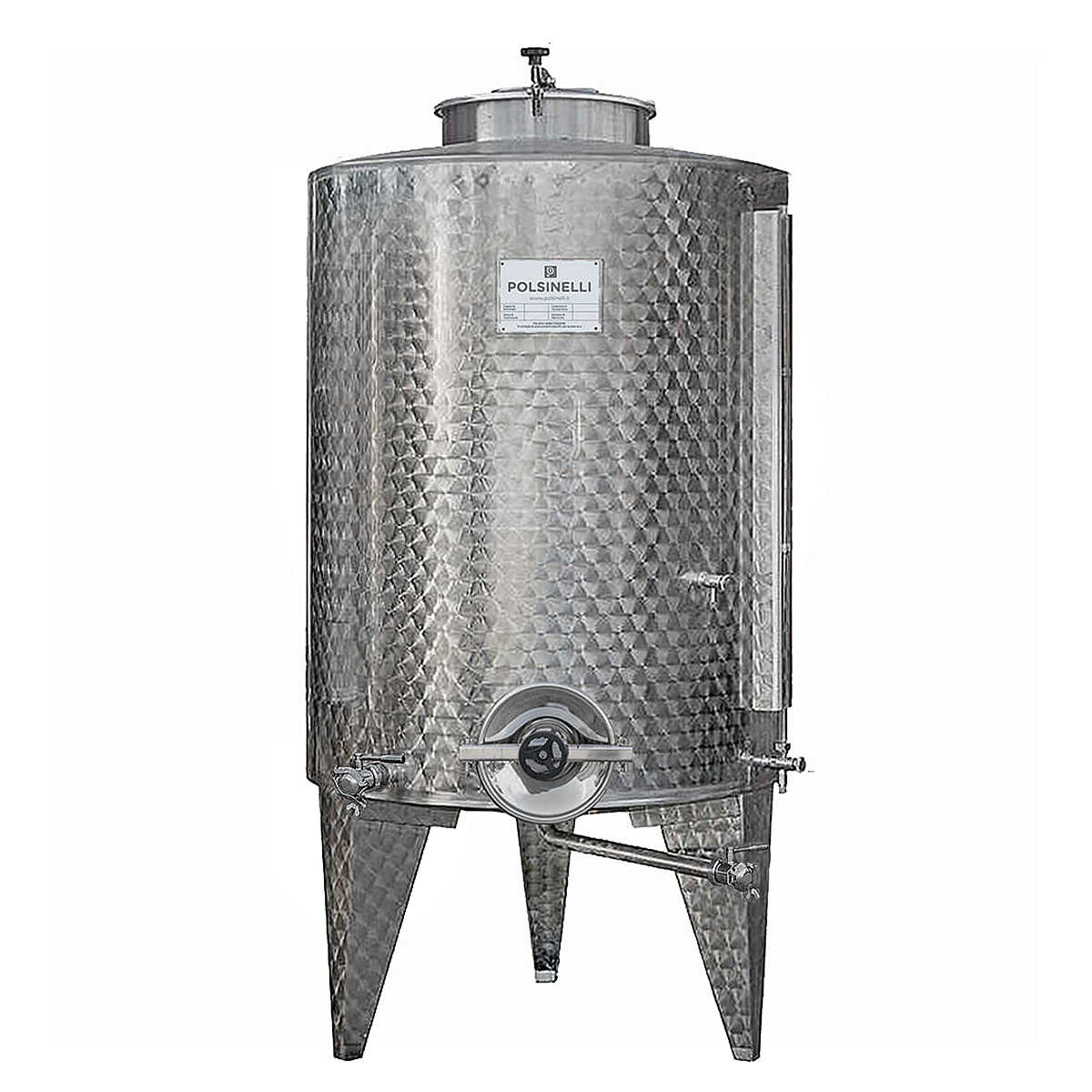

2000 L stainless steel storage tank Ø 1270 with Ø 400 mm manhole
The 2000 L stainless steel storage tank Ø 1270 with door is designed for wine, but can also be used for beer and other food liquids. Made entirely of AISI 304 stainless steel, it has a diameter of 127 cm and a thickness of 1.2 mm in the walls and 1.5 mm in the bottom. The 2000-litre capacity storage tank has three sturdy stainless steel feet, a reinforced 10° conical roof and bottom, and is equipped with a 40 cm diameter round door located flush with the bottom to facilitate the discharge of liquids.
The stainless steel tank with a 2000 L door has an upper 40 cm non-return manhole cover and is equipped with a total drain DIN 40 with stainless steel valve 1 "e1/2 GA50, a partial drain DIN 40 with stainless steel valve 1 "e1/2 GA50 and a double-acting plastic vent valve. It is equipped with a wine taster and level indicator with stainless steel protection.
The tank with a 2000 L door has a total height of 220 cm, and partial heights of 40 cm for the feet, 150 cm for the virola and 30 cm for the roof. The device has an external flocked finish, with satin welded seams, and an internal mirror-polished finish that improves the cleaning operations that are essential for having quality drinks that retain their organoleptic properties.
Characteristics:
- Material: Stainless steel AISI 304
- Capacity: 2000 L
- Internal finishes: mirror polish
- External finishes: flamed, with satin welds
- Conical 10° bottom with reinforcements
- 10° conical roof
- Total drain DIN 40 with stainless steel valve 1 "e1/2 GA50
- Partial drain DIN 40 with stainless steel valve 1 "e1/2 GA50
- 3 stainless steel feet
- Upper 400 mm non-returnable manhole cover
- Double-acting plastic vent valve

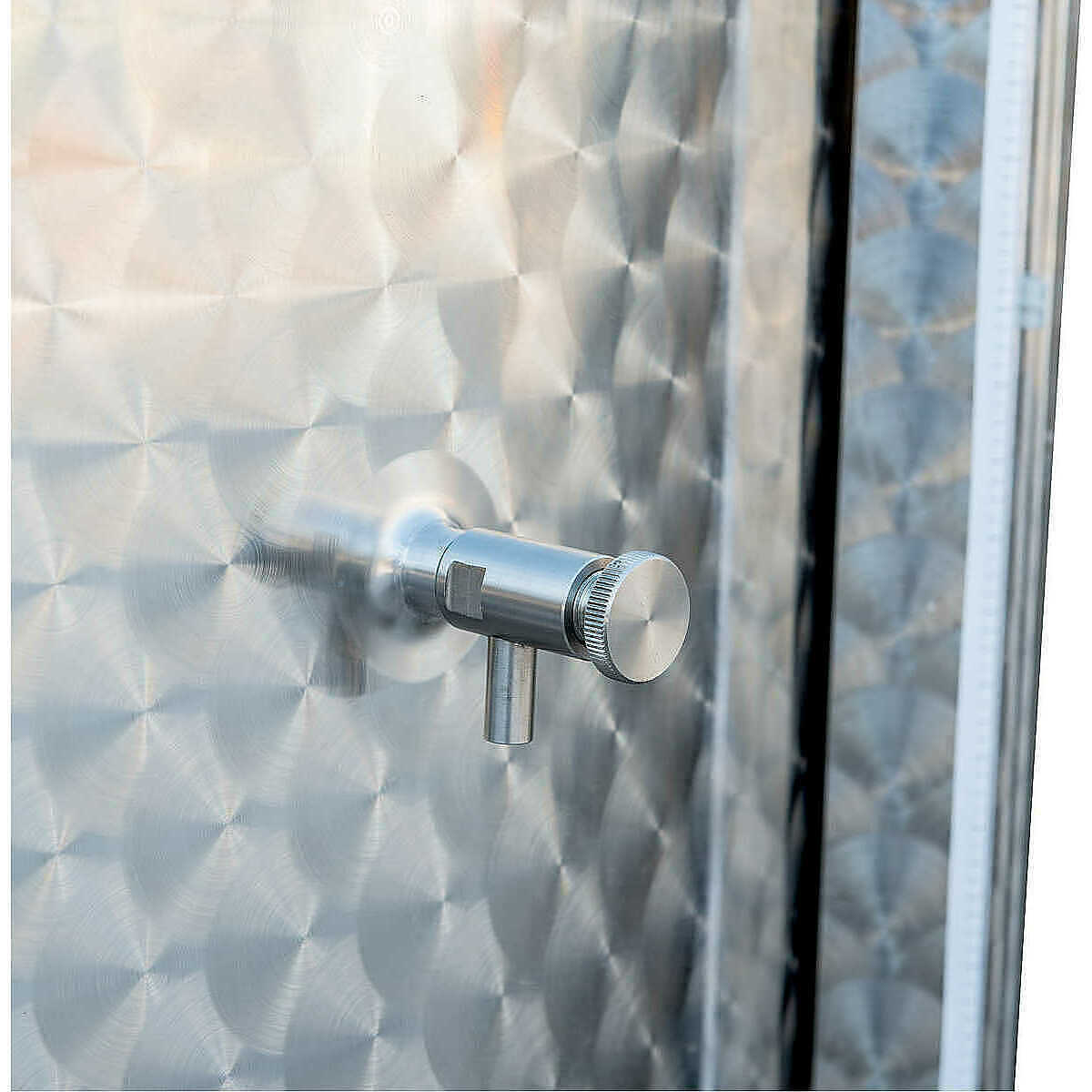

- Stainless steel wine taster
- Round door ø 400 mm

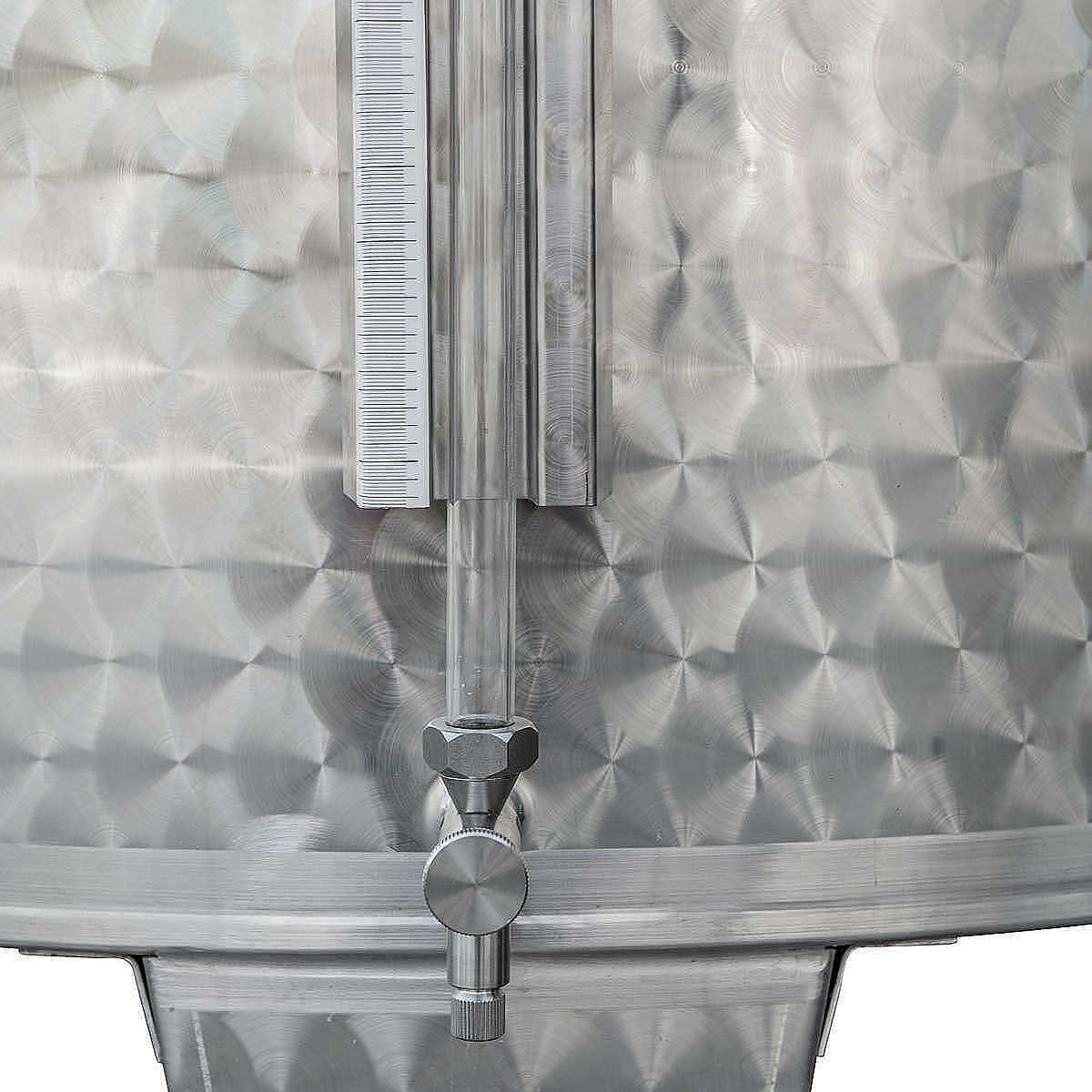

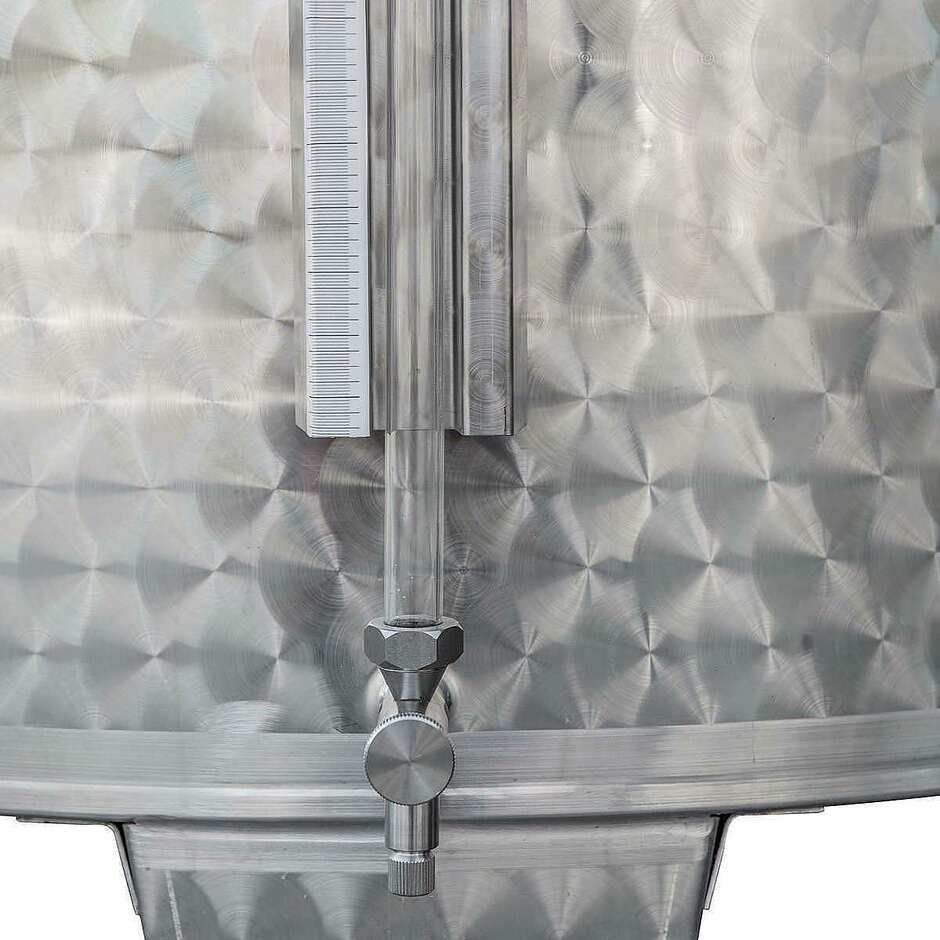

- Level indicator with stainless steel protection
- Appliance conforms to CE safety standards

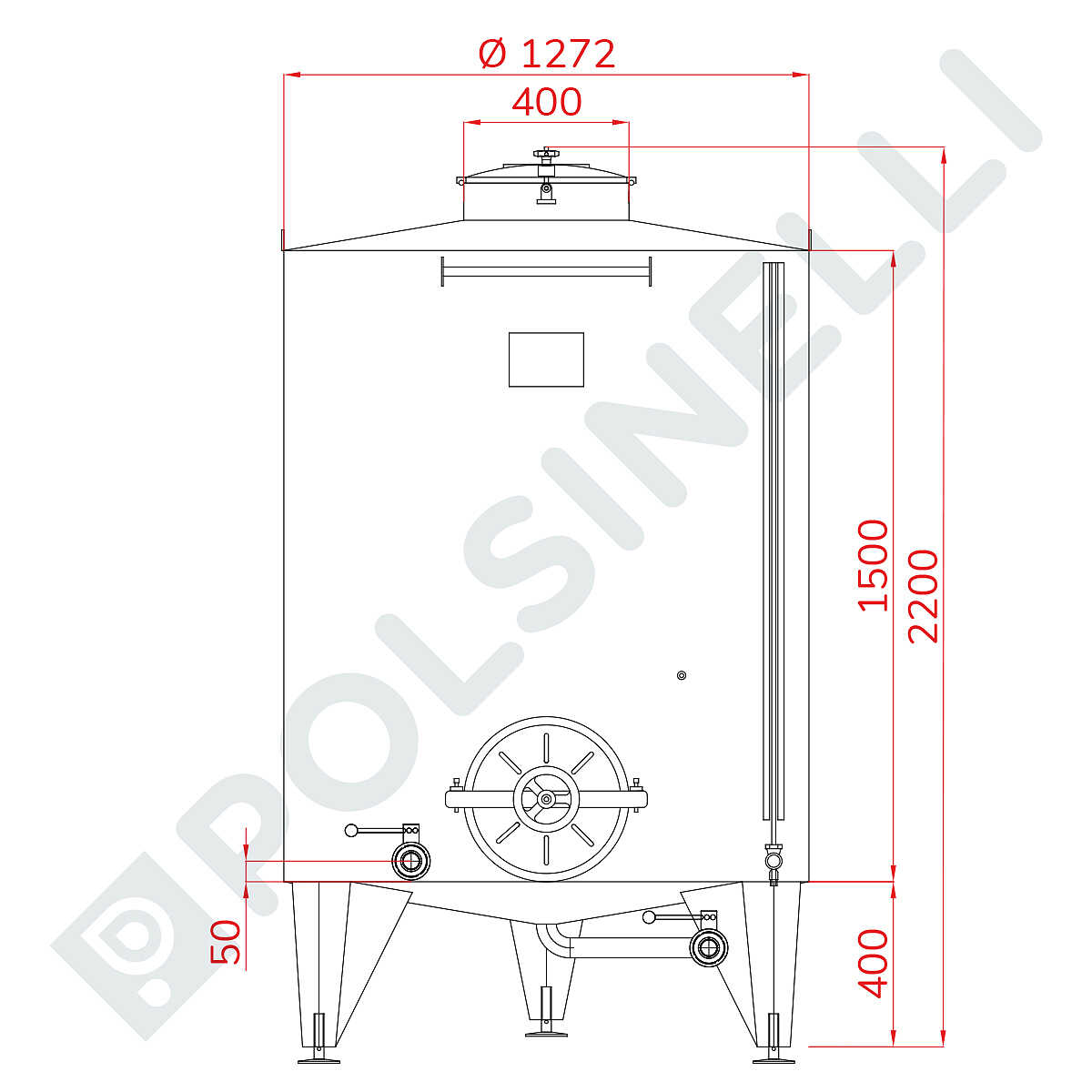

Dimensions:
- Diameter: 1270 mm
- Total height: 2200 mm
- Foot height: 400 mm
- Wing height: 1500 mm
- Roof height: 300 mm
Thickness:
- Walls: 1.2 mm
- Bottom: 1.5 mm
