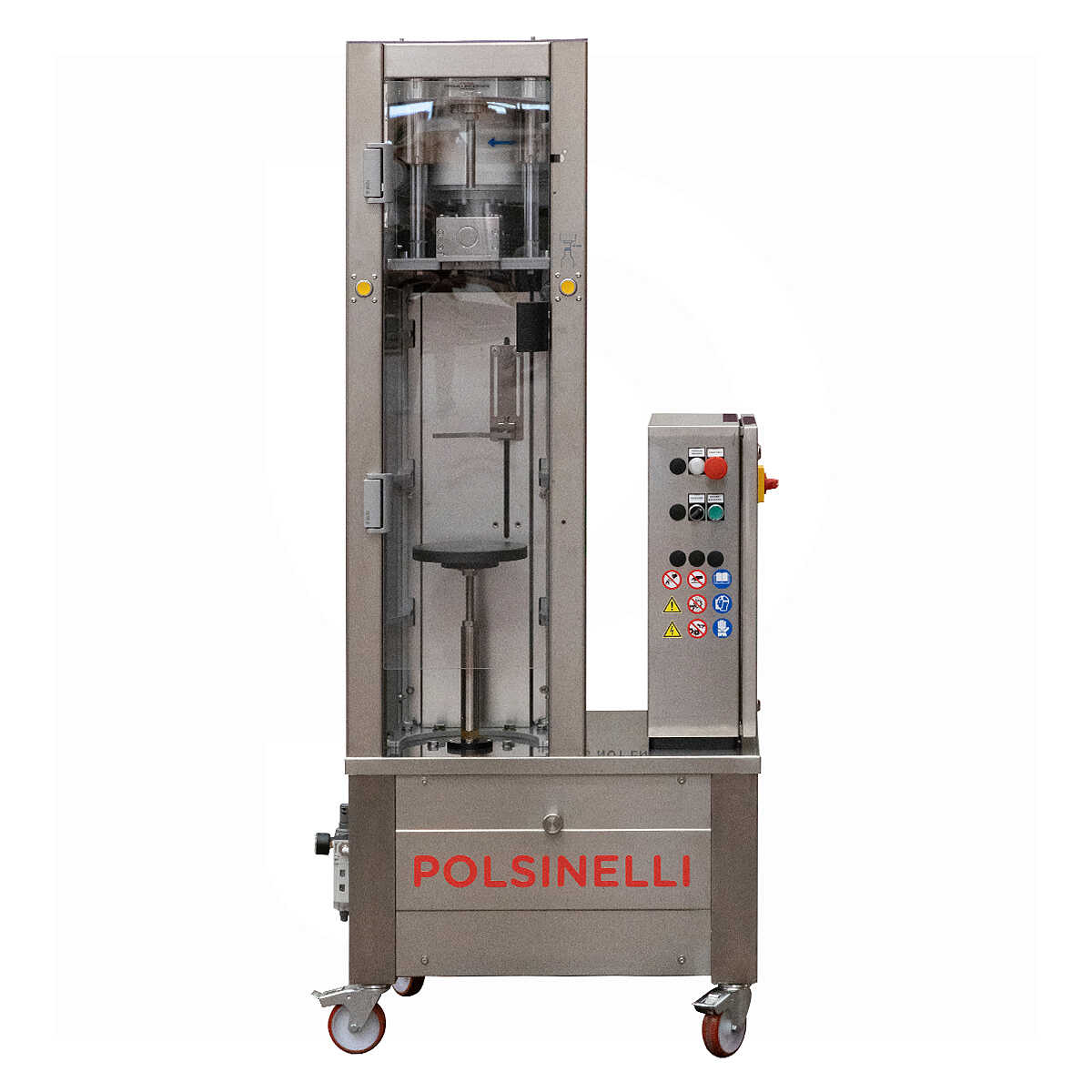

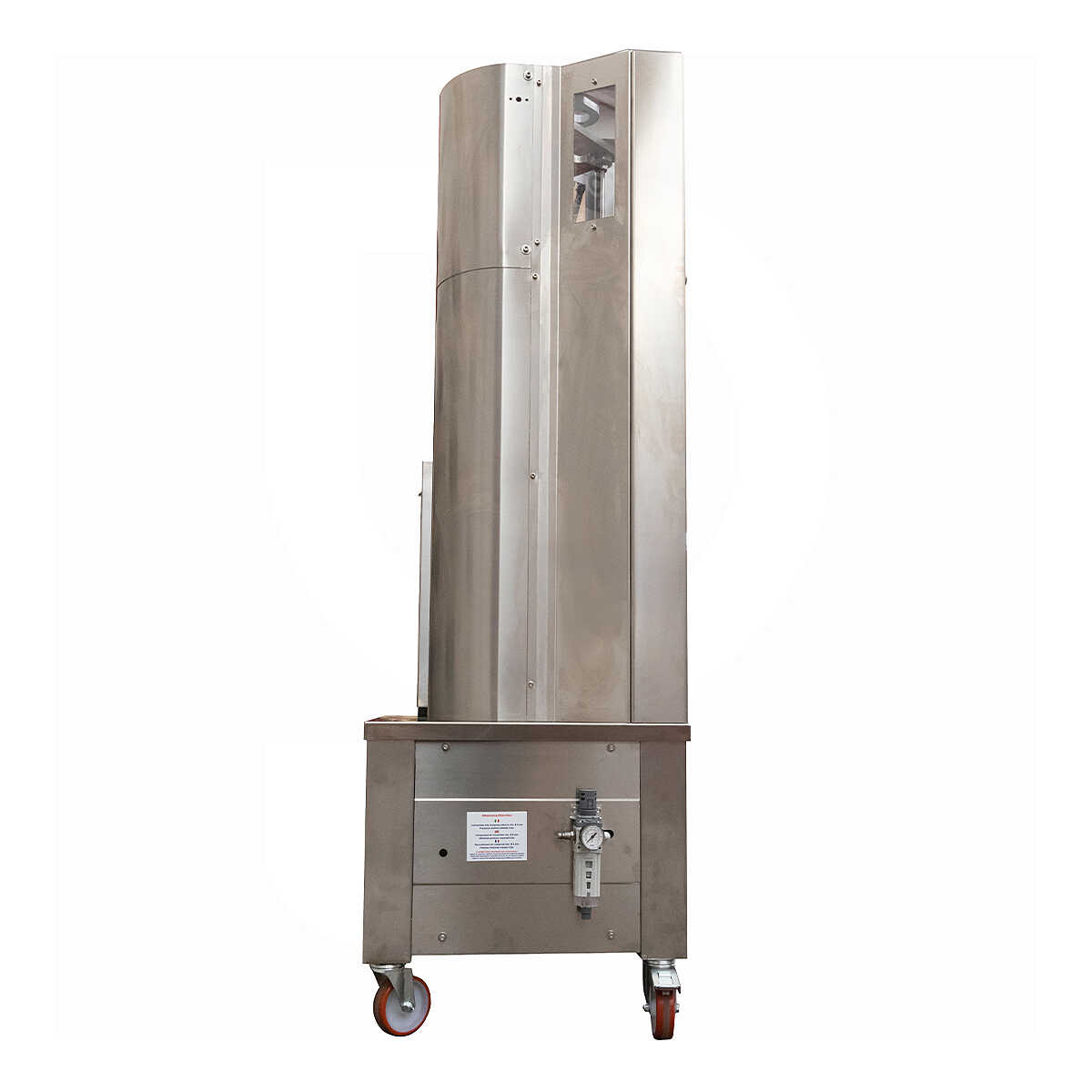

Semi-automatic P550 corking machine with trolley for Magnum bottles

Semi-automatic P550 corking machine with trolley for Magnum bottles

Semi-automatic corking machine suitable for corking 3-litre glass Magnum bottles with a Ø 22 mm bottle opening using Ø 32 mm flush natural corks. Cork feeding is manual, with direct insertion into the corking head. The wine must be still.

The P550 comes complete with:

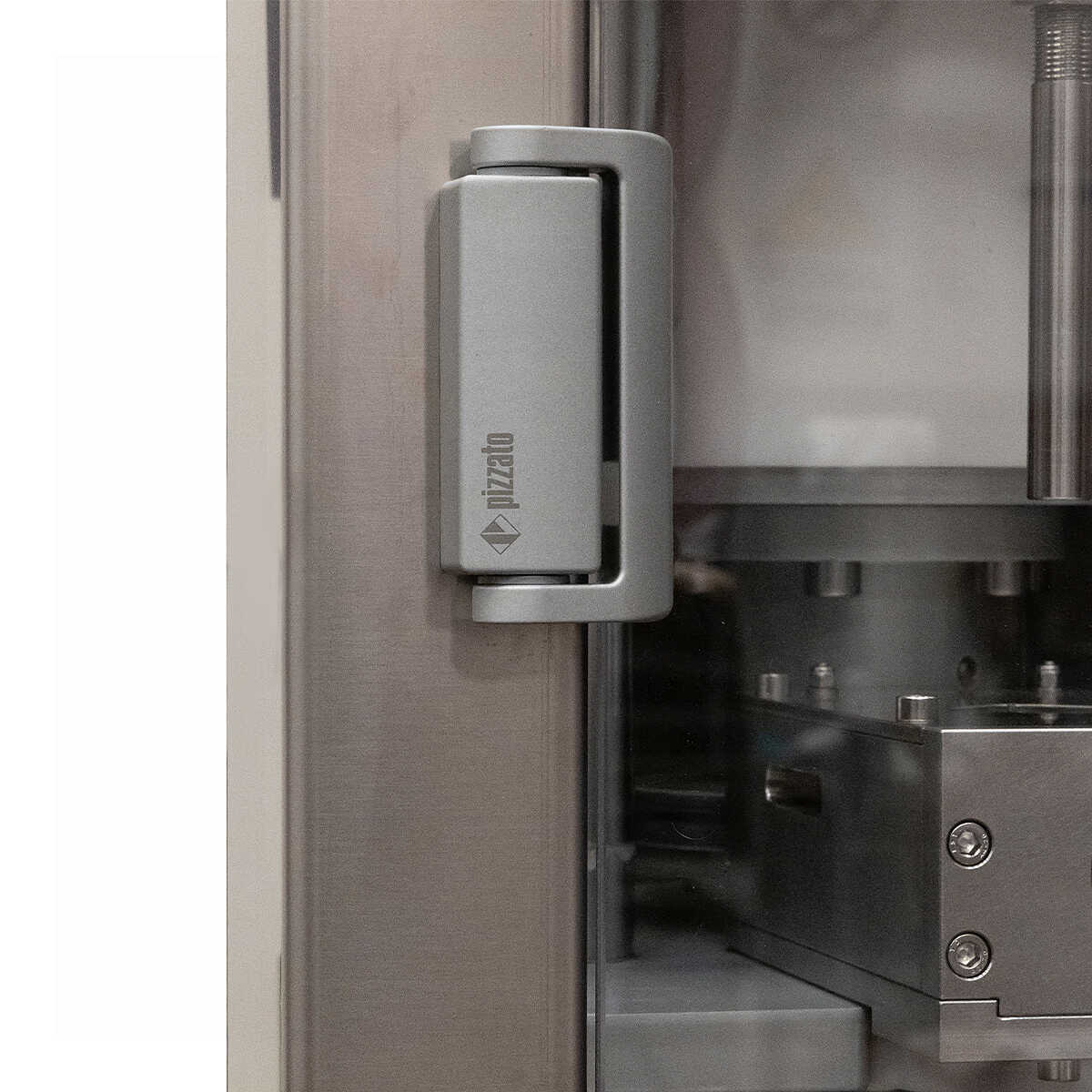

• Safety guard

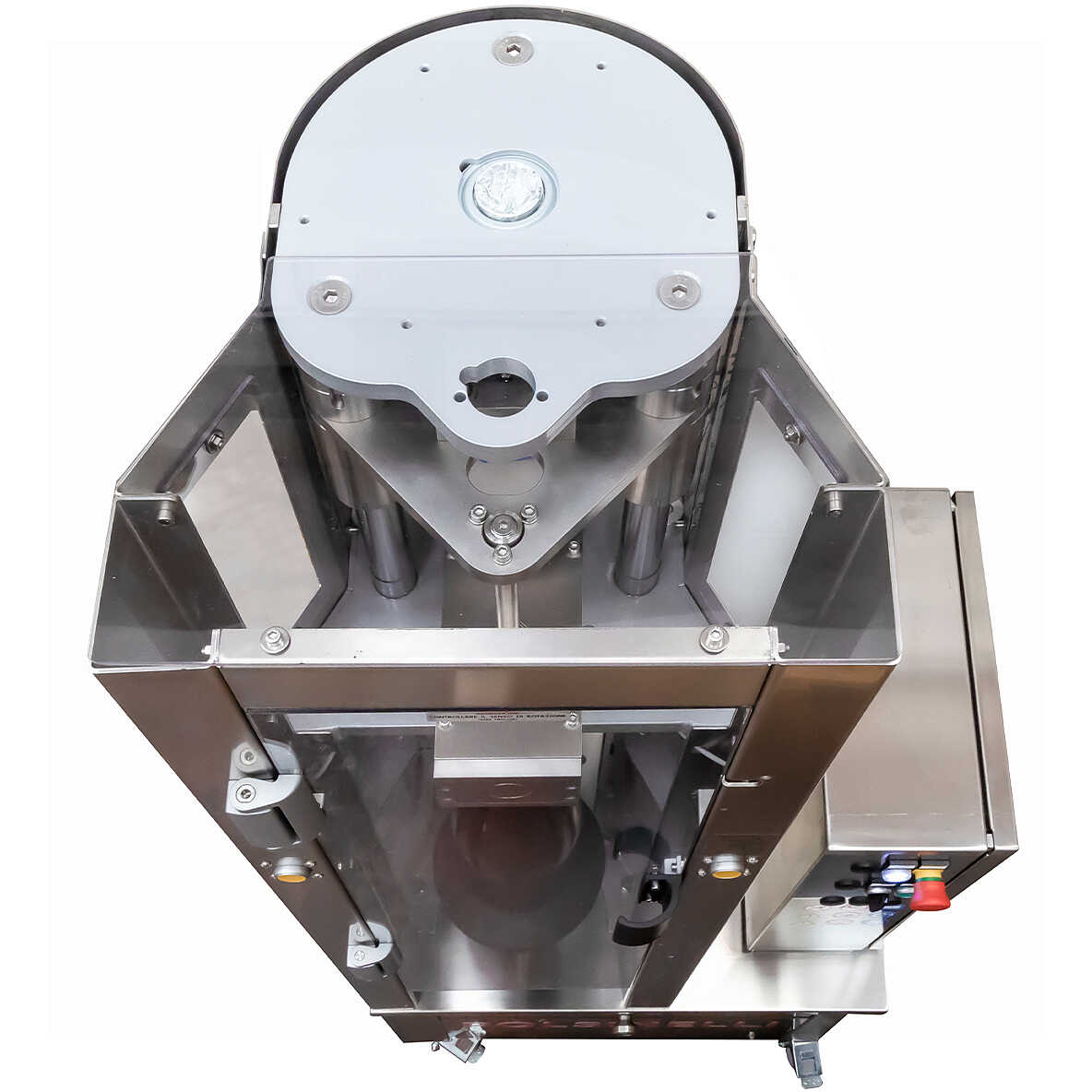

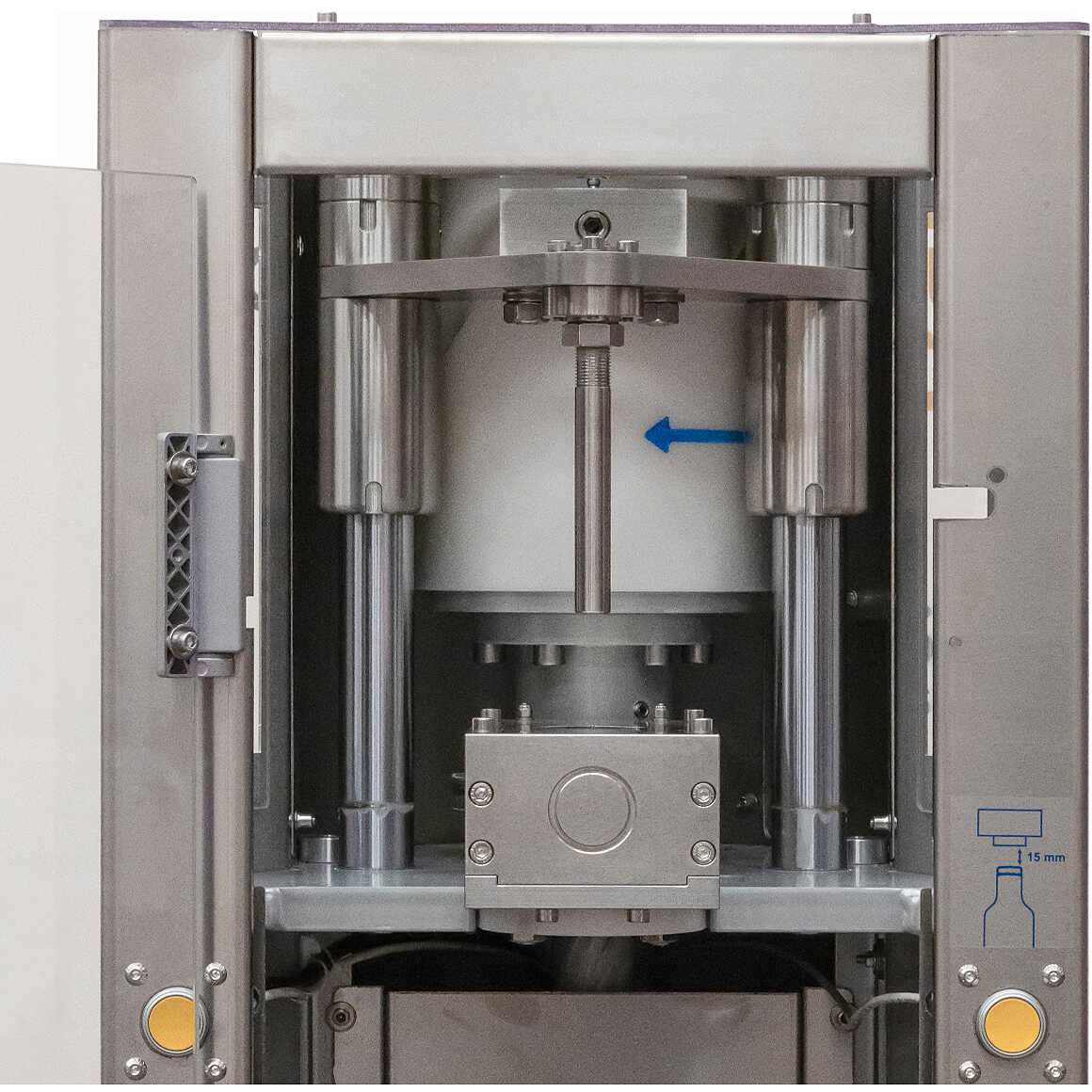

• Stainless steel corking head with bronze slides
• Hardened and ground stainless steel jaws, easy to remove for cleaning and maintenance

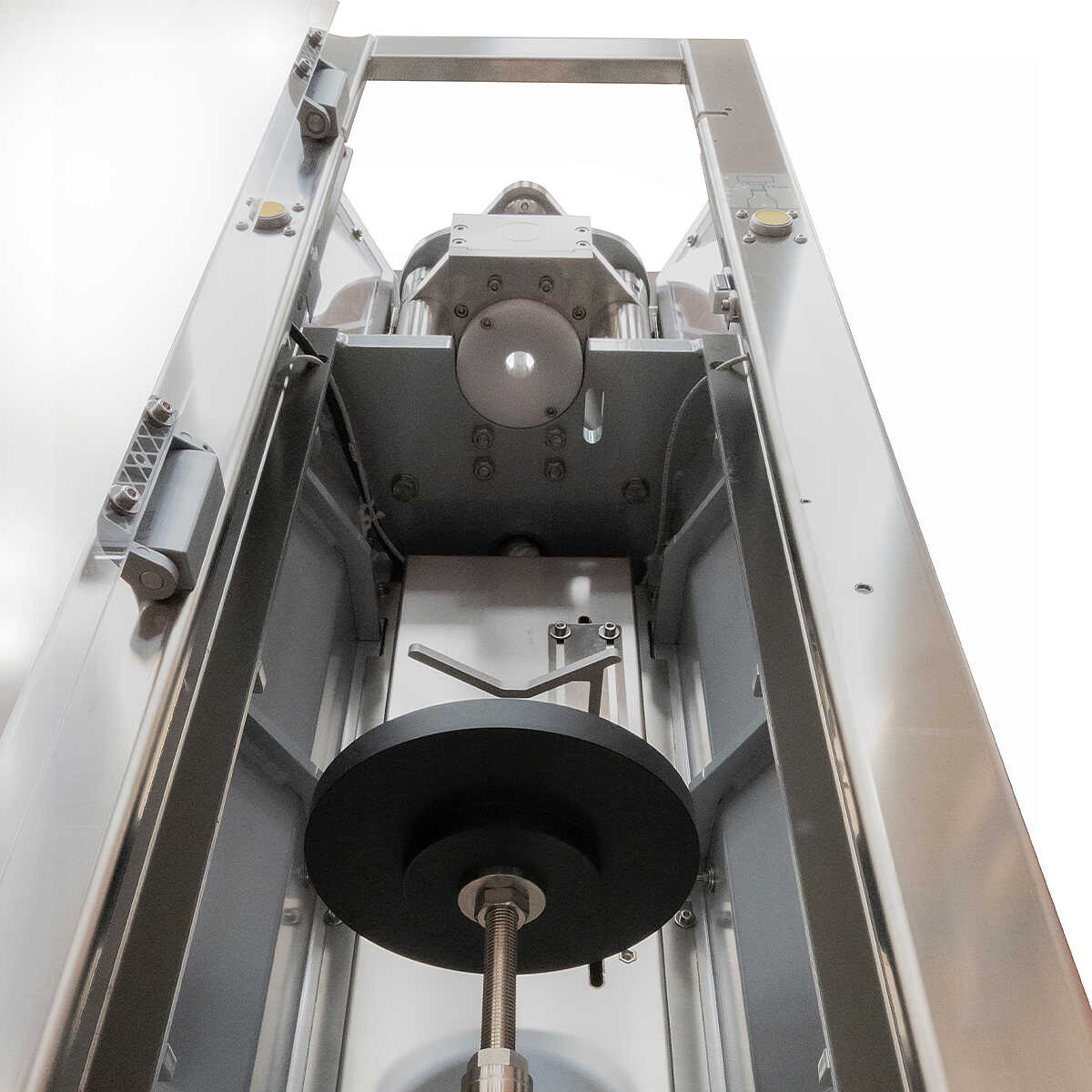

• Pneumatic bottle lifting piston
• Manual height adjustment for format change
• Stainless steel base

Technical specifications:

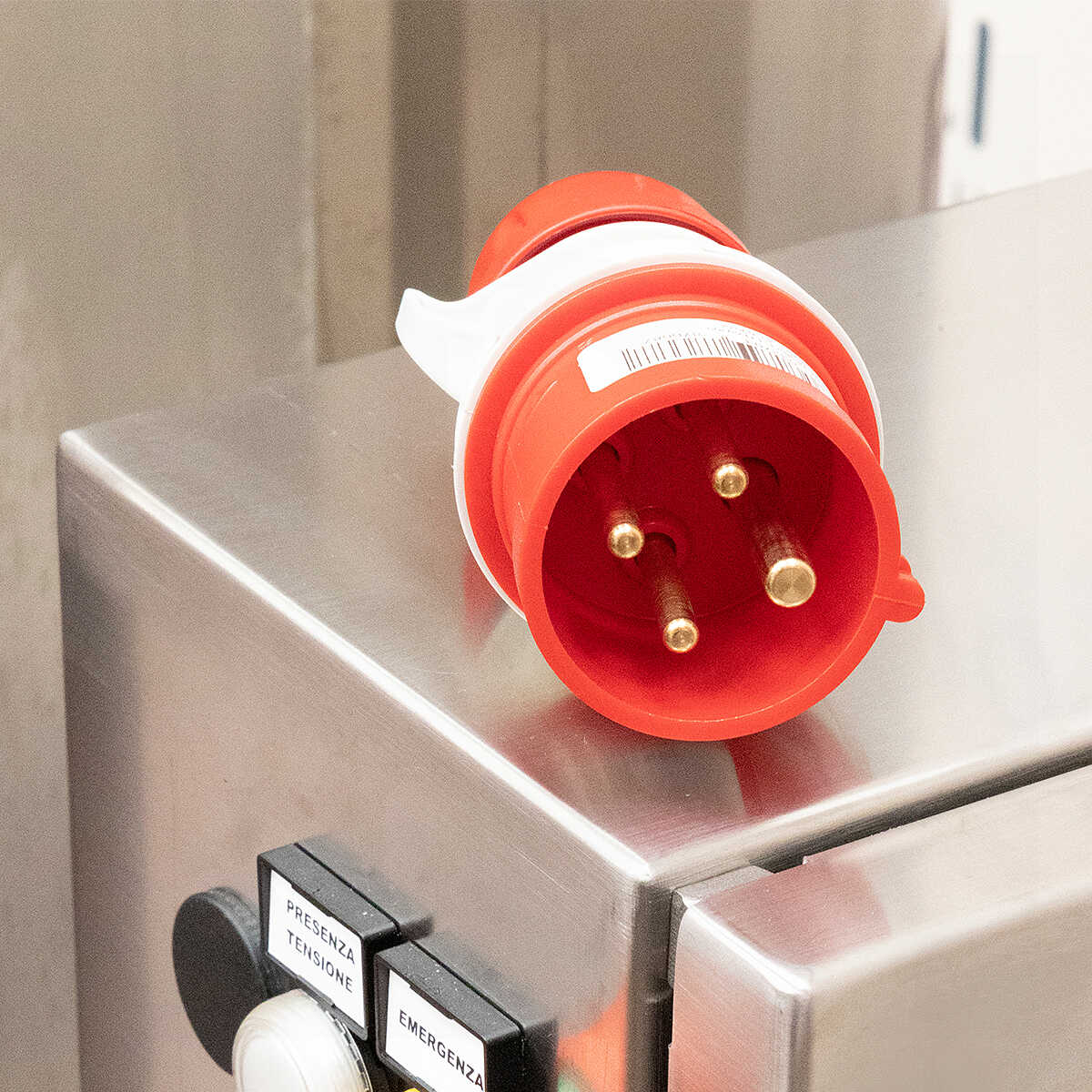

• Power supply: 380V three-phase, 50 Hz
• Installed power: 0.75 kW
• Minimum operating pressure: 6 bar
• Hose connection: Ø 10 mm
• Suitable for corking still wine
• Bottle type: 3-litre Magnum
• Bottle opening: 22 mm
• Cork type: Flush natural cork
• Cork diameter: Ø 32 mm
• Cork height: 40–50 mm
• Output: 200 bottles/hour

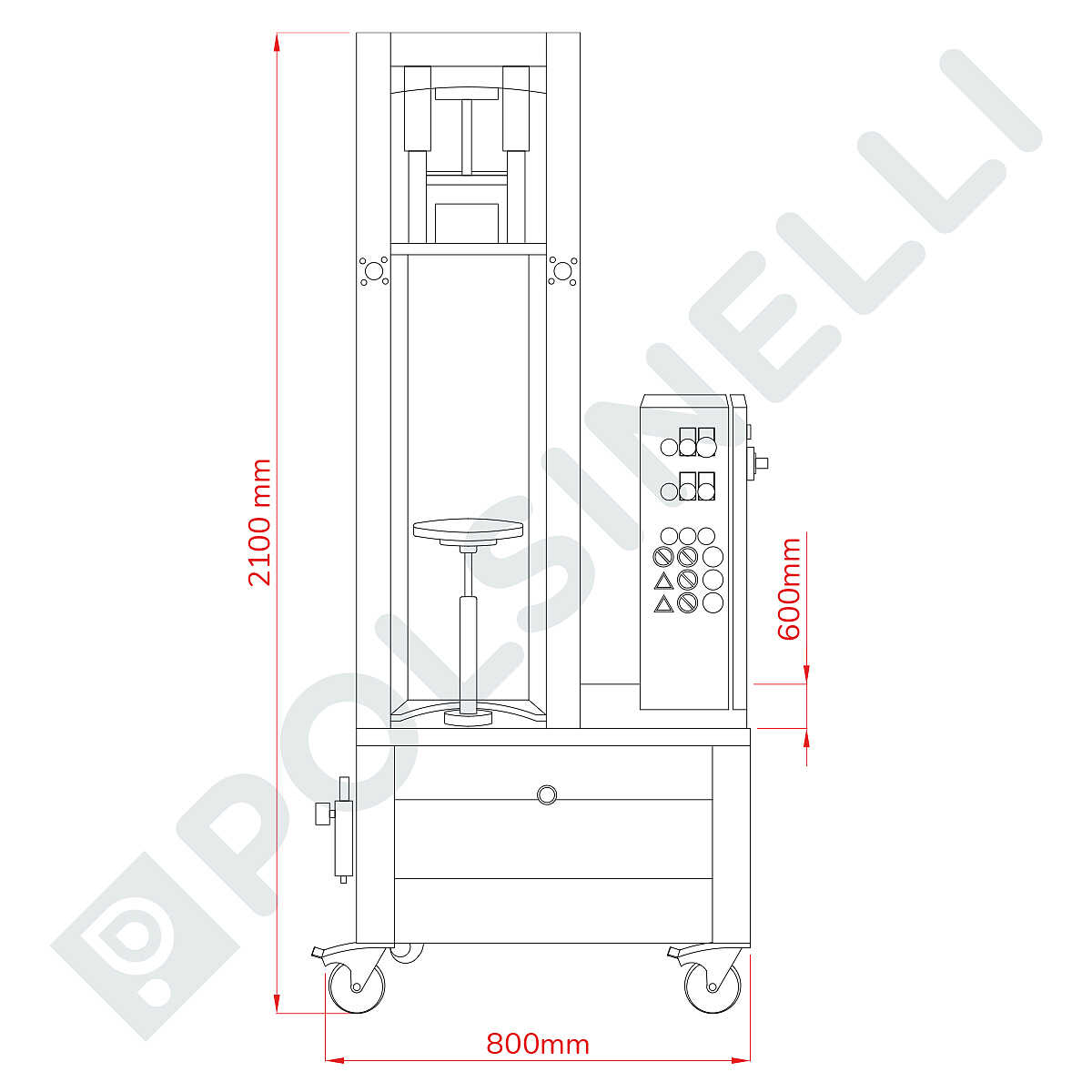

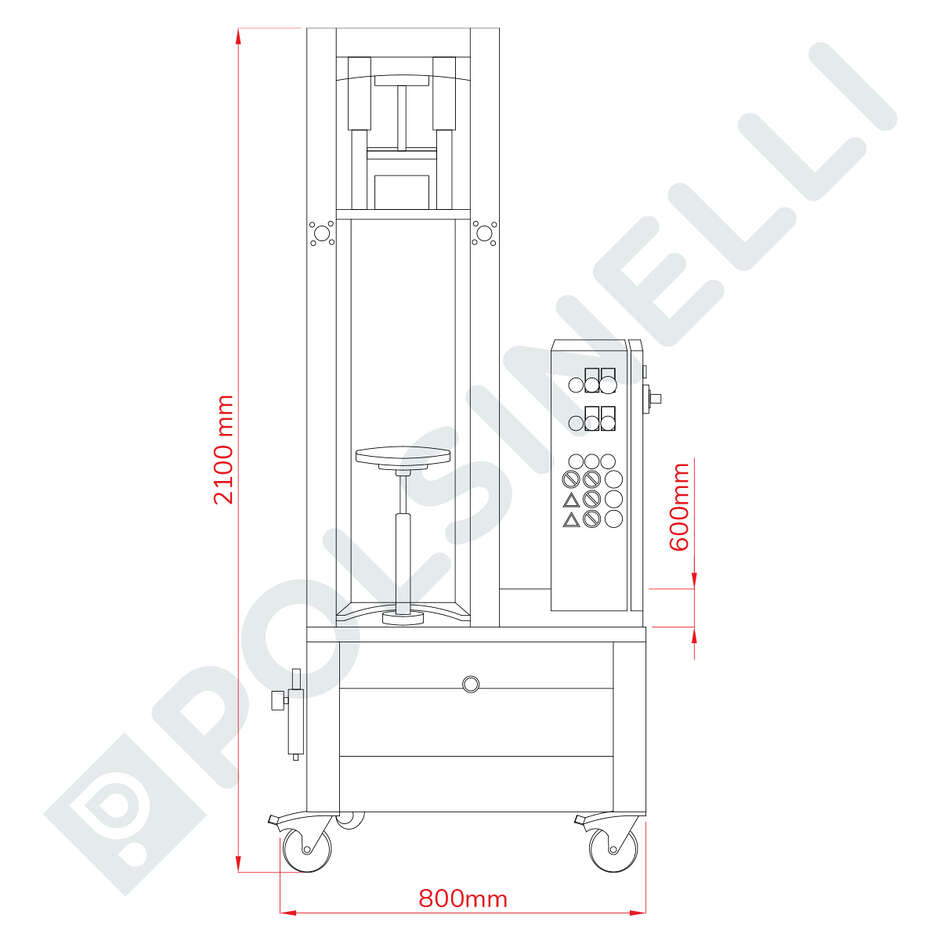

• Dimensions: 800 × 600 × 2100 (H) mm
• Weight: 190 kg

Optional accessories not included (to be purchased separately):

• Complete jaw assembly head for format change
• Inert gas injection system for corking machine
• Vacuum system for corking machine
