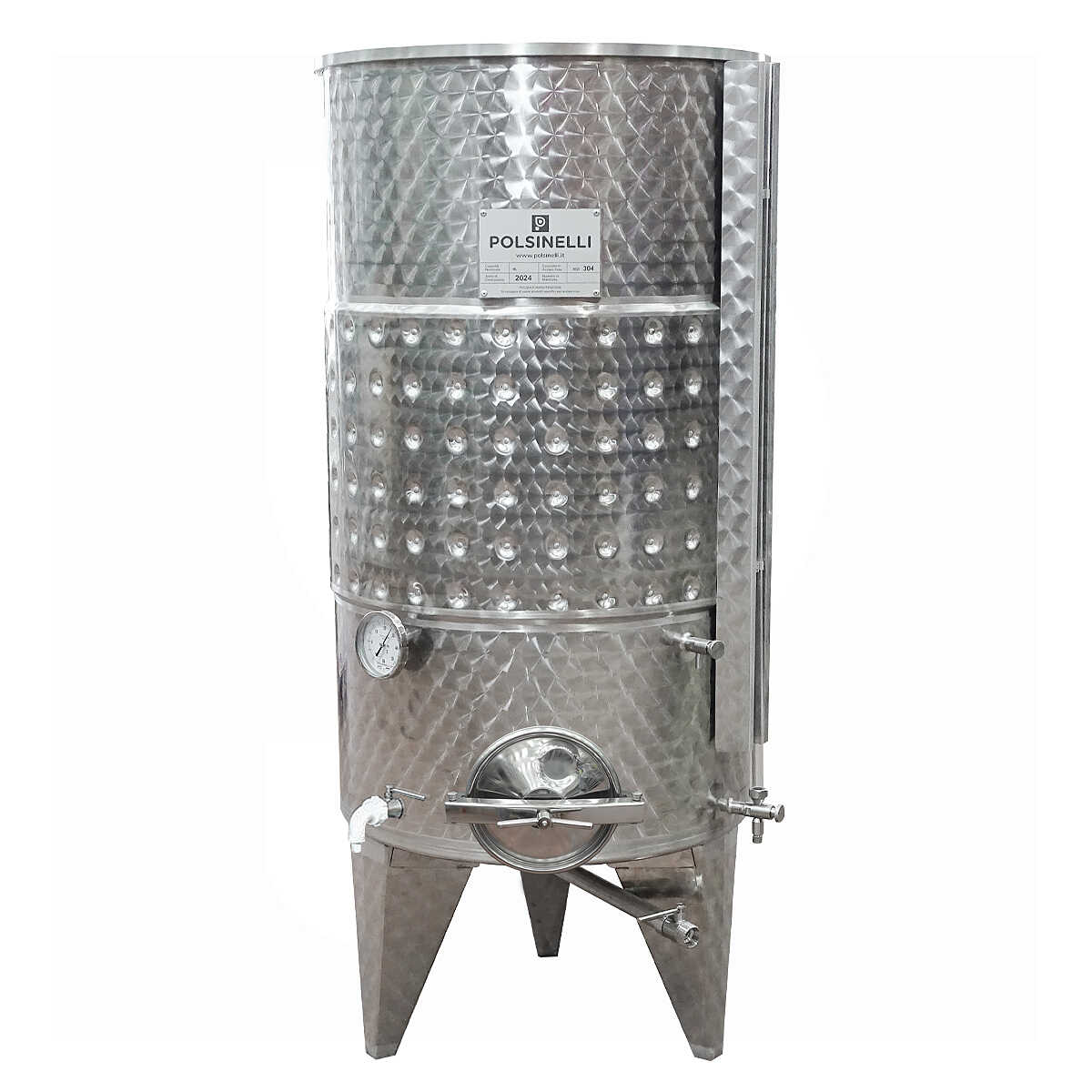

Refrigerated 500 L Stainless steel tank with conical bottom with air floating lid and Ø300 manhole

Refrigerated 500 L Stainless steel tank with a conical bottom with air floating lid and Ø300 mm manhole

Steel containers are today's best choice for storing and fermenting wine and beer, and the 500-litre stainless steel tank with conical bottom and air float provides excellent support for your production.

Thanks to the solid frame and the special shape of the bottom inclined by 10°, the 500-litre stainless steel tank with air float allows you to take advantage of all the benefits of a high-quality metal container for wine and beer. This product is easy to clean and preserves the organoleptic characteristics of its contents. The AISI 304 stainless steel also boasts excellent thermal conductivity and makes it possible to optimise the yield of the coolant to be inserted through the special pocket.

The 500-litre stainless steel tank is equipped with an analogue thermometer for temperature control, probe holder, wine tasting tap and practical scale holder. The level indicator precisely indicates the amount of liquid contained, while the lid with air float allows the product to be perfectly insulated. The round manhole, with 300 diameter, allows to easily empty the tank.

The walls and bottom of the 500-litre conical bottom stainless steel tank are 2 and 1,5 mm thick. Overall, the product is 1650 mm high and has a diameter of 720 mm. The interior is mirror polished, while the exterior surfaces are flocked with satin welds.

Characteristics:

• Material: AISI 304 stainless steel
• Capacity: 500 L
• Mirror polished internal finishes
• Satin-brushed external finishings
• Conical bottom inclined at 10° with reinforcements

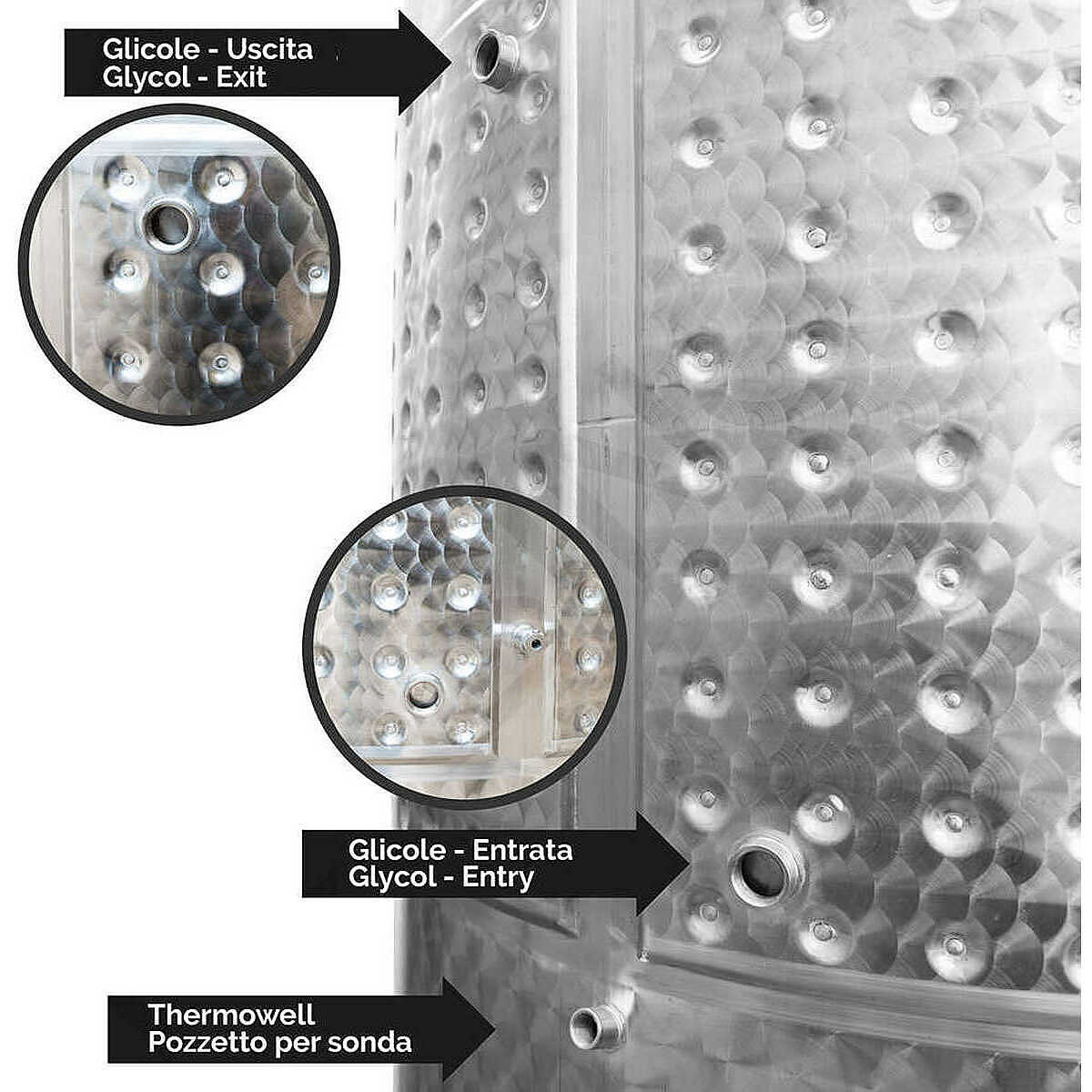

• Refrigeration pocket with 1" connections for coolant inlet and outlet

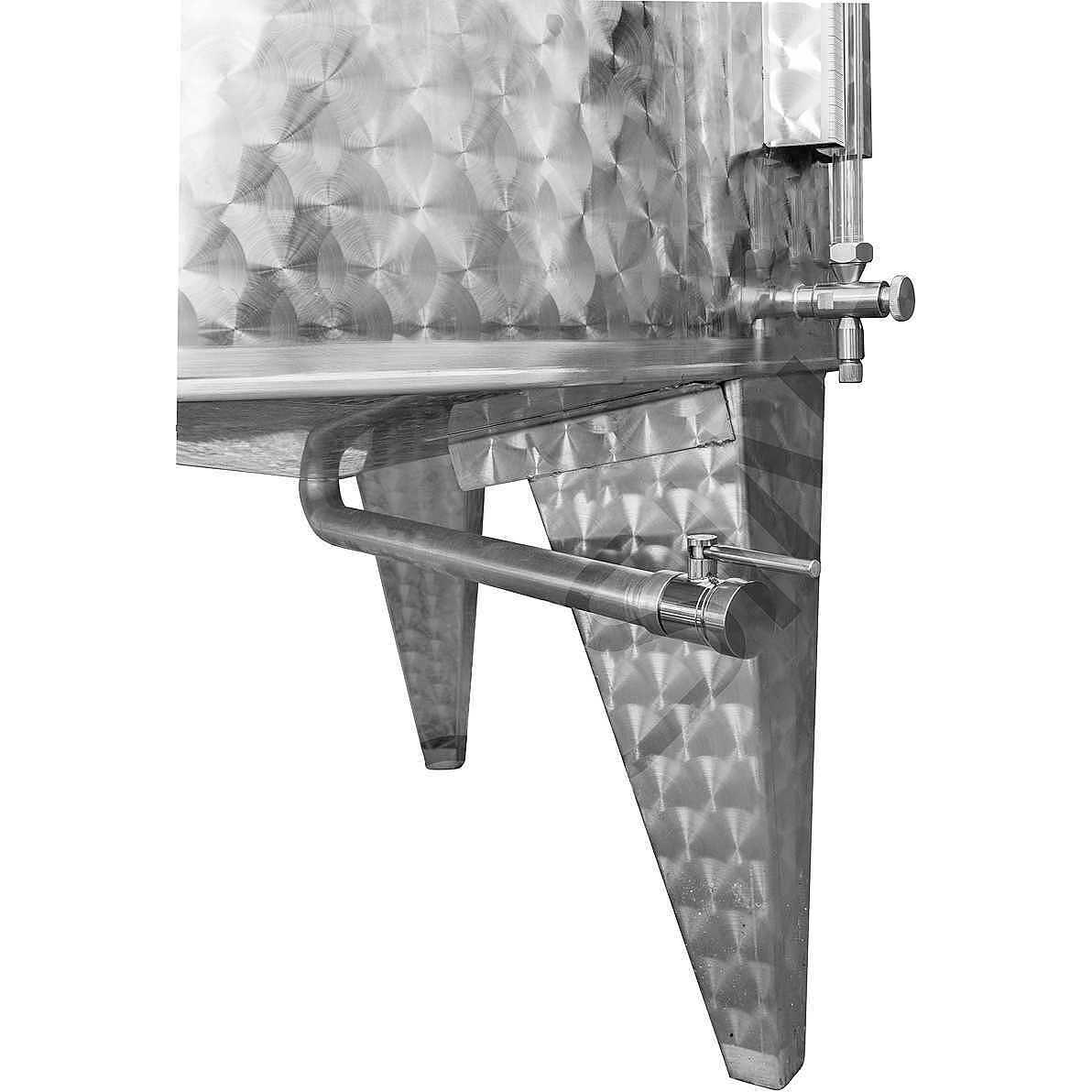

• Total drain with 1" valve x ENO 30

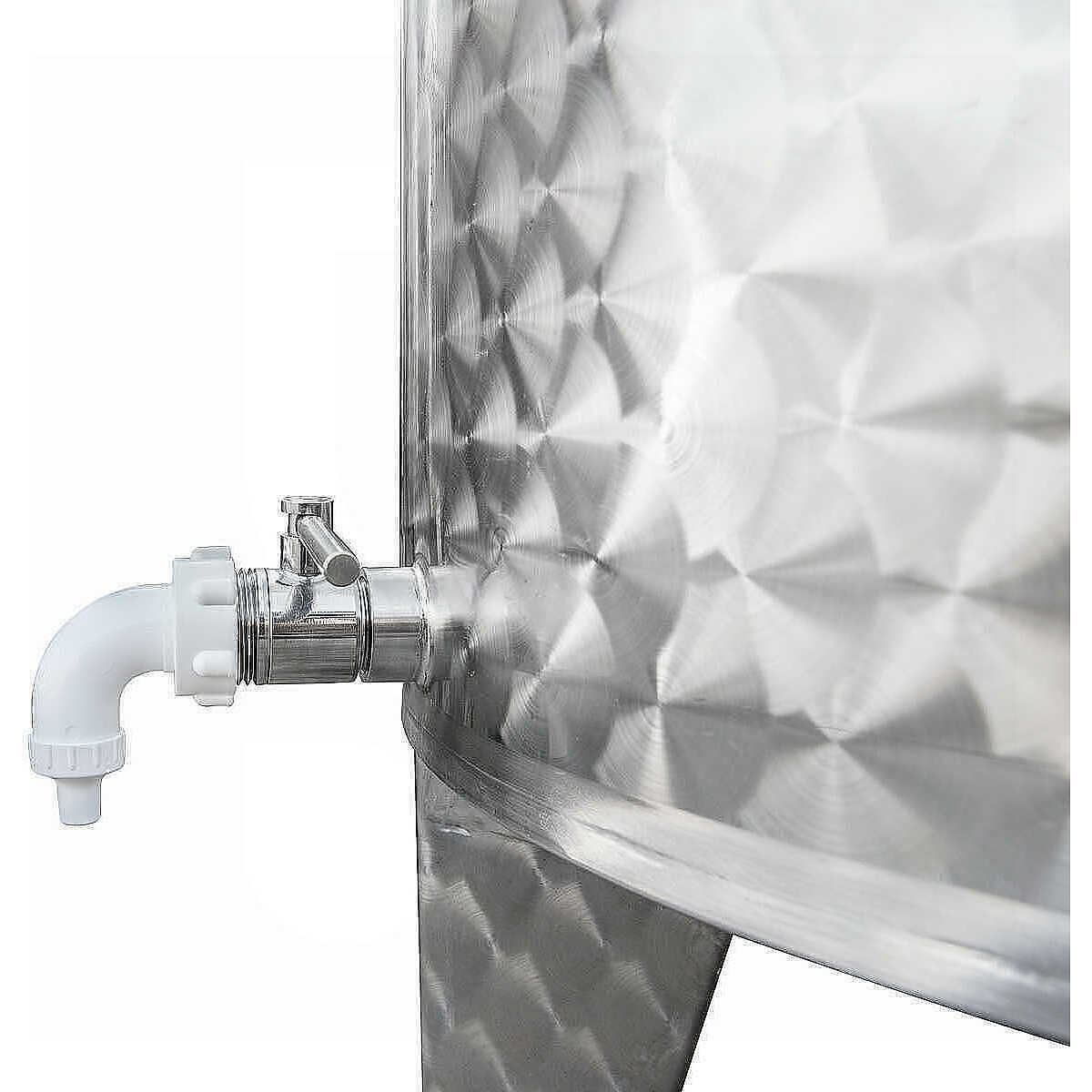

• Partial drain with stainless steel valve and plastic elbow 1" x ENO 30

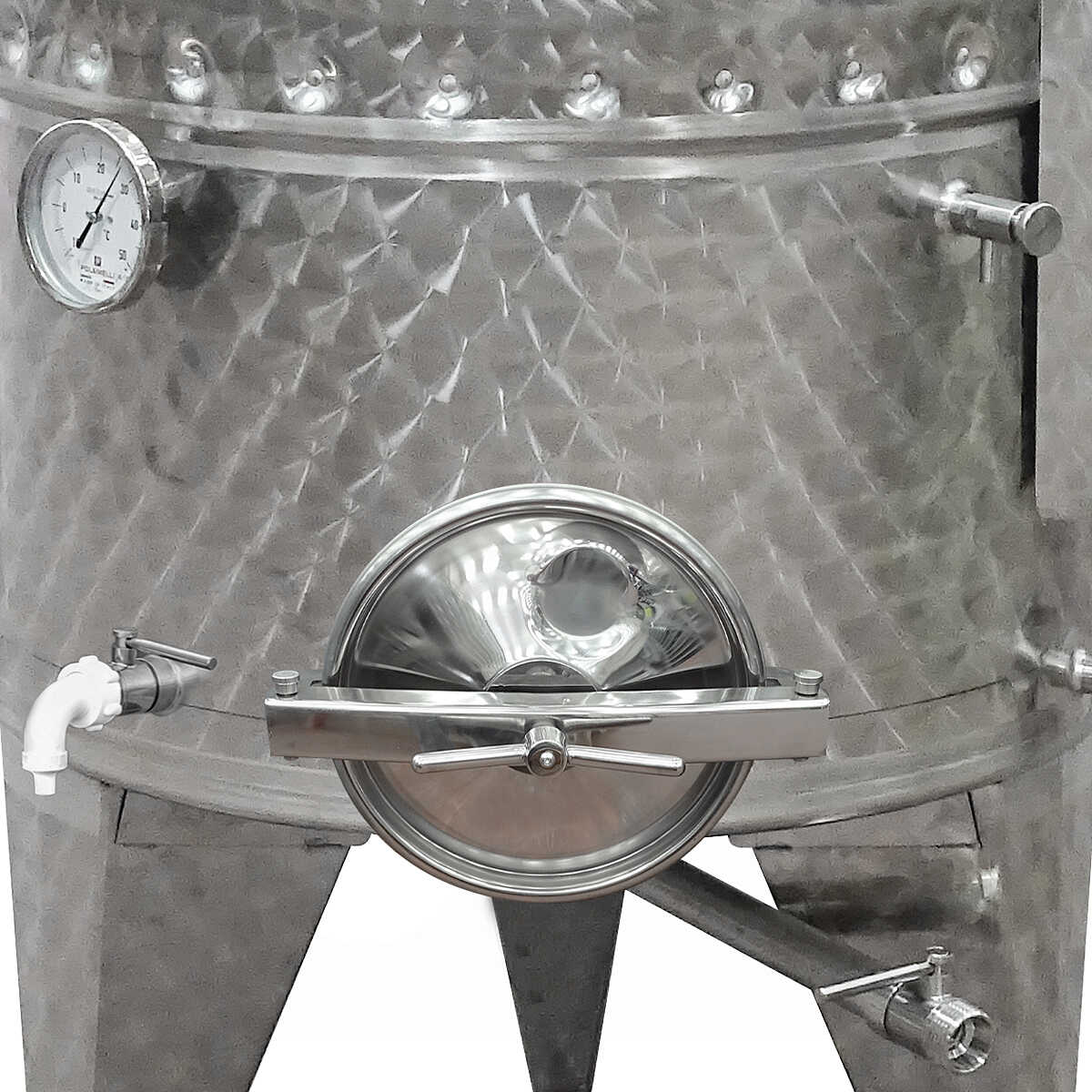

• Analogue thermometer
• 3 stainless steel feet

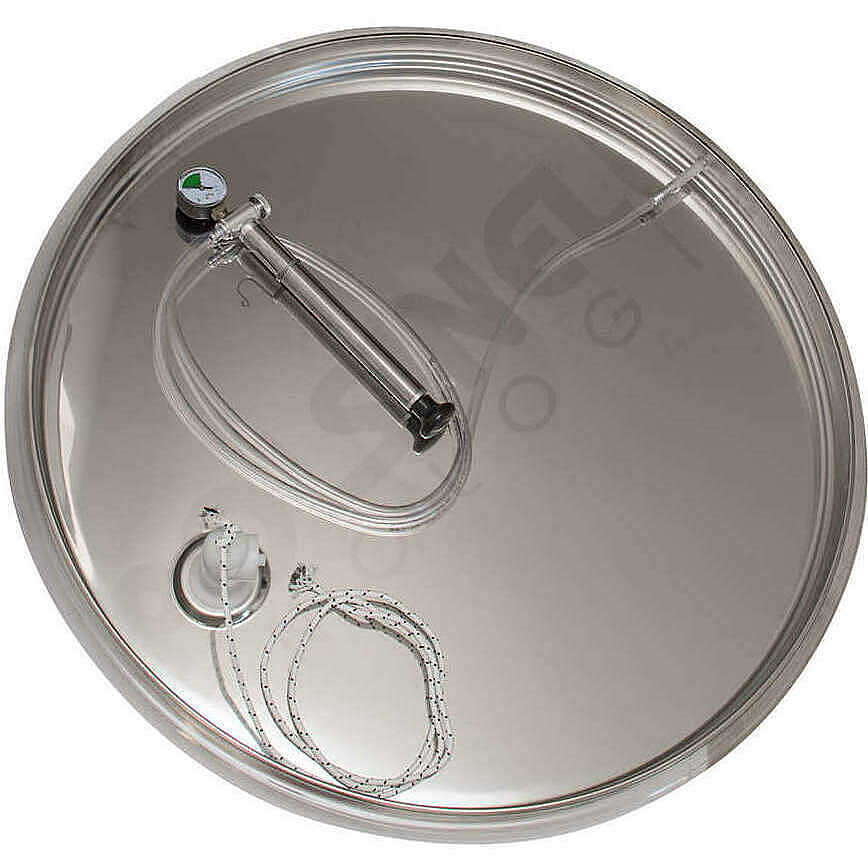

• Stainless steel air float complete with transparent food-grade plastic air chamber
• Double-acting plastic vent valve
• Analogue thermometer with stainless steel thermowell

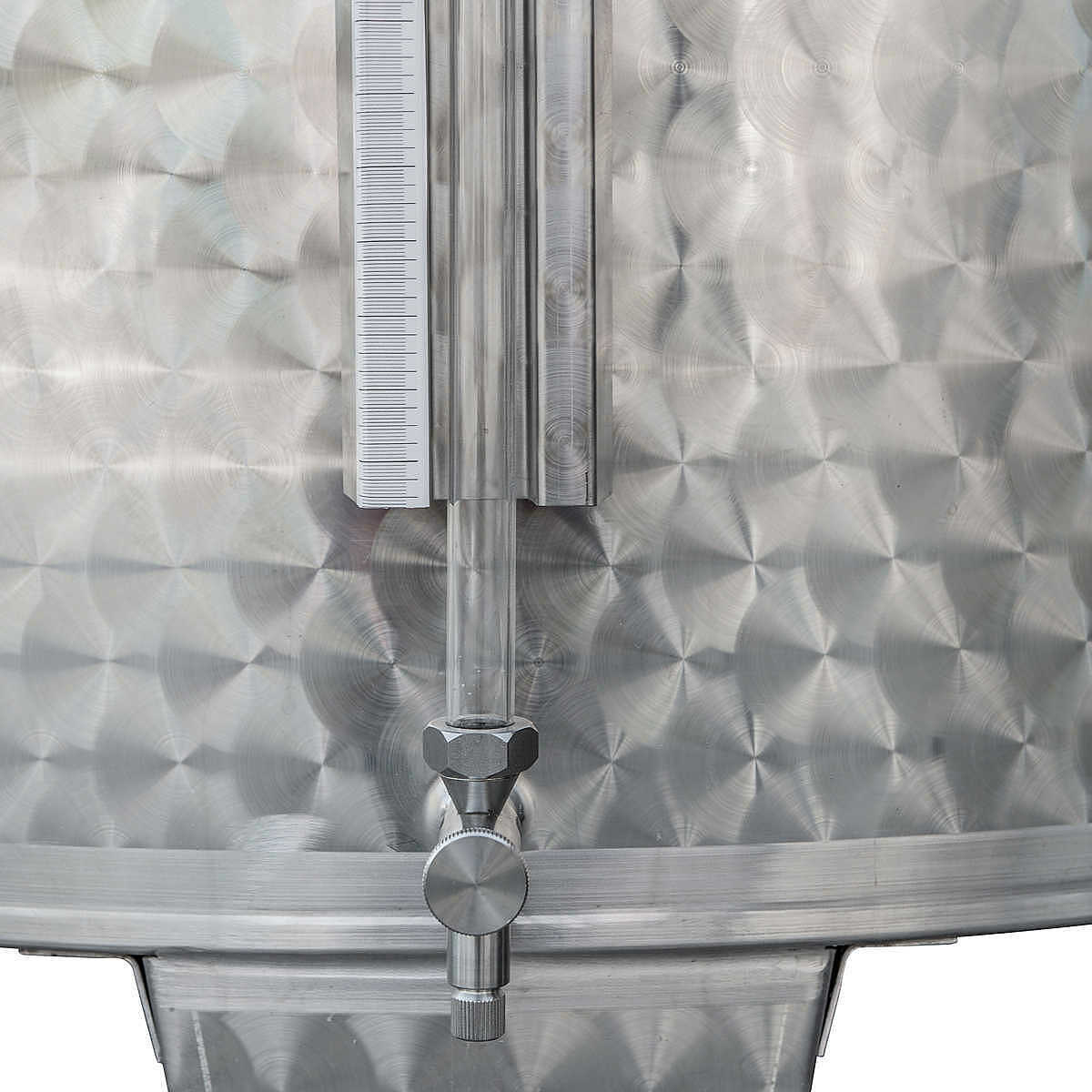

• Level indicator with stainless steel protection

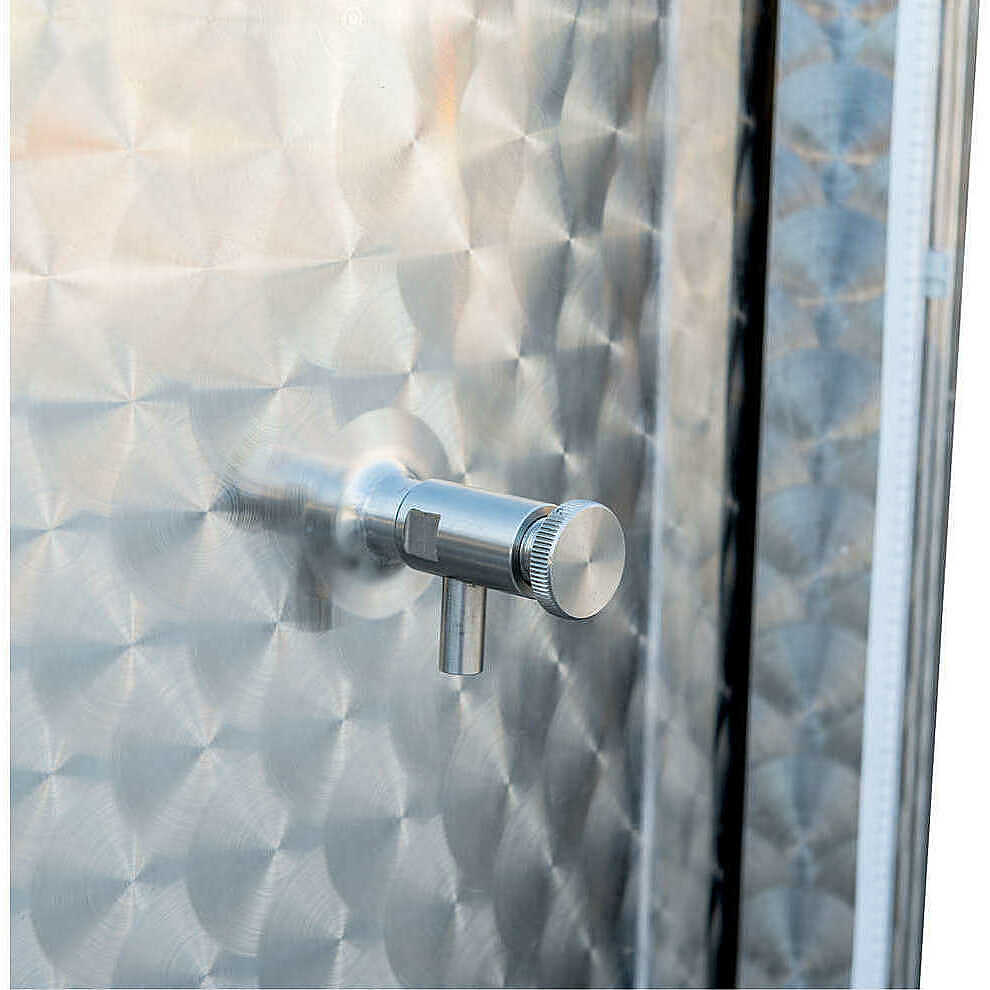

• Stainless steel wine taster

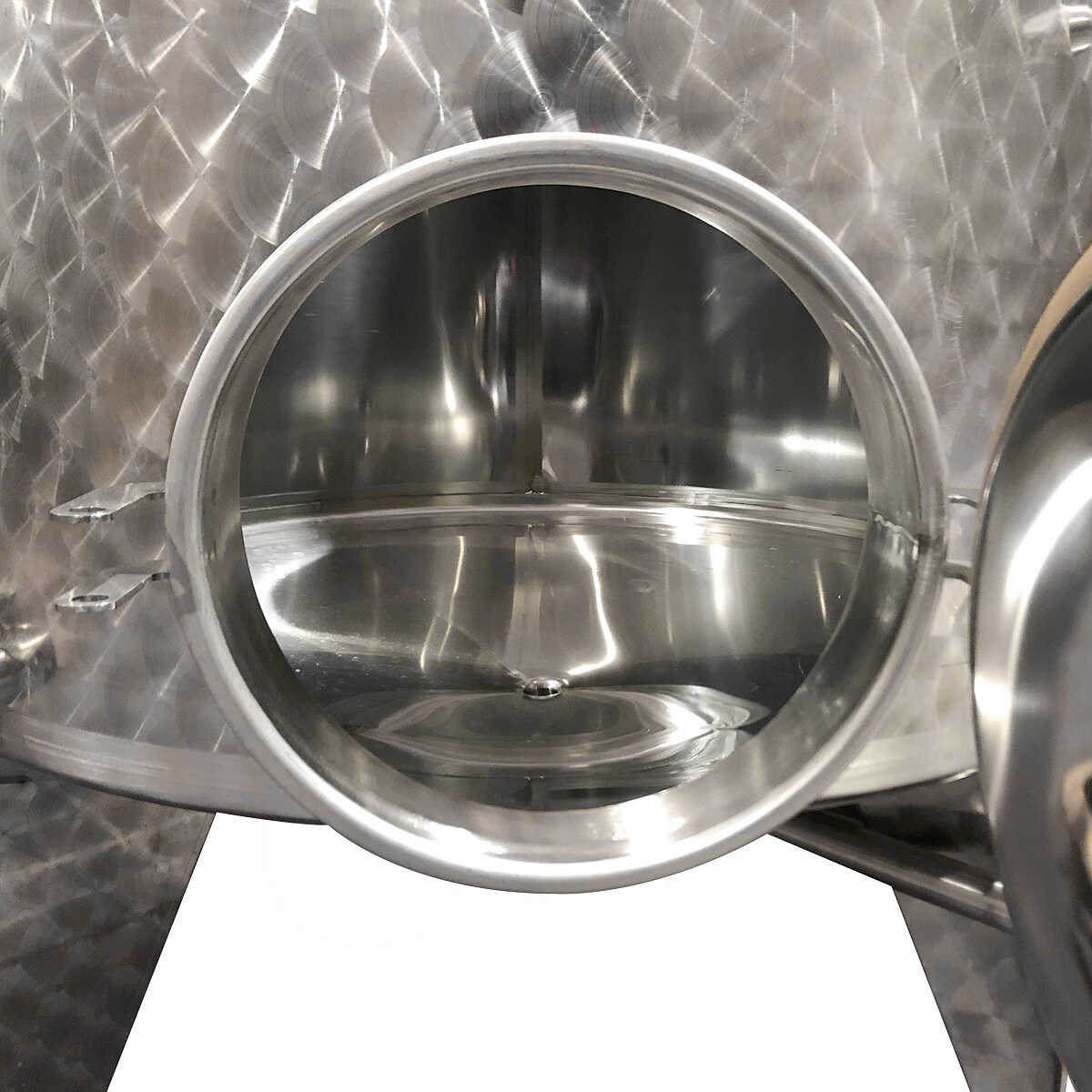

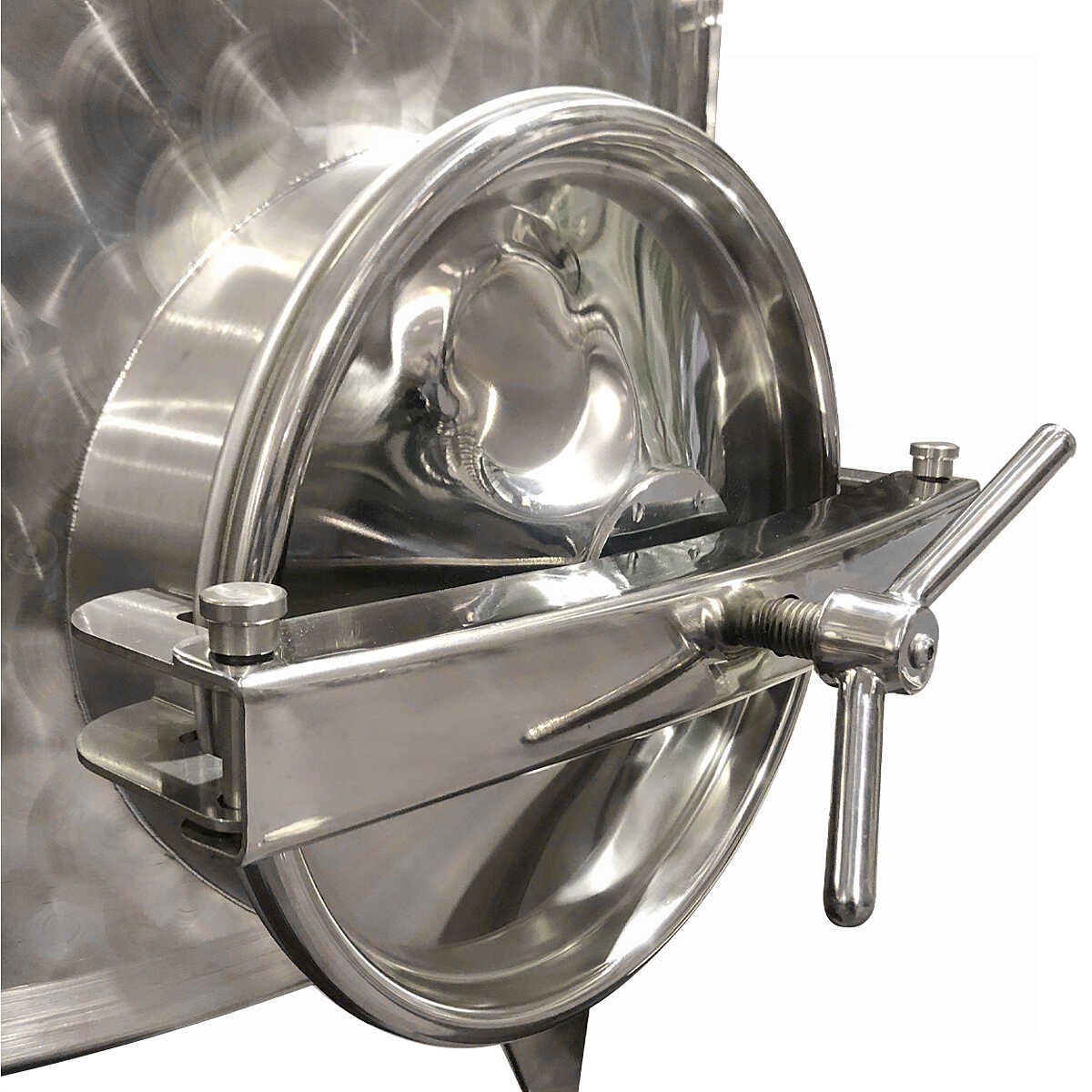

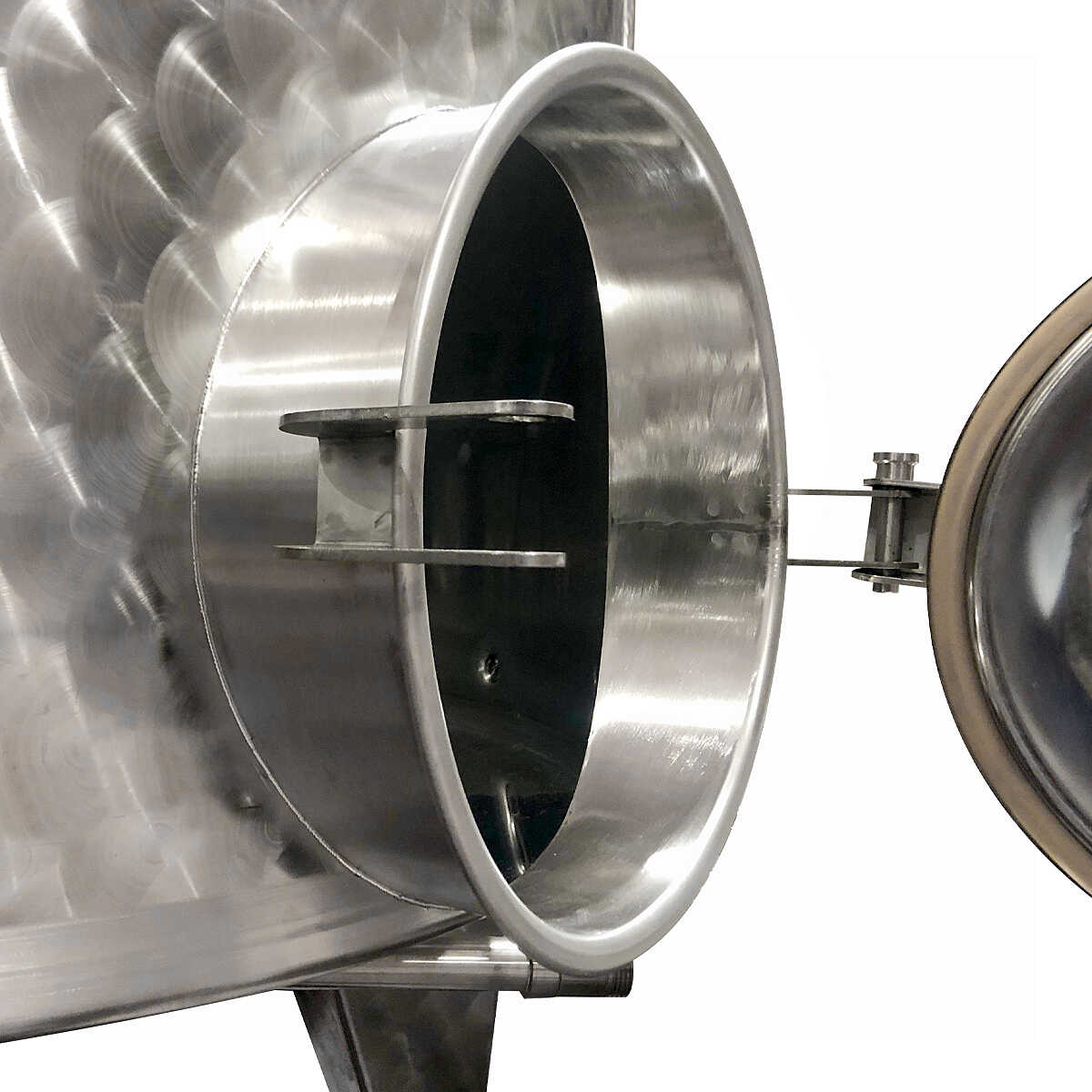

• Round 300 mm door, flush with the bottom for easy emptying of the marc
• Apparatus complying with CE safety standards

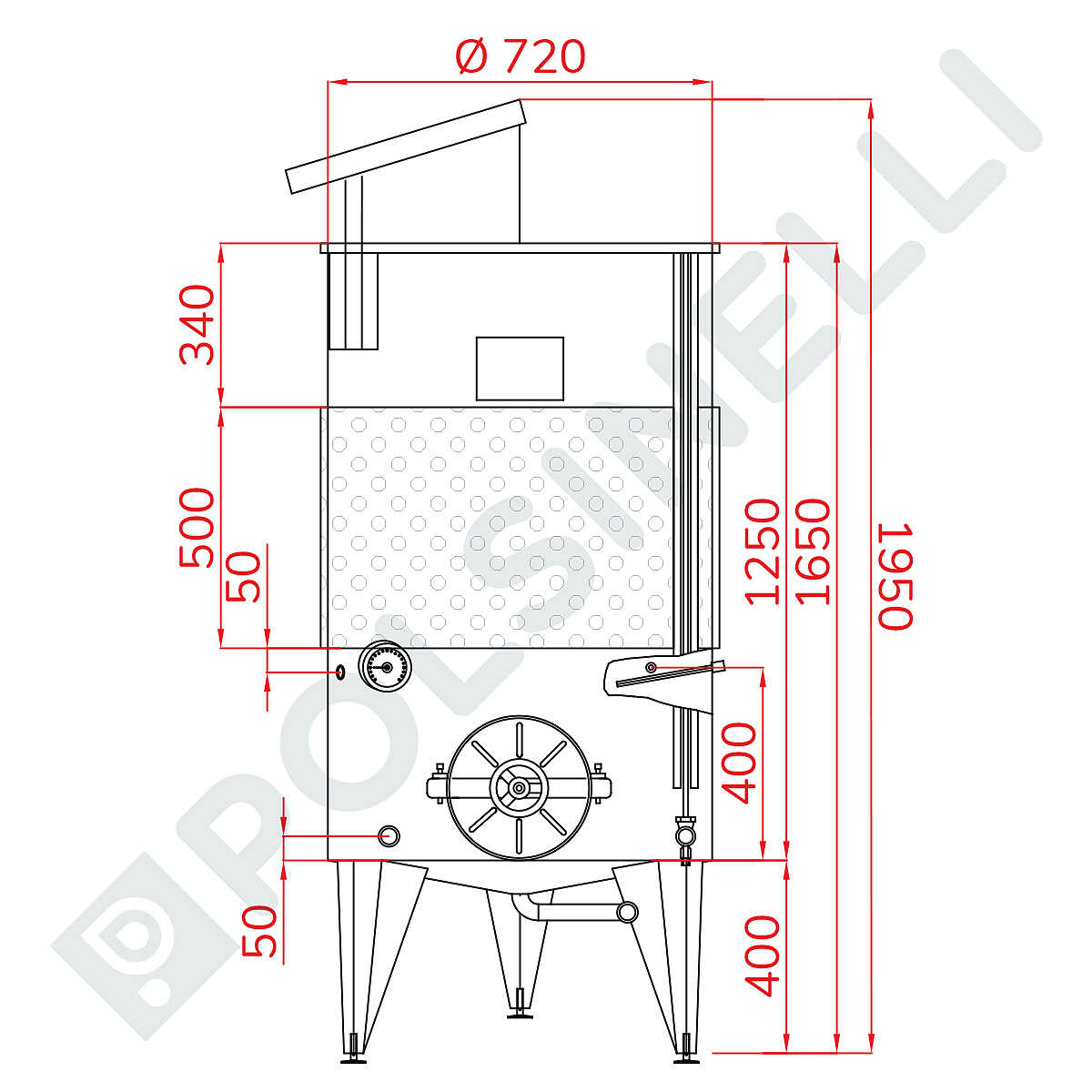

Dimensions:

• Diameter: 720 mm
• Door diameter: 300 mm
• Screw height: 1250 mm
• Foot height: 400 mm
• Height with feet and sash: 1650 mm
• Total height: 1950 mm

Thickness:

• Walls: 2 mm
• Bottom: 1,5 mm
