Motorized stainless steel tank 60° conical trunk 50 L

Motorized stainless steel tank 60° conical trunk 50 L

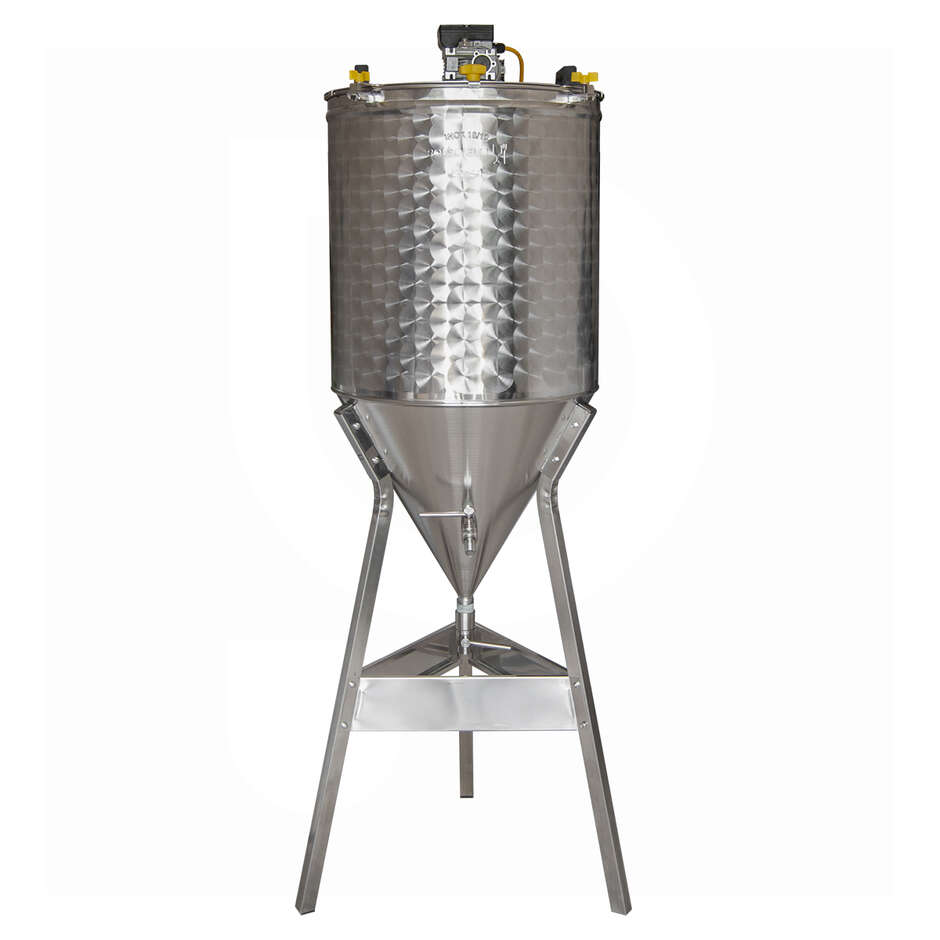

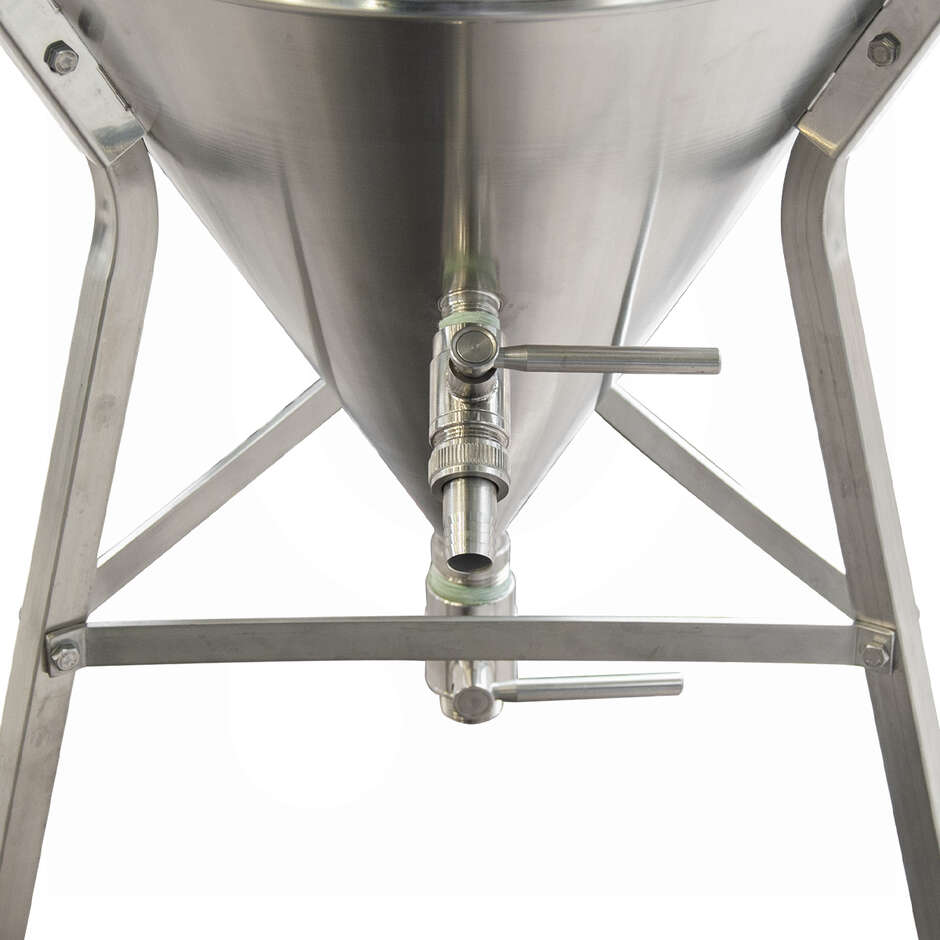

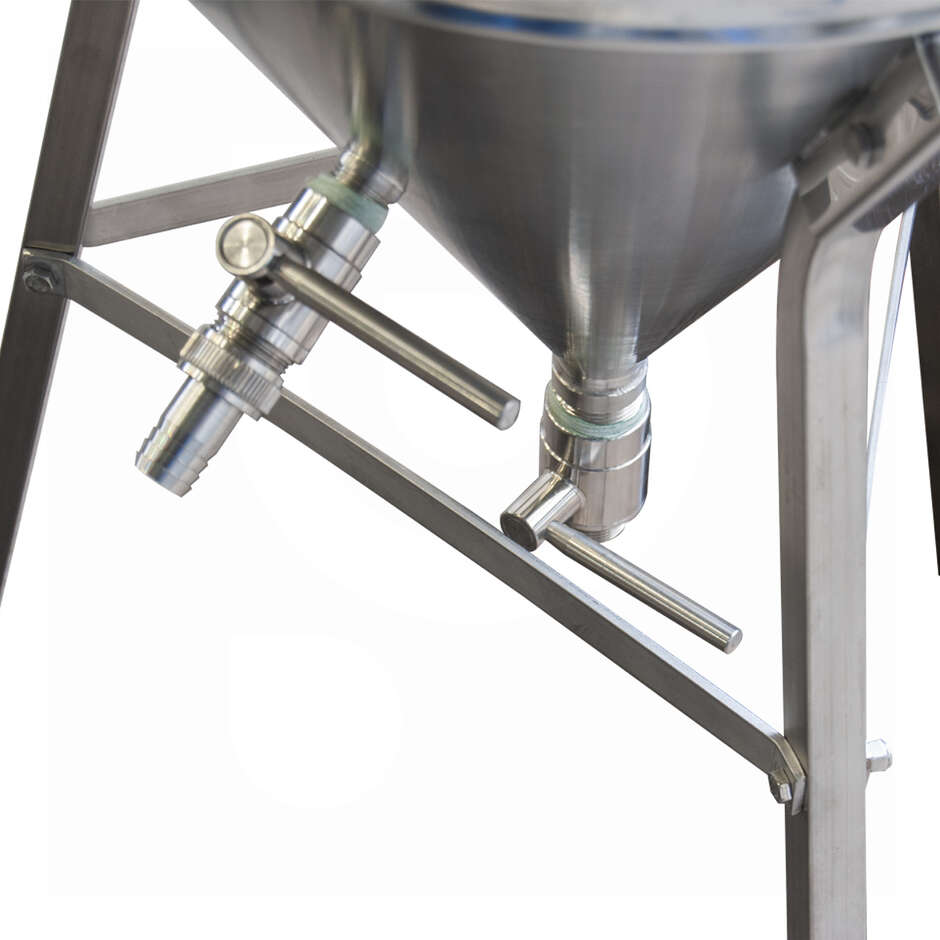

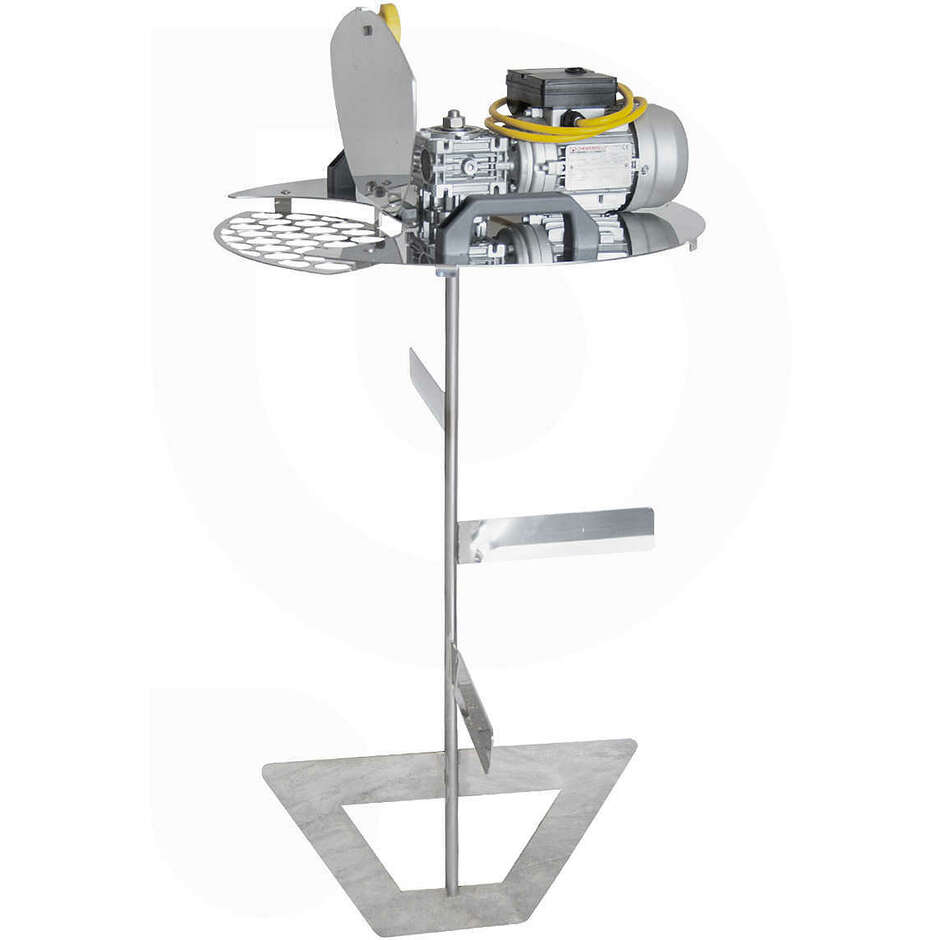

With the 50 L motorised 60° conical stainless steel tank you can easily mix your liquids. Made of Aisi 304 stainless steel (18/10 for foodstuffs), it complies with all food safety regulations. The 50 litre motor-driven 60° conical stainless steel tank is equipped with a thick stainless steel lid reinforced with stainless steel hooks, a 220 Volt motor with speed reducer and mixing blades. It is also equipped with two stainless steel ball valves, one 1" for total discharge and the other 1/2" raised from the bottom, for drawing off the liquid without sediment.

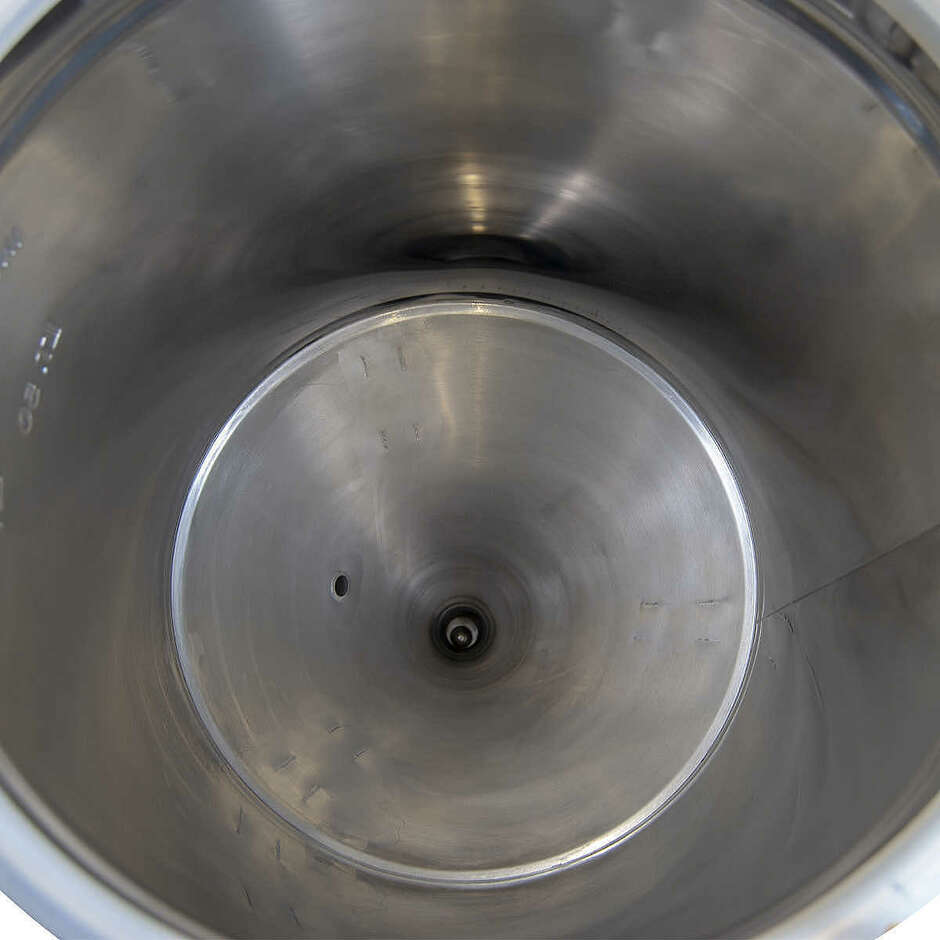

The 60° conical trunk facilitates the extraction of sediment that settles at the bottom of the cone, allowing for greater cleaning. TIG welds facilitate cleaning and sanitising operations thanks to the mirror-polished interior. Excellent stability thanks to the integrated pedestal.

Characteristics:

• Material: Stainless steel 18/10 (AISI 304)
• High-thickness stainless steel lid reinforced with stainless steel hooks
• 220 Volt motor
• Gear motor
• Stainless steel mashing blades
• 1" x 3/4" total discharge valve
• 1/2" x 3/4" withdrawal valve
• No. 1 3/4" x Ø 20 stainless steel hose connector with swivel connection
• External flowering
• 60° conical bottom
• Integrated pedestal
• Luminaire complies with CE safety standards

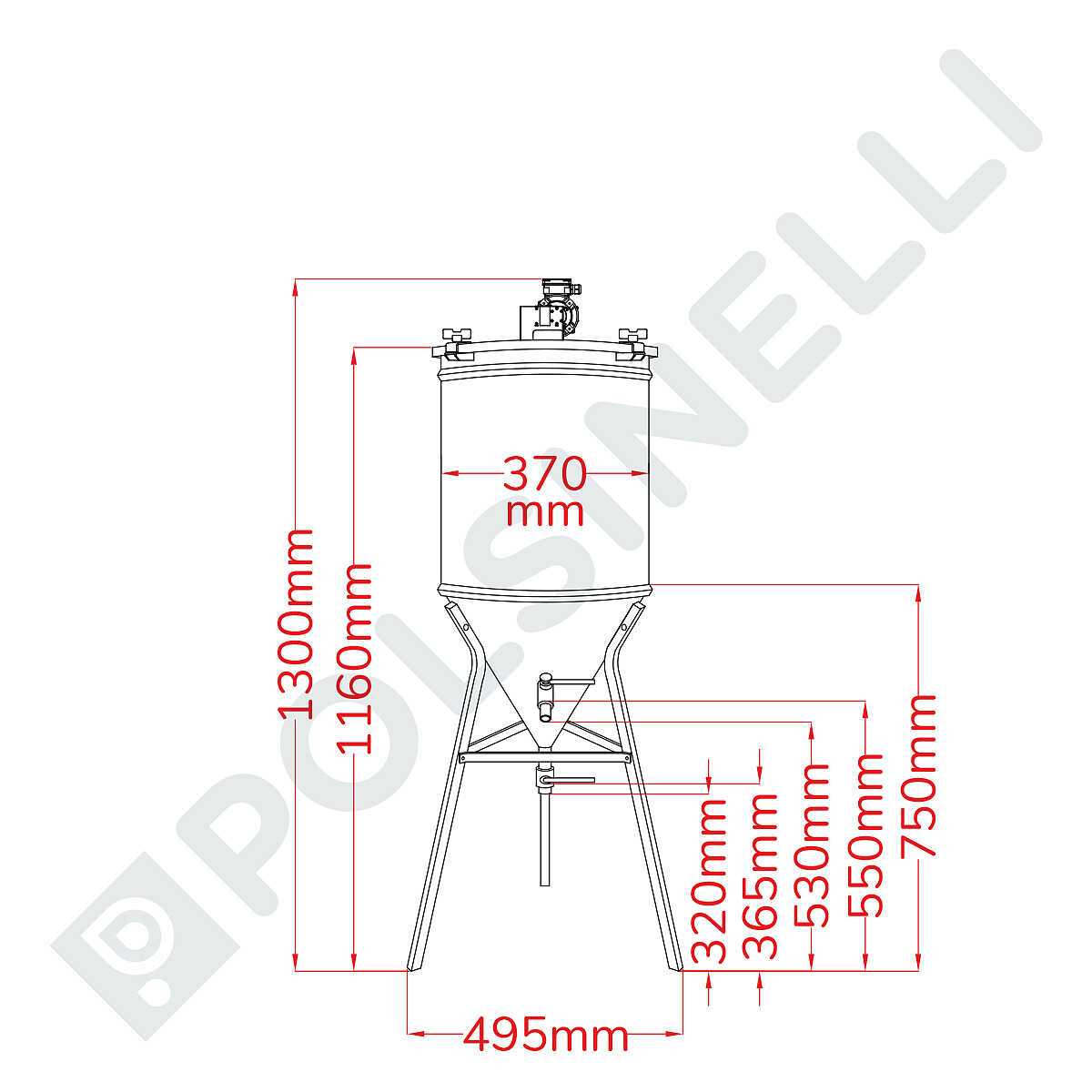

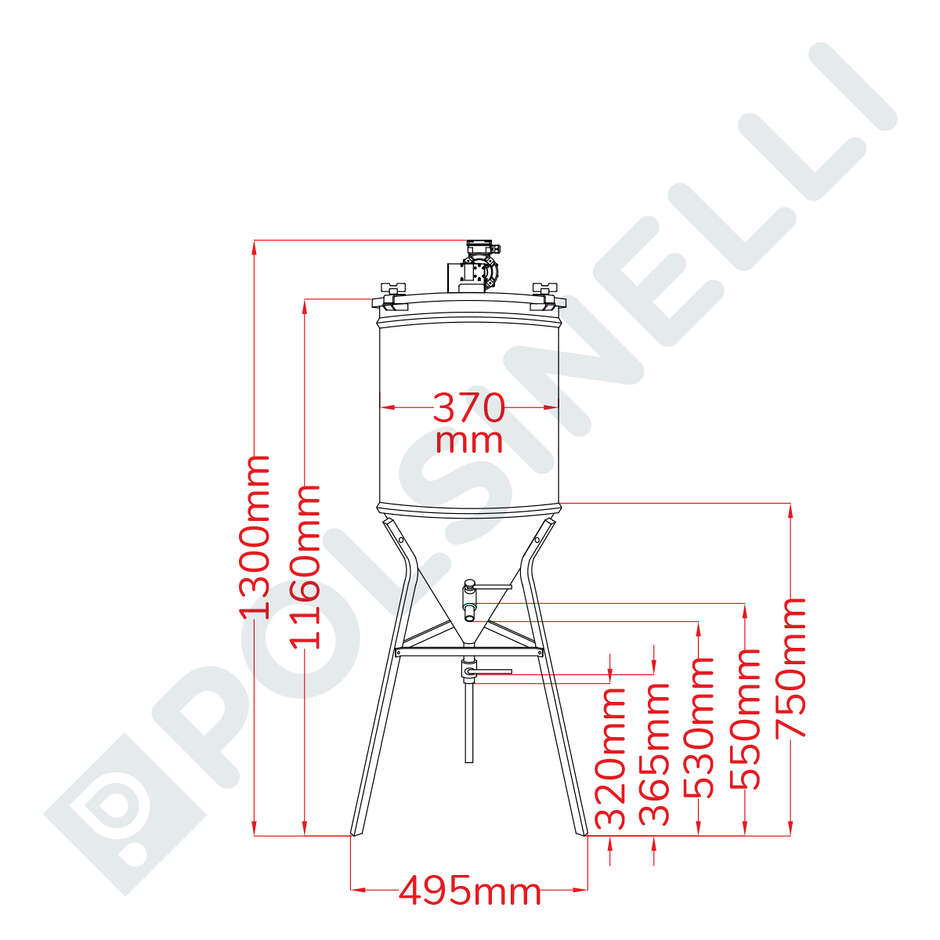

Dimensions:

• Height of the cylinder: mm 416
• Height of the cylinder plus conical bottom: mm 736
• Tank diameter: mm 370
• Overall dimensions: 495x495x1300h

Instructions for the correct assembly of the tap
