Jolly 20 Press Filter
Description

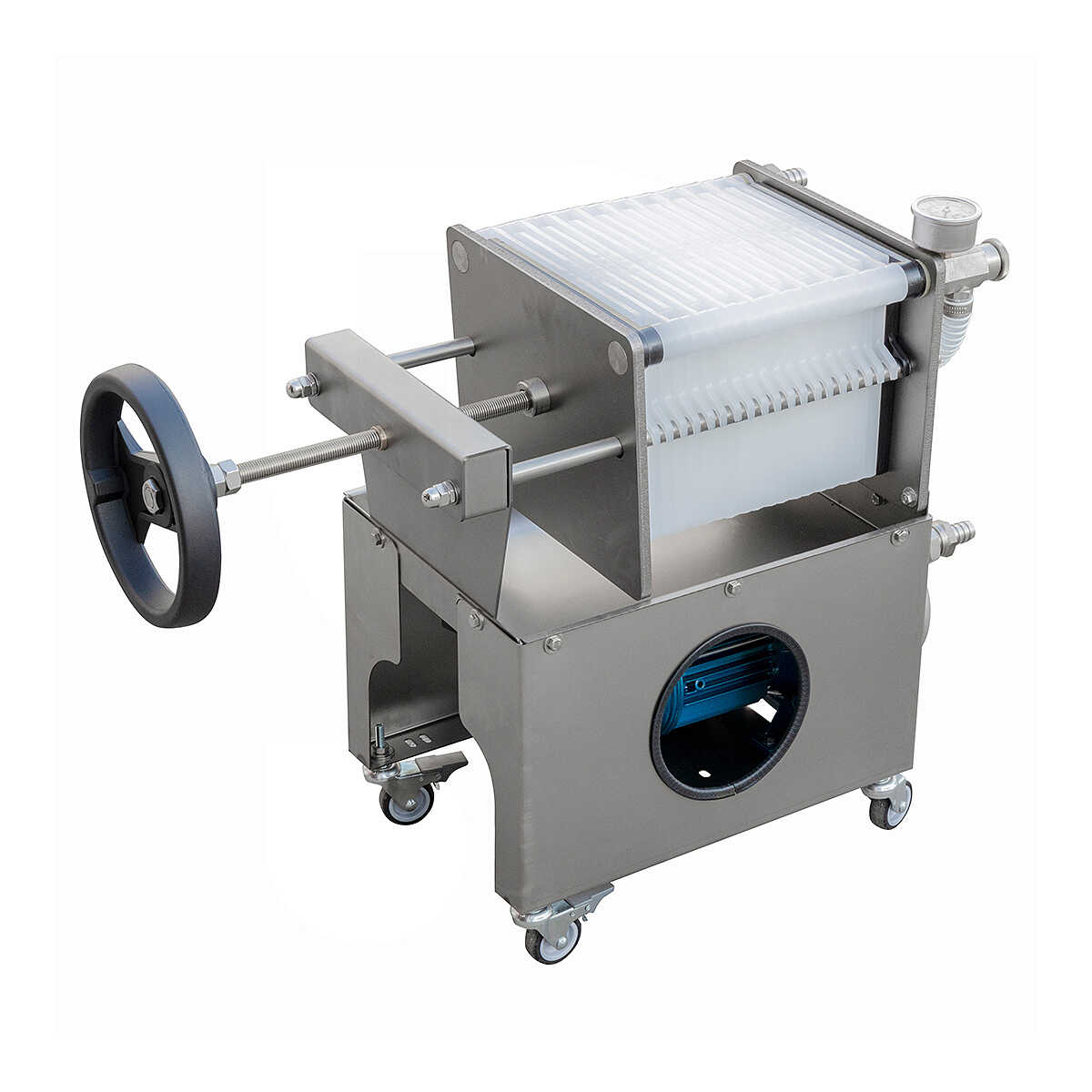

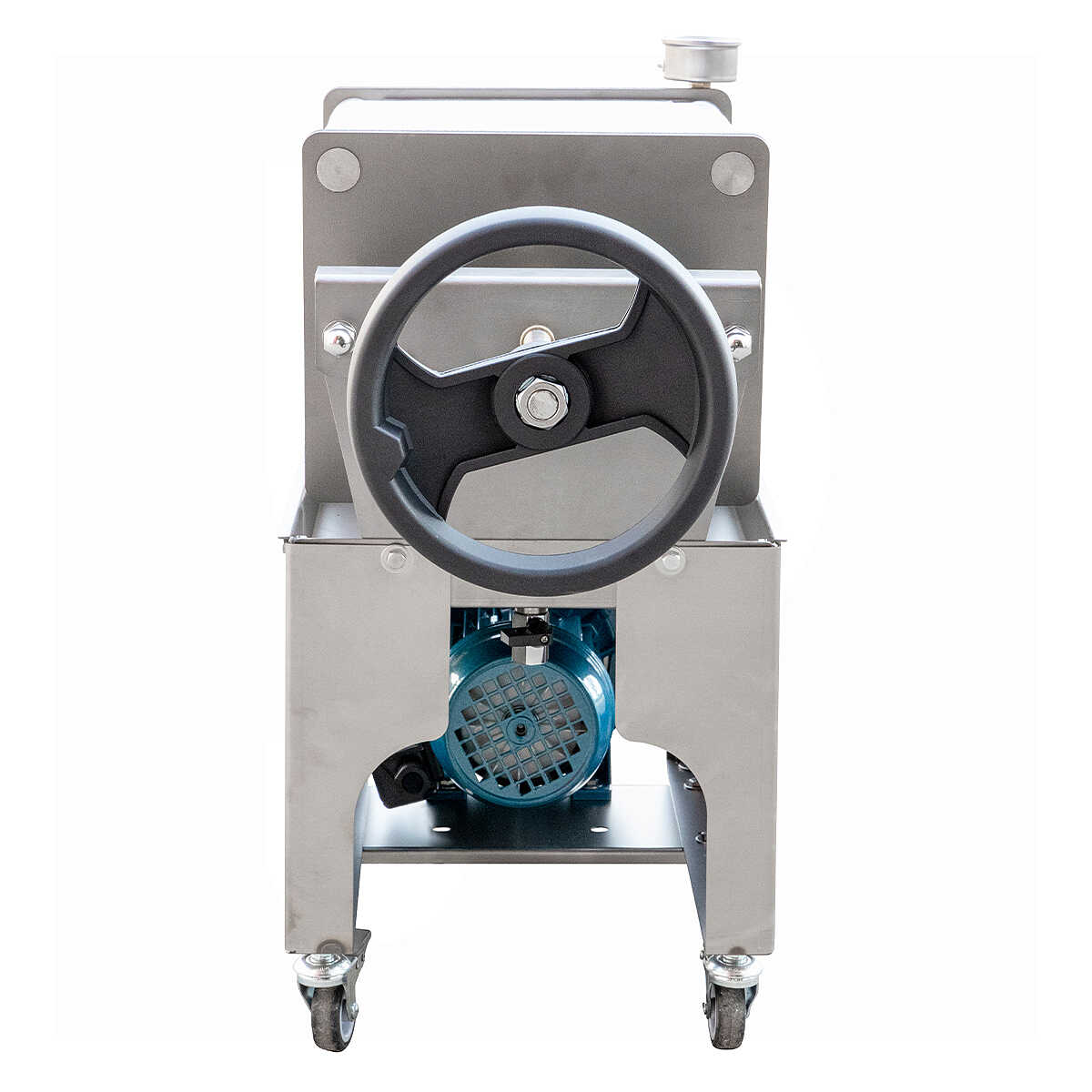

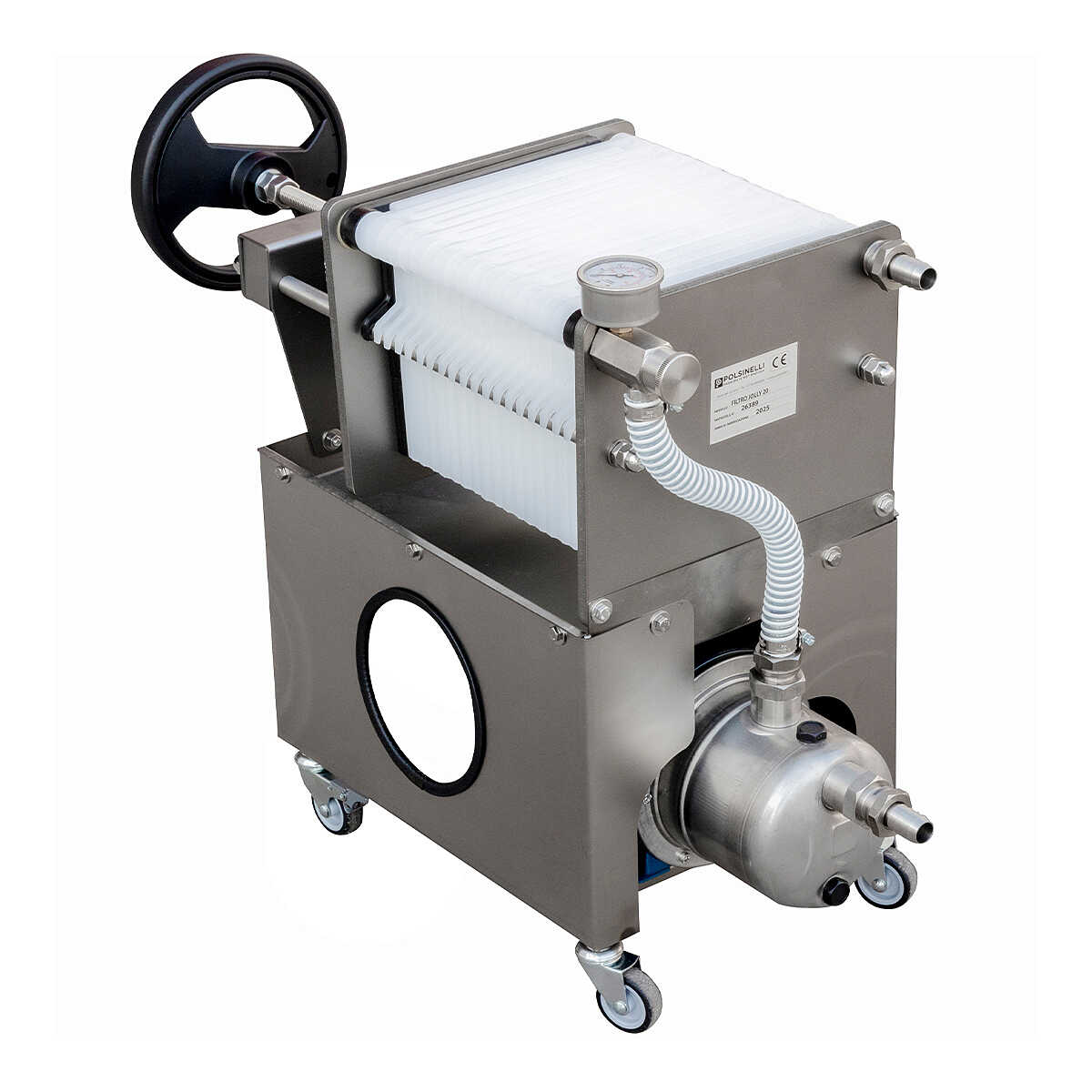

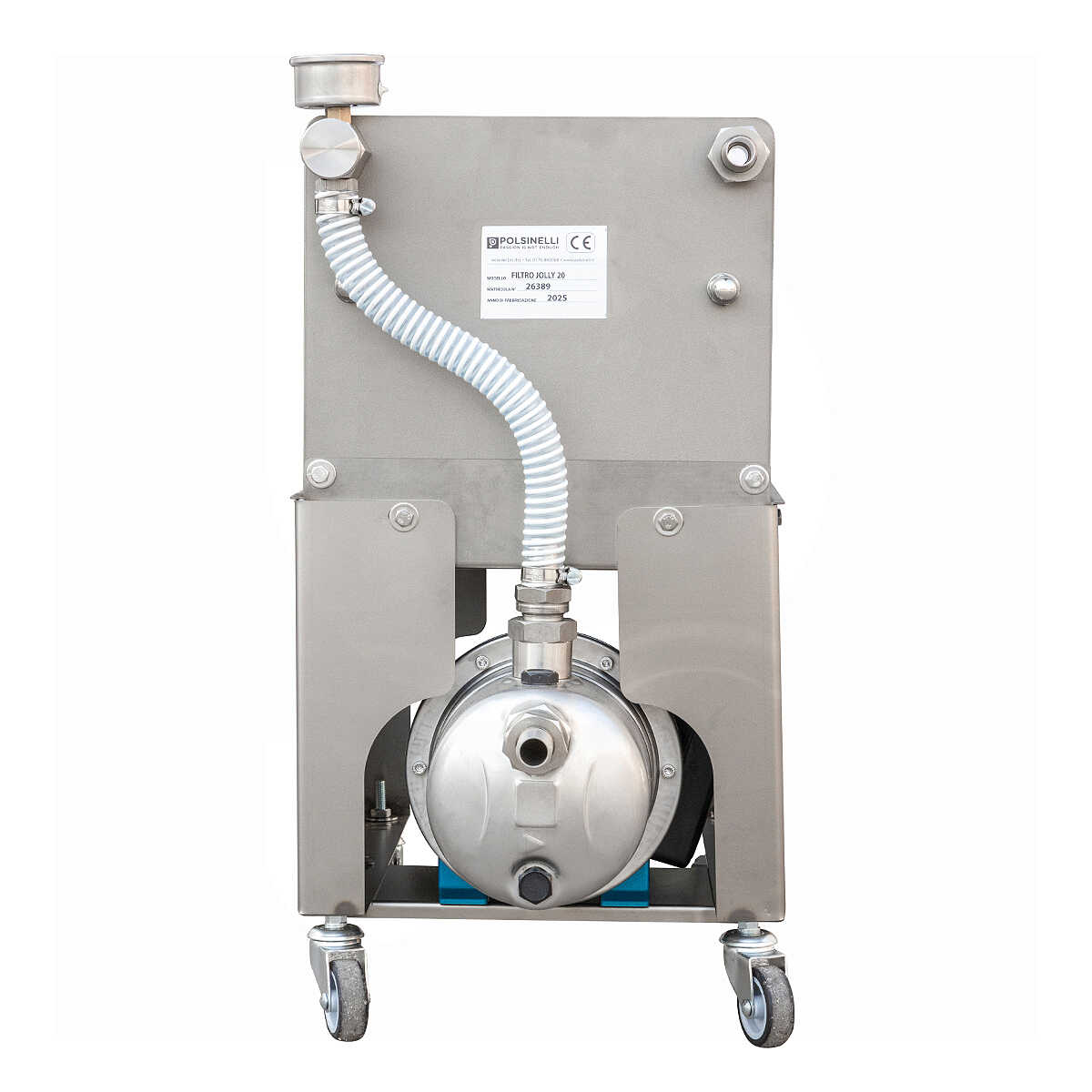

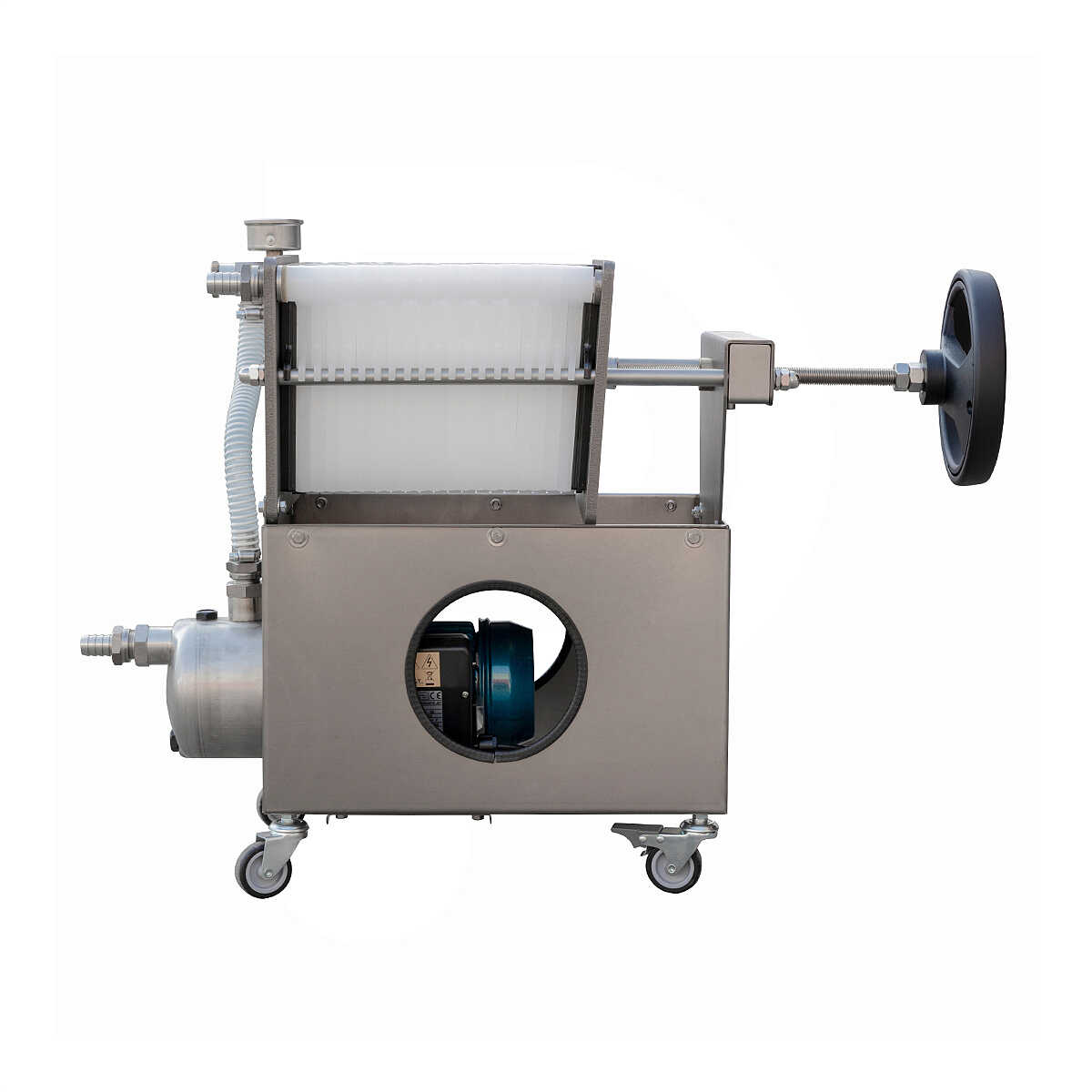

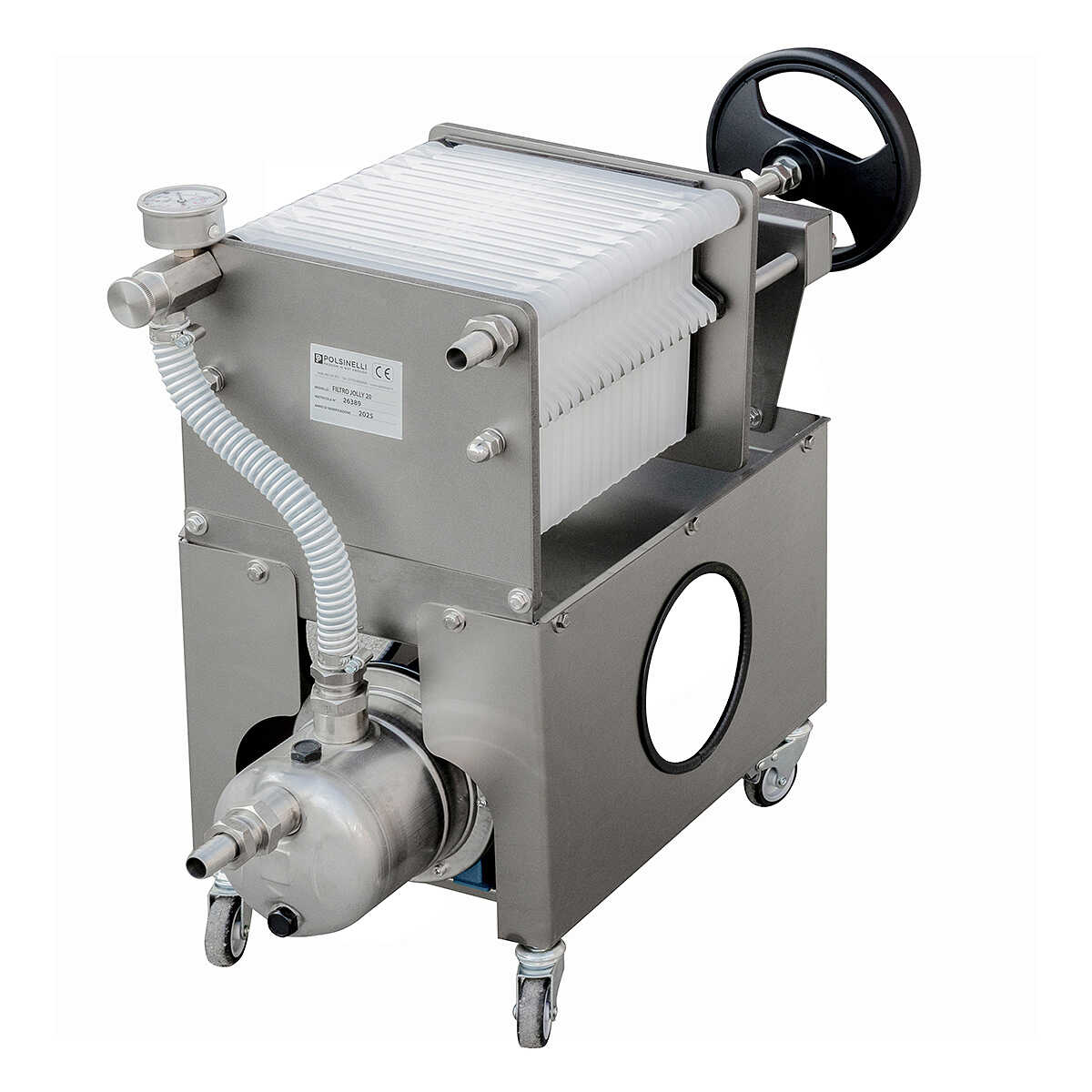

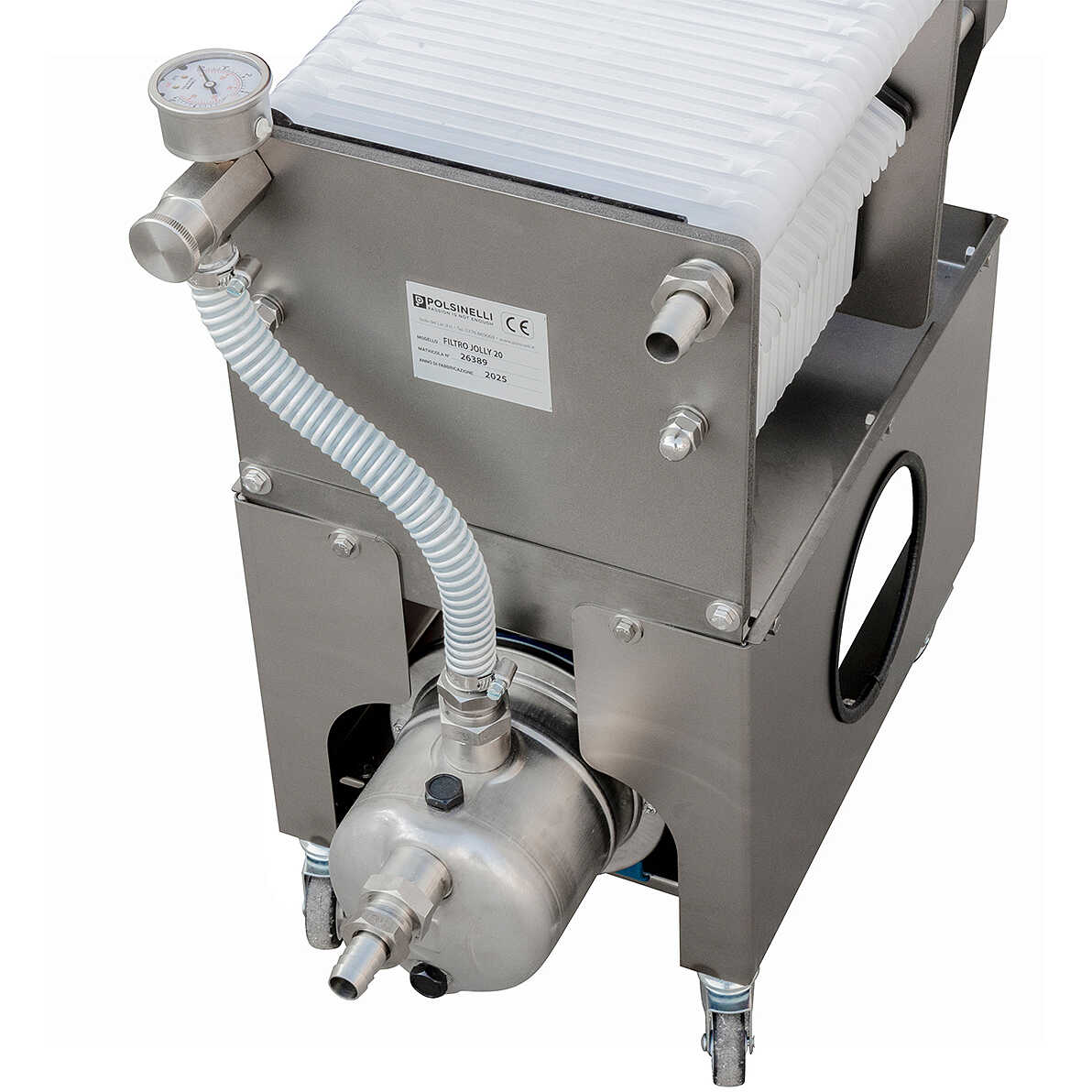

Jolly 20 Press Filter with Filter Pads 20x20 cm
This machine is especially designed to meet the needs of small and medium-sized companies. They are practical and safe made of stainless steel. Depending on the type of filter sheet used, the machine allows roughing, clarifying and sterilizing red and white wines, sparkling wines, vinegar, herbal medicine products, liquor, etc...
Stainless steel electric pumps of the centrifugal type are assembled for all purposes, except for filtering olive oil that need mono screw pumps or nitrile impeller ones.
The support plates 20 x 20 cmare made of plastic for food or on request in Moplen. The machine is mounted on an AISI 304 stainless steel trolley equipped with 4 wheels (2 with brakes) to easily move the filter.
Characteristics:
- Filter type: 21 food-grade plastic plates and 20 filter sheets
- Frame and trolley material: AISI 304 stainless steel
- Filtering surface: 0.80 sqm
- Filter sheets type: 20 x 20 cm (to be purchased separately)
- Stainless steel electric pump: 0.5 HP
- Power supply: 220V
- Flow rate: 300 ÷ 600 liters/hour
- Flow regulation valve with pressure gauge
- Hose holder: Ø20 mm

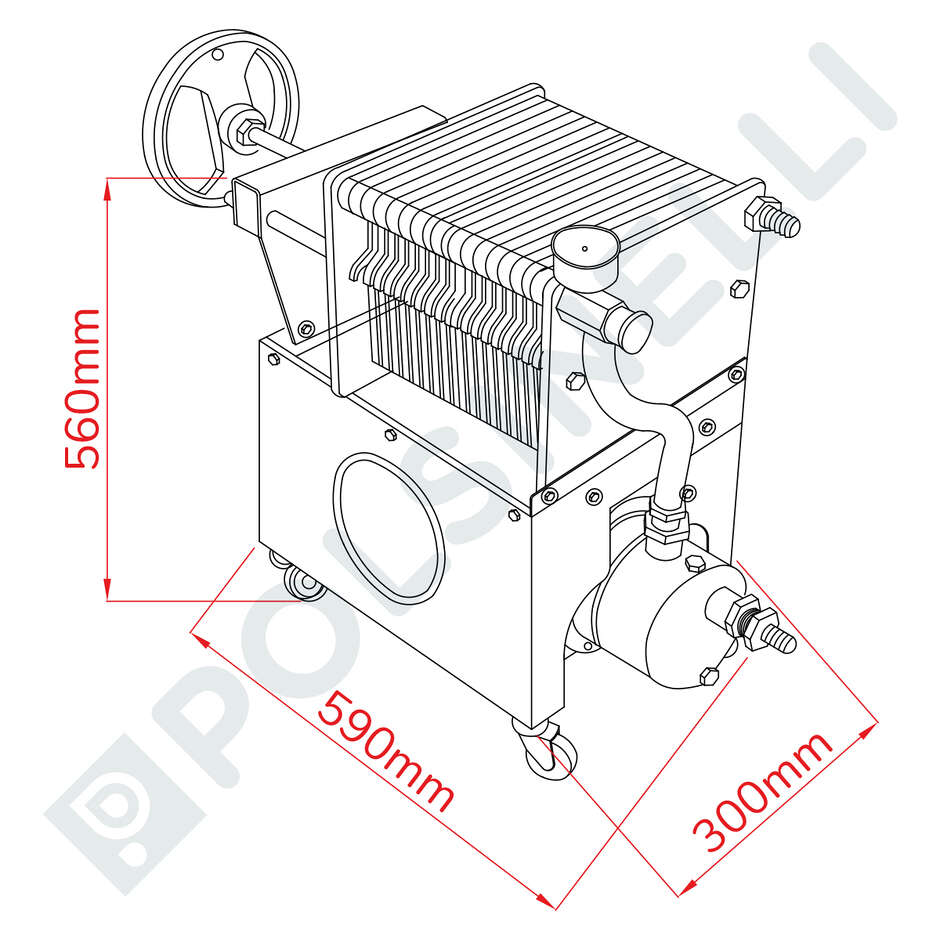

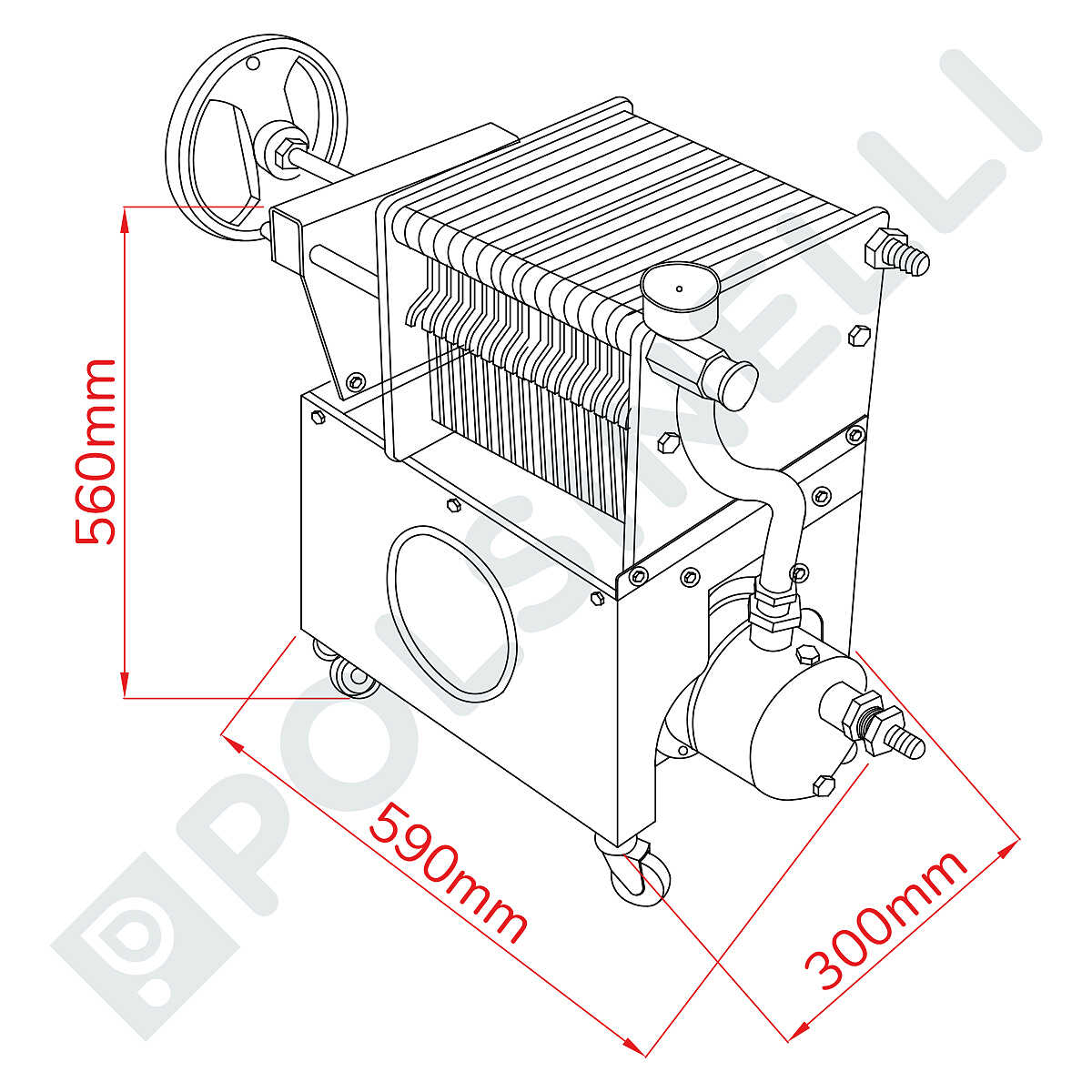

- Dimensions: 600x300x560h mm
- Weight: 40 kg
To be used with:
Optional (to be purchased separately):
Filter Sheets (to be purchased separately):
The filter sheets used are 20x20 cm and their filtration characteristics are the following:
- CKP V0: roughing filter sheet
- CKP V4: medium clarifying filter sheet
- CKP V8: clarifying filter sheet
- CKP V12: clarifying filter sheet
- CKP V16: polishing filter sheet
- CKP V18: polishing filter sheet
- CKP V20: medium sterilizing filter sheet
- CKP V24: sterilizing filter sheet
