Motorized stainless steel tank 10° Conical Bottom 500 L with Ø300 manhole
Description
Motorized stainless steel tank 10° Conical Bottom 500 L with Ø300 manhole
The 500 litre, 10° conical bottom motorised stainless steel mixer with Ø300 manhole is the ideal tool for easily mixing your liquids and for producing wine, kombucha, cheese spinning, macerating and infusing fruit and other foods. Entirely made of high quality Aisi 304 stainless steel, the motorised stainless steel mixer is equipped with a thick reinforced stainless steel lid with stainless steel hooks, 220 Volt motor with speed reducer (28 rpm) and mixing paddles. It also has two drains to facilitate emptying and cleaning operations: a total DIN 32 drain with a DIN32 M x DIN 32 F stainless steel ball valve positioned on the bottom, and a partial DIN 32 drain with a DIN32 M x DIN 32 F stainless steel ball valve positioned on the cylinder. The round manhole, with 300 diameter, allows to easily empty the tank. The 500-litre, 10° conical bottom motorised stainless steel mixer with Ø300 manhole has a inner diameter of 1025 mm and features a mirror-polished internal finish and a satin-brushed welded external finish; there is also a practical hose barb compatible with DIN32 M x PG30 pipe connections. The stability of the tank is also ensured by the 3 robust stainless steel feet with a height of 40 cm.
Characteristics:
- Material: Stainless steel Aisi 304
- Thick reinforced stainless steel lid with stainless steel hooks
- 220 Volt motor with speed reducer (28 rpm) and mixing blades
- Power consumption: 0.37 kW
- 10° reinforced conical bottom
- Total discharge DIN 32 with stainless steel valve DIN32 M x DIN 32 F
- Partial discharge DIN 32 with stainless steel valve DIN32 M x DIN 32 F
- No. 2 straight hose connectors for tube connection DIN32 M x PG30
- Round 300 mm door, flush with the bottom for easy emptying
- 3 stainless steel legs
- Internal surface: mirror polished for easy cleaning and sanitation
- External surface: flocked, with satin welded seals
Dimensions:
- Inner diameter: 1025 mm
- Door diameter: 300 mm
- Virola height: 625 mm
- Support height: 400 mm

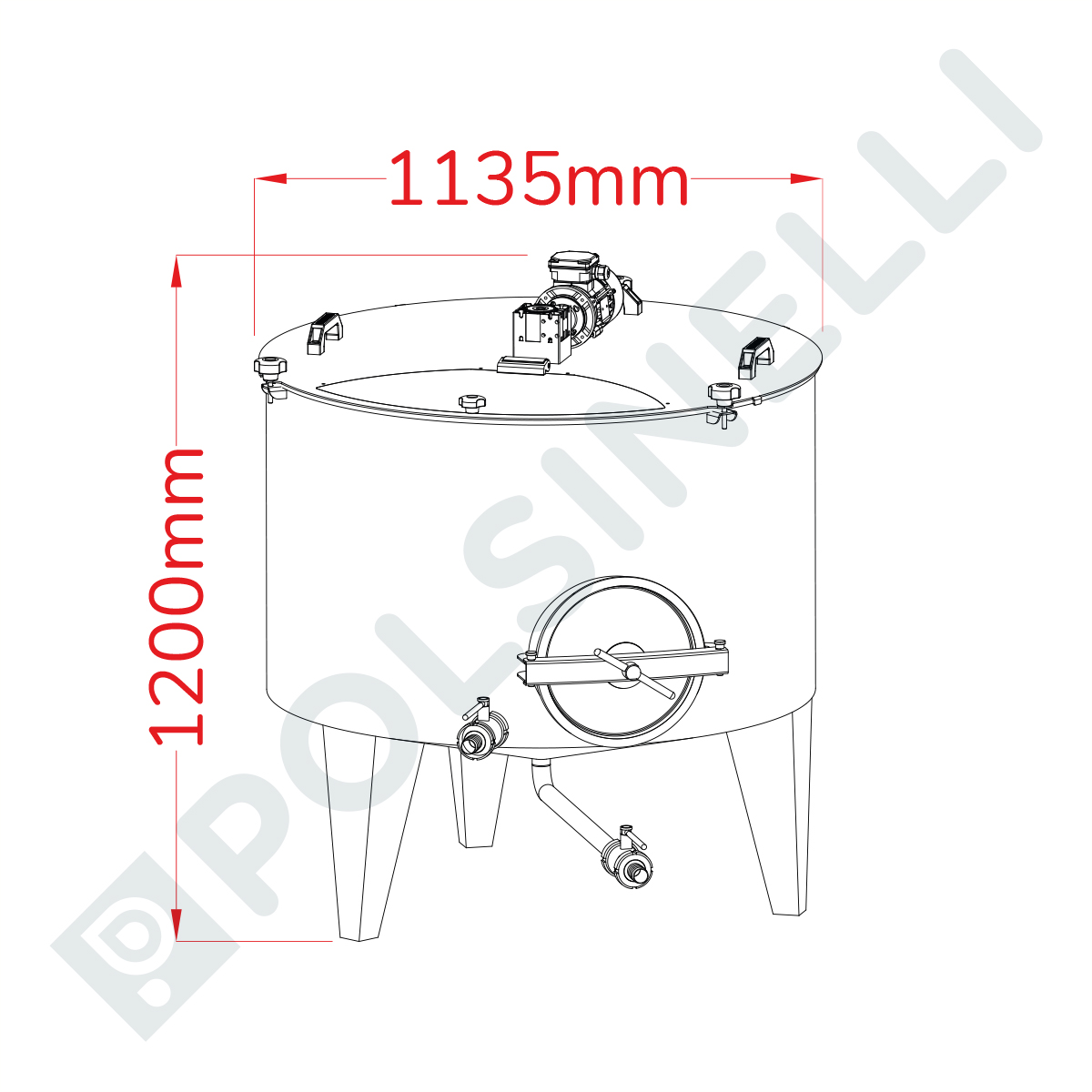

- Total height with pedestal, virola and motor: 1200 mm
Thickness:
- Walls: 1.2 mm
- Bottom: 1.5 mm
