Conical trunk beer fermenter 60° 300 L

Conical trunk beer fermenter 60° 300 L

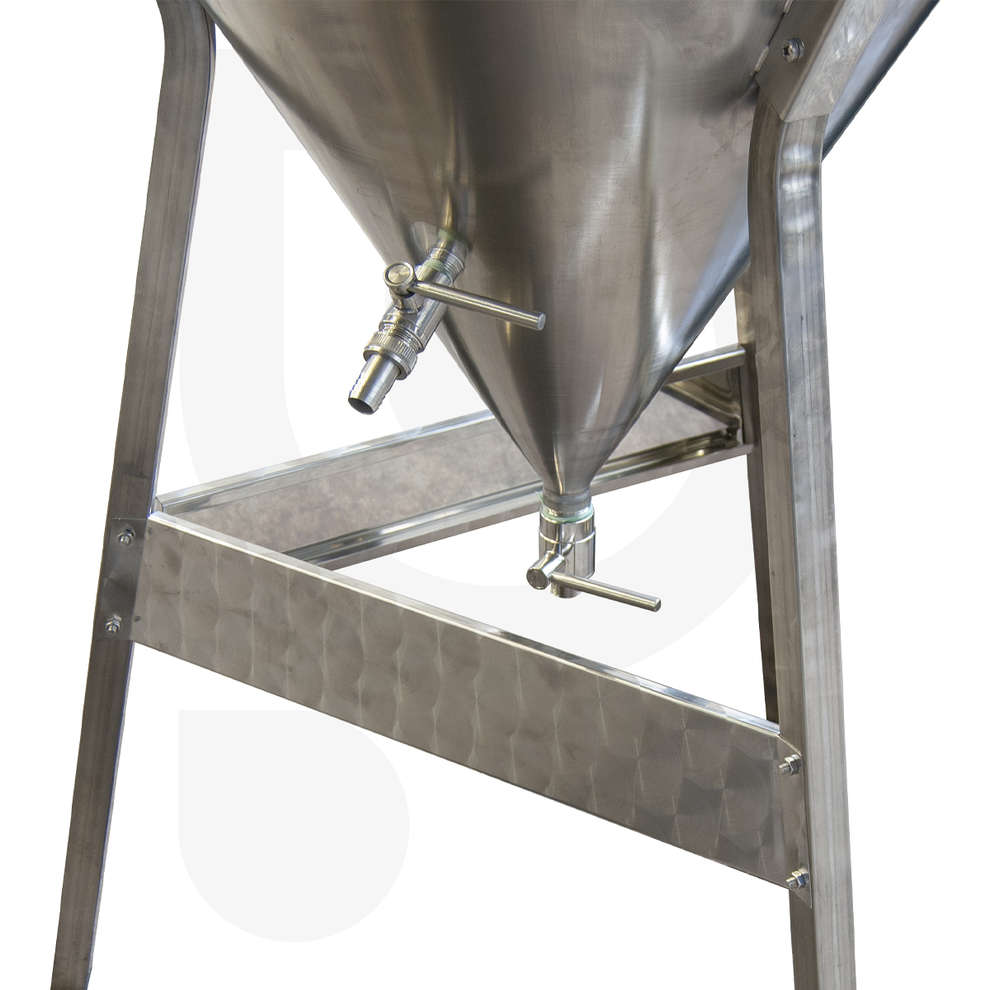

Ideal to contain beer and food liquids during the fermentation phase. Made of Aisi 304 stainless steel (18/10 for food), complying with all food safety regulations. Equipped with two stainless steel ball valves, one of 1" for total discharge and the other of 1/2" raised from the bottom, for the withdrawal of the liquid free of sediment.

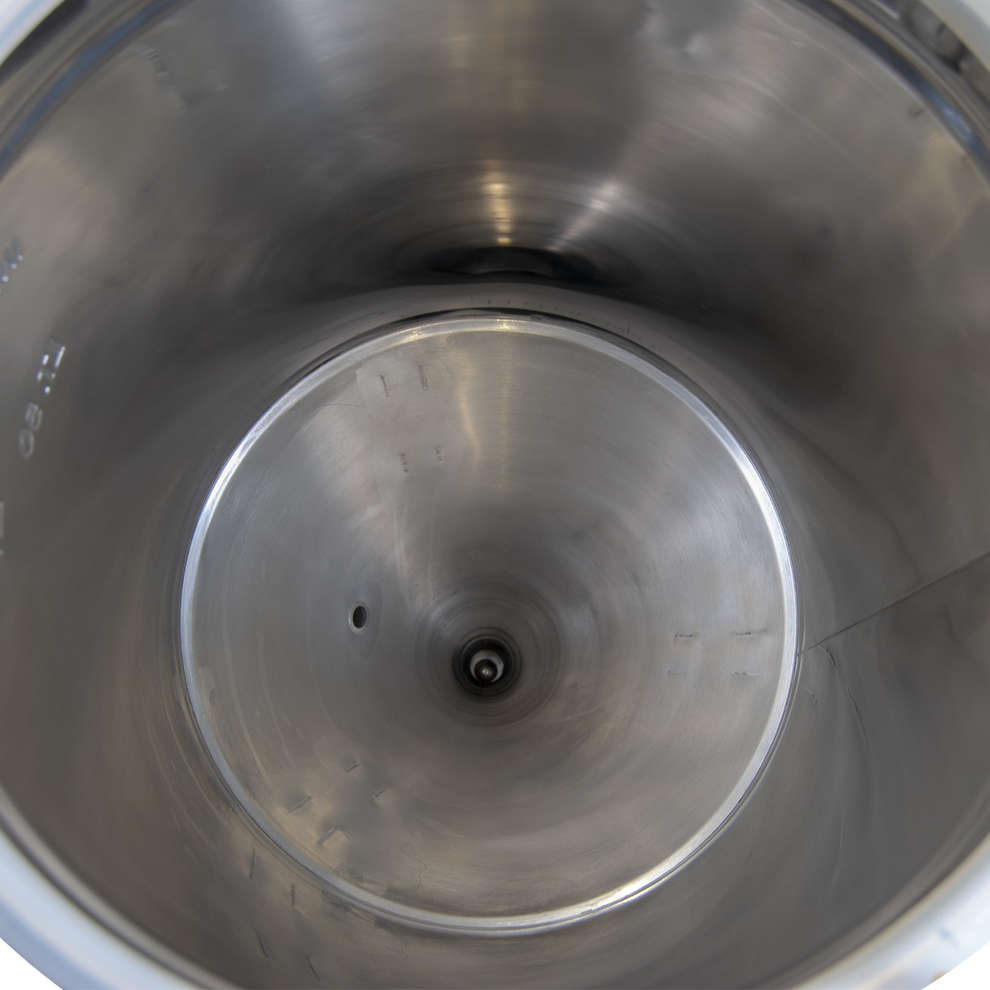

The 60° tapered trunk facilitates the extraction of yeasts and sediments that settle on the bottom of the cone, thus allowing a greater cleanliness, avoiding racking that often causes infections. With this solution, the beer will remain in contact with exhausted yeast for as little time as possible. TIG welds facilitate cleaning and sanitizing operations. The tank is closed by a thick cover complete with food-grade silicone gasket and butterfly screws for tightening the sealing brackets. Excellent stability thanks to the integrated pedestal.

Standard equipment:

• Airlock

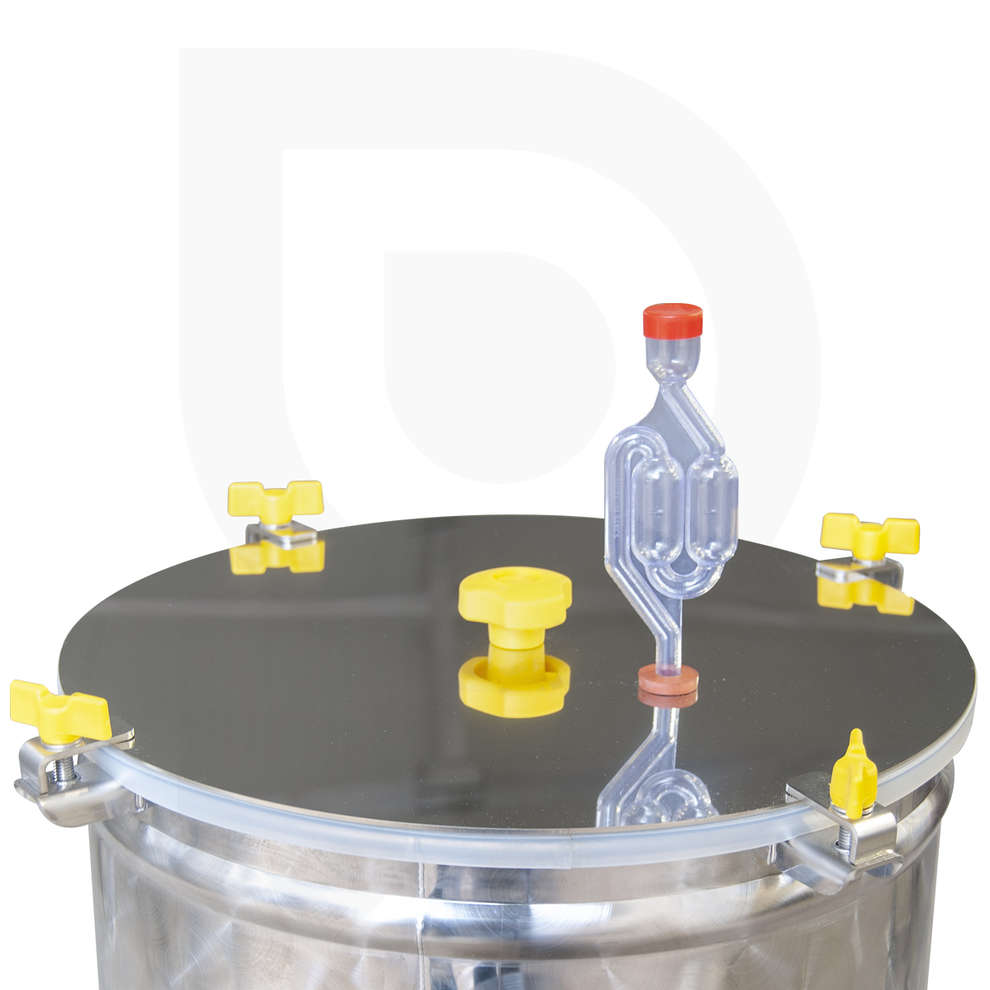

• Thick stainless steel lid
• 6 stainless steel hooks for the hermetic sealing of the lid
• Welded stainless steel nozzles
• 1" x 3/4" total discharge valve
• 1/2" x 3/4" sampling valve
• Nr. 1 stainless steel hose holder 3/4" x Ø20 swivel connection
• Flower embossed exterior
• 60° conical bottom
• Integrated pedestal
• Food-grade silicone gasket that can be removed and easily sanitized
• Liquid crystal thermometer

Dimensions:

• Height of the cylinder: mm 850
• Height of the cylinder plus conical bottom: mm 1390
• Tank diameter: mm 620
• Overall dimensions (without airlock): mm 650x650x1790h
