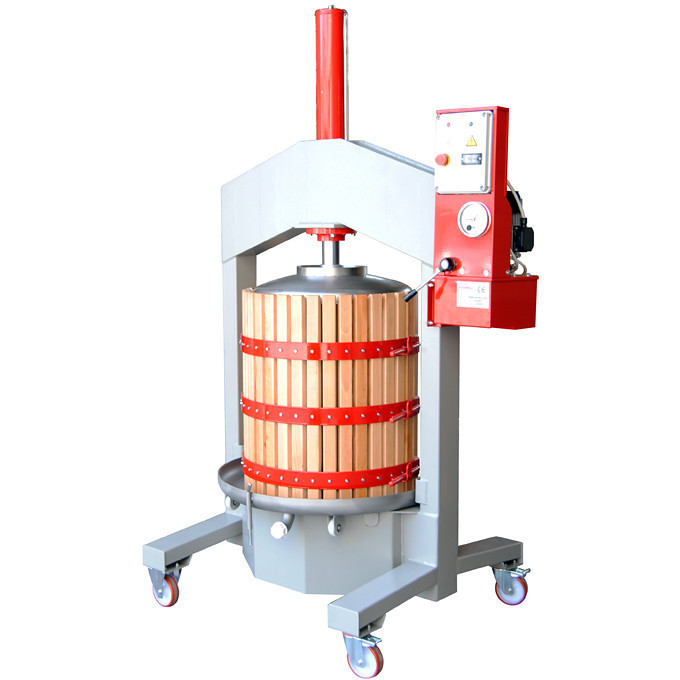

Alfa 70 Vertical Press with Removable Cage

Alfa 70 Vertical Press with Removable Wooden Cage

The Alfa 70 vertical press offered for sale online by Polsinelli is a high-precision food processing machine, manufactured according to the most modern technical-construction criteria using carefully selected materials. Equipped with a stainless steel body, a sturdy material particularly suitable for food processing thanks to its sterile properties, Alfa 70 has a removable gathering basin with trolley, which facilitates loading operations and the extraction of the cage, made of steamed beech wood.

The Alfa 70 press is powered by a 220V single-phase electric motor and is equipped with an automatic pressure gauge able to regulate the pressure, which, exerted from the top downwards, can reach a maximum of 350 atmospheres. Hydraulic operation means that the pressure of the supplied oil develops the force required to turn the motor. A double-acting chrome-plated piston ensures a precise and rapid operating speed with constant return force. On request, the Alfa 70 vertical food press can be equipped with a motor that supports a 380V power supply.

Characteristics:

• Stainless steel gathering basin with buttweld 1" 1/4 GAS
• Stainless steel pressing plate
• For a production of: 1000 Kg of grapes
• Dreg capacity: 320 L
• Automatic pressing gauge for automatic pressure adjustment
• Operating pressure: 350 atmospheres
• Internal cage diameter: 70 cm
• 220V power supply
• Absorption: 700 W
• With trolley and extractable gathering basin

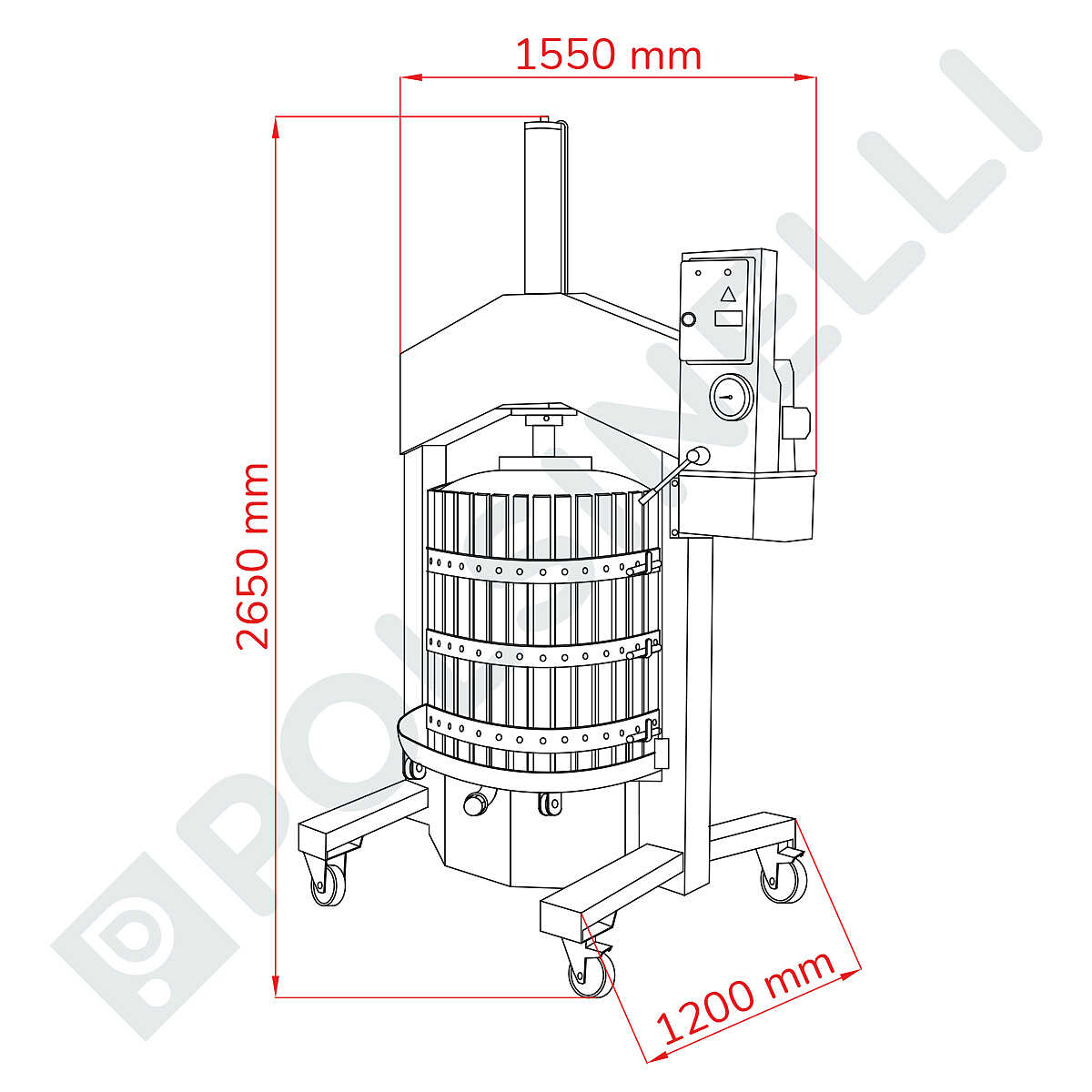

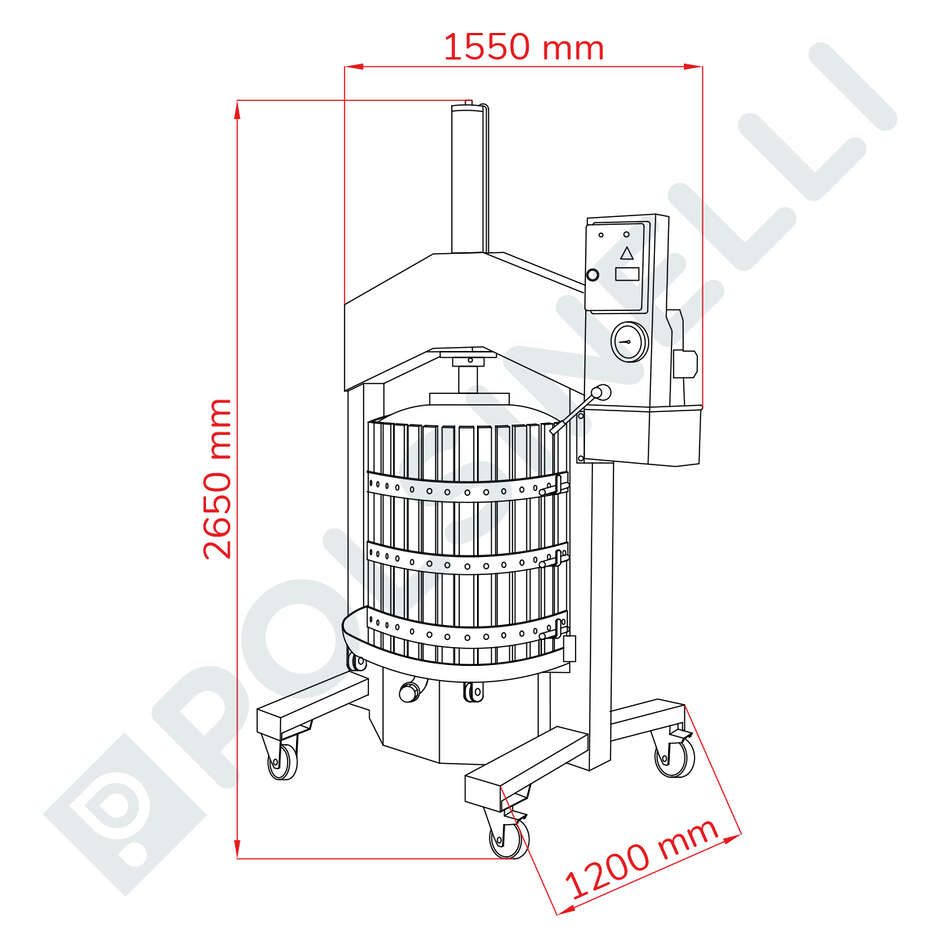

Measurements:

• mm 1550 x 1200 x 2650(h)

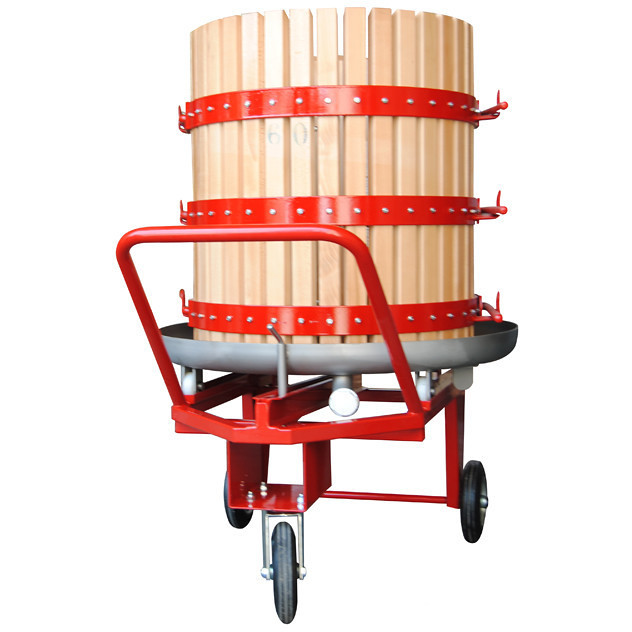

Wooden cage Measurements:

• Internal diameter: 700 mm
• Outside diameter: 770 mm
• Height: 855 mm
