150 L Stainless Steel Refrigerated Conical Tank 10° for Winemaking
Descrição

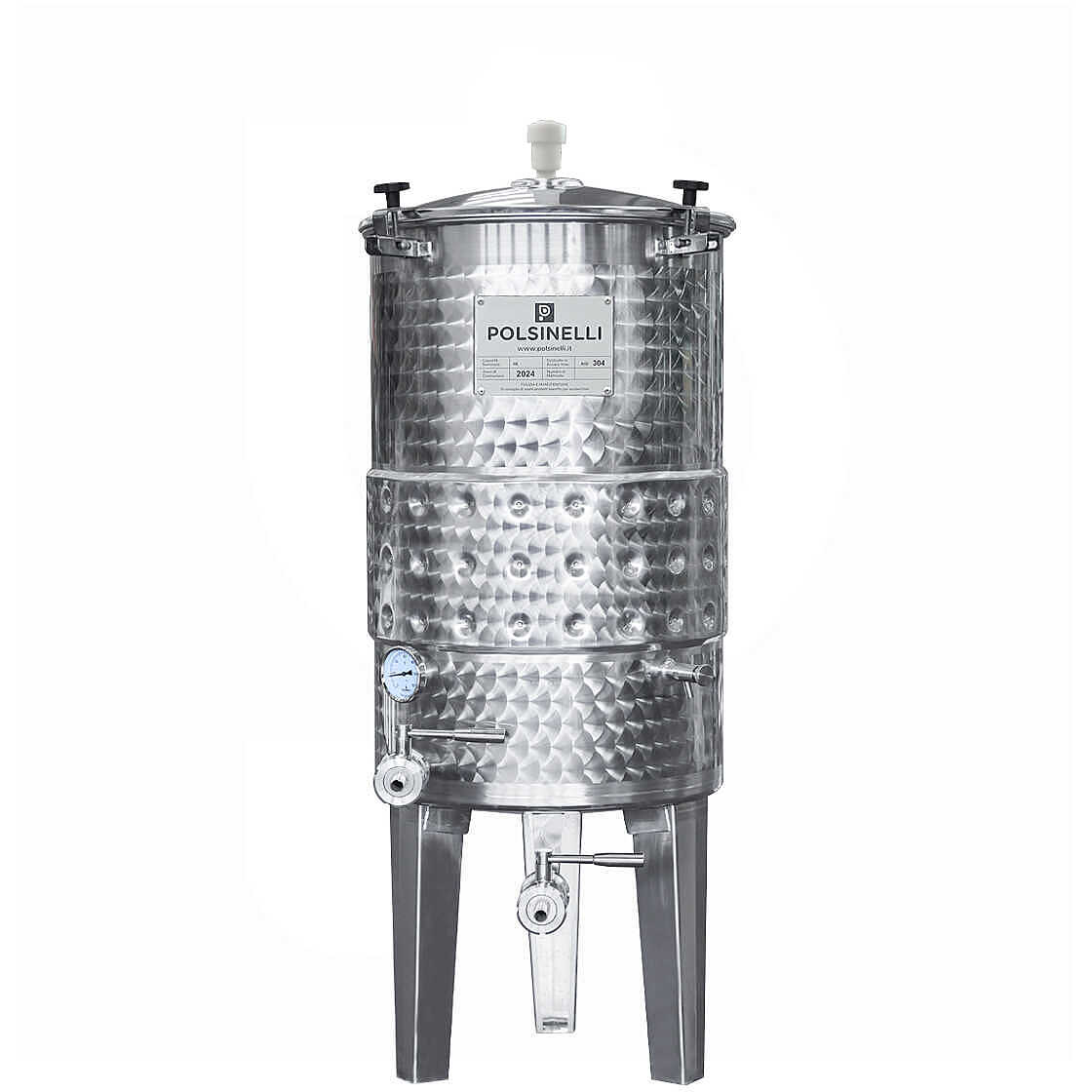

150-Liter Stainless Steel Refrigerated Tank with 10° Conical Bottom for Winemaking and Storage
The 150 L 10° conical tank, designed and manufactured by Polsinelli in its own facilities, is a professional solution specifically developed for winemaking, suitable for microvinification, storage, and fermentation of products such as cider, mead, perry, and more. The integrated cooling system allows for precise temperature control, enabling optimal management based on specific needs.
This tank is made entirely of AISI 304 stainless steel, a high-quality material that ensures maximum hygiene, durability, and easy cleaning, preserving the organoleptic properties of the wine. The 10° inclined conical bottom, equipped with three welded stainless steel legs, facilitates the natural settling of sediments, simplifying racking and cleaning operations. The drainage system, both partial and total, is fitted with a DIN32 stainless steel ball valve for efficient liquid outflow, while the 400 mm upper hatch and 3/8" sampling tap make monitoring easy.
The 150 L conical tank features a 250 mm high external cooling jacket, also known as a pocket, complete with Ø 1" GAS fittings for the inlet and outlet of a water-glycol solution from a chiller. This ensures controlled fermentations and secure storage. The analog thermometer with a stainless steel well allows for continuous monitoring of the internal temperature.
With a height of 1300 mm and a diameter of 500 mm, the 150 L Stainless Steel Refrigerated Storage Tank with 10° Conical Bottom is designed for maximum practicality and operational efficiency. The 2 mm thick walls and 1,5 mm thick bottom provide robustness and long-lasting durability, making it a reliable choice for wineries, craft breweries, and food industry businesses.
Features of the Refrigerated Conical Storage Tank:
- Material: AISI 304 stainless steel
- Capacity: 150 L
- 10° conical bottom

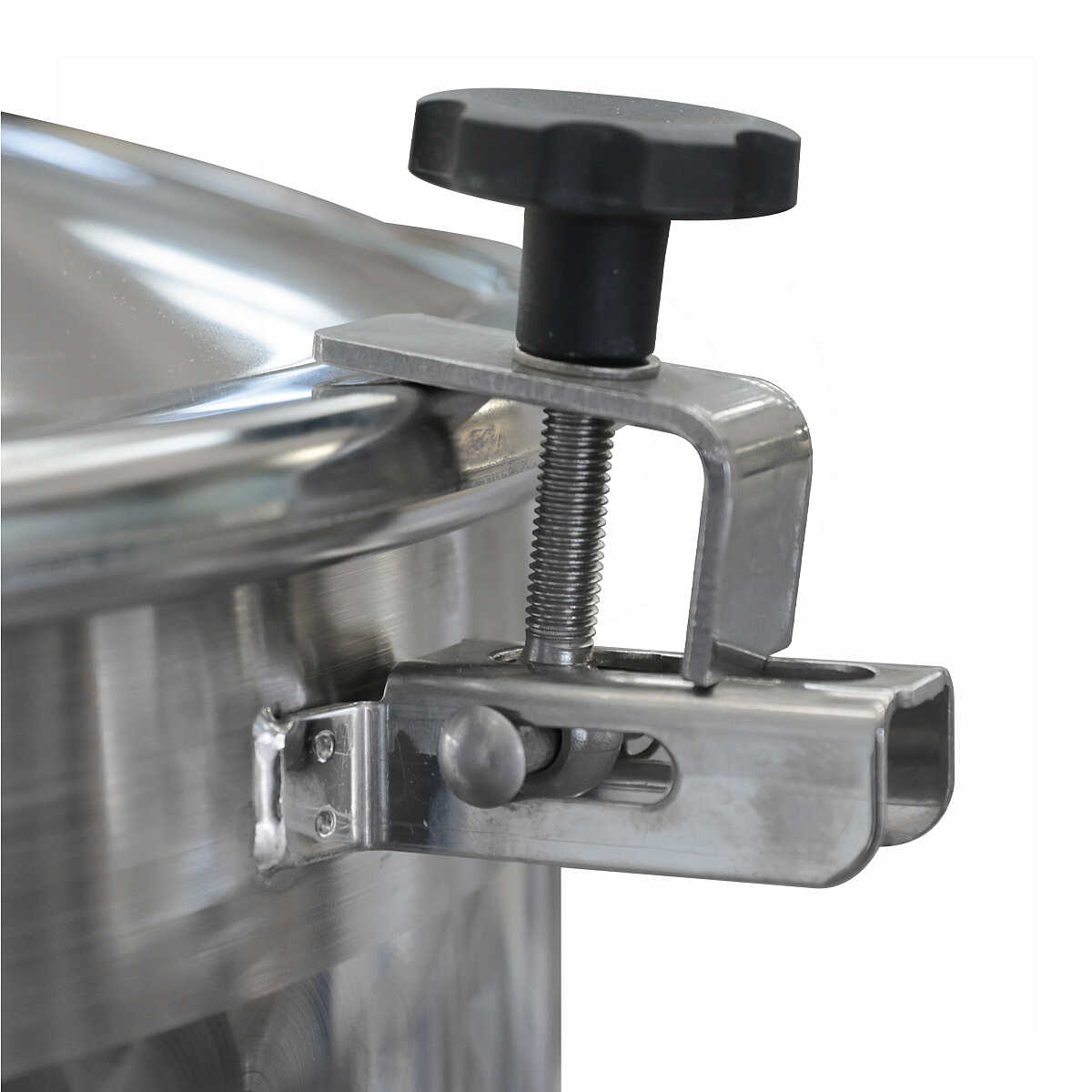

- 400 mm upper hatch

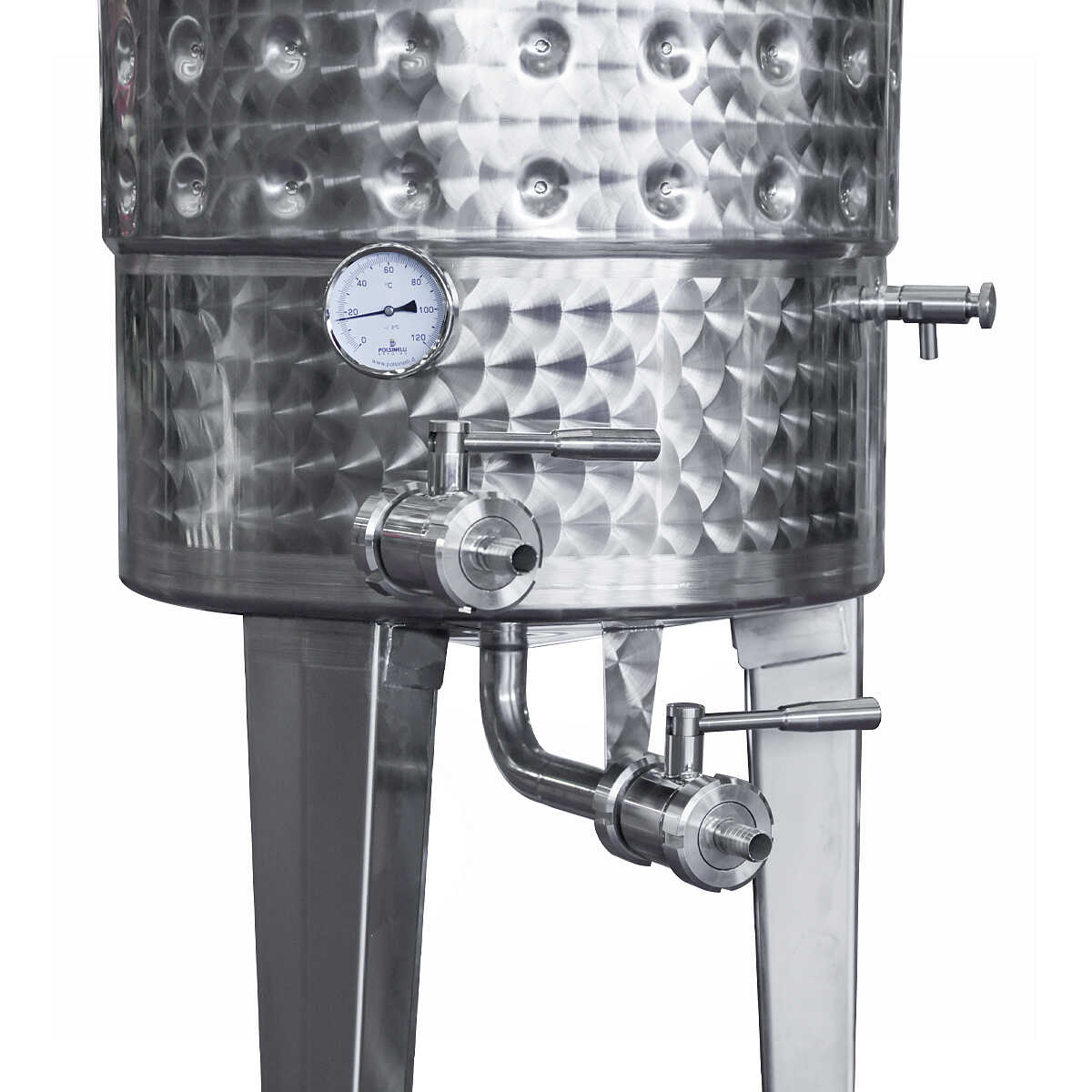

- Total and partial drainage with DIN32 stainless steel ball valve
- 2 stainless steel hose connectors DIN32 M with rotating fitting for PG20

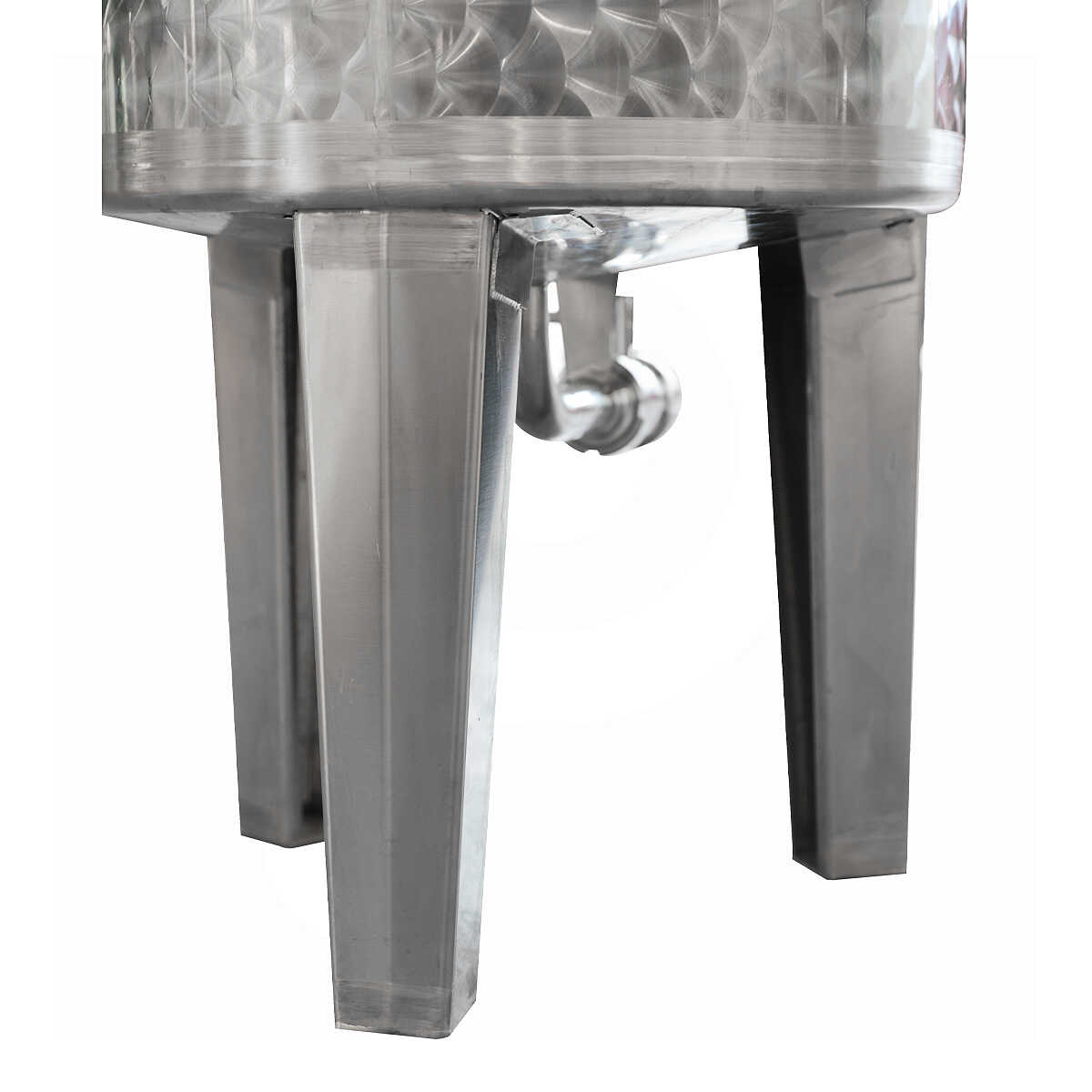

- 3 welded stainless steel legs
- Vent valve

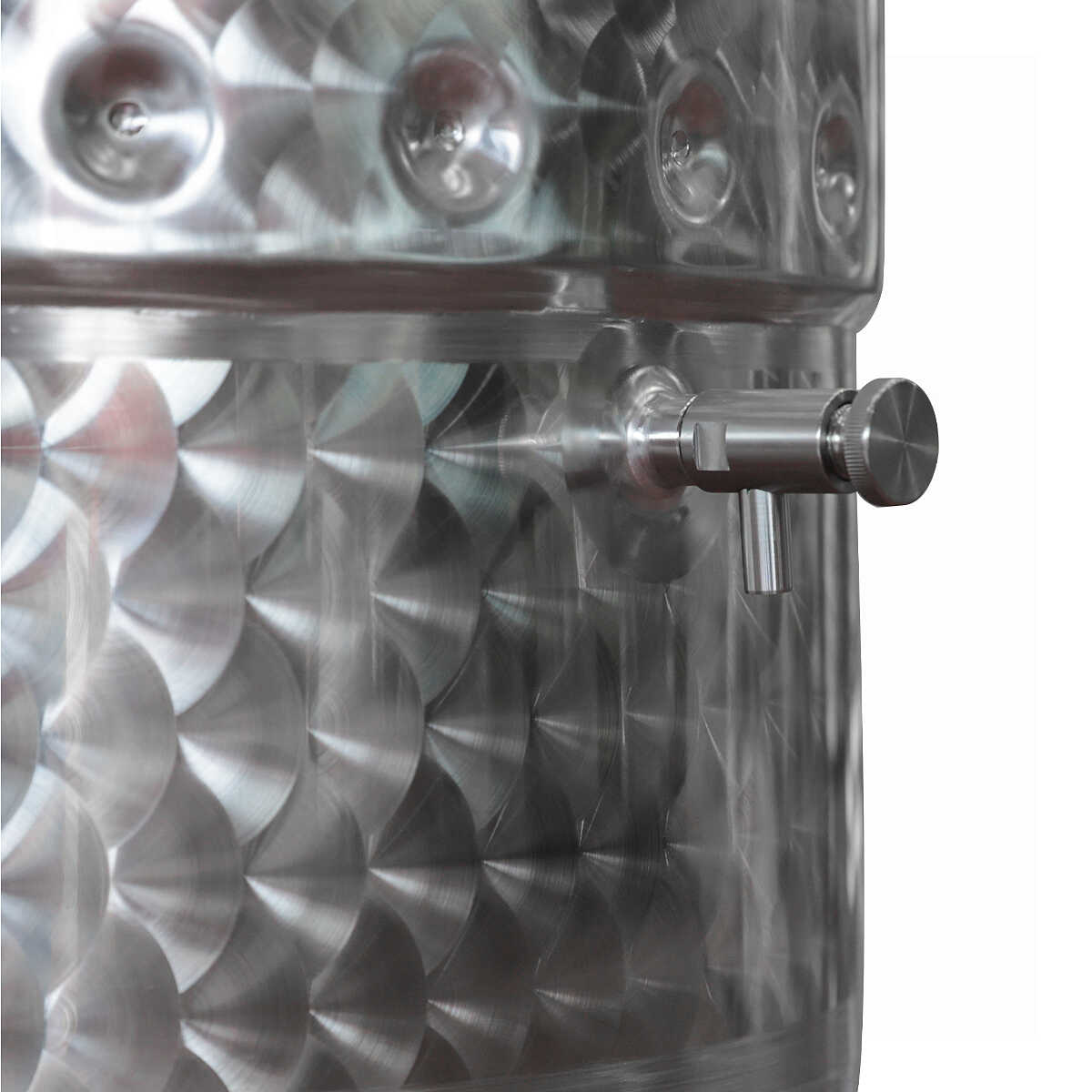

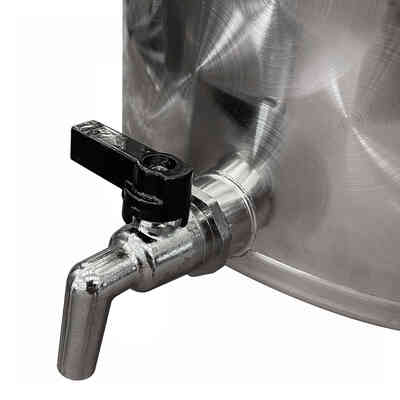

- 3/8" stainless steel sampling tap

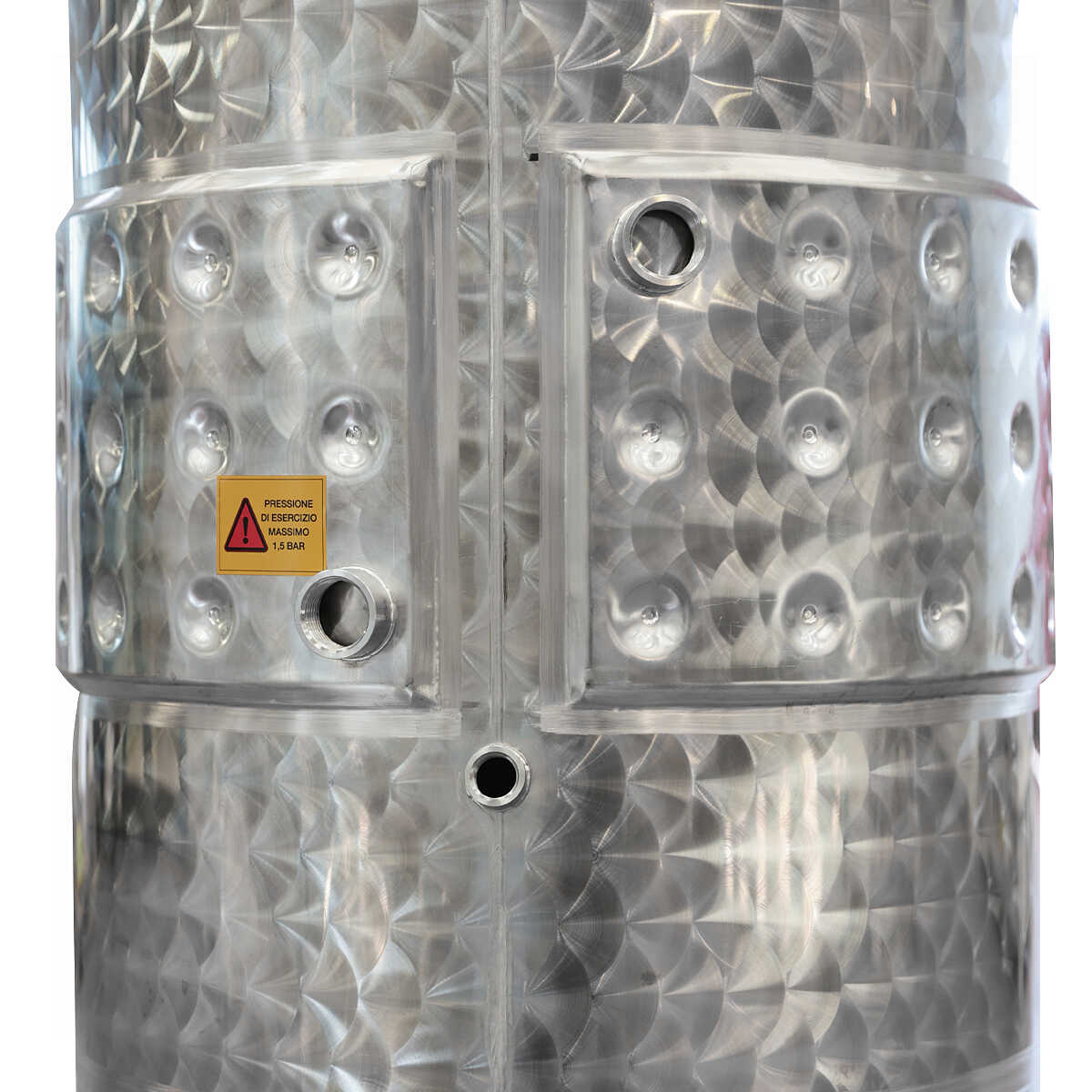

- Embossed cooling/heating jacket h.250 mm with Ø 1" GAS glycol inlet and outlet fittings
- Bimetallic analog thermometer
- Mirror-polished internal finish with satin welds
- Embossed external finish with satin welds

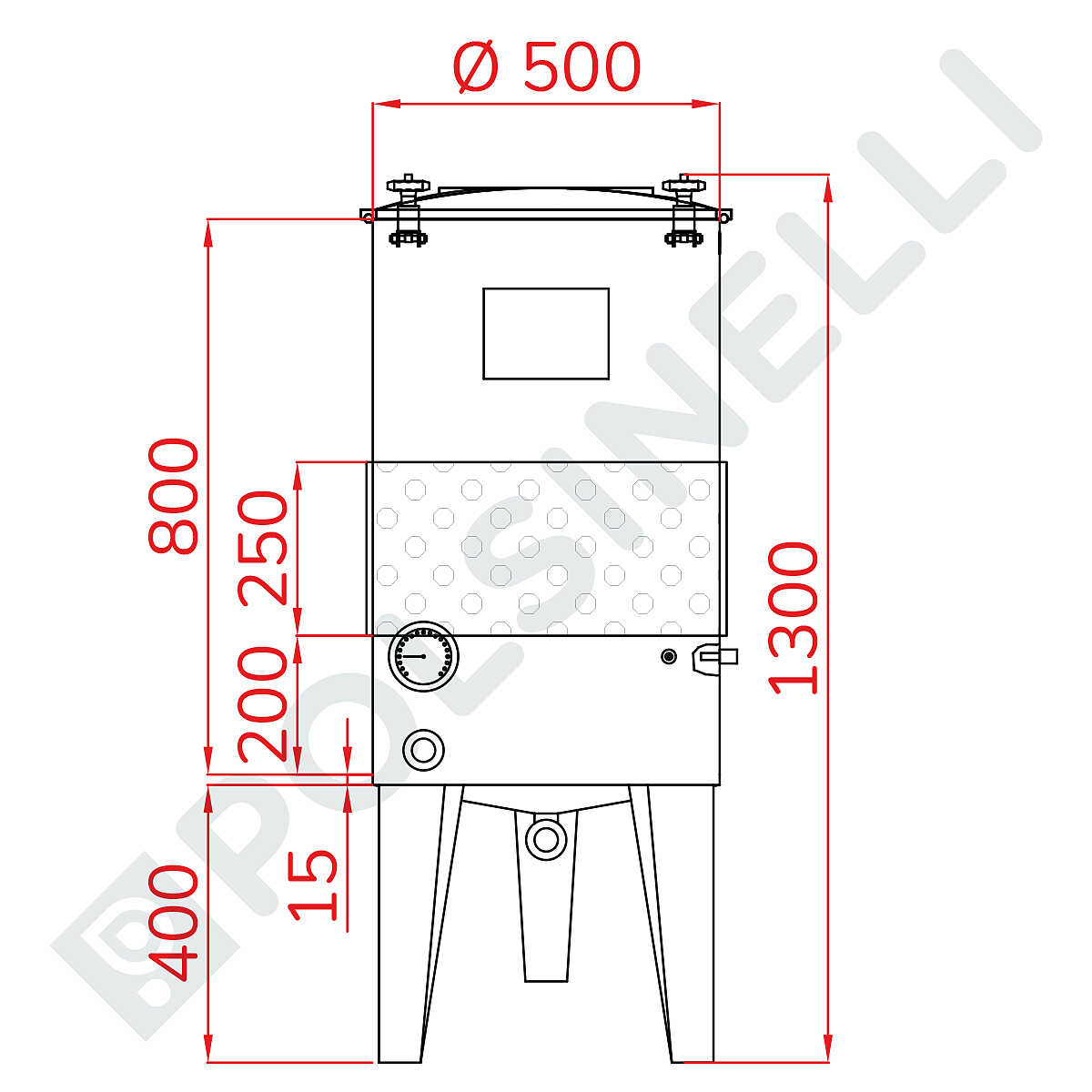

Dimensions:
- Diameter: 500 mm
- Shell height: 800 mm
- Leg height: 400 mm
- Total height: 1300 mm
Thickness:
- Walls: 2 mm
- Bottom: 1,5 mm
- Lid: 1.2 mm
- Legs: 1.5 mm
