Stainless steel filling machine Cad 4

Category: Filling machines
Product code: RMP0016
Ready to order product
Shipping within 30 days from the receipt of payment.
We are sorry, for this order you will receive a quotation for shipping costs
Qty € 1,600.00
Add to cart

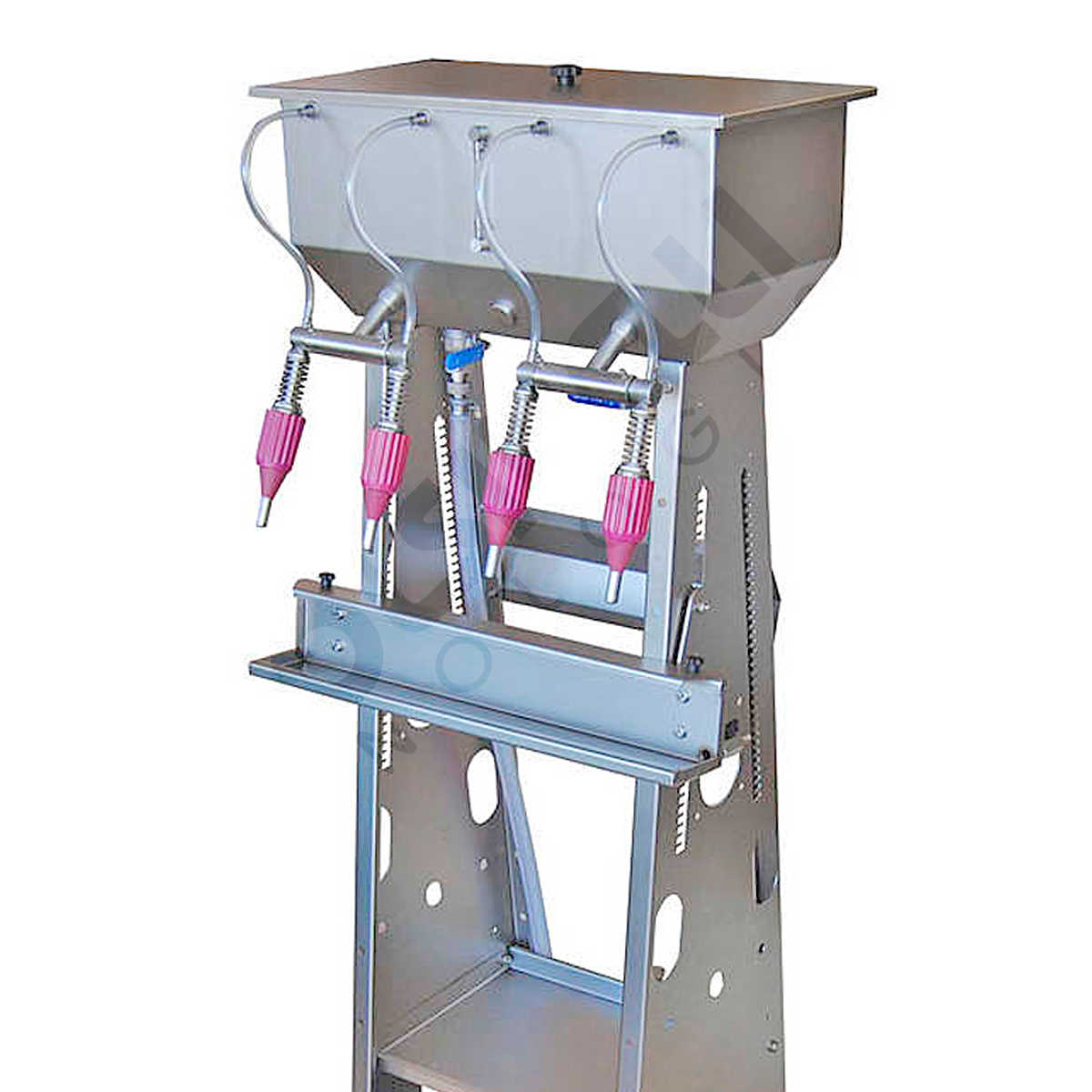

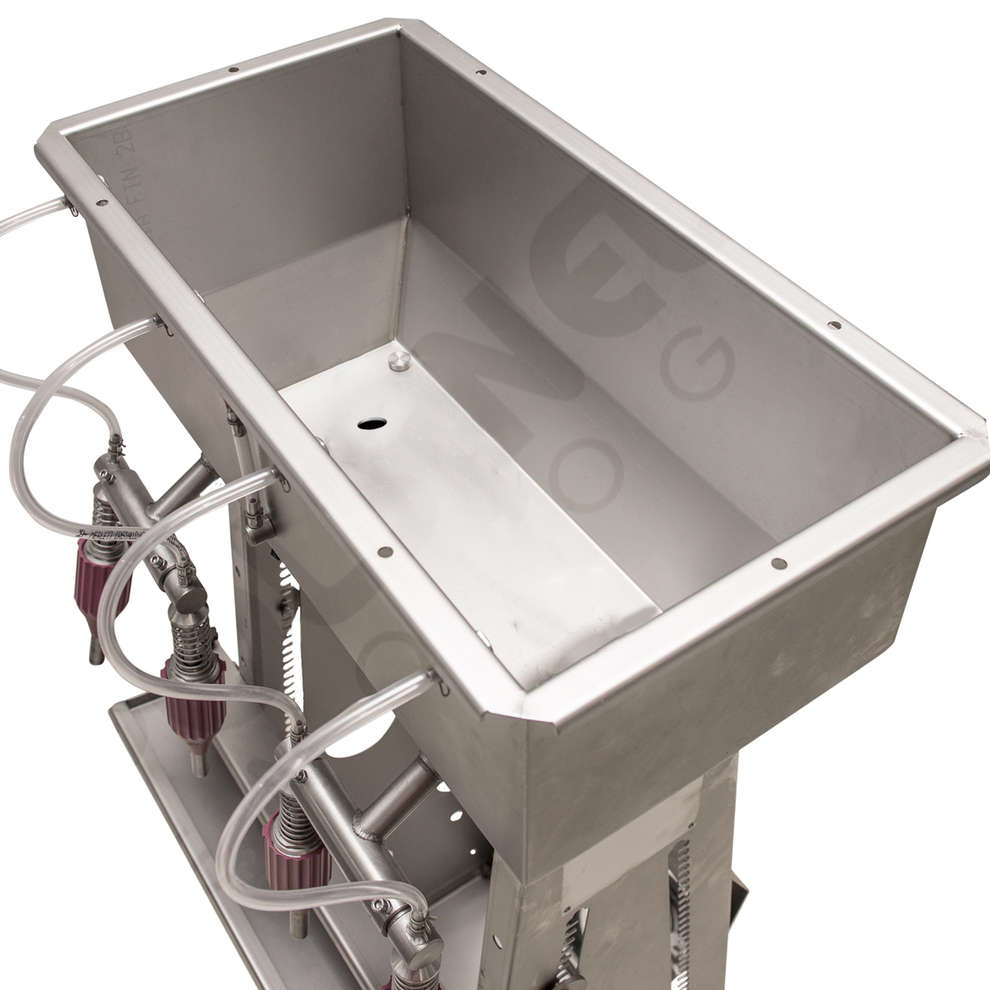

Stainless steel filling machine Cad 4 for food liquids

Suitable for bottling wine, oil, spirits and other beverages, the Cad 4 stainless steel filling machine supports homebrewing enthusiasts and companies in the wine and food industry in the final stages of production. The Cad 4 filling machine has a stainless steel construction, weighs 32 kg and has a footprint of 50 cm x 60 cm x 170 cm (h). The device is equipped with 18 mm diameter tubes and four 14 mm diameter nozzles and has a capacity of 480 litres per hour. Upon request, Polsinelli Enologia can also add to the Cad 4 food filling machine an EPM20 low-speed electric pump, recommended for bottling oil, and a filter cartridge for microfiltration of white wines. In addition, at an additional cost of 170 euros, it is possible to insert a safety float switch to monitor the "overflow" level.


  • Structure material: stainless steel
  • Flow rate litres/hour: 480
  • Number of nozzles: 4
  • Spouts diameter: 14 mm
  • Tube diameter: 18 mm (suction tube to be purchased separately)
  • Weight: 32 kg
  • Overall dimensions: 50 cm x 60 cm x 170 cm (h)
  • Appliance conforms to CE safety standards
