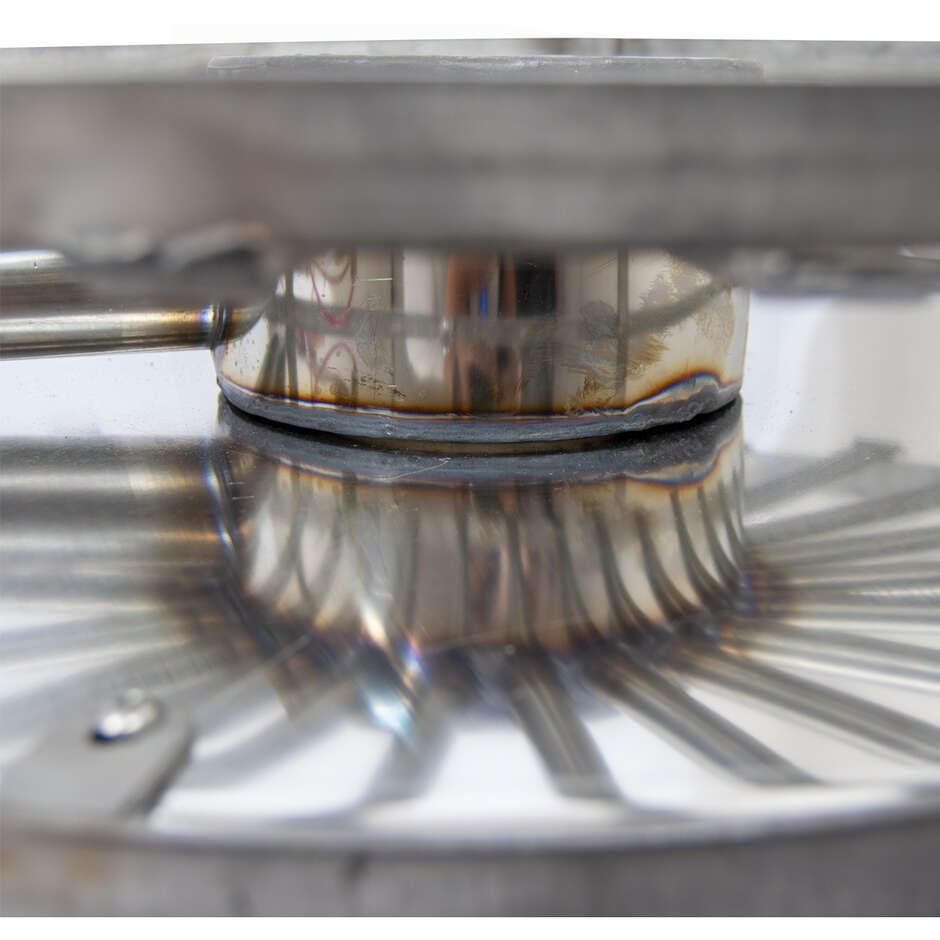

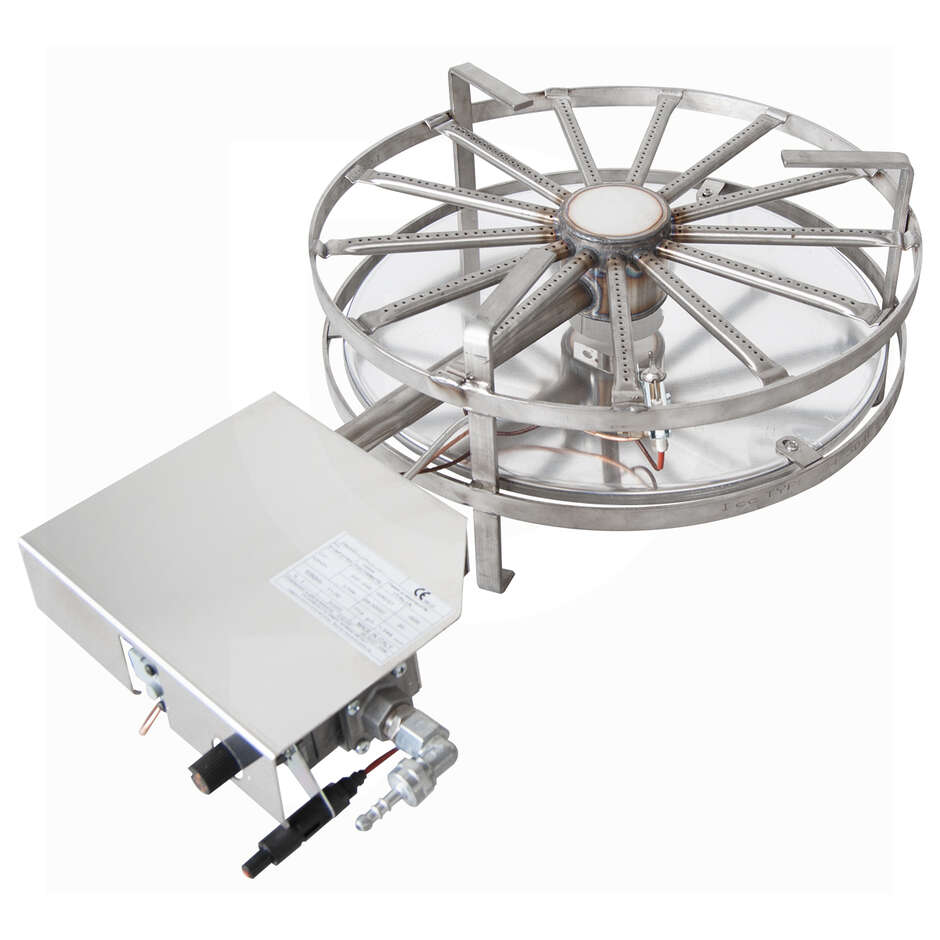

Stainless Steel 11 kW PSPEV Ø 50 Gas burner

Stainless steel gas burner with safety, pilot flame, piezoelectric ignition and solenoid valve

Characteristics:

• Nominal flow rate: 11 kW
• Power supply: LPG (CNG on order)
• Consumption: 0,800 kg / hour
• Nozzle G30: 28-30 mbar
• Material: AISI 304 stainless steel
• Solenoid valve: 24V AC (alternating current)

SAFETY: THE THERMOCOUPLE AUTOMATICALLY BREAKS THE GAS FLOW IN CASE OF FLAME SHUTDOWN

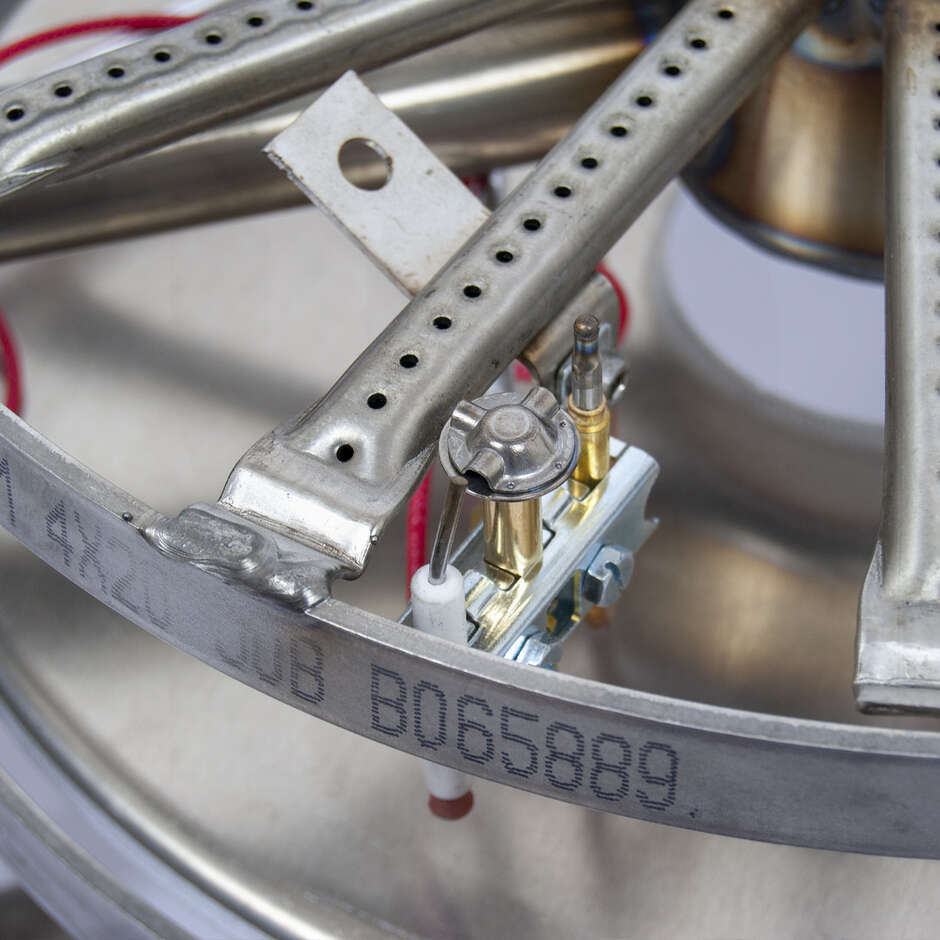

PILOT: THE PILOT FLAME FACILITIES THE MANUAL / REMOTE TEMPERATURE CONTROL

PIEZO: COMFORTABLE IGNITION BUTTON

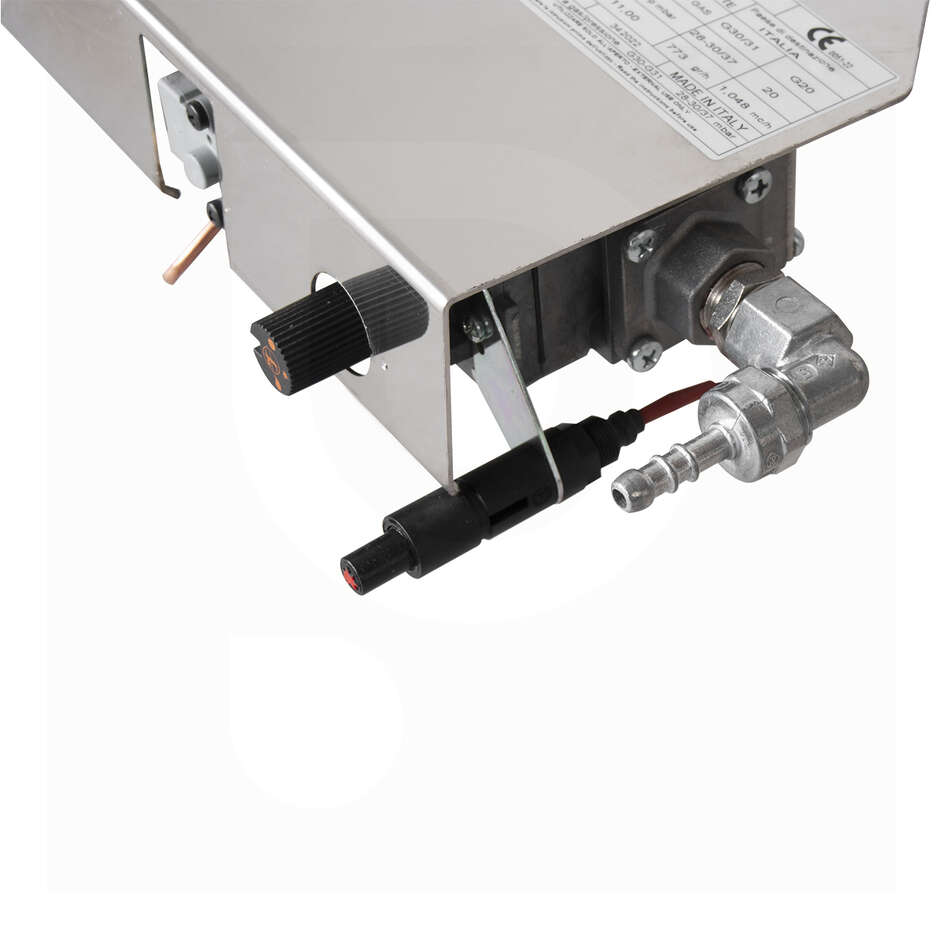

SOLENOID VALVE: FOR IGNITION, THE SOLENOID VALVE MUST BE POWERED TO 24V AC (ALTERNATING CURRENT), THEN THROUGH A TRANSFORMER (12/15 VA).

Dimensions in millimeters:

A = Ø 500
B = 250
C = 205
D = 300
