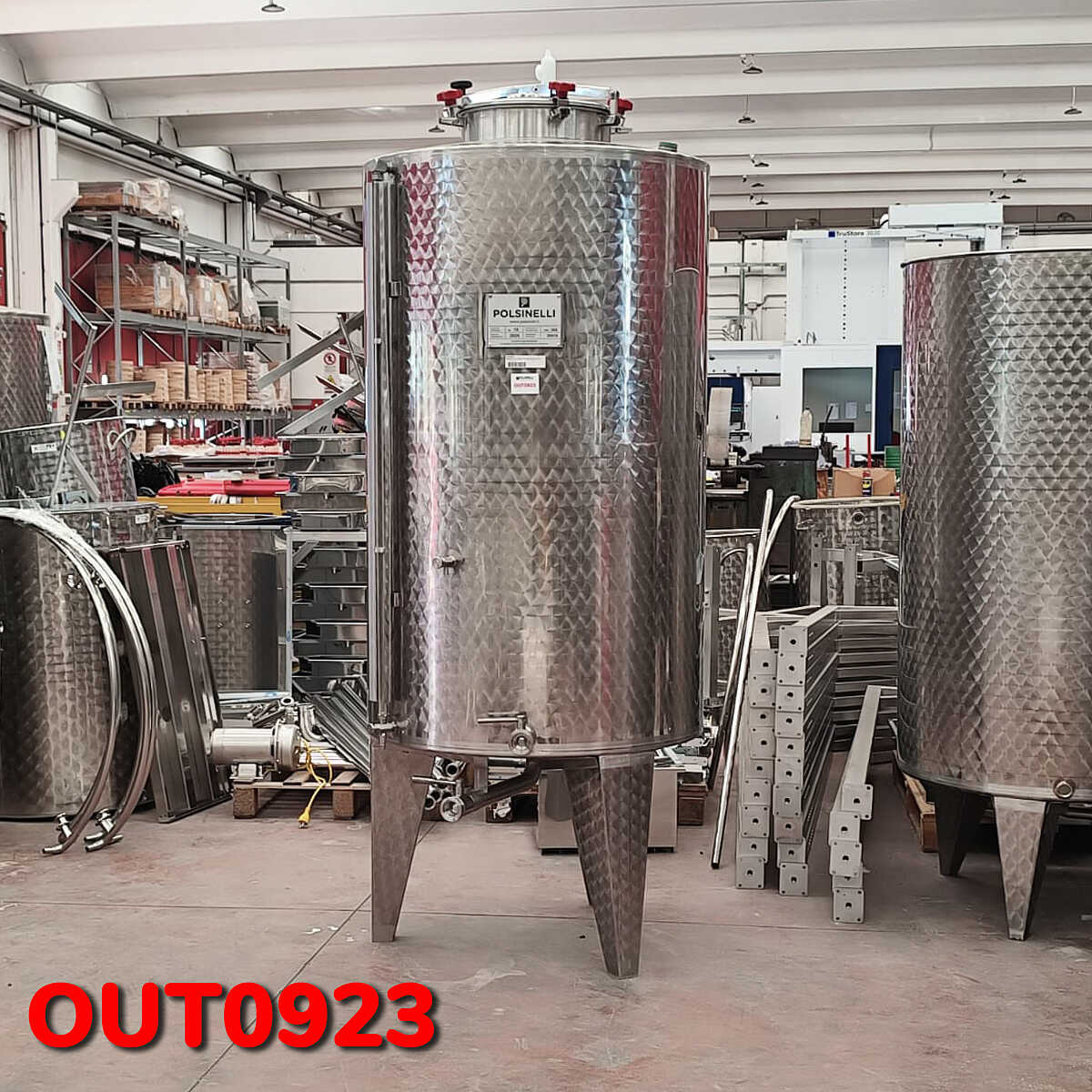

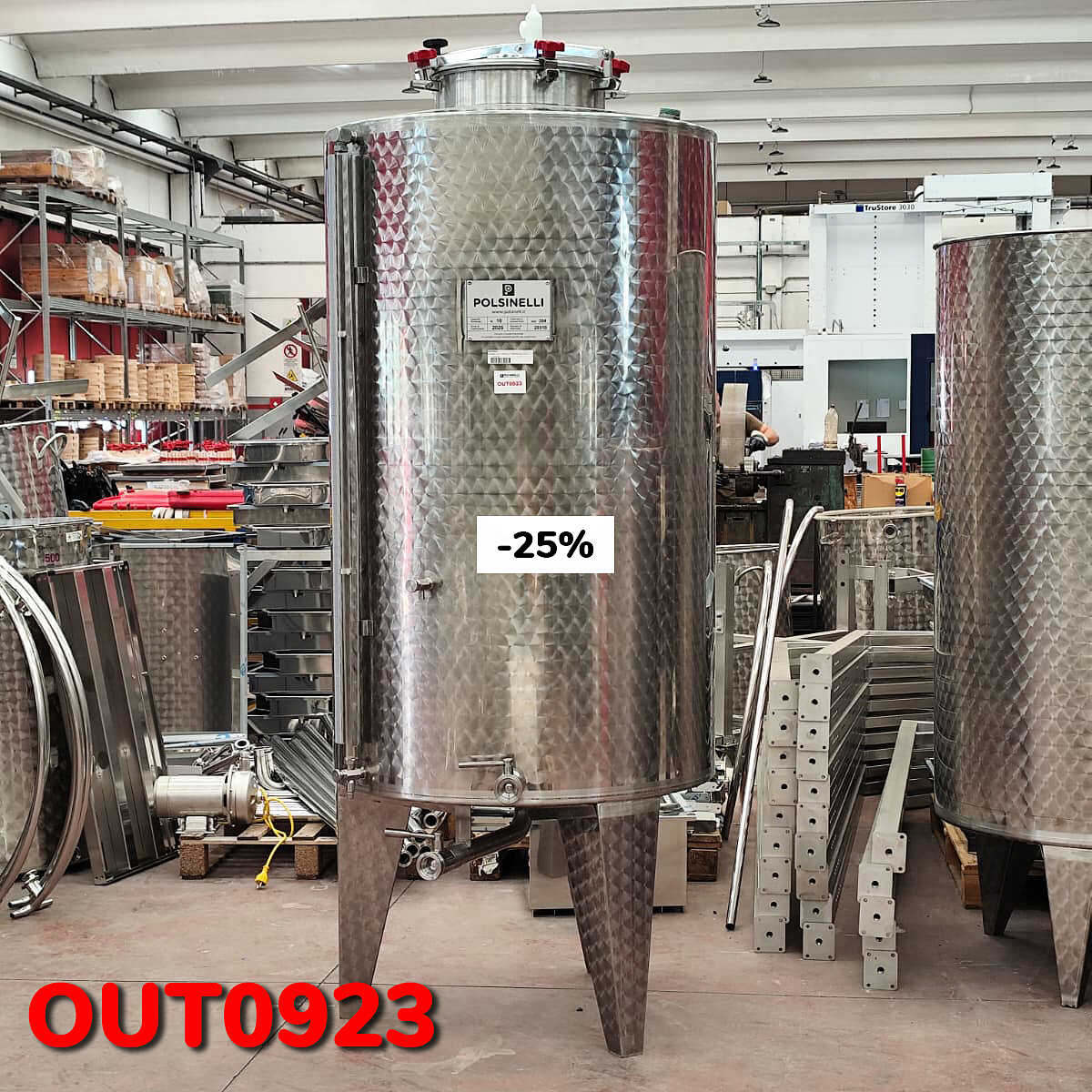

OUTLET - Stainless steel storage tank 1000 L - Ø930 with nitrogen supply

OUTLET - Stainless steel storage tank 1000 L - Ø930 with nitrogen supply

In our online Outlet Store you can find items that are fully operational, but with some surface flaws.

All products are always tested before their shipping and are sold in accordance with the formula "sold as seen".

Outlet items cannot be returned.

Outlet goods can be also inspected and purchased directly at Polsinelli Store & Showroom at 323 Carnello Street, in Isola del Liri (FR), Italy.

The 1000 L stainless steel tank with a 930 mm diameter is suitable for storing wine, oil, and beer thanks to its storage capacity and hygienic properties. It has been designed as the ideal solution for both enthusiasts and industry professionals seeking high-quality equipment for production storage.

The 1000-liter stainless steel tank is manufactured from AISI 304 stainless steel, a material that ensures optimal preservation of food-grade liquids while maintaining the product’s taste and aroma characteristics. It features an externally brushed finish with polished welds and is equipped with a 400 mm anti-residue top manhole, while the interior is mirror-polished to facilitate cleaning and sanitization operations.

The 1000-liter storage tank features a reinforced 10° conical bottom and is equipped with both partial and total drainage outlets fitted with GA 40 stainless steel valves. The unit is also fitted with three stainless steel legs, a wine sampler, and a level indicator with stainless steel protection.

Specifications:

• Material: AISI 304 Stainless Steel

• Capacity: 1000 liters

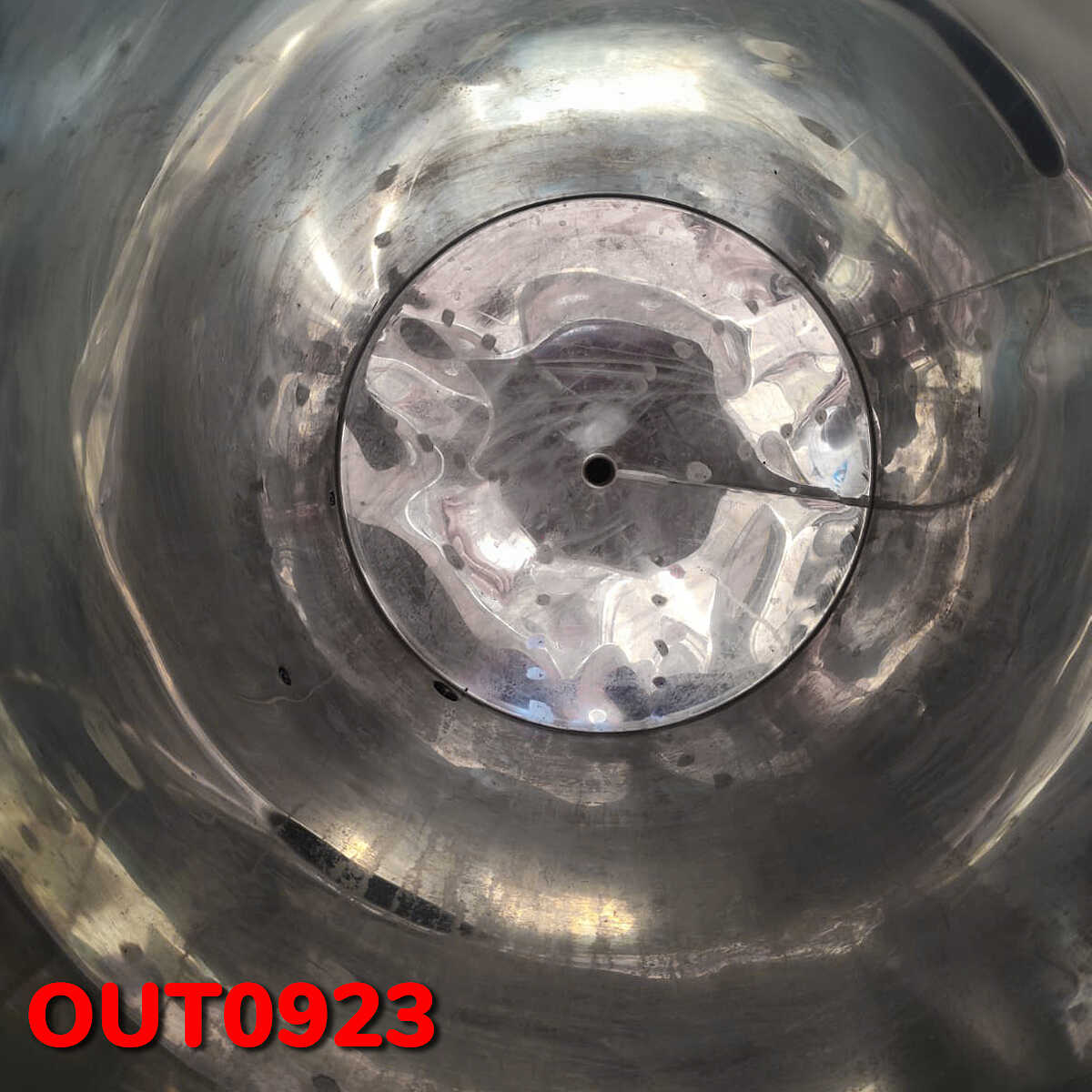

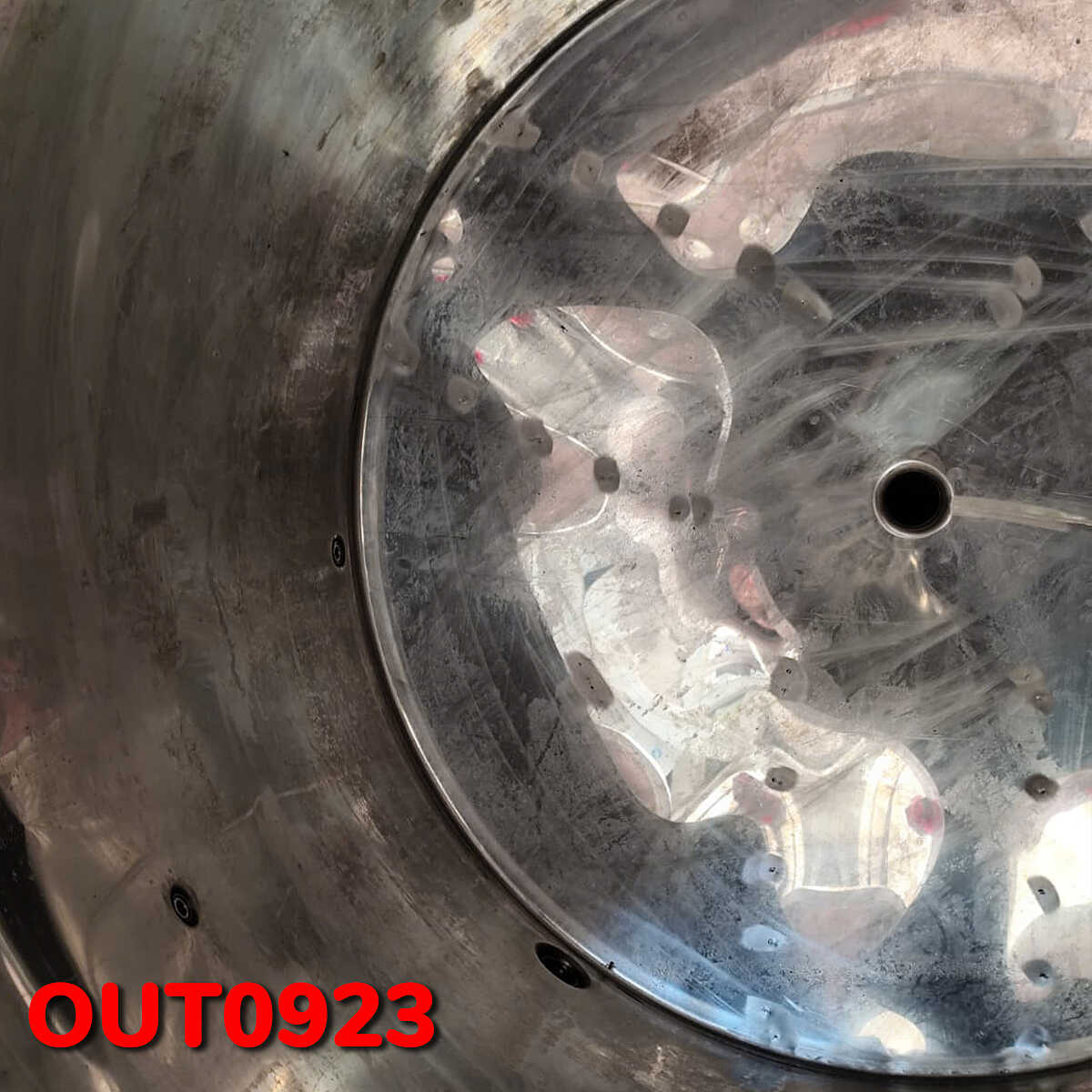

• Internal finish: mirror-polished

• External finish: brushed with satin-finished welds

• Reinforced 10° conical bottom

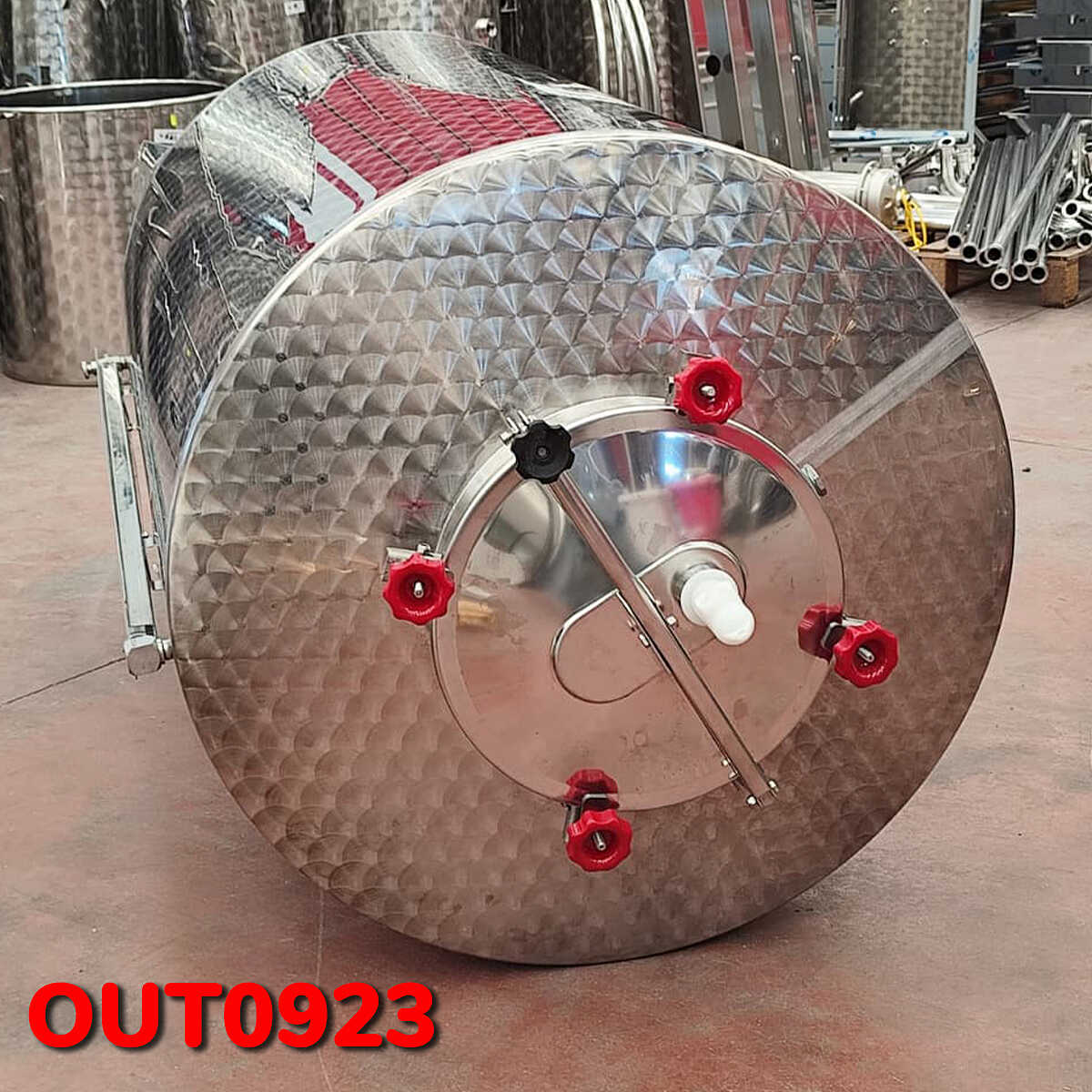

• 400 mm anti-residue top manhole

• 10° conical roof

• Total drain outlet with GA 40 stainless steel valve

• Partial drain outlet with GA 40 stainless steel valve

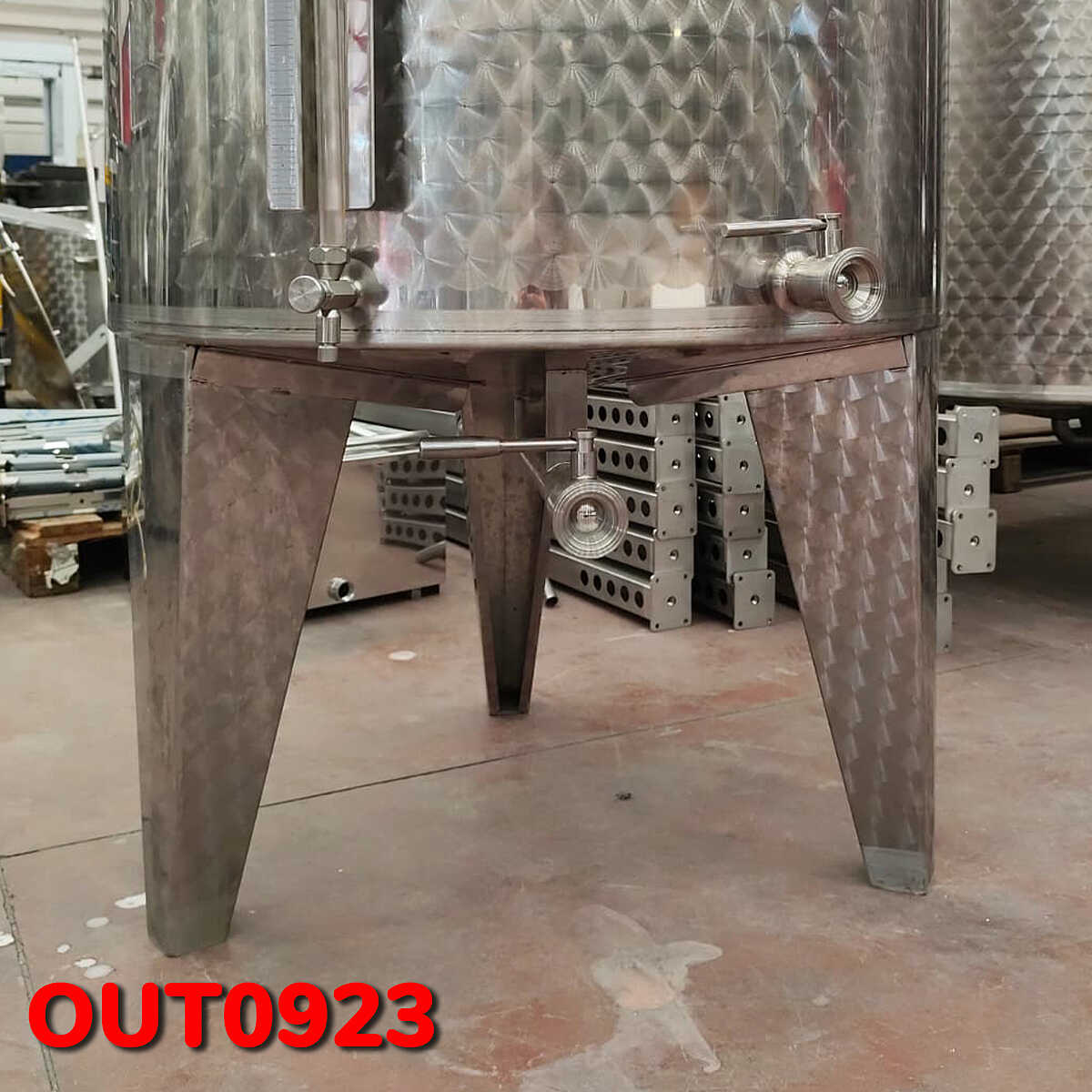

• 3 stainless steel legs

• Double-effect plastic air vent valve

• Stainless steel wine sampler

• Level indicator with stainless steel protection

• 1 cap on the manhole, 1 1/2" + 1 1/2" vent valve

• 1 x 1" cap

• 1 x 1" hose connector and PG 20

• 4 red hooks

Dimensions:

• Diameter: 930 mm (D1)

• Roof height: 300 mm (H4)

• Cylinder height: 1500 mm (H3)

• Leg height: 400 mm (H2)

• Total height with legs, cylinder, and roof: 2300 mm (H1)

Thickness:

• Walls: 1 mm

• Bottom: 1.5 mm
