Motorized stainless steel tank 60° conical trunk 150 L

Product code: SIP0409
Ready to order product
Shipping within 20 days from the receipt of payment.
We are sorry, for this order you will receive a quotation for shipping costs
Qty € 760.00
Add to cart
Description

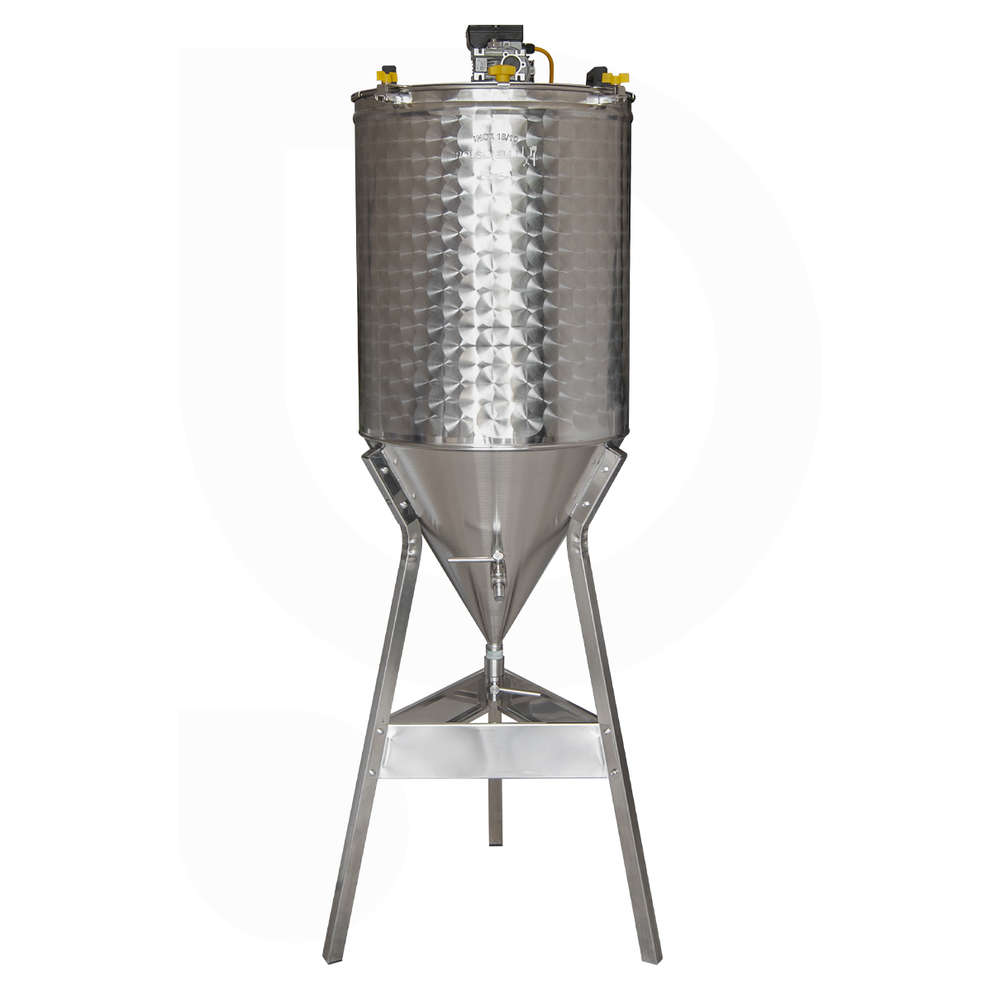

Motorized stainless steel tank 60° conical trunk 150 L

With the 150 L motorised 60° conical stainless steel tank you can easily mix your liquids. Made of Aisi 304 stainless steel (18/10 for foodstuffs), it complies with all food safety regulations. The 150 litre motor-driven 60° conical stainless steel tank is equipped with a thick stainless steel lid reinforced with stainless steel hooks, a 220 Volt motor with speed reducer and mixing blades. It is also equipped with two stainless steel ball valves, one 1" for total discharge and the other 1/2" raised from the bottom, for drawing off the liquid without sediment.

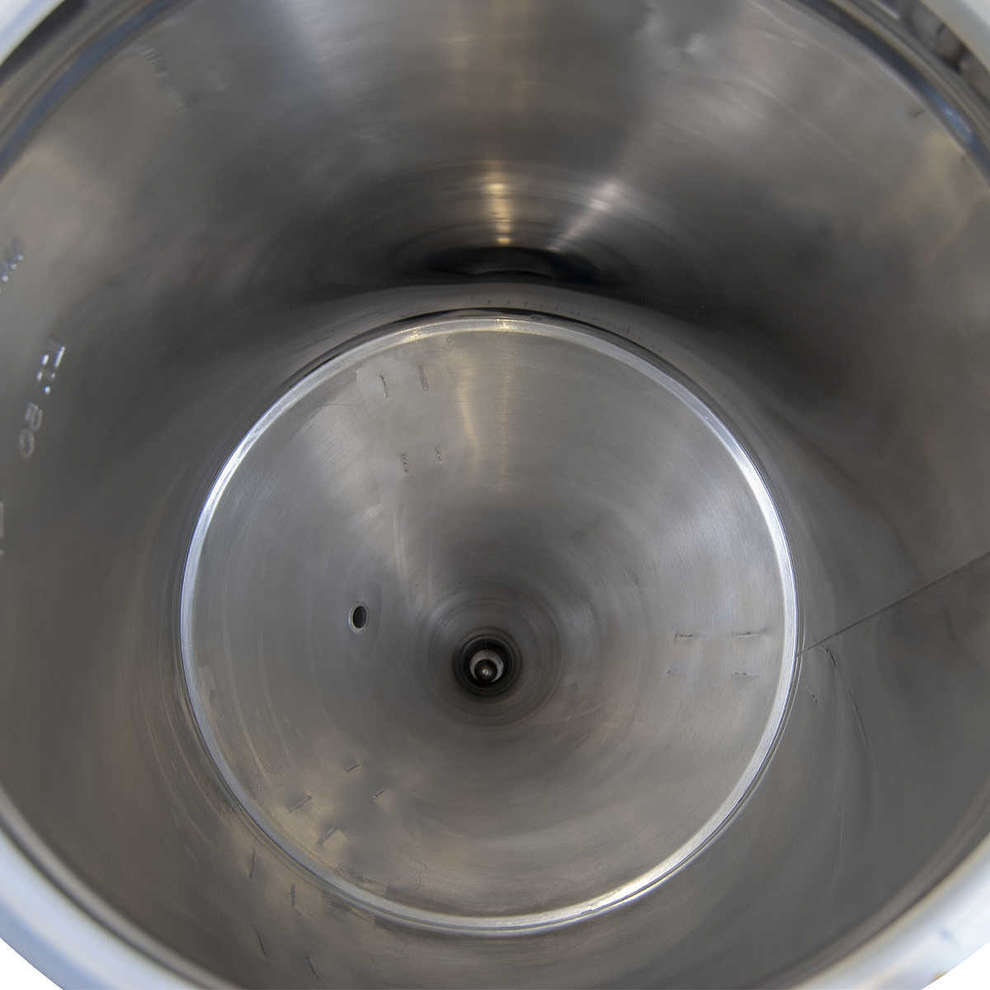

The 60° conical trunk facilitates the extraction of sediment that settles at the bottom of the cone, allowing for greater cleaning. TIG welds facilitate cleaning and sanitising operations thanks to the mirror-polished interior. Excellent stability thanks to the integrated pedestal.

Characteristics:

  • Material: Stainless steel 18/10 (AISI 304)
  • High-thickness stainless steel lid reinforced with stainless steel hooks
  • 220 Volt motor
  • Gear motor
  • Stainless steel mashing blades

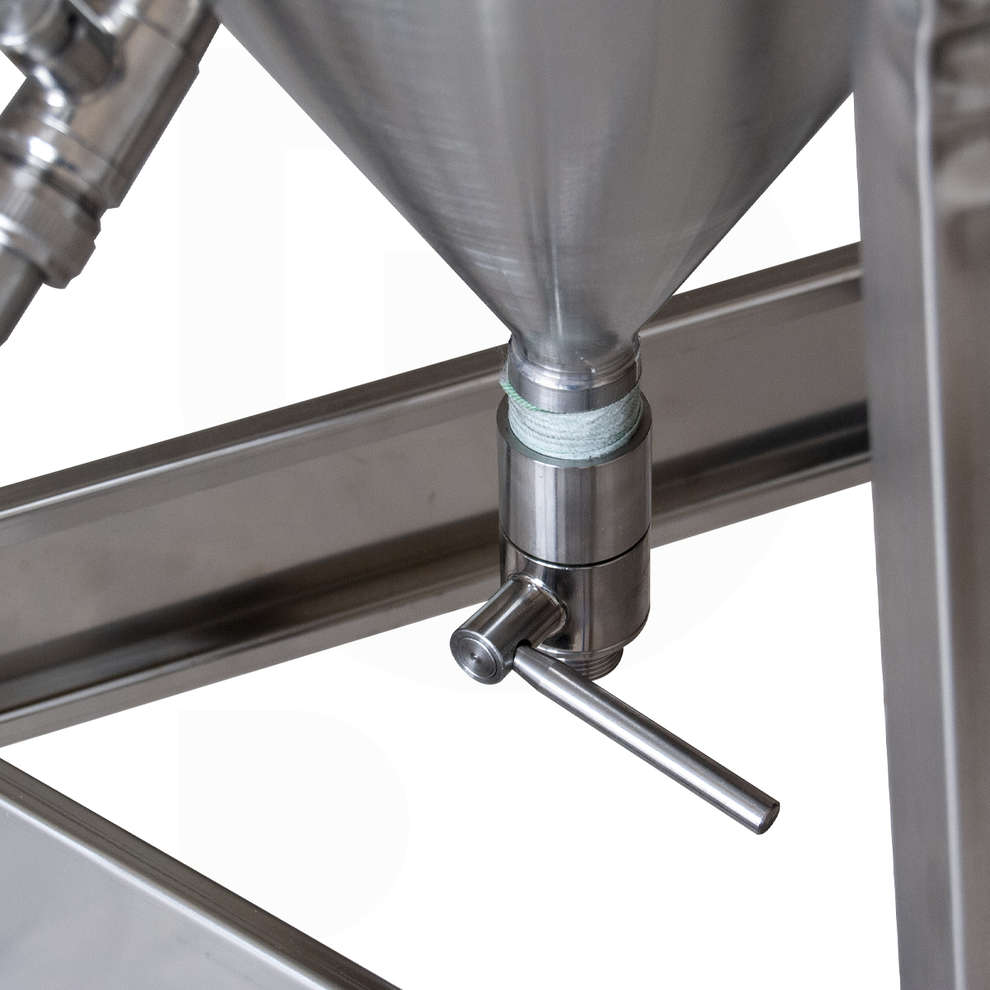

  • 1" x 3/4" total discharge valve
  • 1/2" x 3/4" withdrawal valve
  • No. 1 3/4" x Ø 20 stainless steel hose connector with swivel connection
  • External flowering
  • 60° conical bottom
  • Integrated pedestal
  • Luminaire complies with CE safety standards

Dimensions:

  • Height of the cylinder: mm 600
  • Height of the cylinder plus conical bottom: mm 1050
  • Tank diameter: mm 510
  • Overall dimensions: mm 850x610x1760 (h)
