Lever capping machine Capsy 4

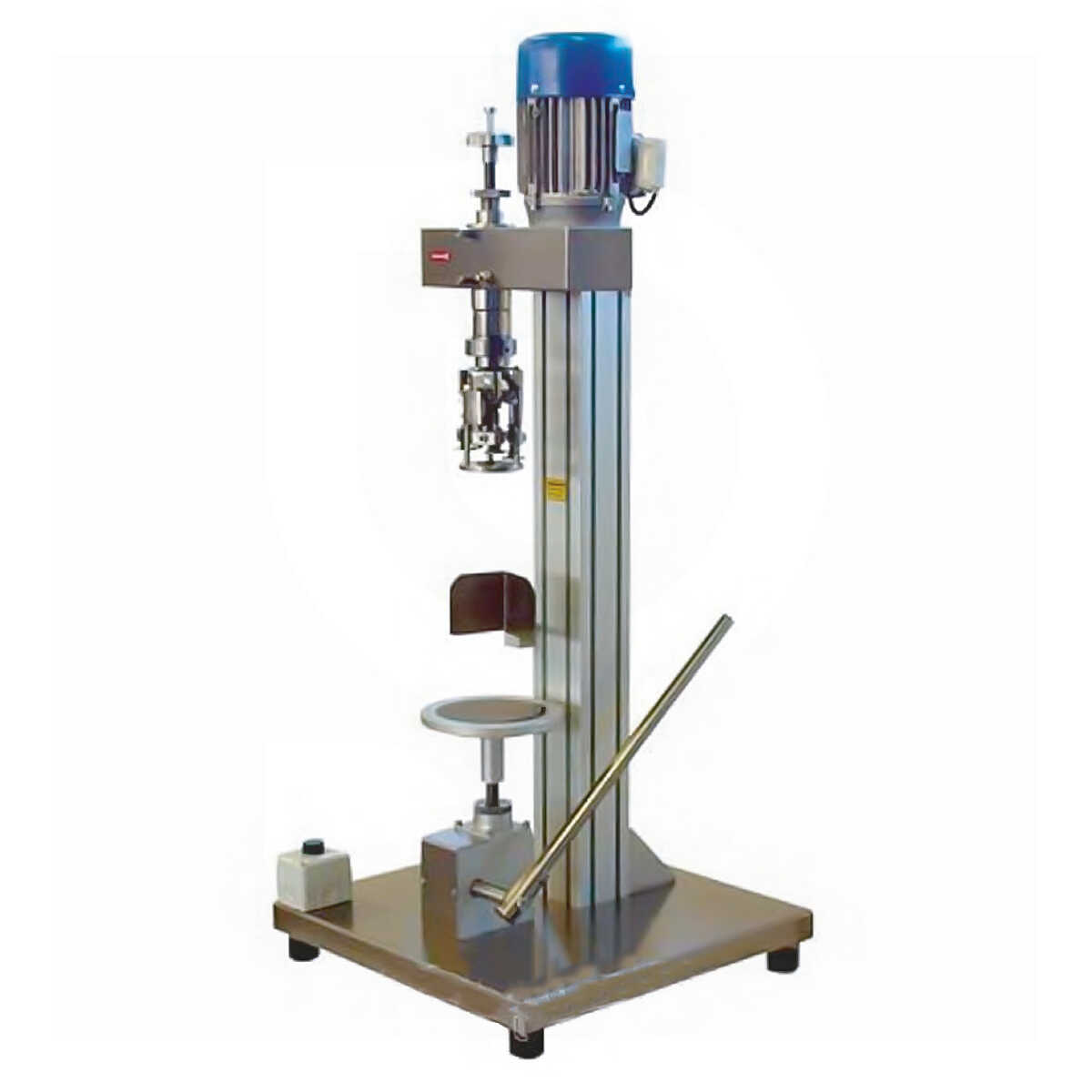

Capsy 4 semi-automatic lever cap capping machine

The Capsy 4 lever capping machine is designed for threading and sealing aluminum caps, with or without a drip-proof system, on bottles and other screw-neck containers. Versatile and reliable, it is suitable for sealing glass, plastic, aluminum, and other material containers.

Equipped with a rotating head with 4 rollers, the machine is easy to use: after adjusting the plate height according to the bottle format, the operator simply needs to place the bottle on the plate with the cap already inserted, press the start button, and operate the manual lever to lift the bottle toward the rotating head. In just a few seconds, the system will thread and seal the cap perfectly.

The Capsy 4 capping machine is entirely made of AISI 304 stainless steel, ensuring durability, resistance, and maximum hygiene. It also complies with CE protection regulations, guaranteeing safety and quality in the capping process.

IMPORTANT: The machine is supplied with a rotating head for caps with a 31.5mm diameter as standard. Upon request, it can be equipped with heads of different diameters (to be specified when ordering). Additionally, when purchasing the semi-automatic lever capping machine, customers are advised to check the technical specifications of the bottle and cap (or provide samples) to set up the rotating head measurements before shipping.

Characteristics:

• Benchtop structure in AISI 304 stainless steel
• 24V controls
• Motor power 0.18Kw (0.25 HP)
• Format: Ø max 200mm - h max 350mm
• Dimensions: 500 x 500 x 1160 mm
• Weight: 40 Kg
• CE protection
