Description

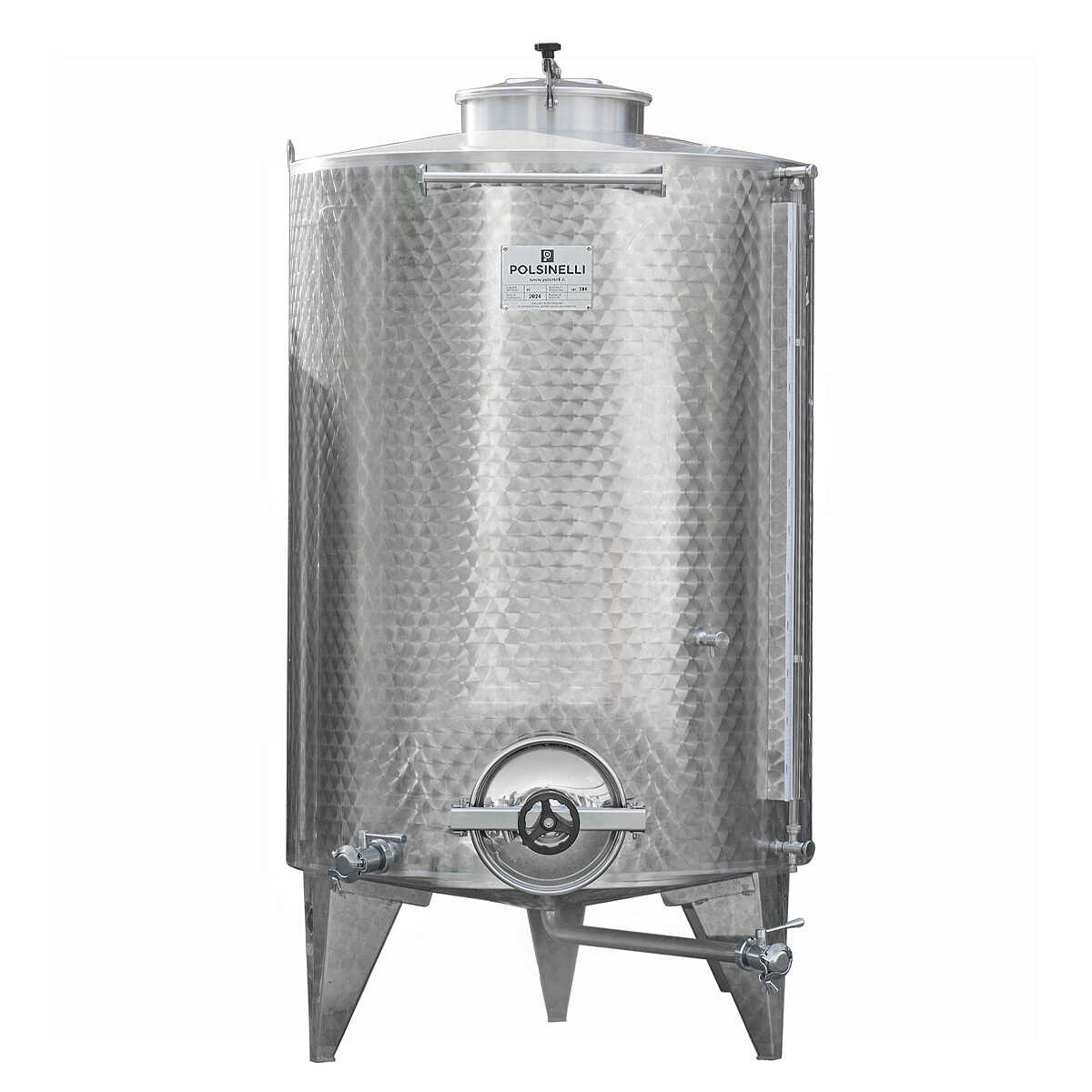

1500 L Stainless Steel Storage Tank with 10° Conical Bottom and Ø300 mm Manhole
Made of AISI 304 stainless steel, the 1500 litre tank with the conical bottom is the right support for storing wine and food liquids, a quality product designed for the needs of private producers and companies. The dimensions of 1500 mm by 1150 mm allow for the storage of up to 1550 litres of product, and the metal construction, with walls and bottom respectively 1.2 mm and 1.5 mm thick, guarantees protection from external agents to produce wine with excellent organoleptic properties. The stainless steel tank, cylindrical in shape, is held by 3 stainless steel feet that guarantee maximum stability.
The round door allows the tank to be easily emptied of the marc, while the wine taster can be used to take small samples of the contents and monitor their evolution.
On the outside, the 1500-litre storage tank for wine appears flowered and has satin-finished welds. The inside is polished to a mirror finish, designed to facilitate cleaning and final sanitisation.
Characteristics:
- Made of AISI 304 stainless steel
- 10° conical bottom with reinforcements
- Ø 300 mm (D3) round manhole, placed flush with the bottom for easy emptying of the pomace (2)
- Upper 400 mm non-returnable manhole cover
- 10° conical roof

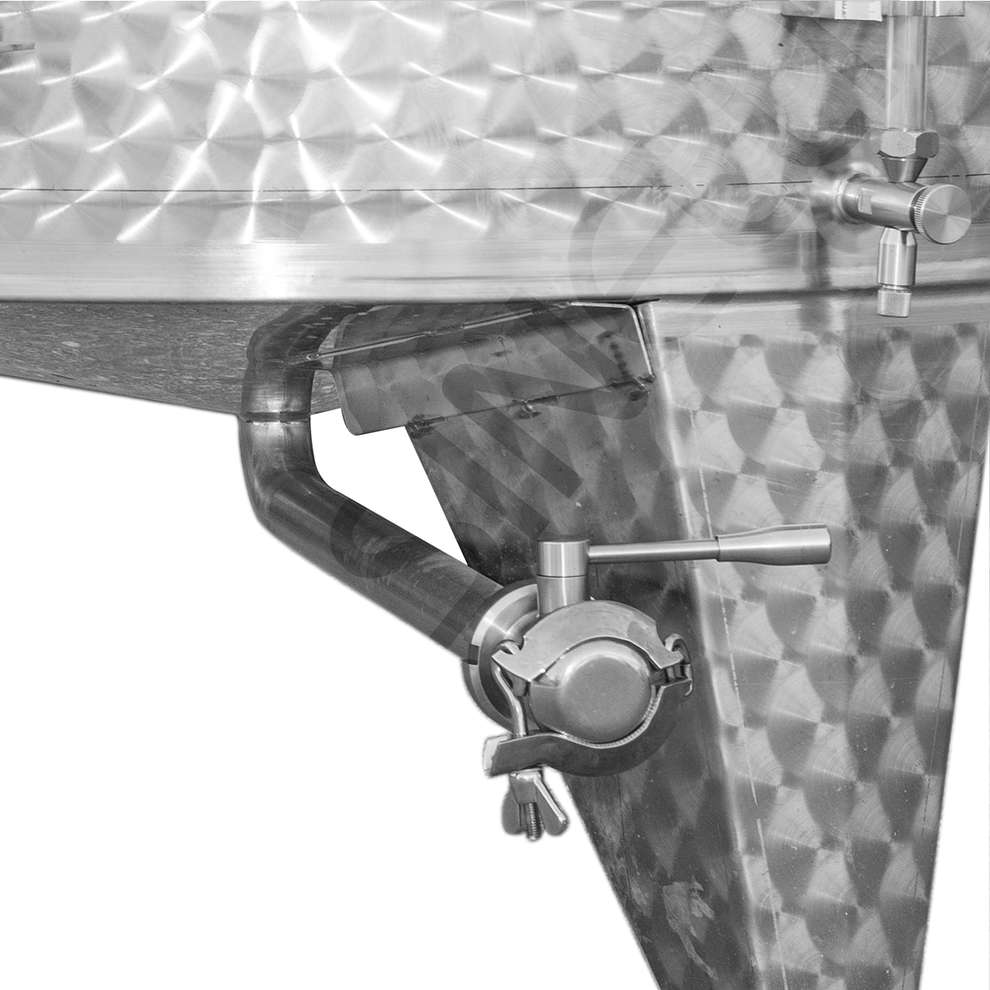

- Total drain DIN 40 with stainless steel valve 1 "e 1/2 GA50 (4)
- Partial drain DIN 40 with stainless steel valve 1 "e 1/2 GA50 (1)
- 3 stainless steel feet
- Double-acting plastic vent valve

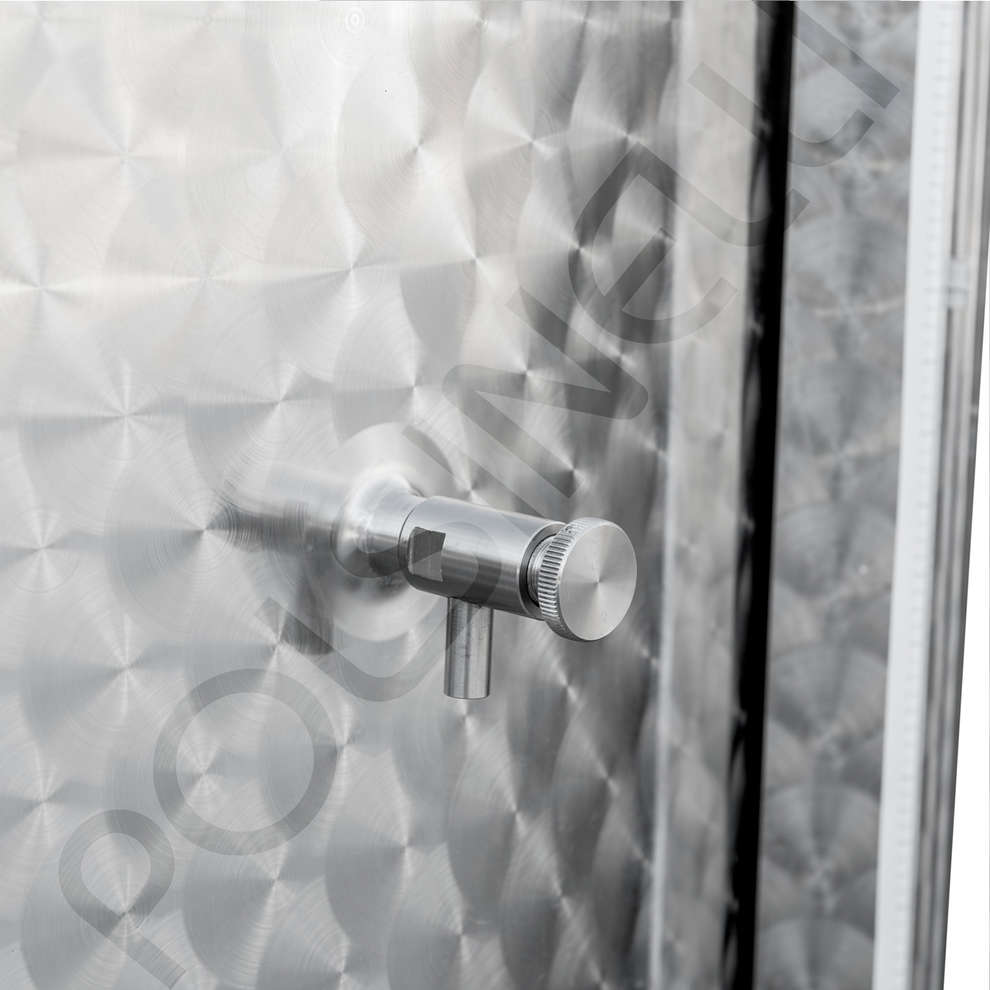

- Stainless steel wine taster (3)
- Scale holder (6)
- Level indicator with stainless steel protection
- Internal finishes: mirror polished for easy cleaning and sanitising
- External finishes: flamed, with satin-finish welds

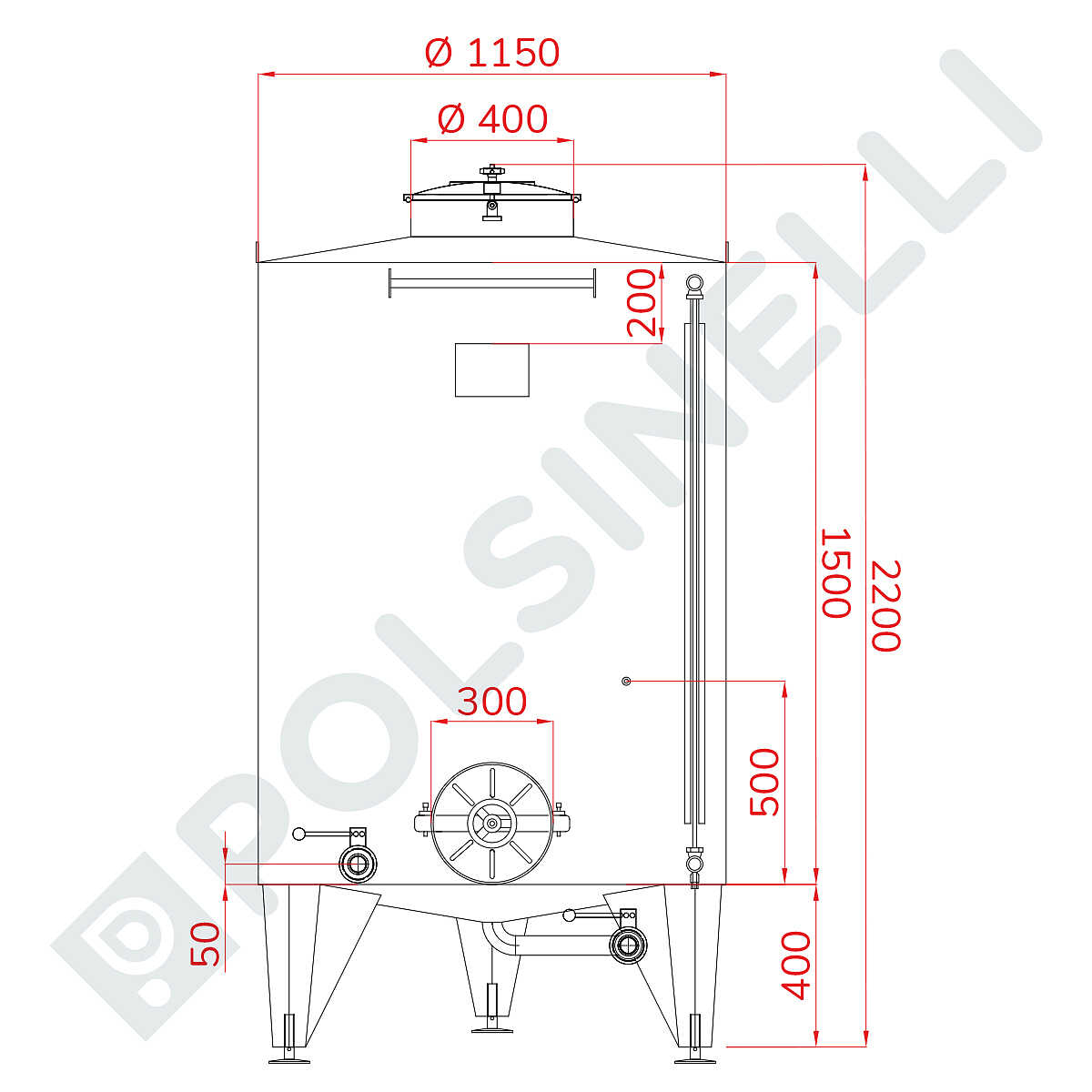

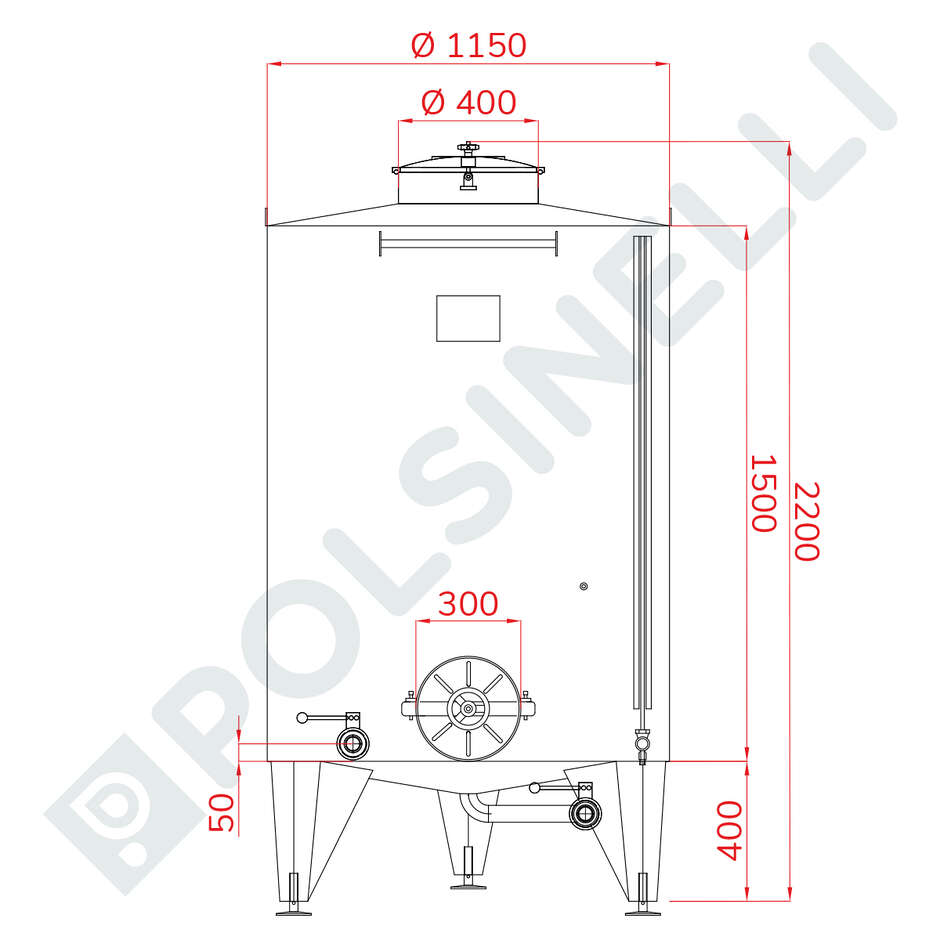

Dimensions:
- Diameter: 1150 mm (D1)
- Roof diameter: 300 mm (D2)
- Wing height: 1500 mm (H3)
- Foot height: 400 mm (H2)
- Roof height: 300 mm (H4)
- Total height with feet, sash and roof: 2200 mm (H1)
Thickness:
- Walls: 1.2 mm
- Bottom: 1.5 mm
